Simpson Strong-Tie META16/TSS2 Description

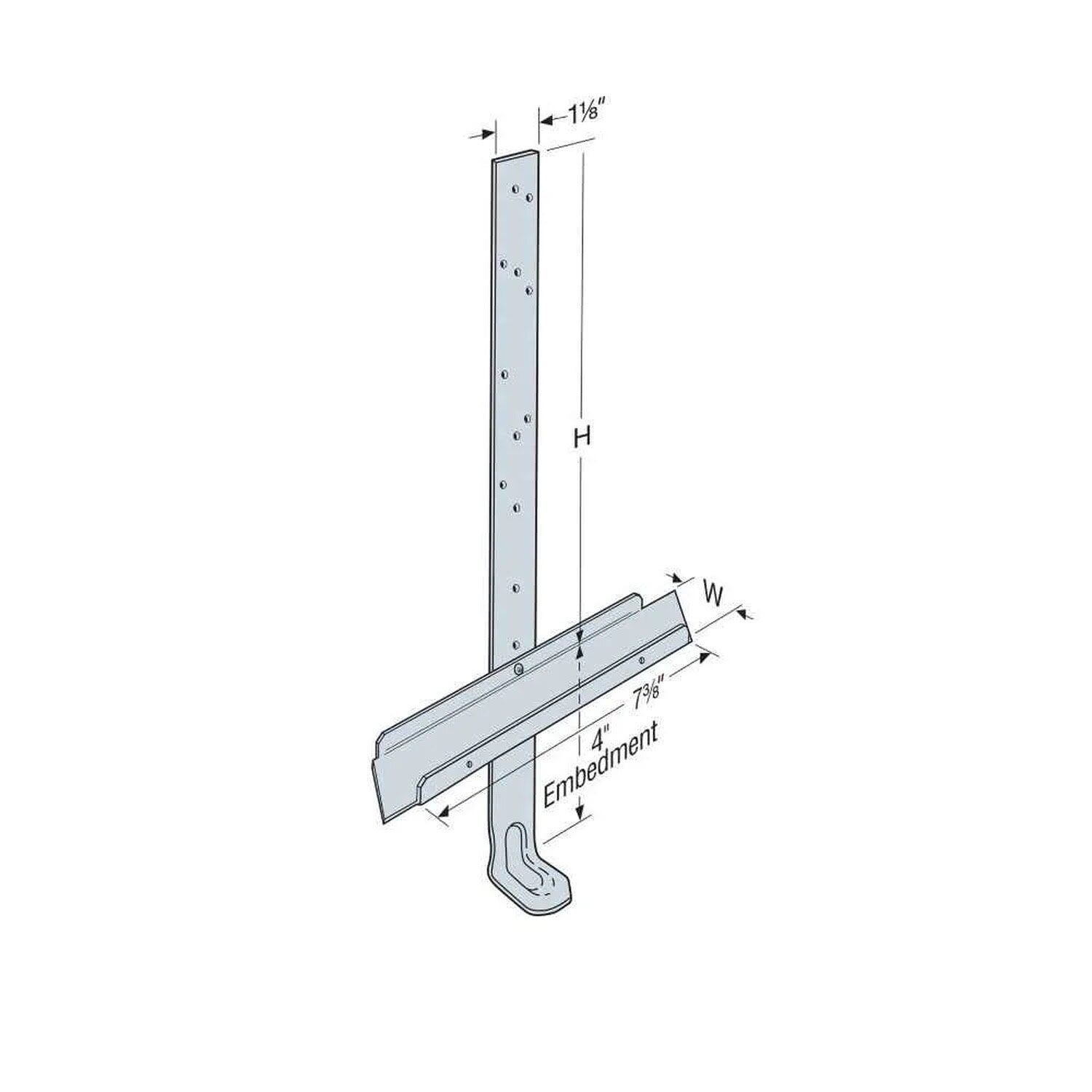

The META16/TSS2 is a 12-inch embedded truss anchor with a seat, designed for secure attachment of roof trusses to concrete and masonry walls.
Simpson Strong-Tie META16/TSS2 Includes
- (1) META16/TSS2 Embedded Truss Anchor
Simpson Strong-Tie META16/TSS2 Features
- Engineered for proper attachment of roof trusses to concrete and masonry walls
- Staggered nail patterns for enhanced uplift resistance
- Includes a moisture barrier for added protection
- Preassembled unit with no height adjustment required
Simpson Strong-Tie META16/TSS2 Applications
- Roof truss attachment to concrete and masonry walls
- Use in construction requiring moisture barriers between trusses and concrete
Simpson Strong-Tie META16/TSS2 Installation Overview
- Embed the anchor 4 inches into a 6-inch minimum concrete beam or 8-inch nominal grouted block wall
- Ensure proper alignment and secure with specified fasteners
- For double anchor installations, avoid fasteners where straps overlap
Simpson Strong-Tie META16/TSS2 Specifications
| Height | 12" |
| For Treated Lumber | No |
| Manufacturer name | Simpson Strong-Tie |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
823917
