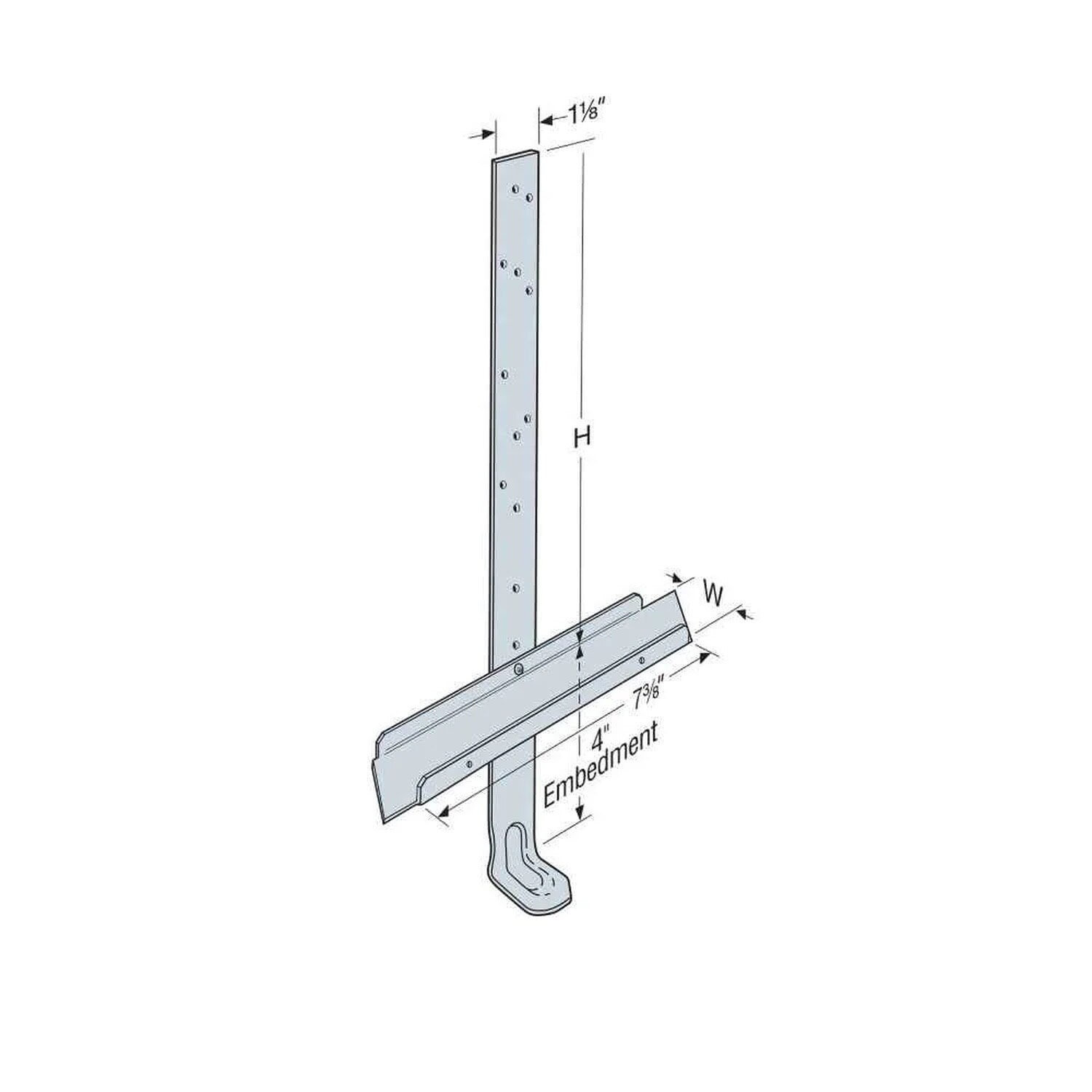

Simpson Strong-Tie META18 Description
The META18 Embedded Truss Anchor is designed for secure attachment of roof trusses to concrete and masonry walls, featuring staggered nail patterns for enhanced uplift resistance.
Simpson Strong-Tie META18 Includes
- (1) Embedded Truss Anchor
Simpson Strong-Tie META18 Features
- Engineered for secure attachment of roof trusses to concrete and masonry walls
- Staggered nail patterns for greater uplift resistance
- Preassembled unit with no height adjustment
- Includes moisture barrier for added protection
Simpson Strong-Tie META18 Applications
- Roof truss attachment to concrete and masonry walls
- Use in residential and commercial construction projects
Simpson Strong-Tie META18 Installation Overview
- Embed the anchor 4 inches into a 6-inch minimum concrete beam or 8-inch nominal grouted block wall
- Ensure proper alignment and secure with specified fasteners
- For double embedded anchor installations, avoid installing fasteners where straps overlap
Simpson Strong-Tie META18 Specifications
| Height | 14" |
| For Treated Lumber | No |
| Manufacturer name | Simpson Strong-Tie |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
