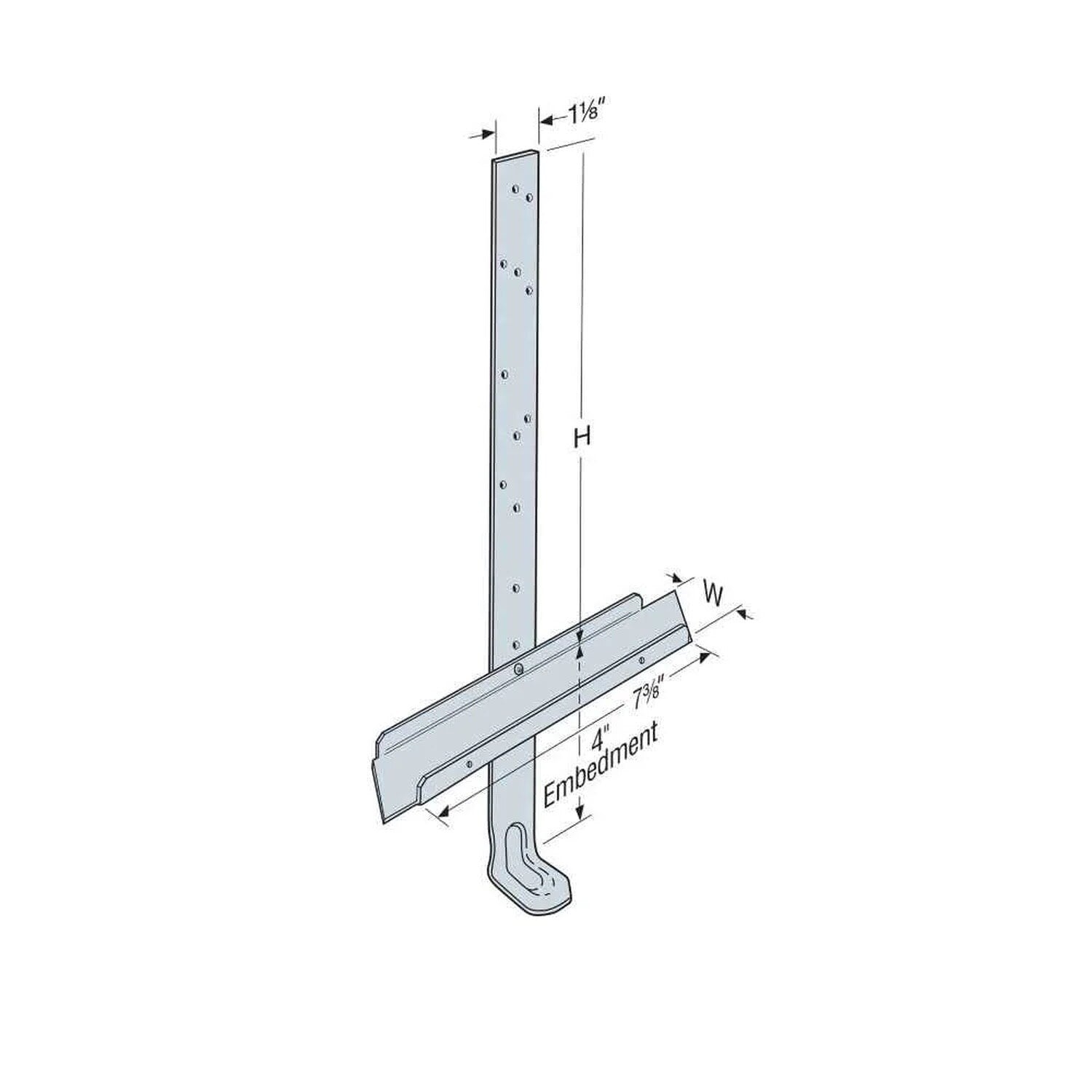

Simpson Strong-Tie META18/TSS2 Description
The META18/TSS2 Embedded Truss Anchor provides a reliable method to attach roof trusses to concrete and masonry walls, featuring staggered nail patterns for enhanced uplift resistance.
Simpson Strong-Tie META18/TSS2 Includes
- (1) Embedded Truss Anchor
Simpson Strong-Tie META18/TSS2 Features
- Engineered method for attaching roof trusses to concrete and masonry walls
- Staggered nail patterns for greater uplift resistance
- Preassembled unit with no height adjustment
- Provides a moisture barrier between concrete and truss
Simpson Strong-Tie META18/TSS2 Applications
- Roof truss attachment to concrete and masonry walls
- Use in single- and multi-ply trusses
- Moisture barrier provision between concrete and truss
Simpson Strong-Tie META18/TSS2 Installation Overview
- Embed the anchor 4 inches into a 6-inch minimum concrete beam or 8-inch nominal grouted block wall
- Use all specified fasteners included
- Ensure proper alignment and shim design for mislocated anchors
- Avoid fastener installation where straps overlap in double embedded anchor setups
Simpson Strong-Tie META18/TSS2 Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Height | 14" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
824623
