Simpson META20 Description
The META20 Embedded Truss Anchor is engineered for securely attaching roof trusses to concrete and masonry walls, featuring staggered nail patterns for enhanced uplift resistance.
Simpson META20 Includes
- (1) Embedded Truss Anchor
Simpson META20 Features
- Engineered for secure attachment of roof trusses to concrete and masonry walls
- Staggered nail patterns for greater uplift resistance
- Includes moisture barrier for added protection
- Preassembled unit with no height adjustment required
Simpson META20 Applications
- Roof truss attachment to concrete walls
- Roof truss attachment to masonry walls
- Structural reinforcement in construction projects
Simpson META20 Installation Overview

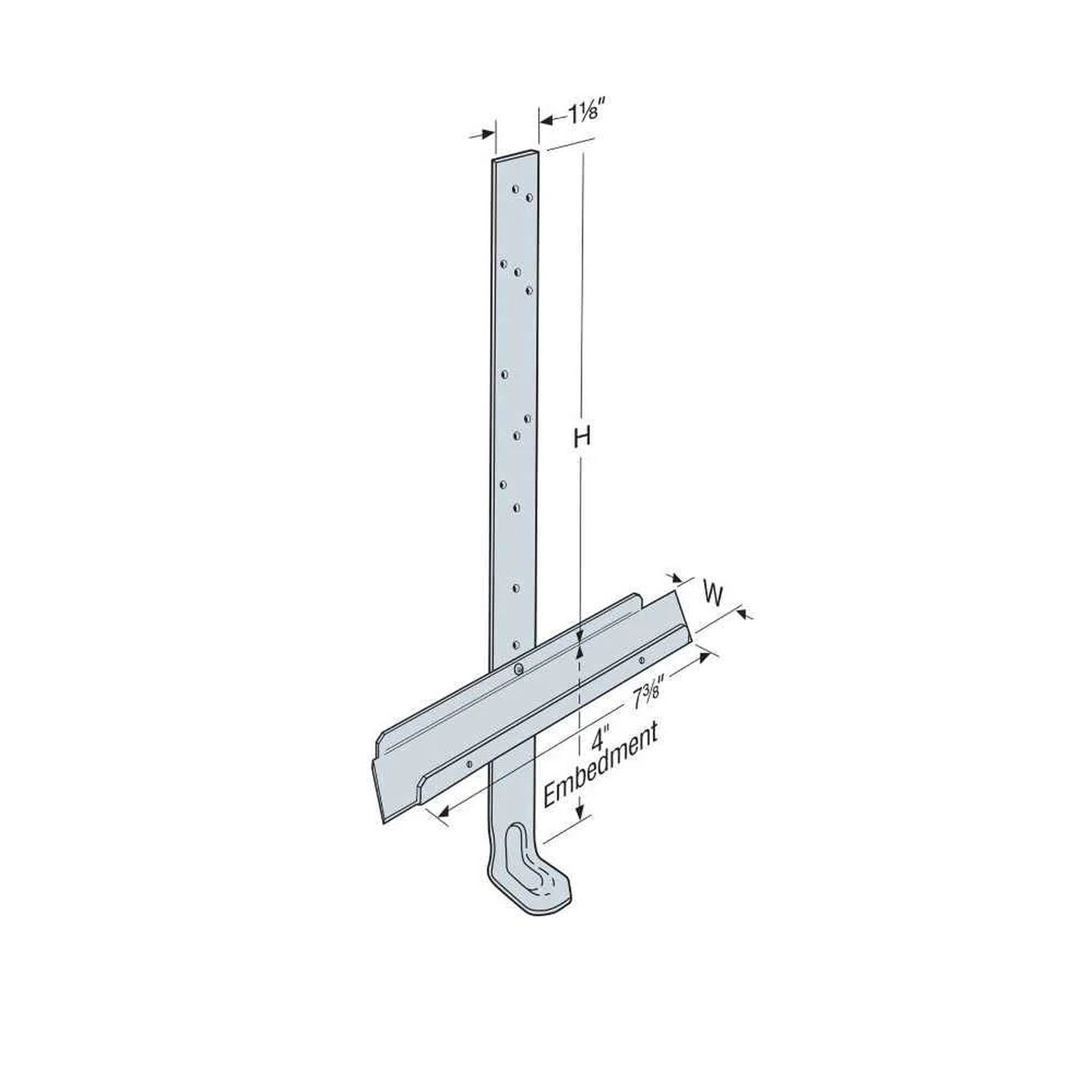

- Embed the anchor 4 inches into a 6-inch minimum concrete beam or 8-inch nominal grouted block wall
- Ensure proper alignment and secure with specified fasteners
- For mislocated anchors, use a shim designed by a Truss Engineer if the gap is between 1/8 inch and 1 1/2 inches
- Avoid installing fasteners where straps overlap in double embedded anchor installations
Simpson META20 Specifications
| Weight | 0.6 lb |
| Height | 16" |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Toolup Part # :
824694
