Simpson Strong-Tie META20/TSS2 Description
The META20/TSS2 Embedded Truss Anchor with Seat provides a reliable method for attaching roof trusses to concrete and masonry walls, featuring staggered nail patterns for enhanced uplift resistance.
Simpson Strong-Tie META20/TSS2 Includes
- (1) Embedded Truss Anchor with Seat
Simpson Strong-Tie META20/TSS2 Features
- Engineered for proper attachment of roof trusses to concrete and masonry walls
- Staggered nail patterns for greater uplift resistance
- Includes a moisture barrier for added protection
- Preassembled unit with no height adjustment required
Simpson Strong-Tie META20/TSS2 Applications
- Roof truss attachment to concrete and masonry walls
- Use in residential and commercial construction projects
Simpson Strong-Tie META20/TSS2 Installation Overview

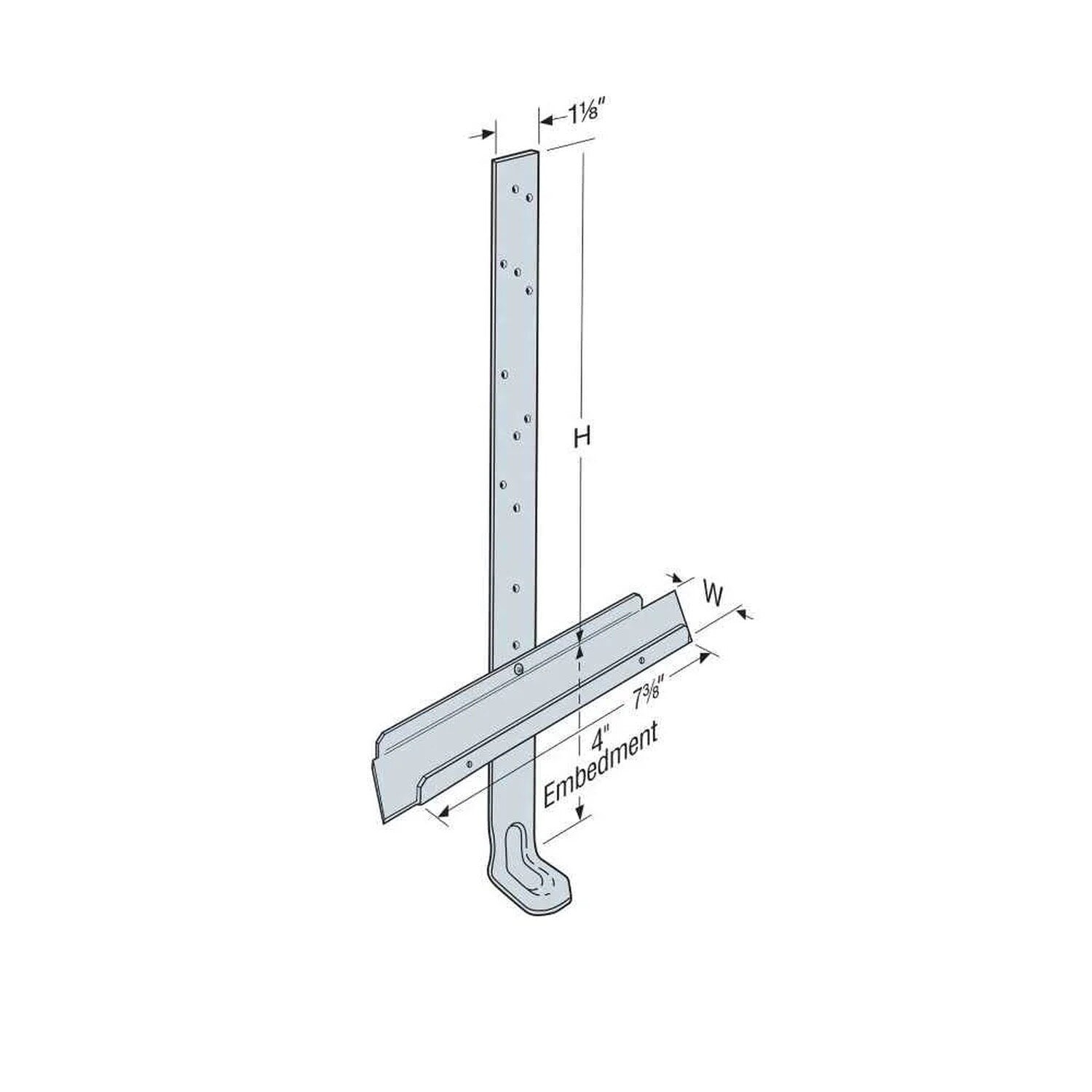

- Embed the anchor 4 inches into a 6-inch minimum concrete beam or 8-inch nominal grouted block wall
- Ensure proper alignment and use all specified fasteners
- For mislocated anchors, provide a shim or install new anchors as needed
Simpson Strong-Tie META20/TSS2 Specifications
| Weight | 0.6 lb |
| Height | 16" |
| For Treated Lumber | No |
| Manufacturer Name | Simpson Strong-Tie |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
824198
