Simpson Strong-Tie META20Z Description

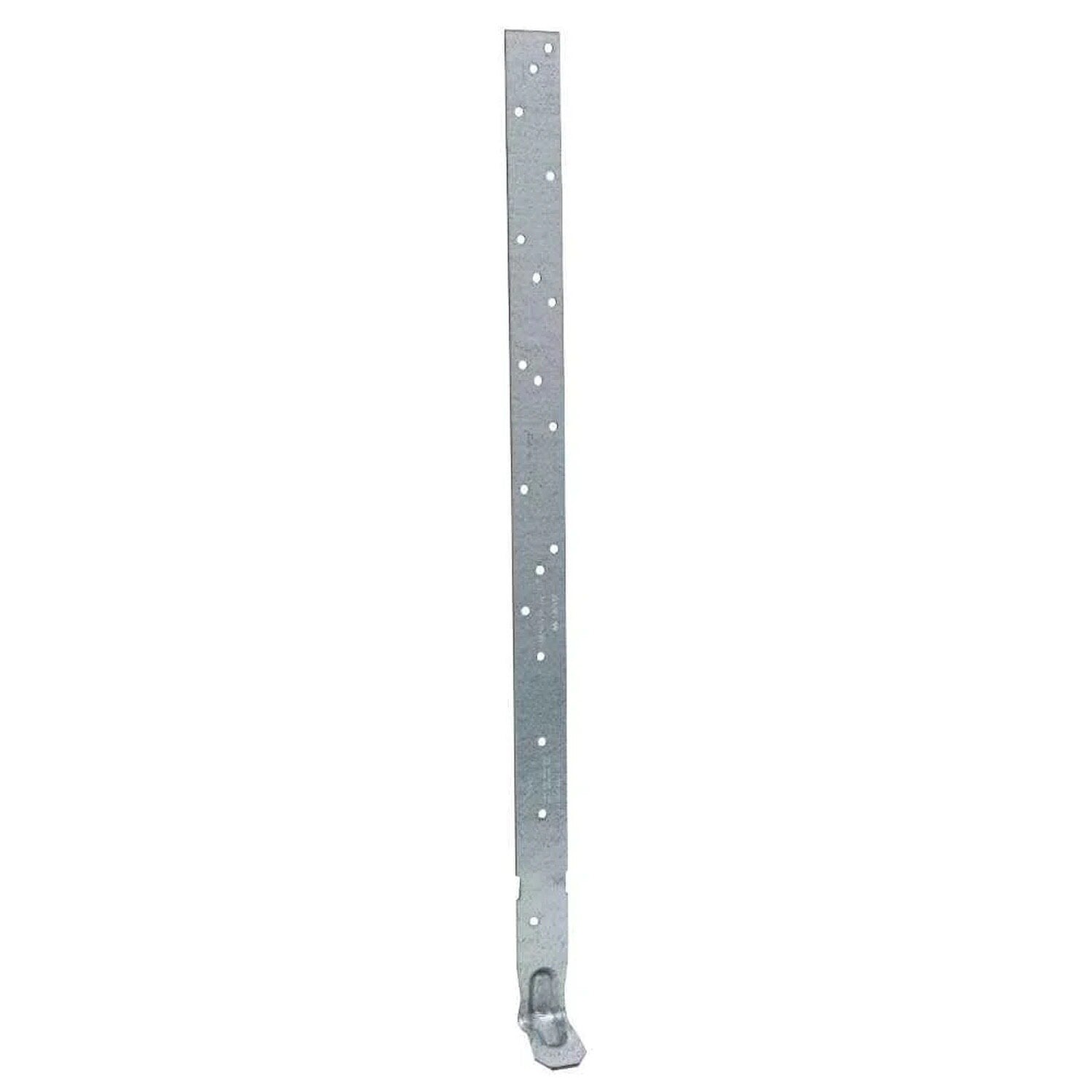

The META20Z Embedded Truss Anchor provides a reliable method to attach roof trusses to concrete and masonry walls, featuring a ZMAX galvanized finish for enhanced corrosion resistance.
Simpson Strong-Tie META20Z Includes
- (1) Embedded Truss Anchor
Simpson Strong-Tie META20Z Features
- Engineered for proper attachment of roof trusses to concrete and masonry walls
- Staggered nail patterns for greater uplift resistance
- G185 ZMAX galvanized finish for added corrosion resistance
- Requires hot-dip galvanized fasteners meeting ASTM A153 specifications
Simpson Strong-Tie META20Z Applications
- Roof truss attachment to concrete and masonry walls
- Use in residential and commercial construction for secure truss anchoring
Simpson Strong-Tie META20Z Installation Overview
- Embed the anchor 4" into a 6" minimum concrete beam or 8" nominal grouted block wall
- Ensure proper alignment and use specified fasteners
- For mislocated anchors, provide a shim designed by a Truss Engineer if the gap is between 1/8" and 1 1/2"
- Avoid installing fasteners where straps overlap in double embedded anchor installations
Simpson Strong-Tie META20Z Specifications
| Height | 16" |
| Finish | ZMAX Galvanized |
| For Treated Lumber | Yes |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
824220
