Simpson Strong-Tie META24 Description
The META24 Embedded Truss Anchor provides a reliable solution for attaching roof trusses to concrete and masonry walls, featuring staggered nail patterns for enhanced uplift resistance.
Simpson Strong-Tie META24 Includes
- (1) Embedded Truss Anchor
Simpson Strong-Tie META24 Features
- Engineered for secure attachment of roof trusses to concrete and masonry walls
- Staggered nail patterns for increased uplift resistance
- Includes moisture barrier for added protection
- Preassembled unit with no height adjustment required
Simpson Strong-Tie META24 Applications
- Roof truss attachment to concrete walls
- Roof truss attachment to masonry walls
- Use in residential and commercial construction
Simpson Strong-Tie META24 Installation Overview

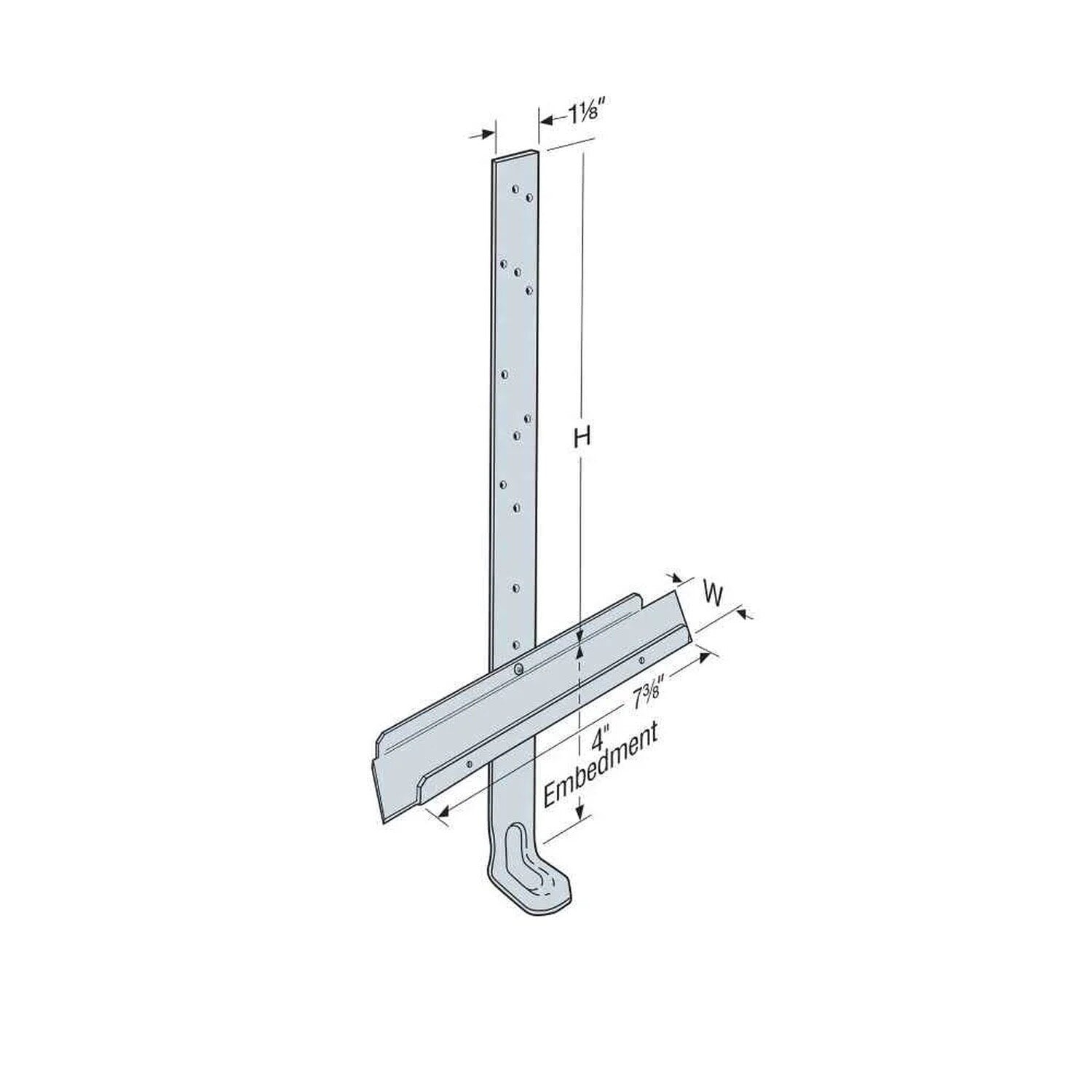

- Embed the anchor 4 inches into a 6-inch minimum concrete beam or 8-inch nominal grouted block wall
- Ensure proper alignment and secure with specified fasteners
- For mislocated anchors, use a shim designed by a Truss Engineer if the gap is within specified limits
- Avoid installing fasteners where straps overlap in double anchor installations
Simpson Strong-Tie META24 Specifications
| Height | 20" |
| For Treated Lumber | No |
| Finish | G90 Galvanized |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
825346
