Simpson Anchors | SKU:
MFCB45.5-R25
Simpson Strong-Tie MFCB45.5-R25 (5-1/2") Bypass Framing Fixed-Clip Connector (25 Pack)
$70.65
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie MFCB45.5-R25 Description

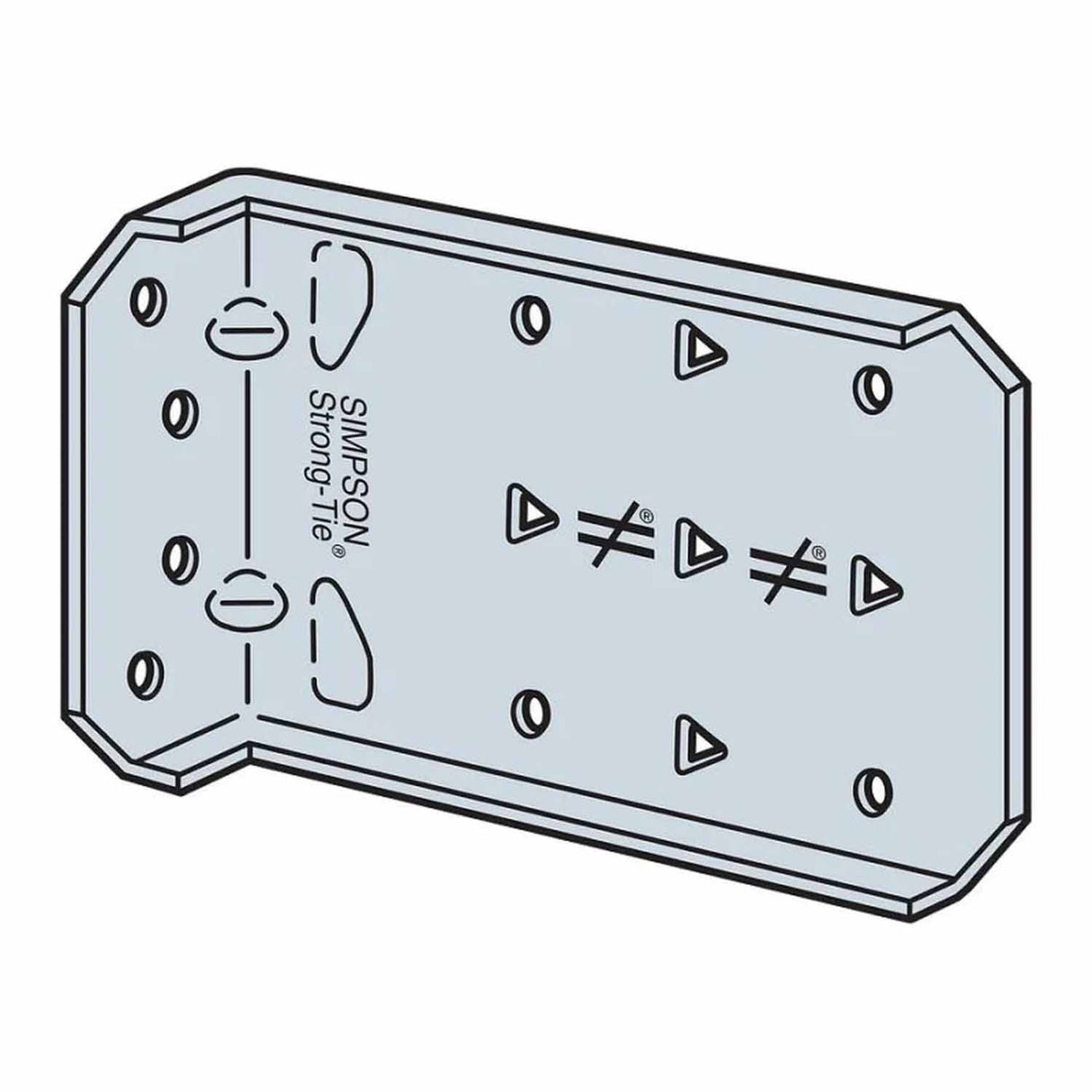

The Simpson Strong-Tie MFCB clips are economical, high-performance fixed-clip connectors rated for tension, compression, shear, and in-plane loads.
Simpson Strong-Tie MFCB45.5-R25 Includes
- (25) Bypass Framing Fixed-Clip Connector
Simpson Strong-Tie MFCB45.5-R25 Features

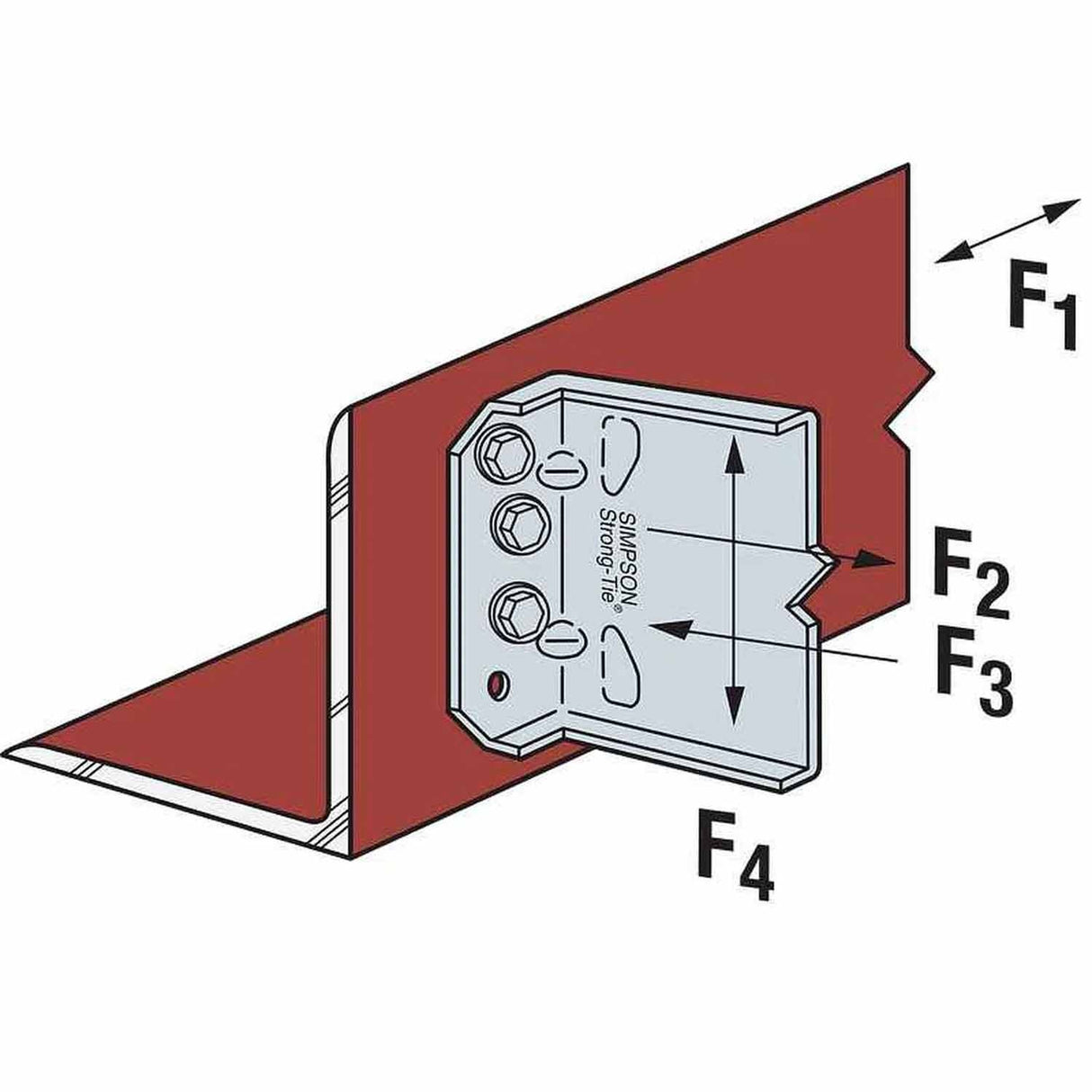

- Rated for tension, compression, shear, and in-plane loads
- Provides design flexibility with varying screw and anchorage patterns
- Strategically placed stiffeners, embossments, and anchor holes maximize connector performance
Simpson Strong-Tie MFCB45.5-R25 Applications

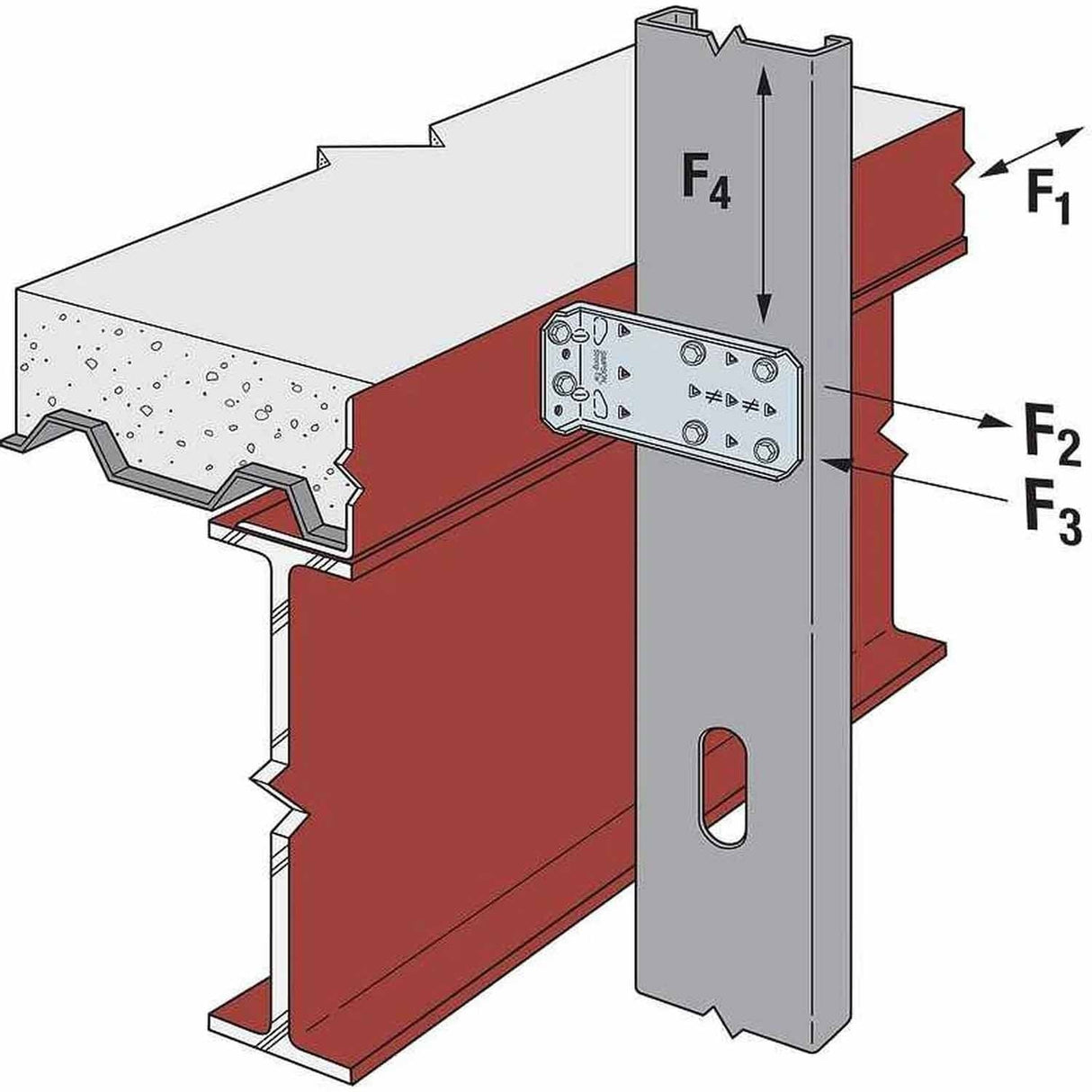

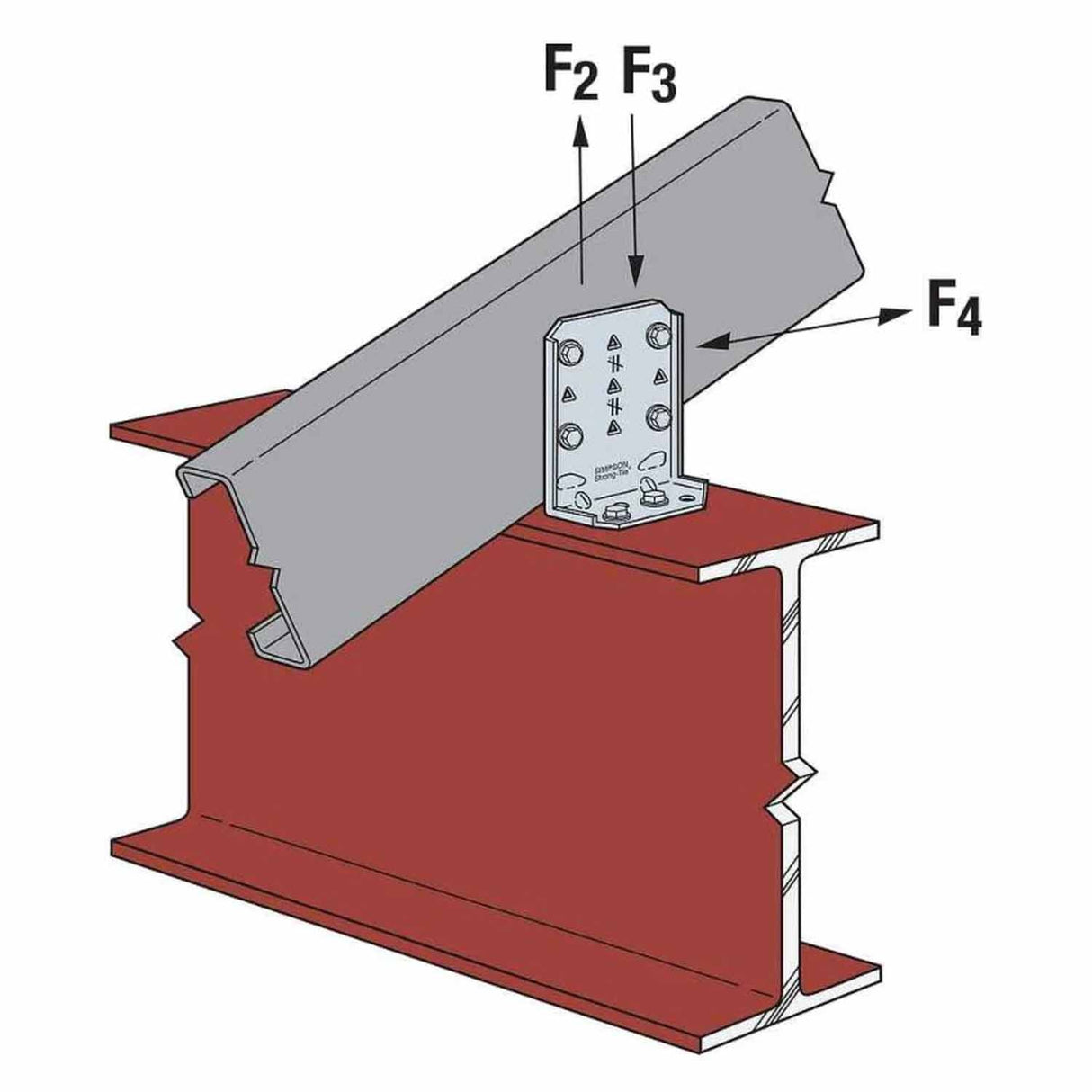

- Framing applications requiring tension, compression, shear, and in-plane load support

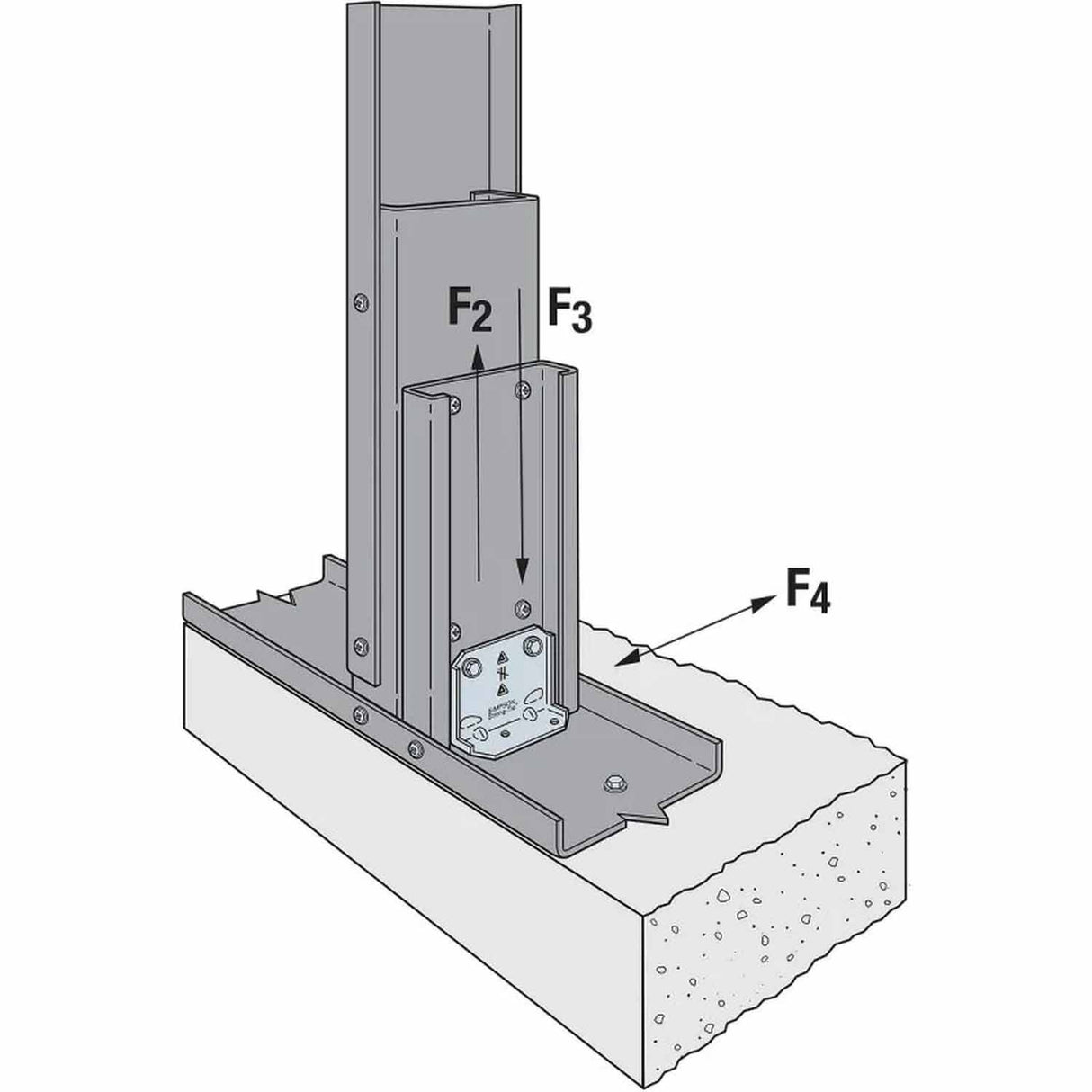

- Bypass framing in cold-formed steel construction

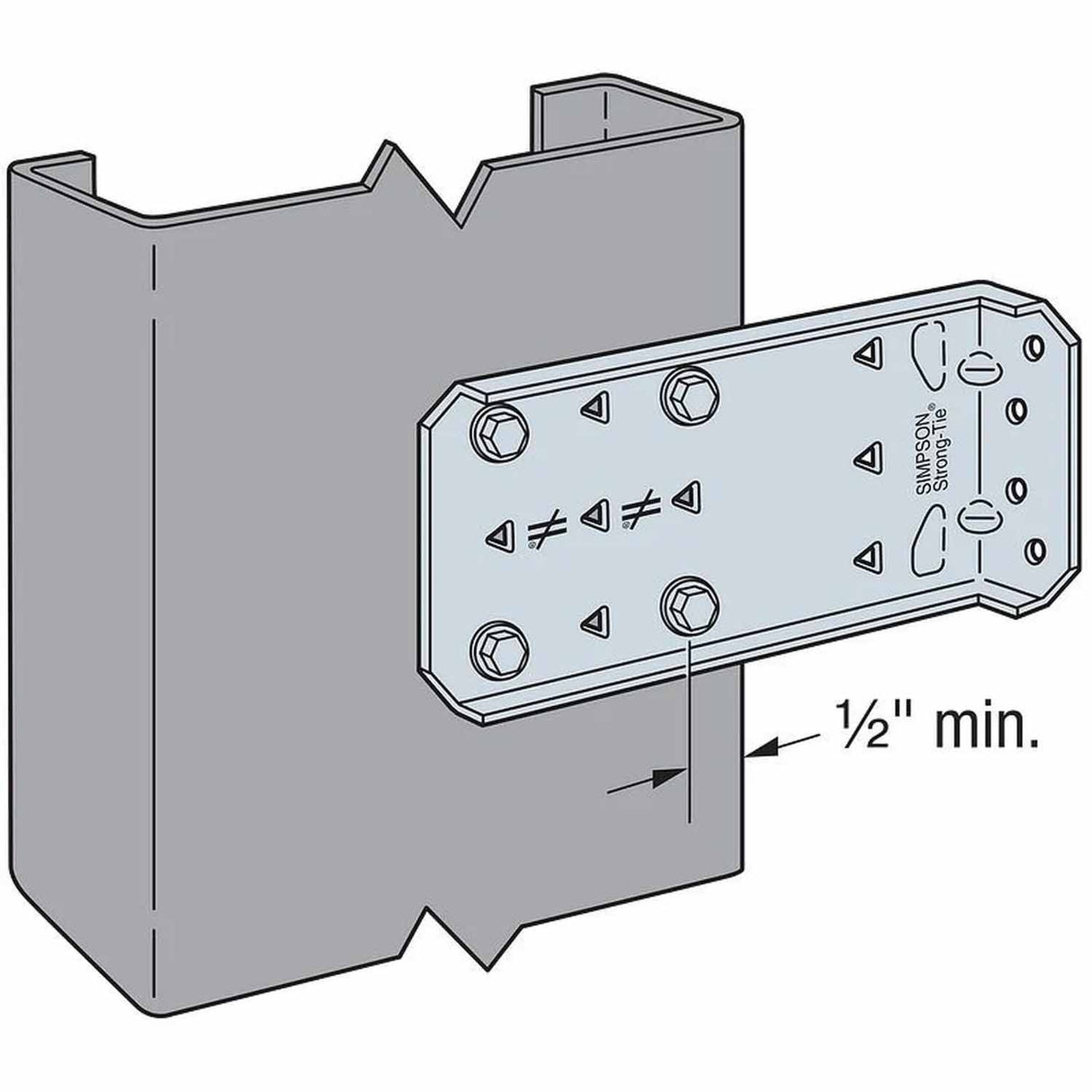

Simpson Strong-Tie MFCB45.5-R25 Installation Overview

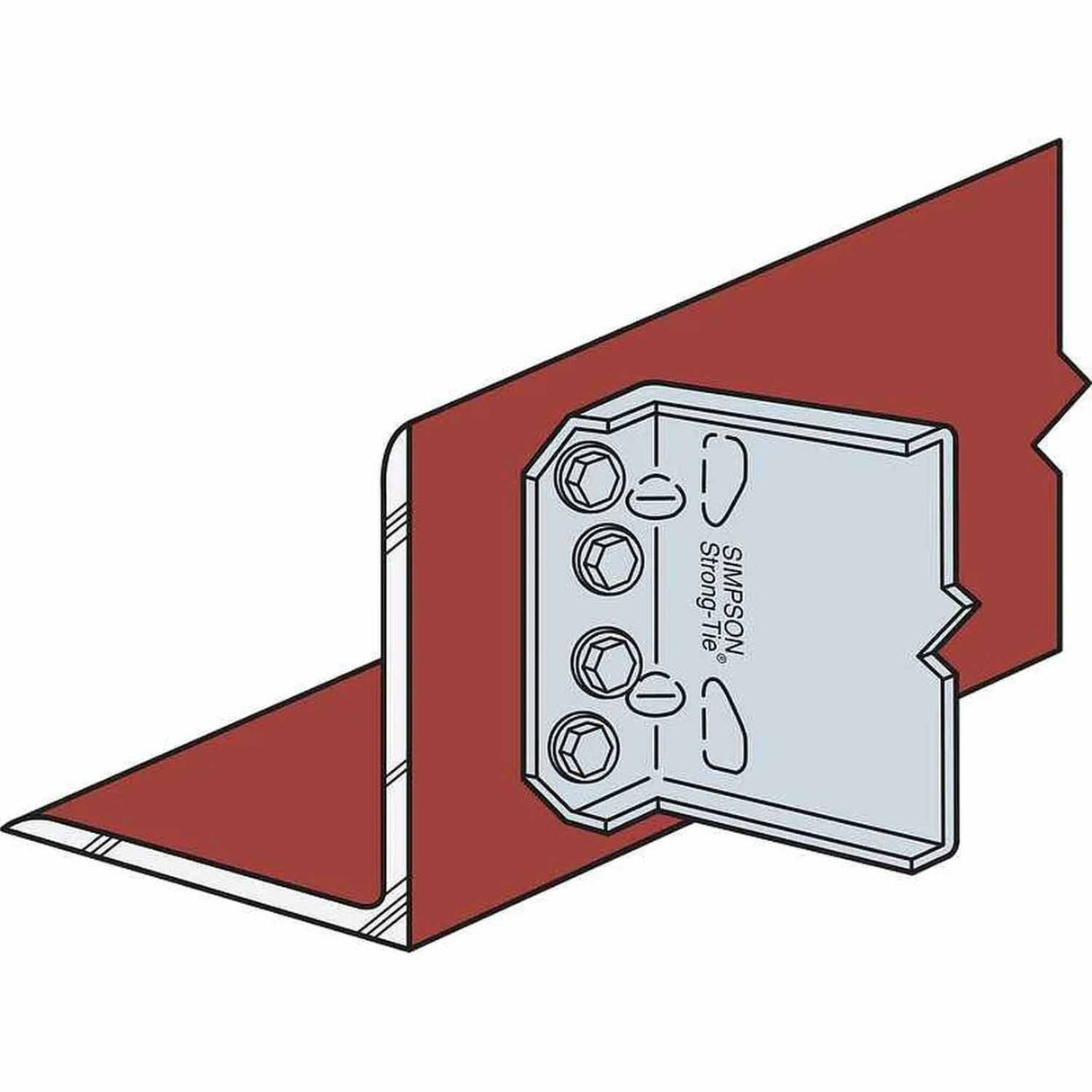

- Use the specified type and number of anchors

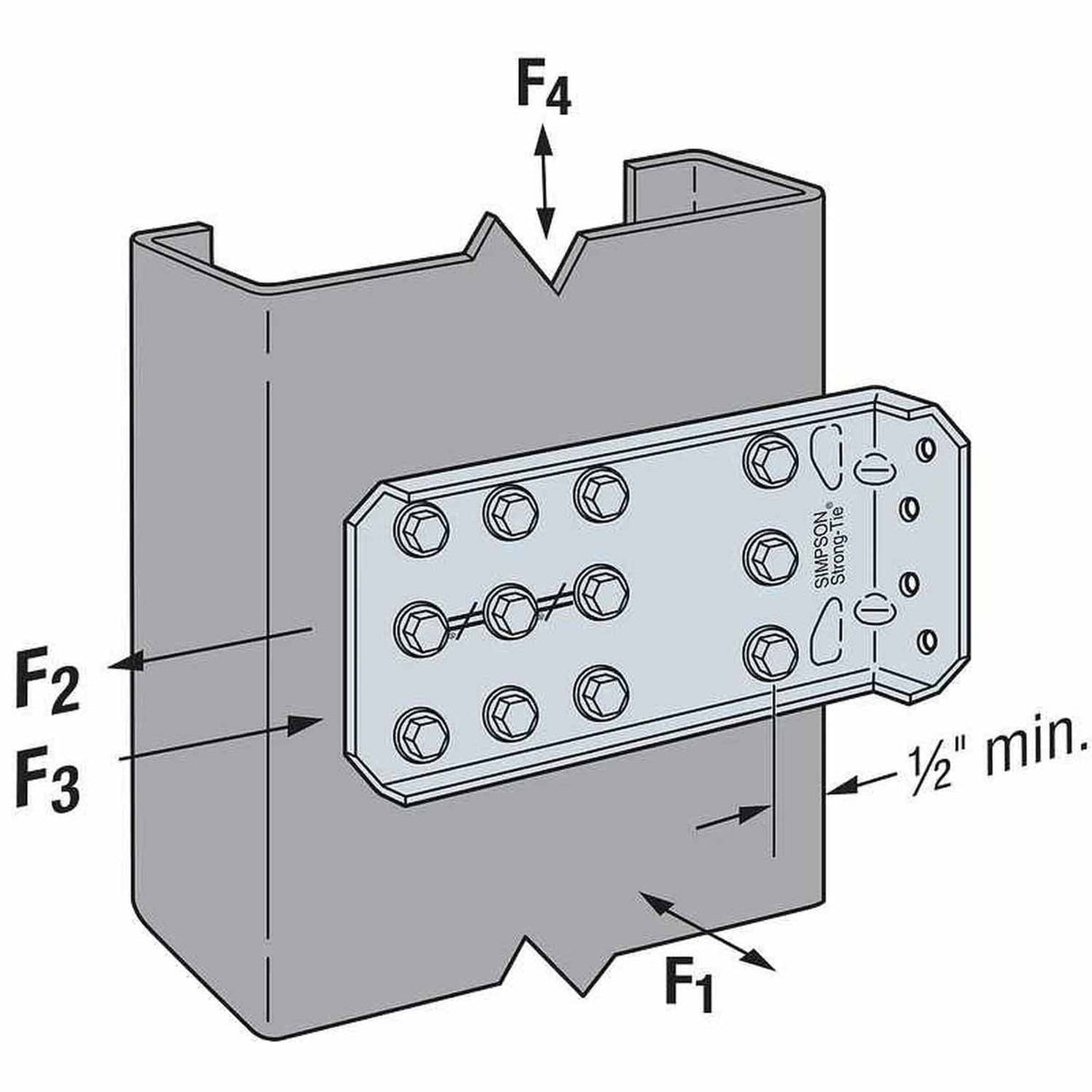

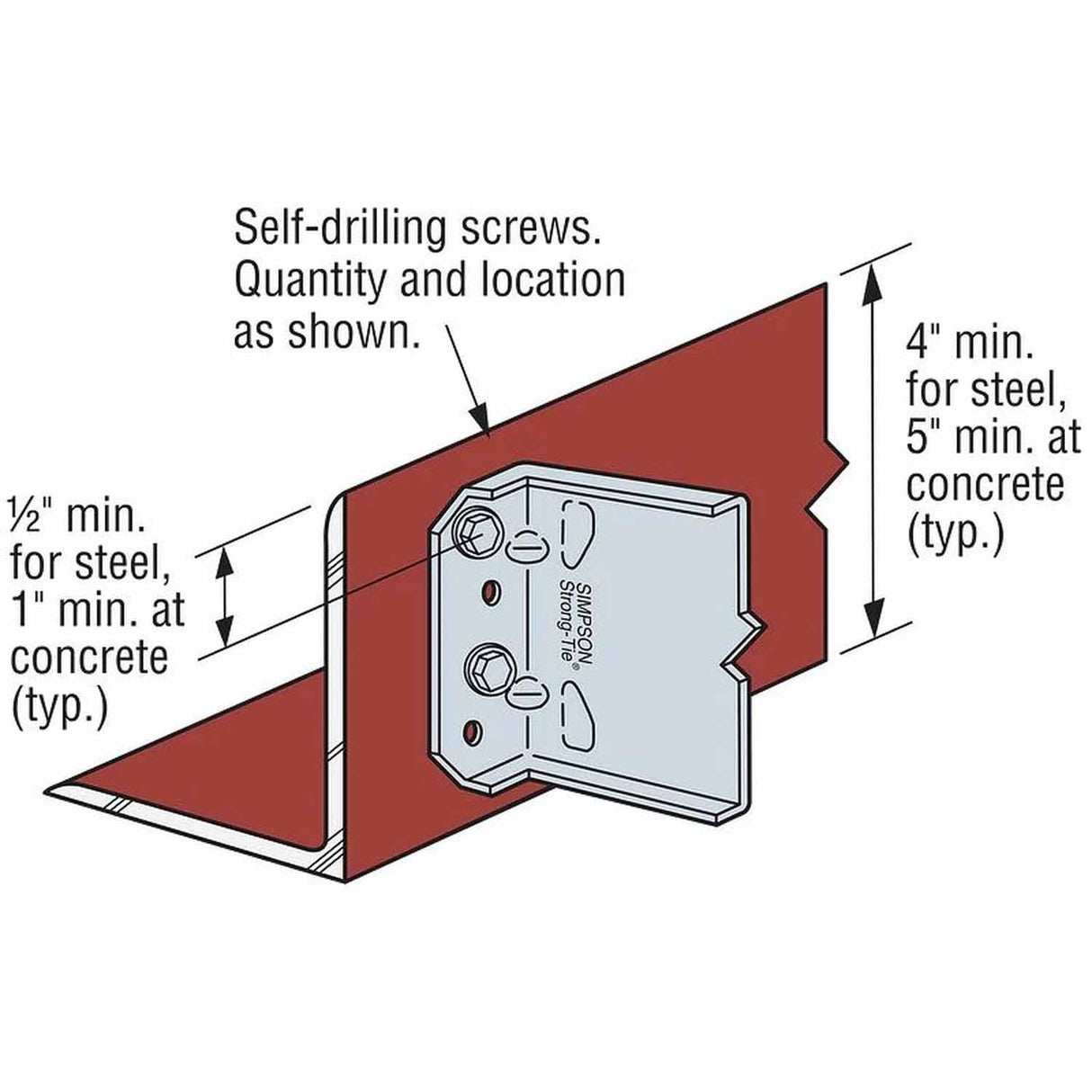

- Attach using the specified number of #12 self-drilling screws to cold-formed steel framing
- For installations to wood framing, refer to Simpson Strong-Tie engineering guidelines
Simpson Strong-Tie MFCB45.5-R25 Specifications
| Finish | G90 Galvanized |
| Length | 5-1/2" |
| Thickness | 68 mil |
| Gauge | 14 |
| Dimensions | 1 1/2 x 4 |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values.
