Simpson Hangers | SKU:
MIT311.88

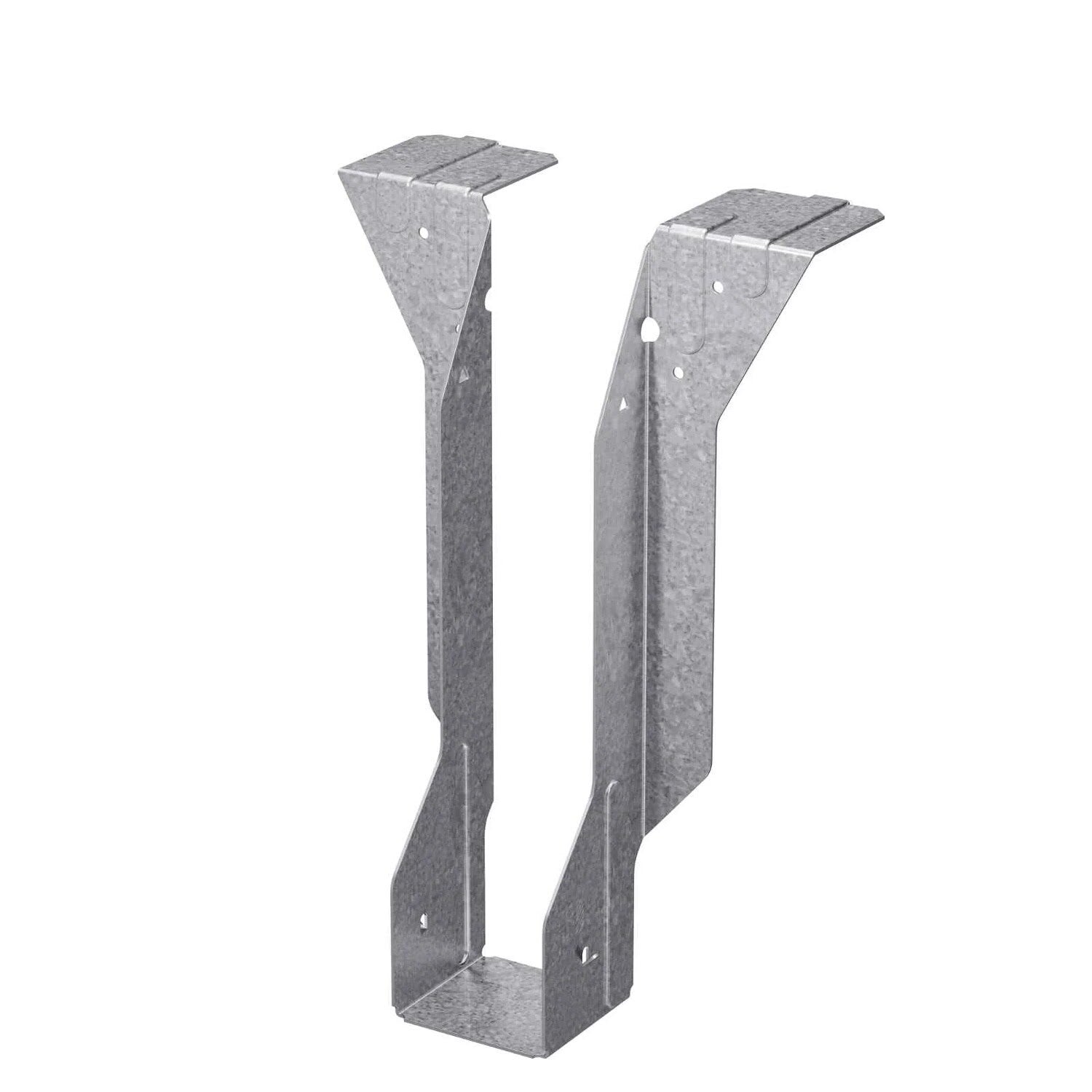

Simpson Strong-Tie MIT311.88 (2-1/2" x 11-7/8") Galvanized Top-Flange Joist Hanger for Engineered Wood
$12.44
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie MIT311.88 Description
The Simpson Strong-Tie MIT311.88 Top-Flange Joist Hanger is designed for engineered wood, offering a reliable and concealed connection for various framing applications.
Simpson Strong-Tie MIT311.88 Includes
- (1) MIT311.88 Top-Flange Joist Hanger
Simpson Strong-Tie MIT311.88 Features
- Galvanized finish for corrosion resistance
- Precision-formed steel for strength and durability
- Top-flange design for flush installation
- Compatible with engineered wood I-joists
- Tested to exceed code requirements
Simpson Strong-Tie MIT311.88 Applications

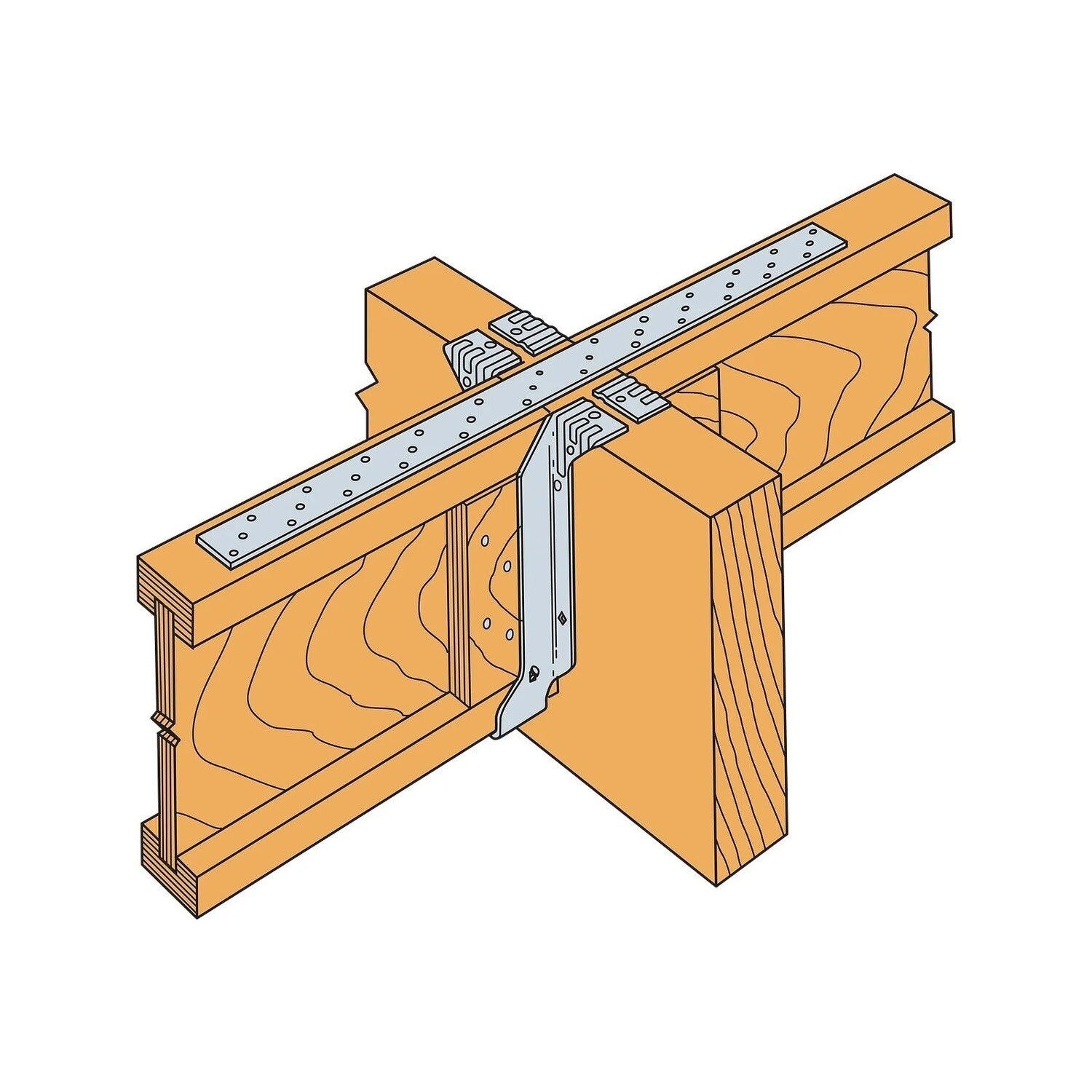

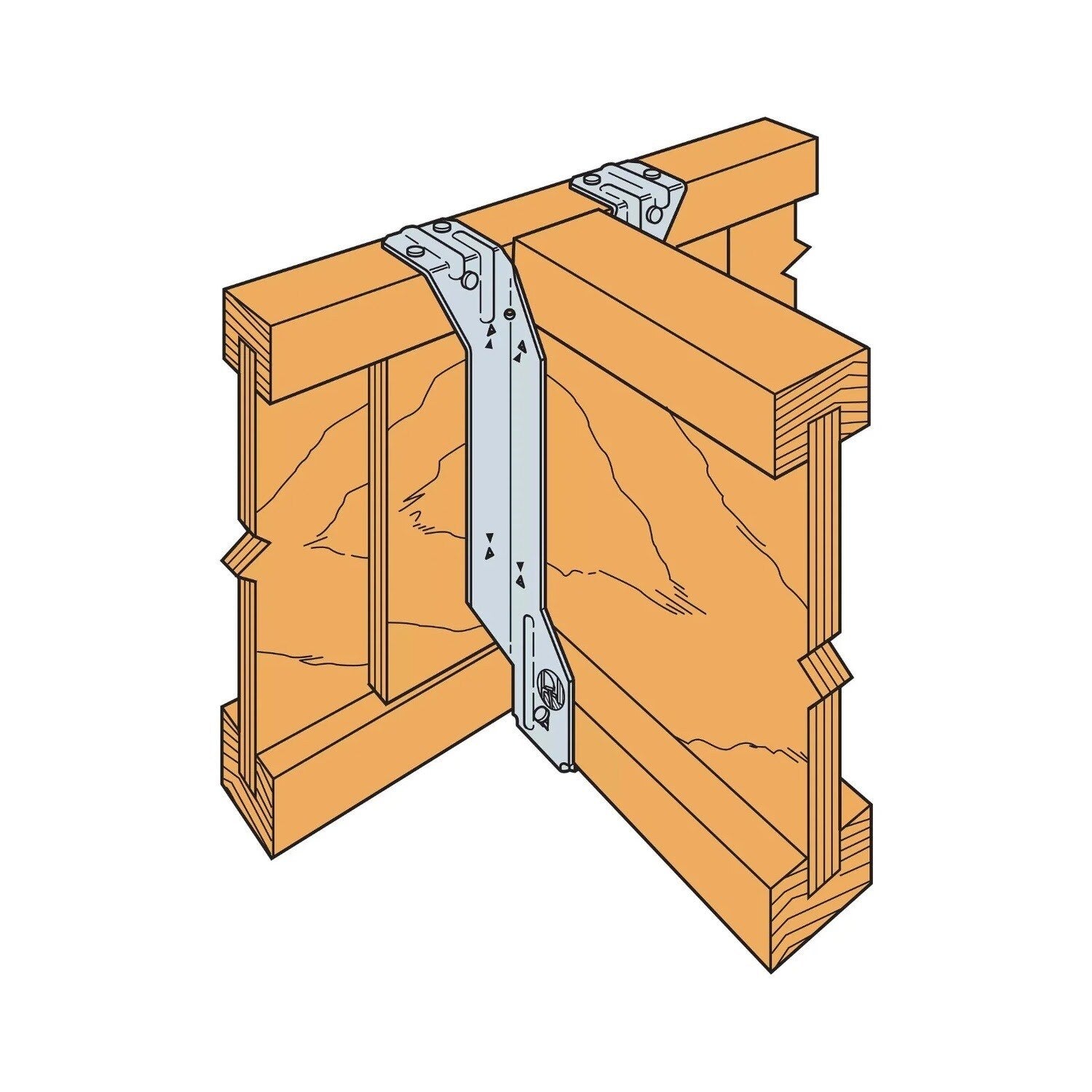

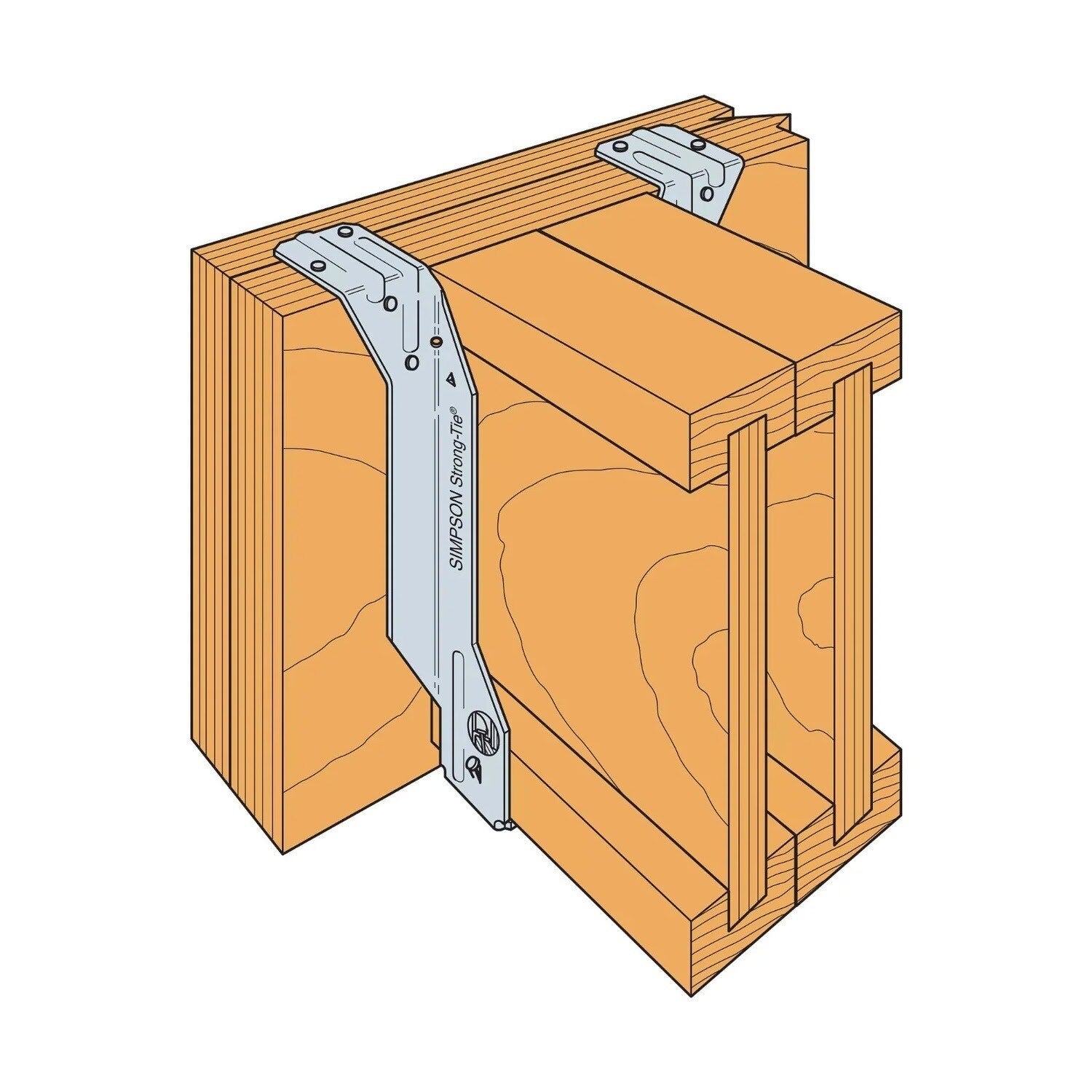

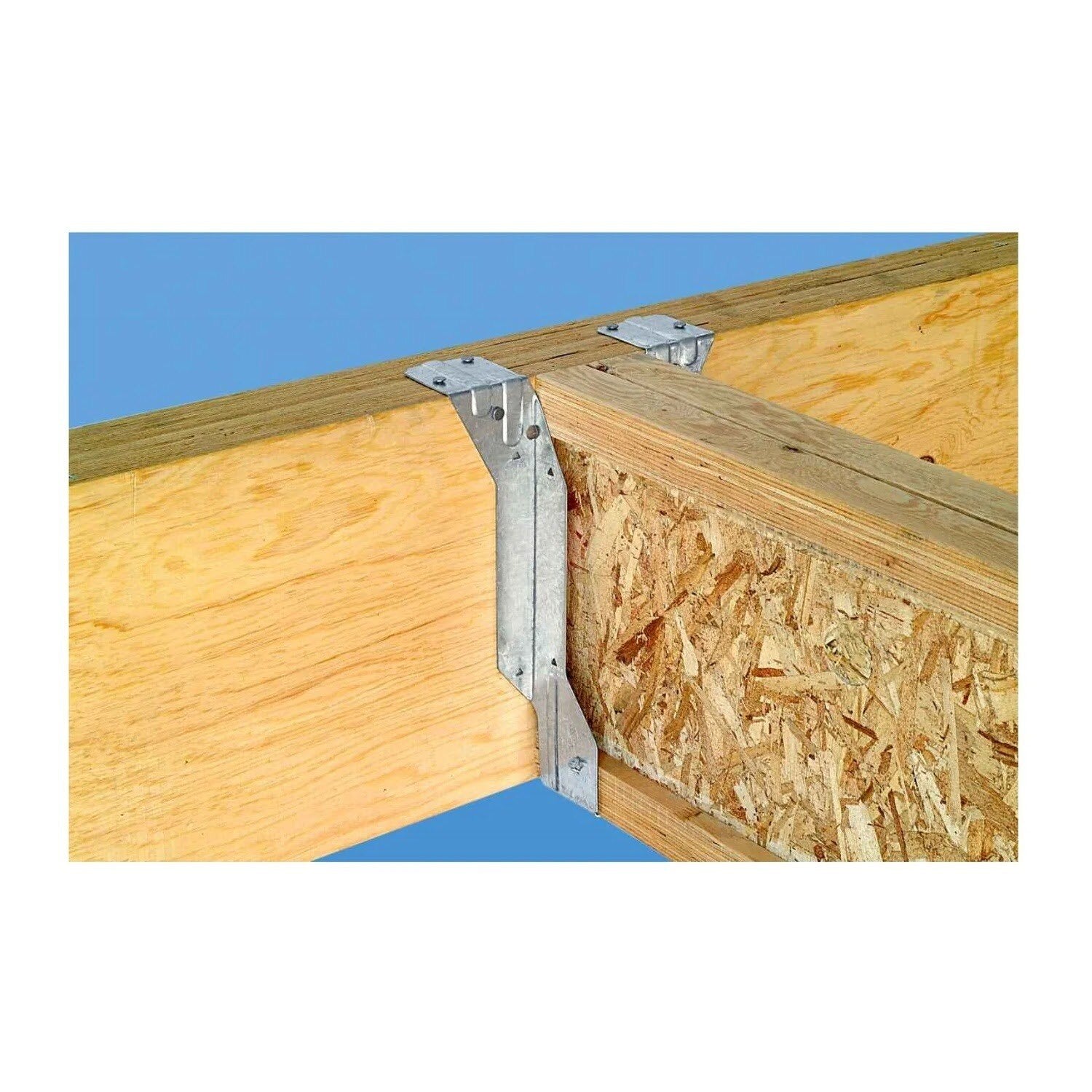

- Floor Joist Connections: Securely connects I-joists to supporting beams in wood floor systems.
- Multi-Family Framing: Ideal for repetitive framing layouts and tight spacing in apartment and condo construction.
- Commercial Wood Construction: Provides high-load capacity for larger wood framing projects.
- Flush Beam Systems: Top-flange profile allows for flush installation with minimal height buildup.
- Offset Joist Conditions: Compatible with applications requiring minor adjustments in joist alignment.
Simpson Strong-Tie MIT311.88 Installation Overview
- Use all specified fasteners as per the manufacturer's guidelines.
- Install hangers flush with the header or beam surface.
- Do not bend or modify the hanger.
- Ensure proper alignment and secure fastening for full load capacity.

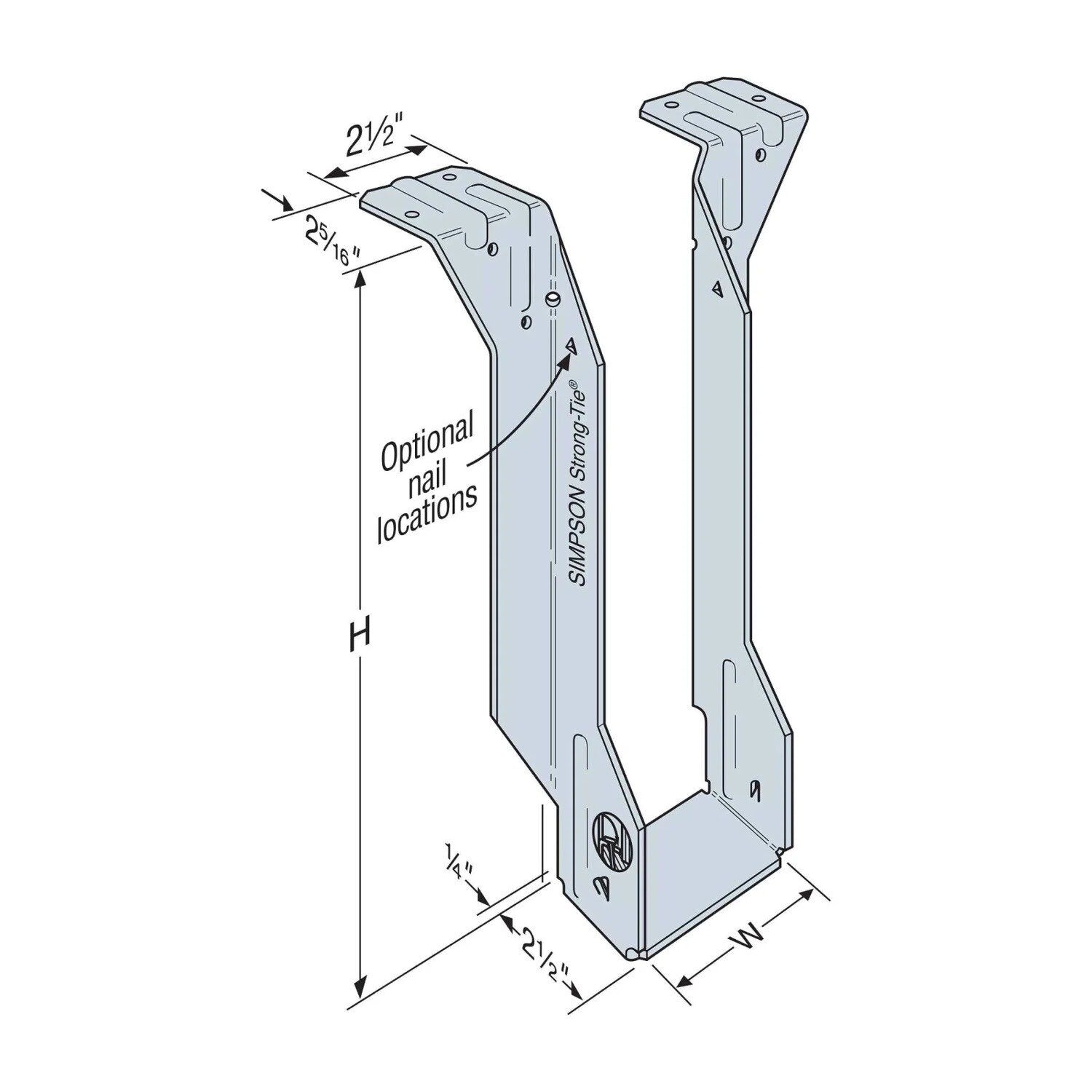

Simpson Strong-Tie MIT311.88 Specifications
| Finish | G90 Galvanized |
| Material | 16 Gauge Steel |
| Joist Size | 2-1/2" X 11-7/8" |
| Width | 2-9/16" |
| Height | 11-7/8" |
| For Treated Lumber | No |
NOTE: Ensure all specified fasteners are used and installed correctly to achieve the published load values.
