Simpson Hangers | SKU:
MIT314-2
Simpson Strong-Tie MIT314-2 (2-1/2" x 14") Top-Flange Joist Hanger for Double Engineered Wood
$12.25
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie MIT314-2 Description

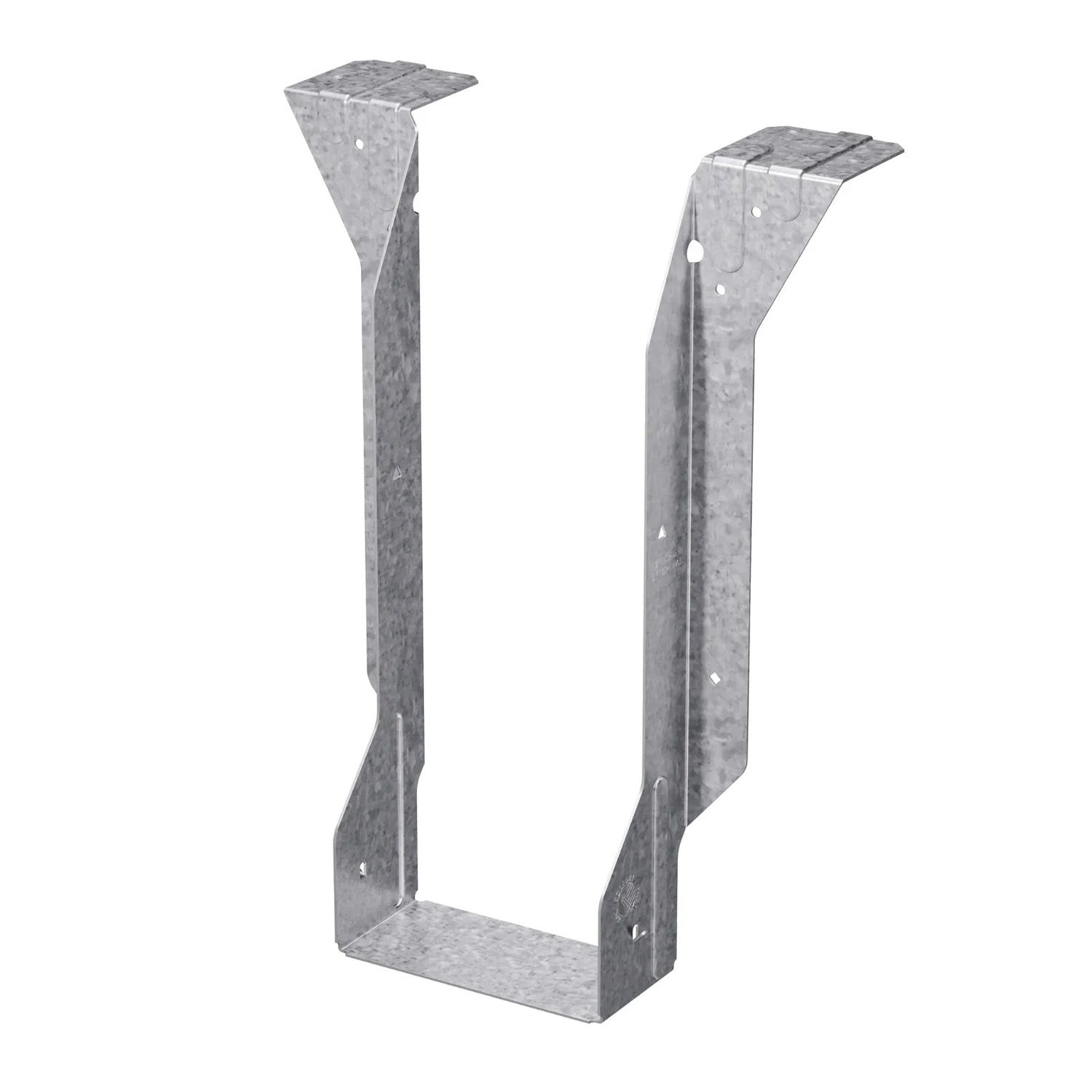

The Simpson Strong-Tie MIT314-2 Top-Flange Joist Hanger is designed for engineered wood applications, providing a reliable and concealed connection for supporting I-joists.
Simpson Strong-Tie MIT314-2 Includes
- (1) MIT314-2 Top-Flange Joist Hanger
Simpson Strong-Tie MIT314-2 Features
- Top-flange design for flush installation
- Precision-formed steel construction
- Tested to exceed code requirements
- Compatible with engineered wood I-joists
- G90 galvanized finish for corrosion resistance
Simpson Strong-Tie MIT314-2 Applications

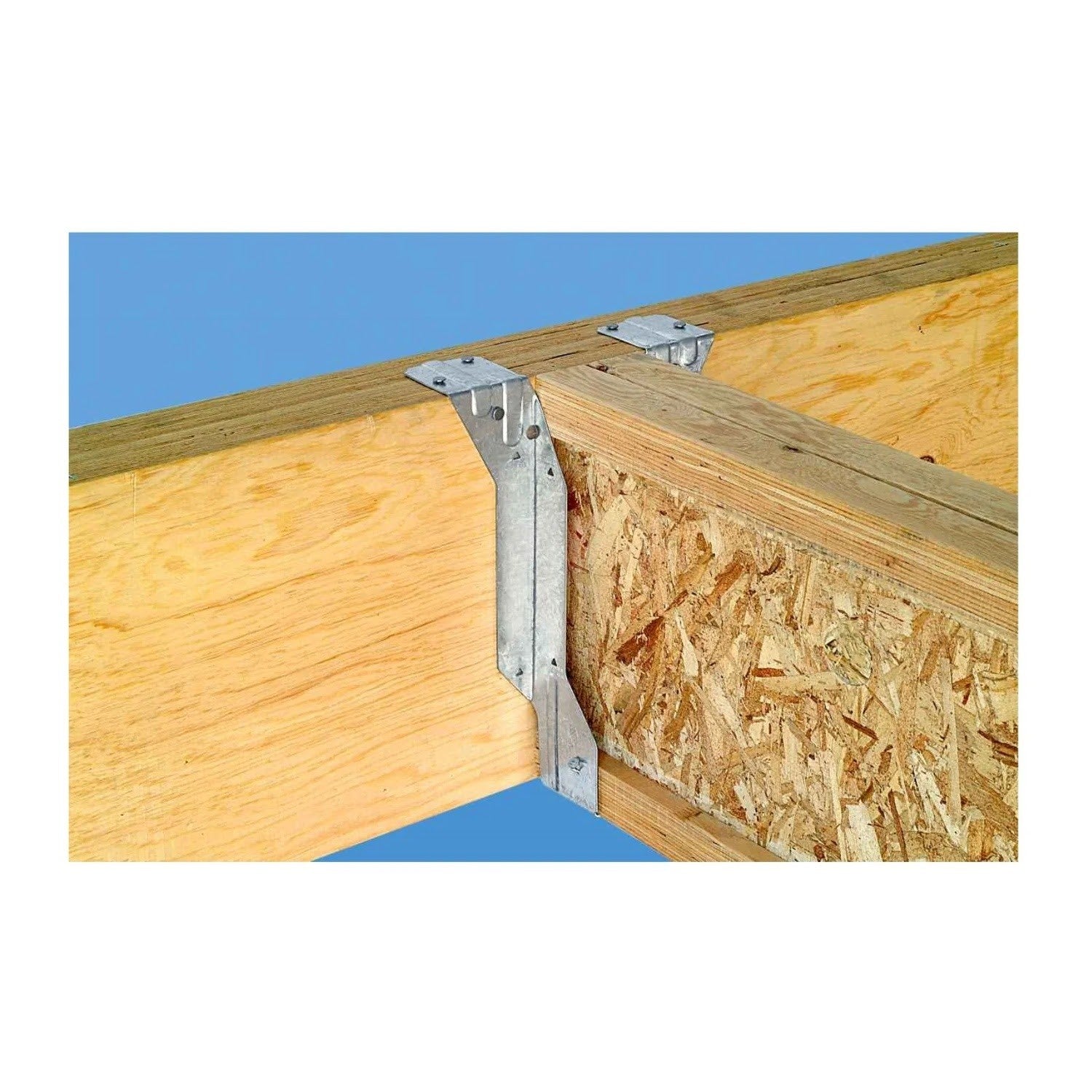

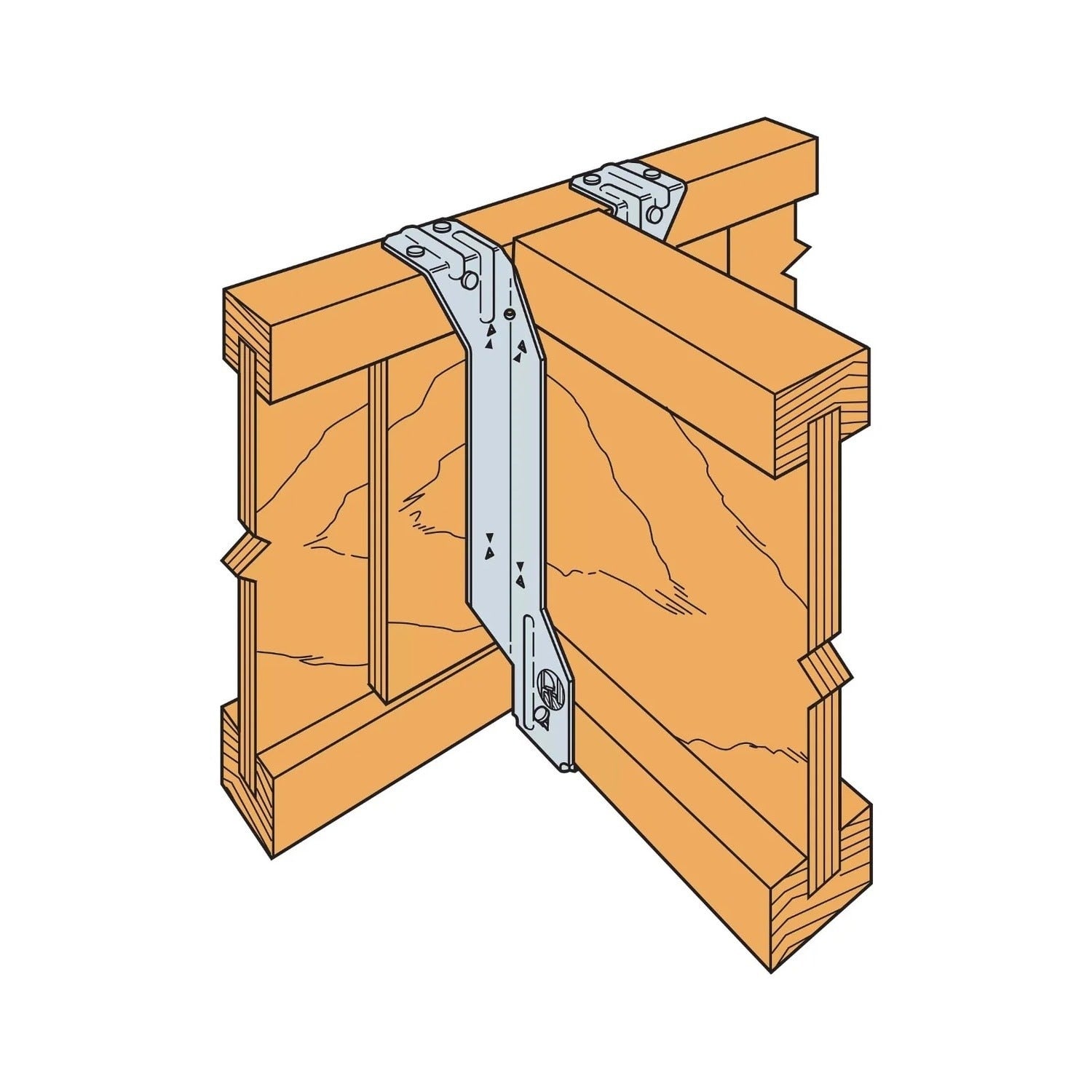

- Floor Joist Connections: Securely connects I-joists to supporting beams in wood floor systems.
- Multi-Family Framing: Ideal for repetitive framing layouts and tight spacing in apartment and condo construction.
- Commercial Wood Construction: Provides high-load capacity for larger wood framing projects.

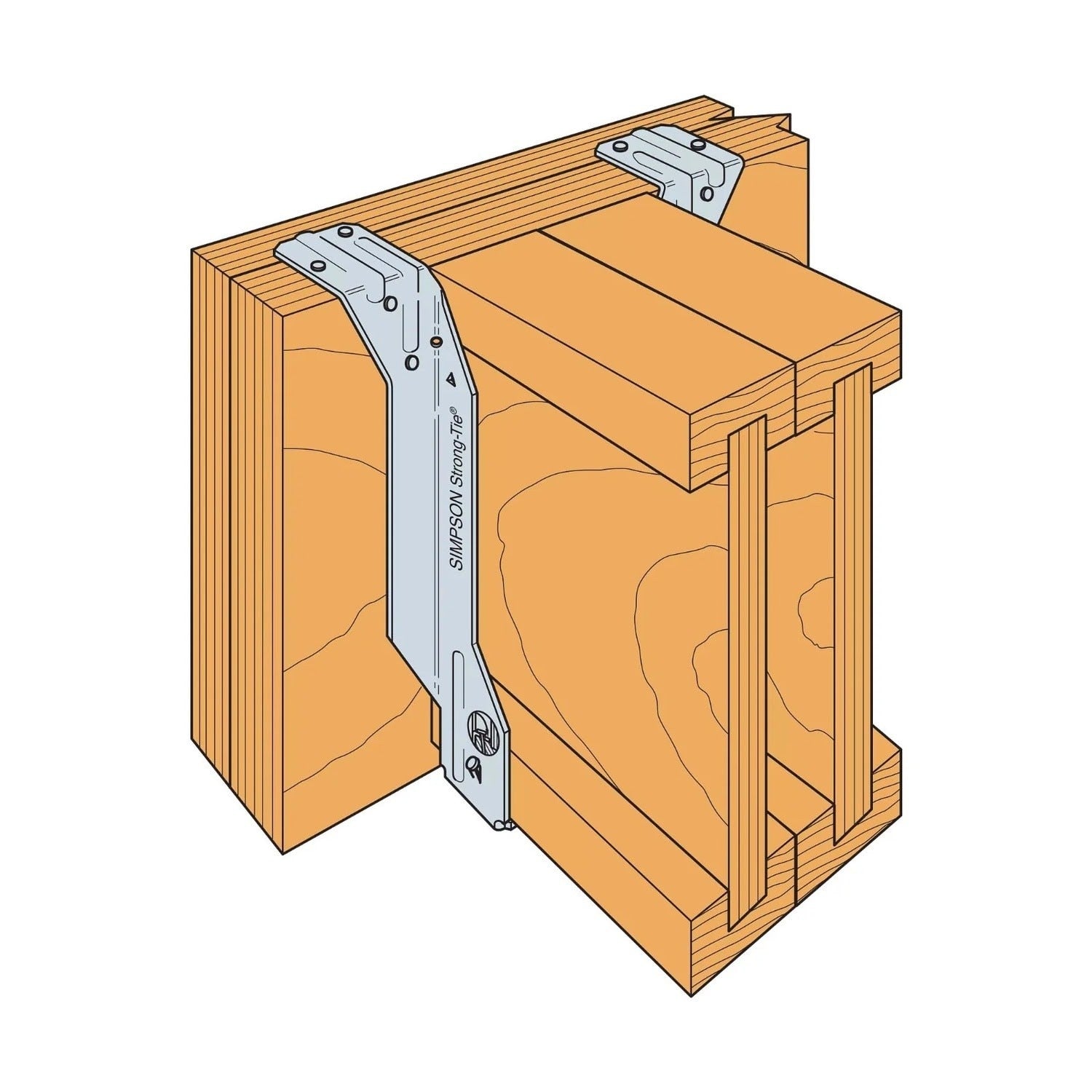

- Flush Beam Systems: Top-flange profile allows for flush installation with minimal height buildup.

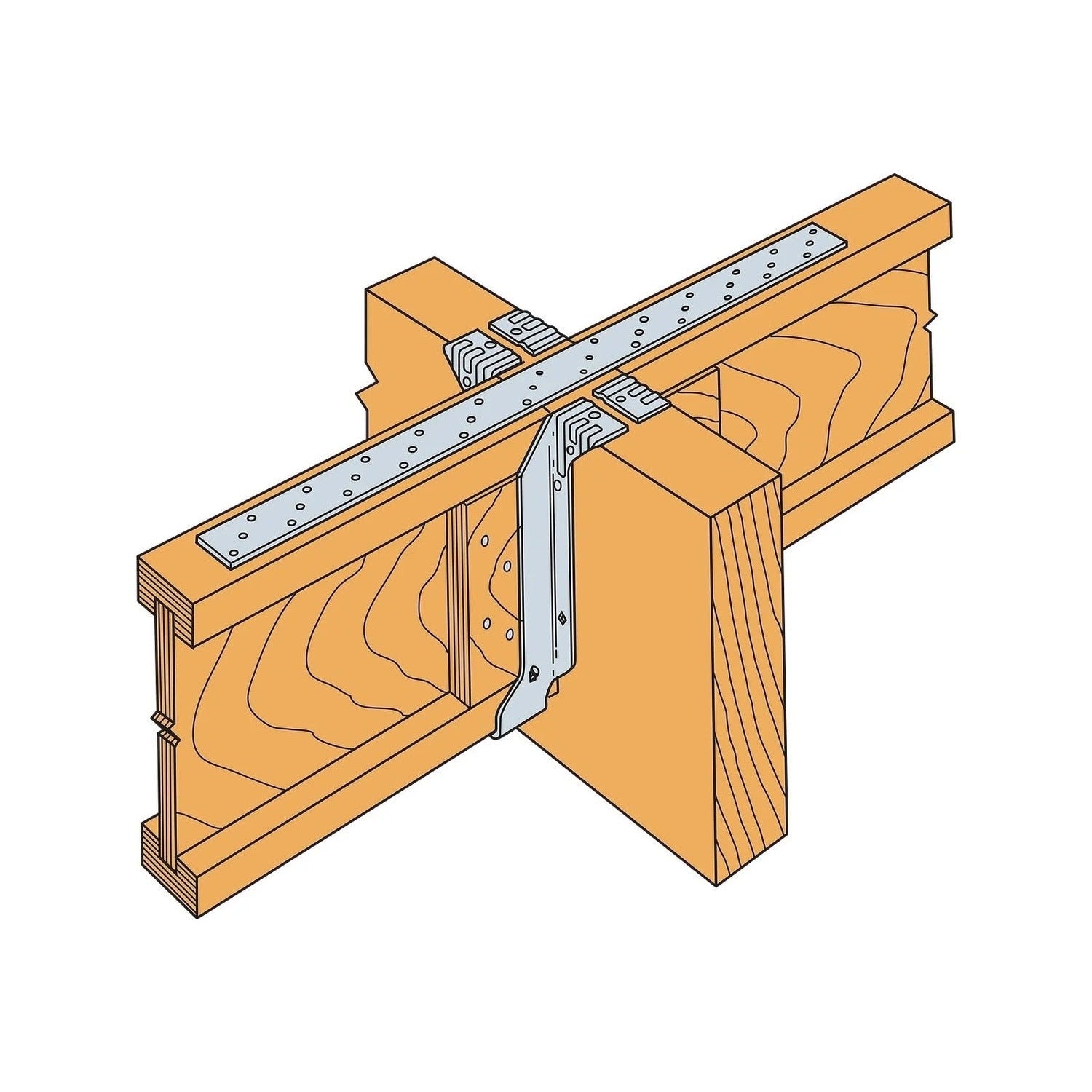

- Offset Joist Conditions: Compatible with applications requiring minor adjustments in joist alignment.
Simpson Strong-Tie MIT314-2 Installation Overview
- Use all specified fasteners as per guidelines.
- Install hangers flush with the header or beam surface.
- Do not bend or modify the hanger.
- Refer to manufacturer guidelines for proper fastener schedule.
- Ensure full load capacity by using all specified fasteners.

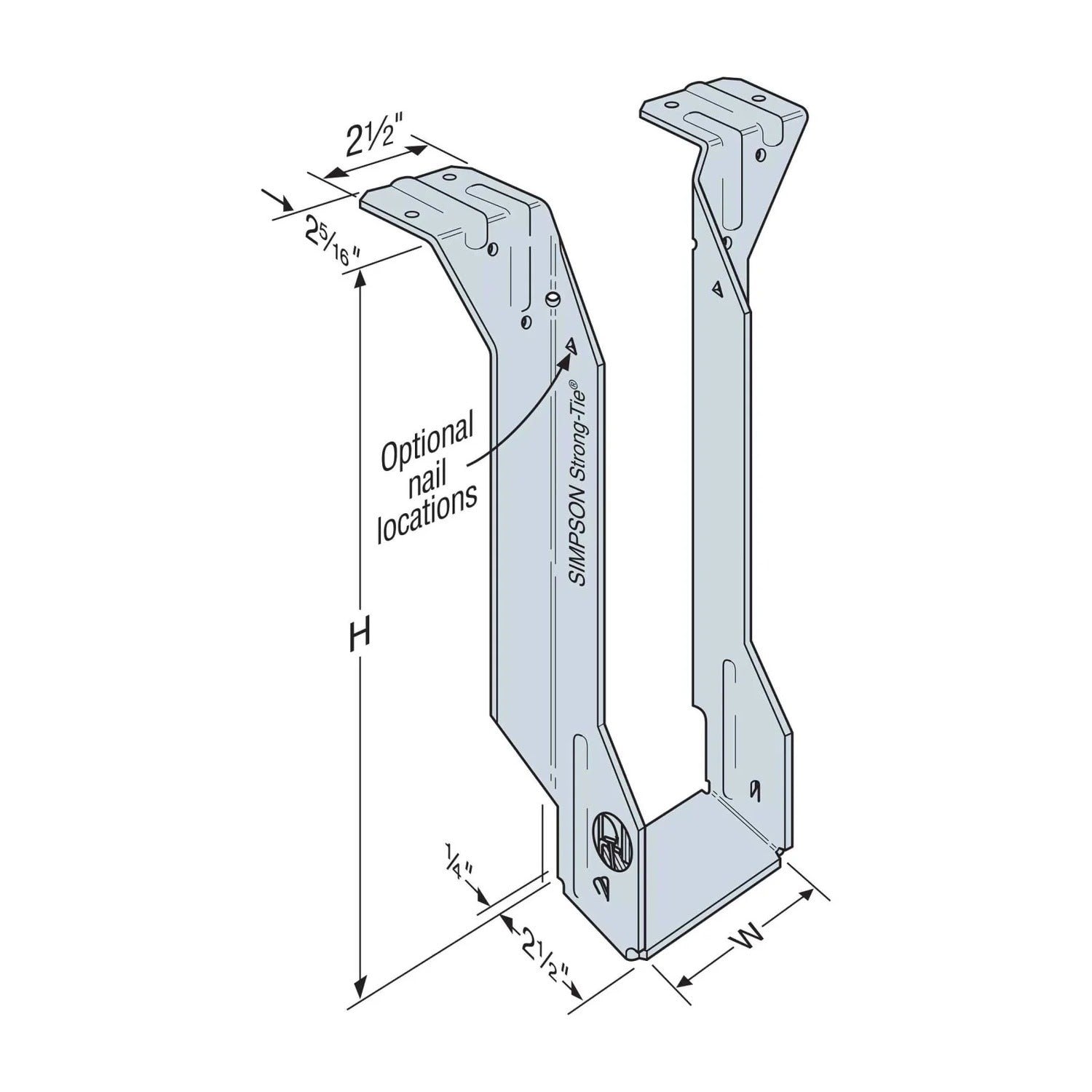

Simpson Strong-Tie MIT314-2 Specifications
| Material | 16 Gauge |
| Finish | G90 Galvanized |
| Joist Size | Double 2-1/2" x 14" |
| Width | 5-1/8" |
| Height | 14" |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
