Simpson Hangers | SKU:
MIT3511.88

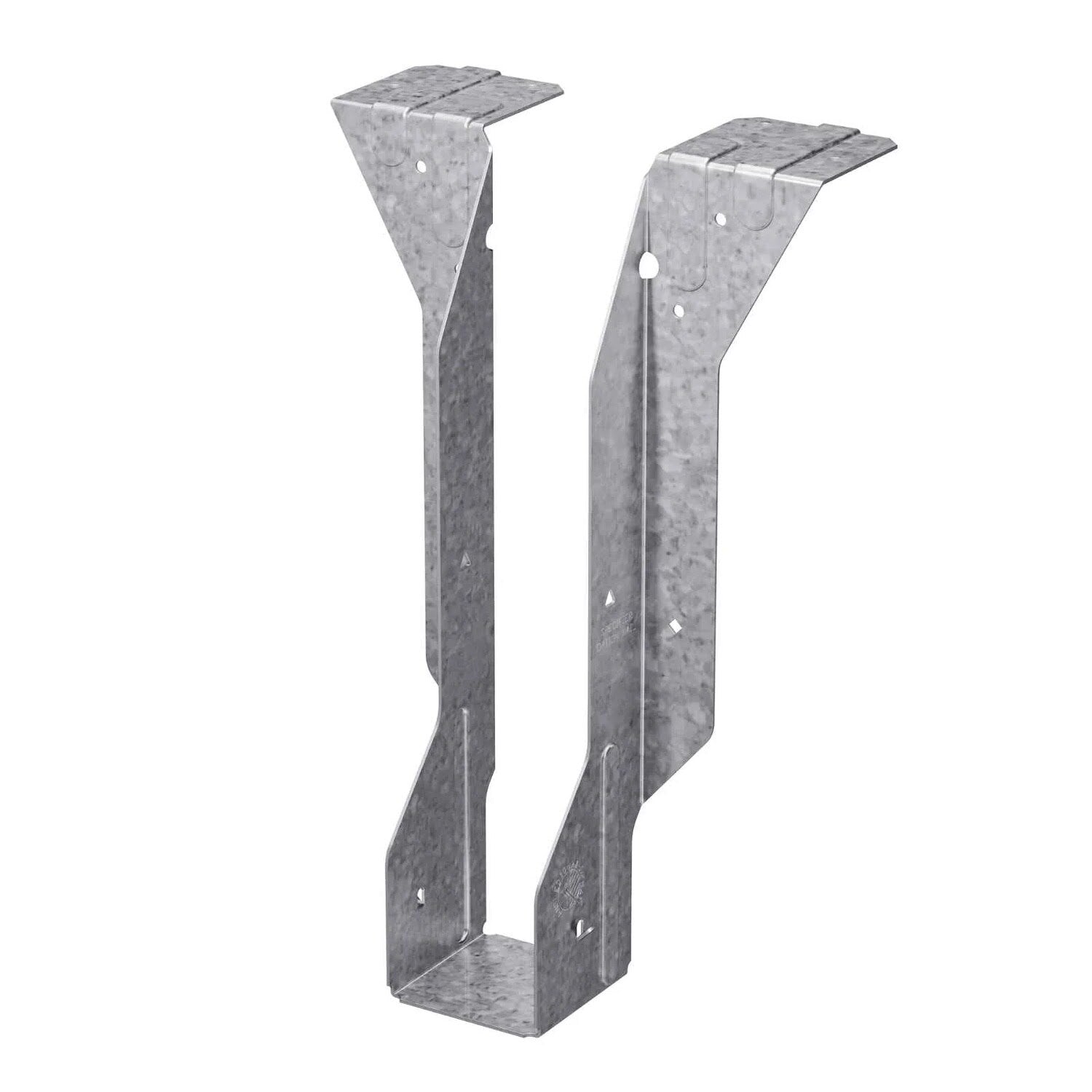

Simpson Strong-Tie MIT3511.88 (2-5/16" x 11-7/8") Galvanized Top-Flange Joist Hanger for Engineered Wood
$11.11
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie MIT3511.88 Description
The Simpson Strong-Tie MIT Top-Flange Hanger offers a reliable, concealed connection for supporting engineered wood I-joists in a wide variety of framing applications.
Simpson Strong-Tie MIT3511.88 Includes
- (1) Top-Flange Joist Hanger
Simpson Strong-Tie MIT3511.88 Features
- Reliable concealed connection for engineered wood I-joists
- Precision-formed steel construction
- Top-flange design for flush installation
- Tested to exceed code requirements
- Versatile for various framing applications
Simpson Strong-Tie MIT3511.88 Applications

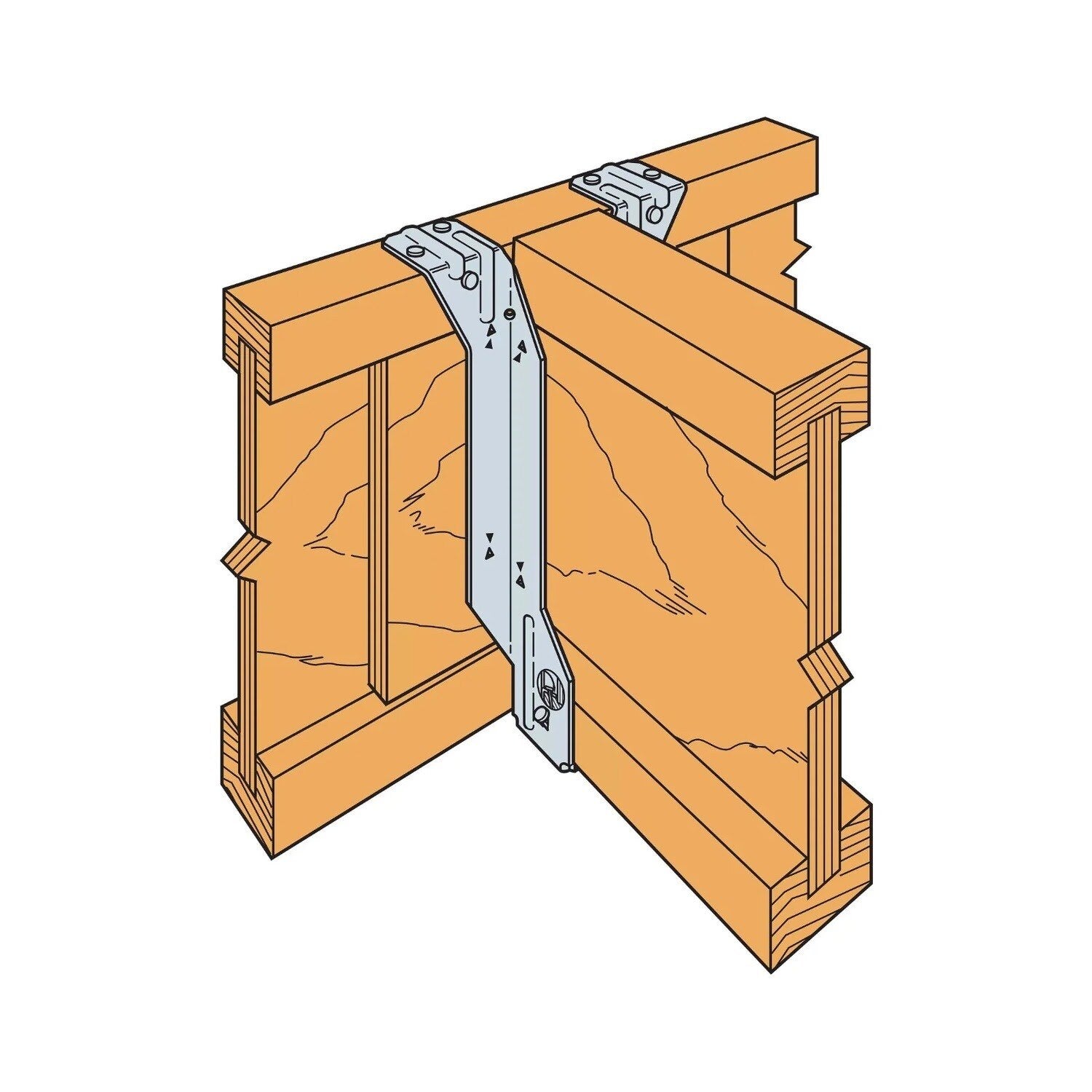

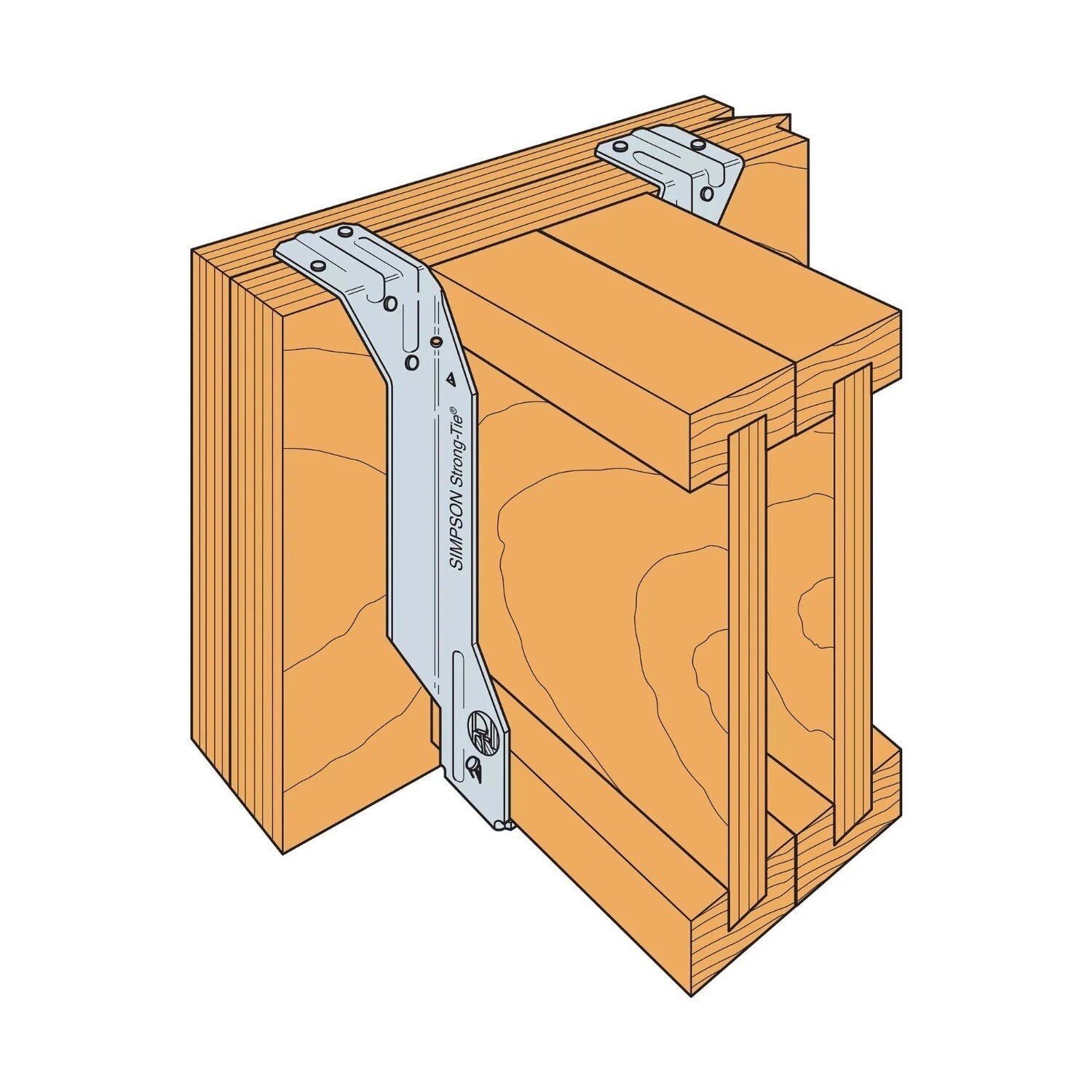

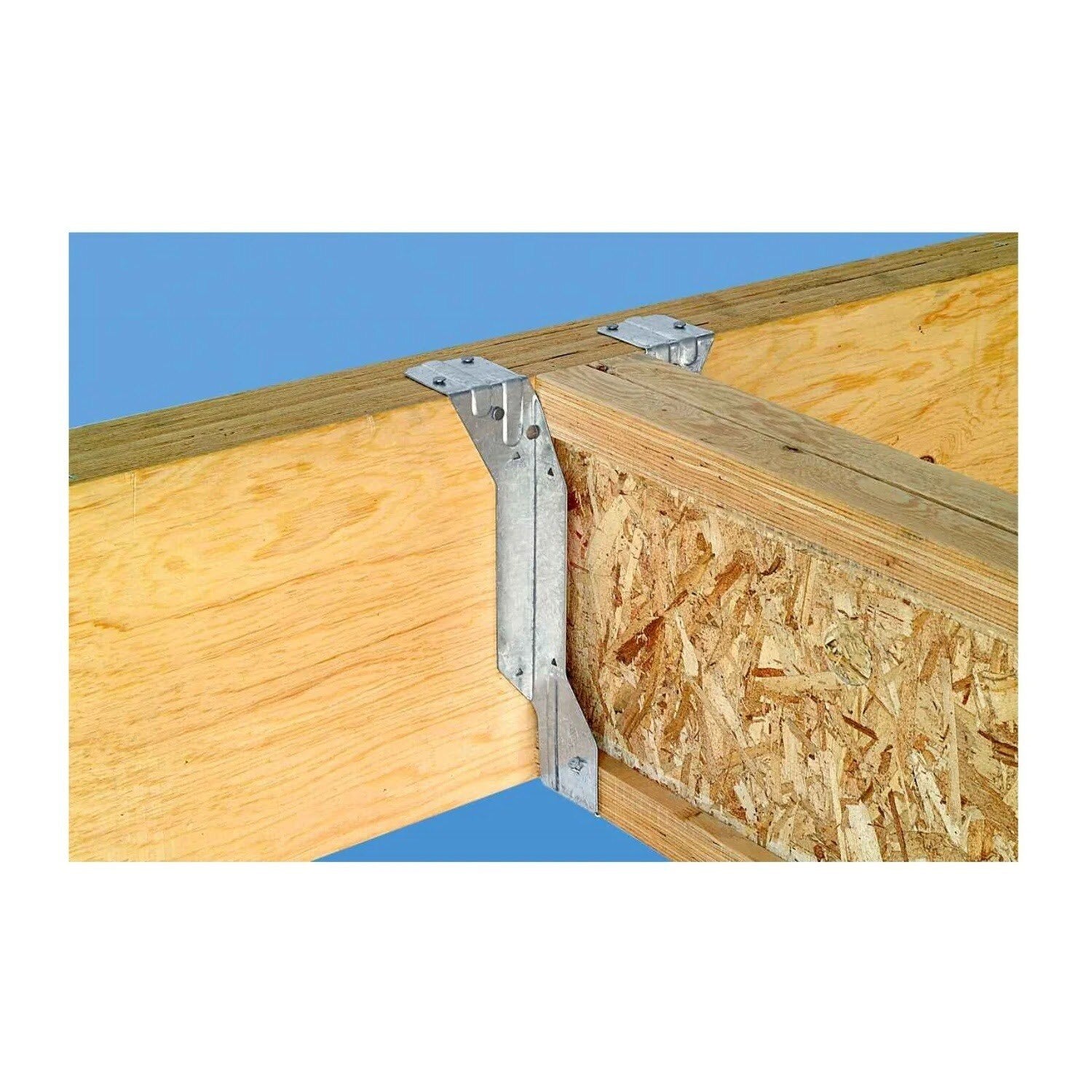

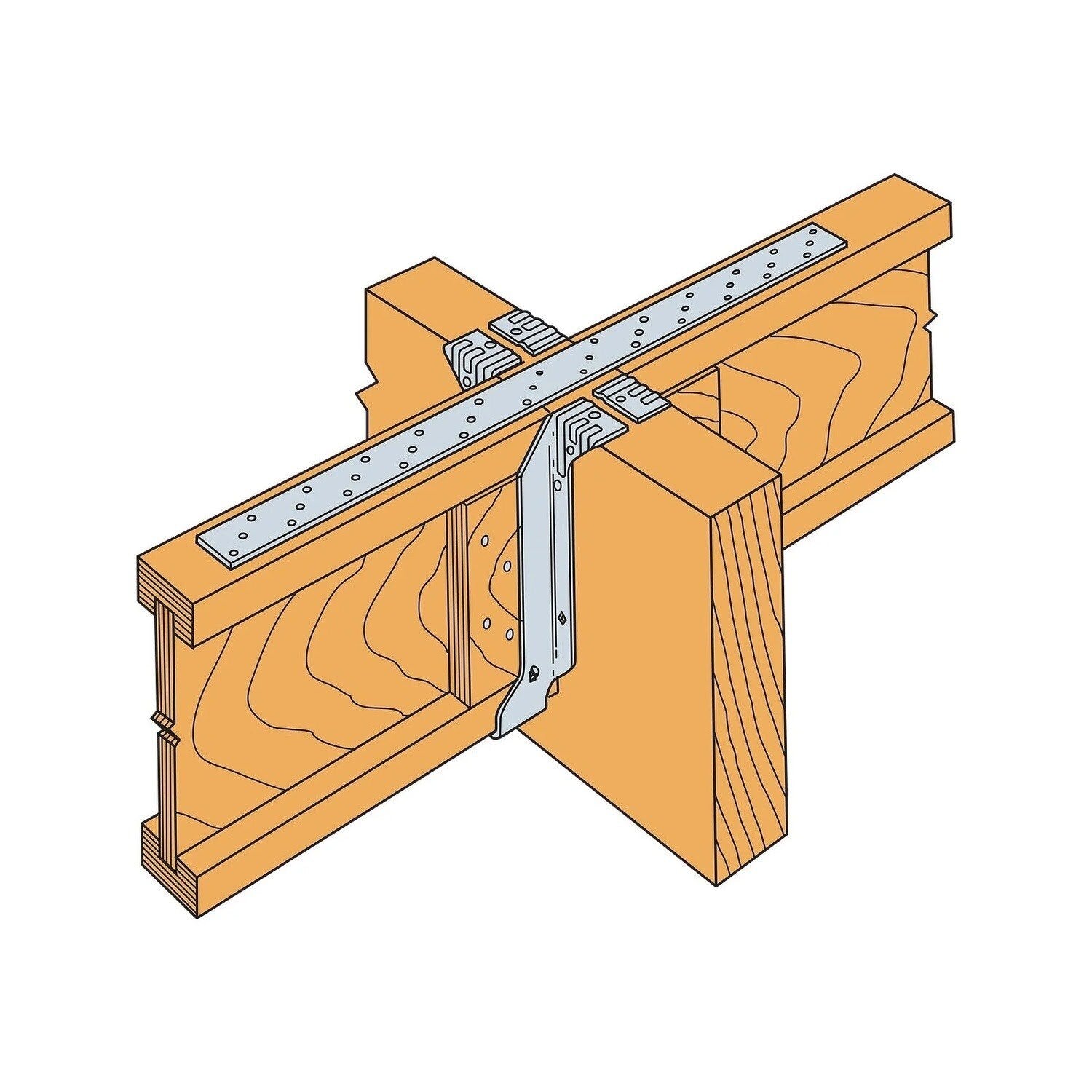

- Floor Joist Connections: Securely connects I-joists to supporting beams in wood floor systems.
- Multi-Family Framing: Ideal for repetitive framing layouts and tight spacing in apartment and condo construction.
- Commercial Wood Construction: Provides high-load capacity for larger wood framing projects.
- Flush Beam Systems: Top-flange profile allows for flush installation with minimal height buildup.
- Offset Joist Conditions: Compatible with applications requiring minor adjustments in joist alignment.
Simpson Strong-Tie MIT3511.88 Installation Overview
- Use all specified fasteners.
- Install hangers flush with the header or beam surface.
- Do not bend or modify the hanger.
- Refer to manufacturer guidelines for proper fastener schedule.
- Ensure full load capacity by using all specified fasteners.

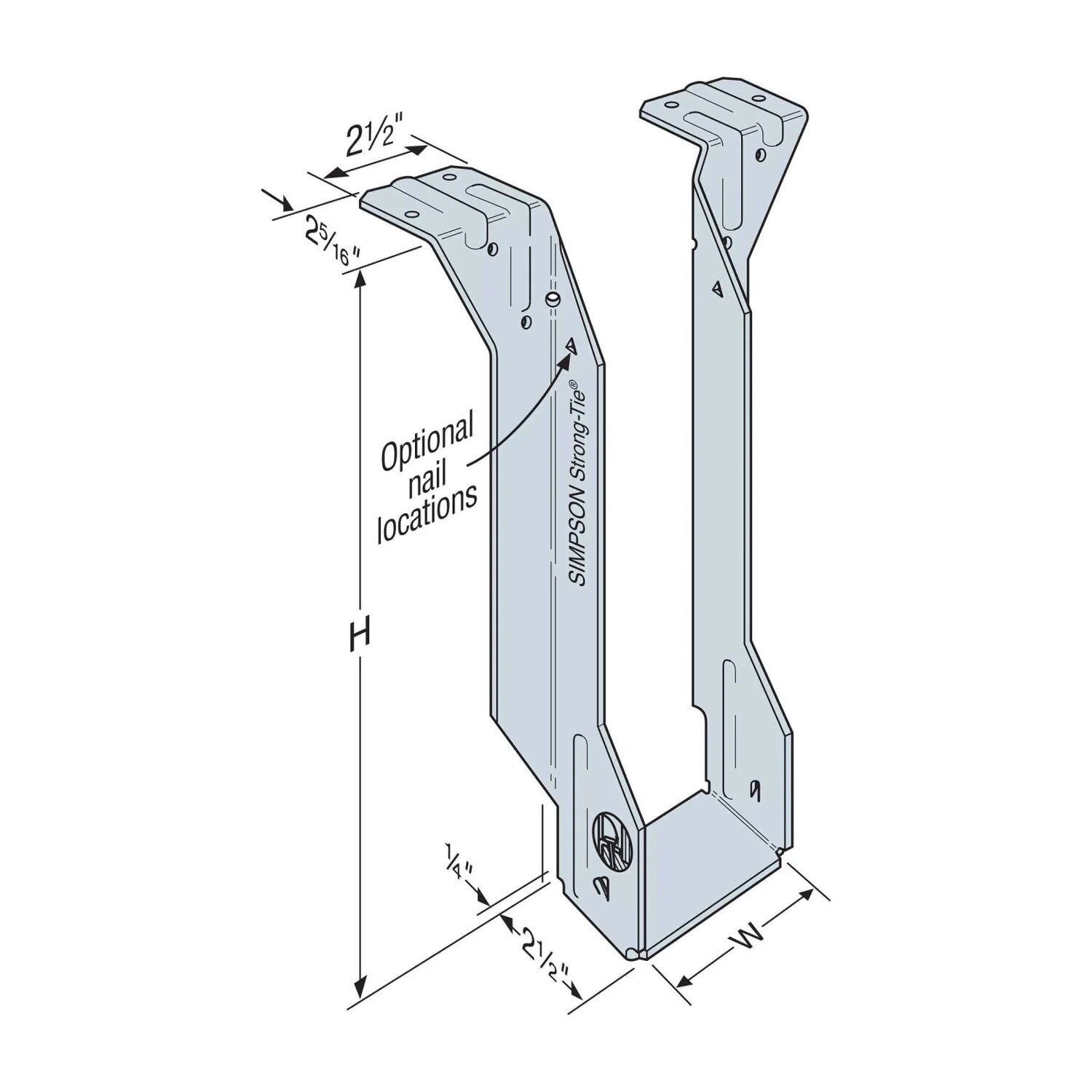

Simpson Strong-Tie MIT3511.88 Specifications
| Finish | G90 Galvanized |
| Thickness | 16 Gauge |
| Width | 2-3/8" |
| Height | 11-7/8" |
| Joist size | 2-5/16" X 11-7/8" |
| For Treated Lumber | No |
NOTE: Ensure all specified fasteners are used and installed correctly to achieve published load values.
