Simpson Hangers | SKU:
MIT3514-2
Simpson Strong-Tie MIT3514-2 (2-5/16" x 14") Galvanized Top-Flange Joist Hanger for Double Engineered Wood
$13.36
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie MIT3514-2 Description

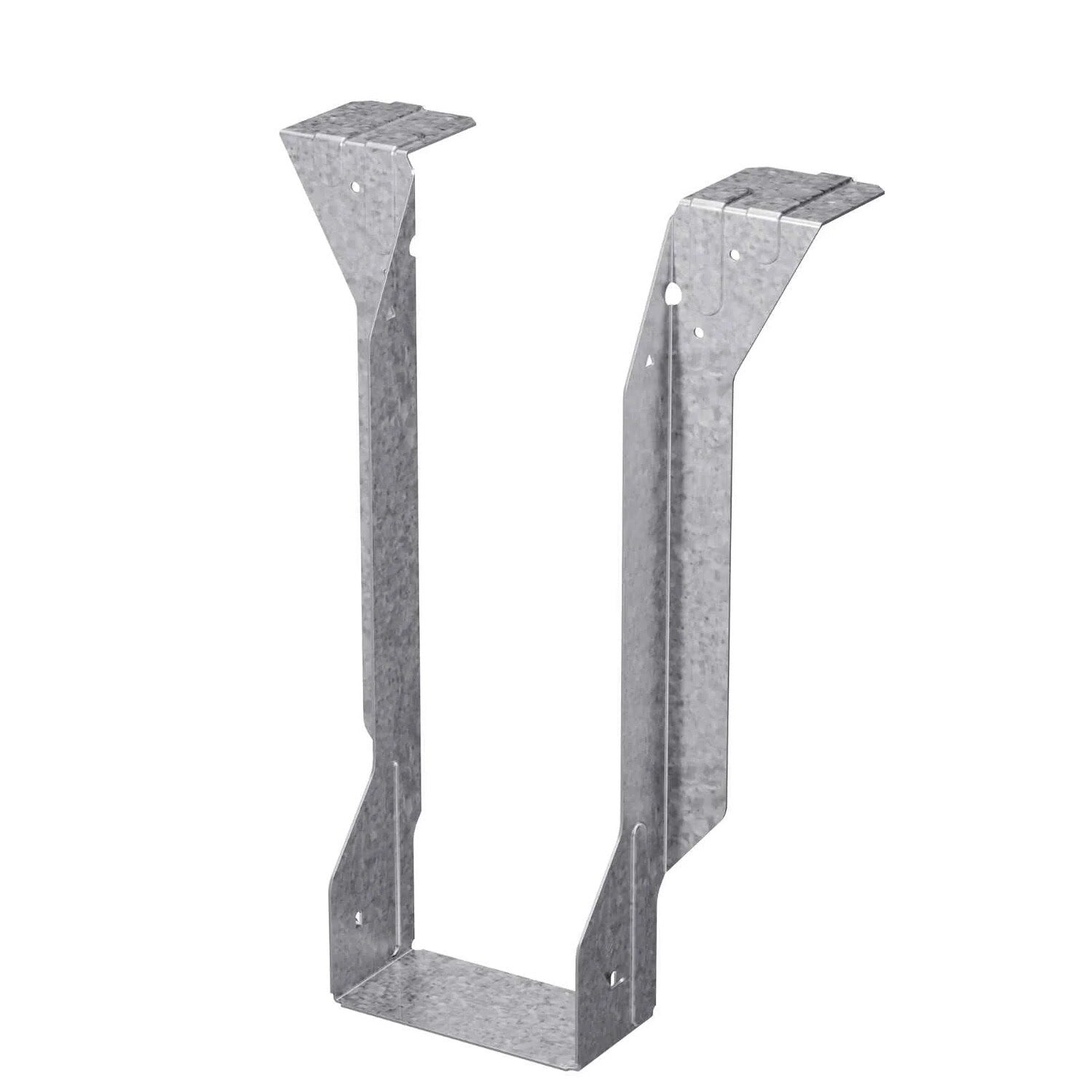

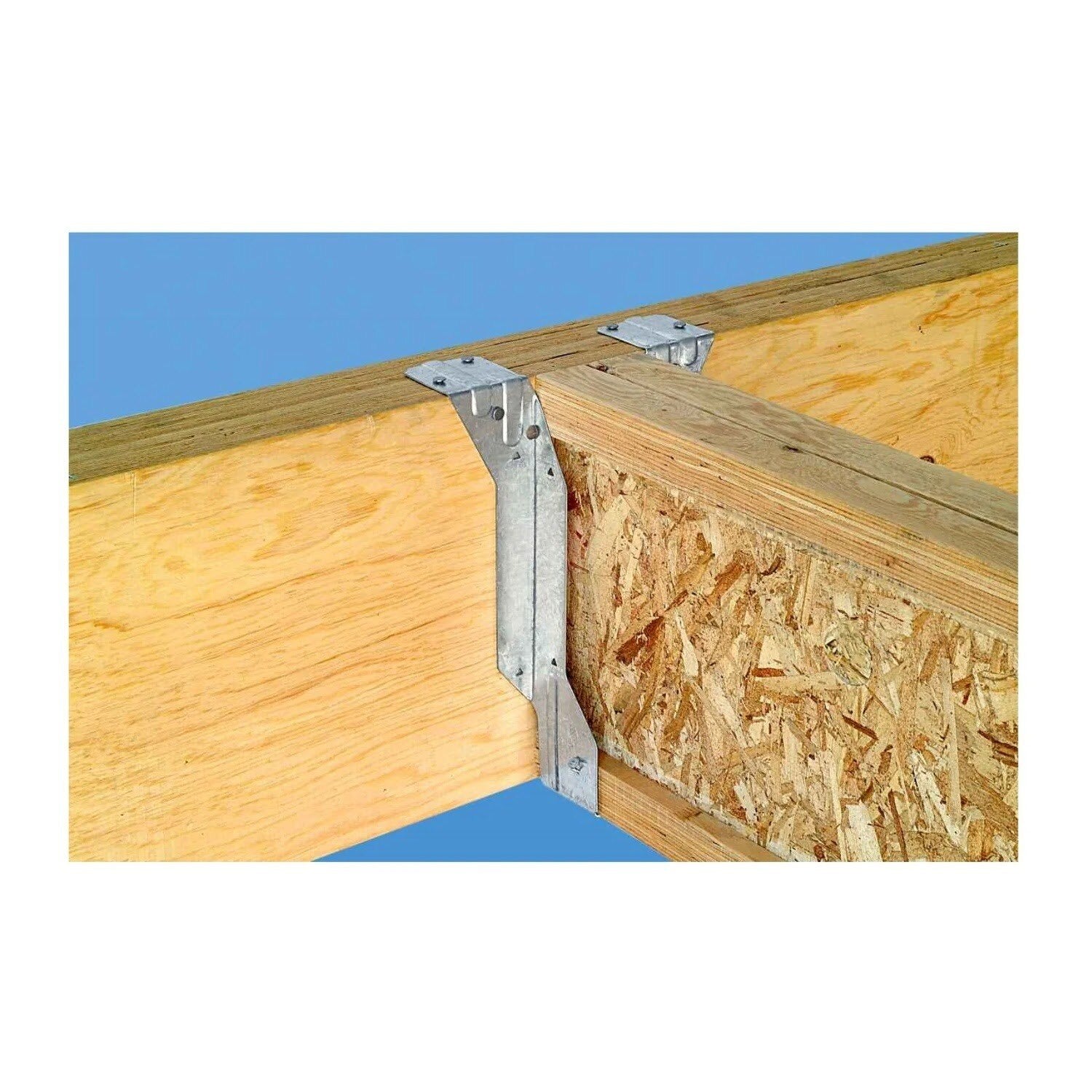

The Simpson Strong-Tie MIT3514-2 Top-Flange Joist Hanger provides a reliable and concealed connection for engineered wood I-joists, ideal for residential, multifamily, and commercial construction.
Simpson Strong-Tie MIT3514-2 Includes
- (1) MIT3514-2 Top-Flange Joist Hanger
Simpson Strong-Tie MIT3514-2 Features
- Reliable concealed connection for engineered wood I-joists
- Precision-formed steel construction
- Top-flange design for flush installation
- Tested to exceed code requirements
- Versatile for various framing applications
Simpson Strong-Tie MIT3514-2 Applications

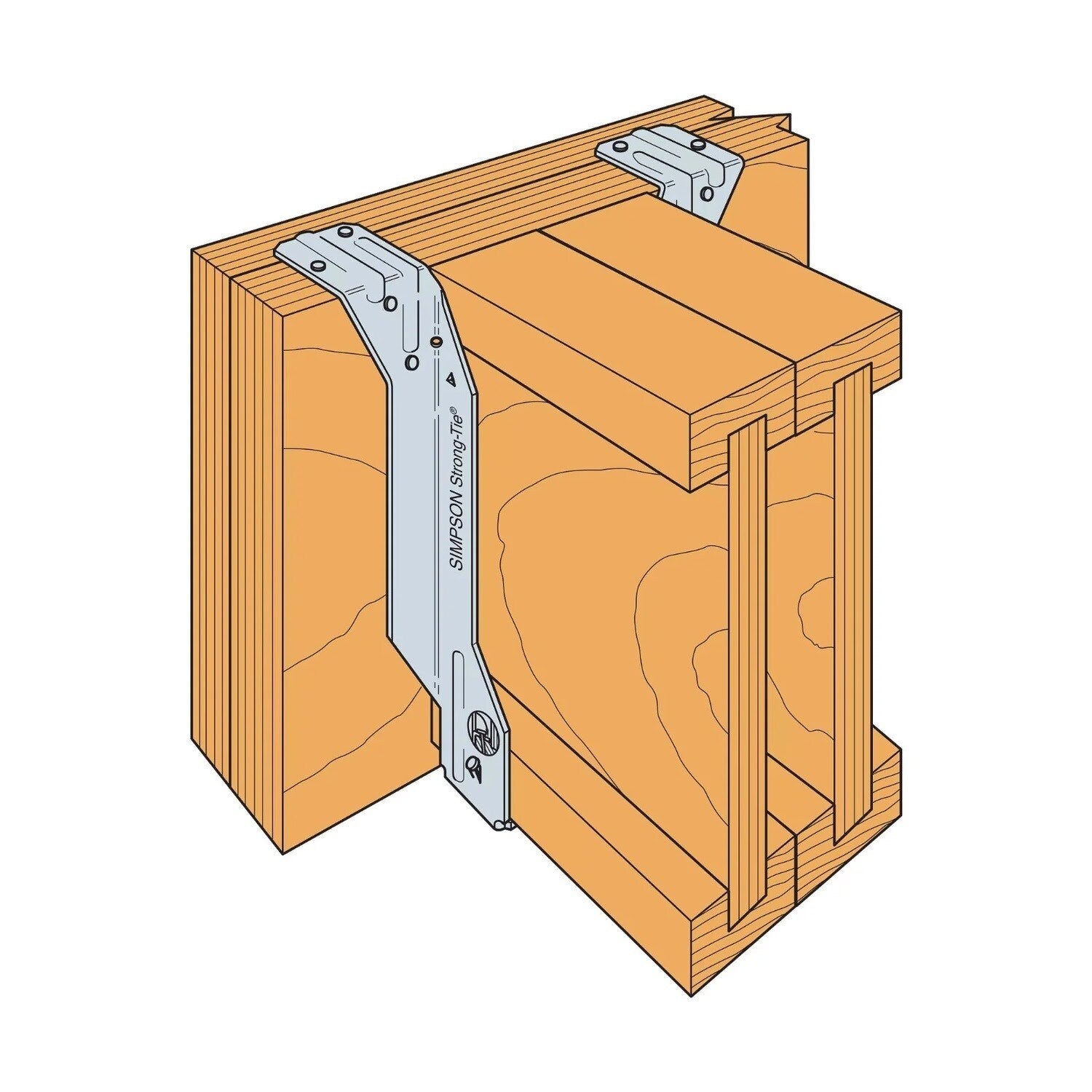

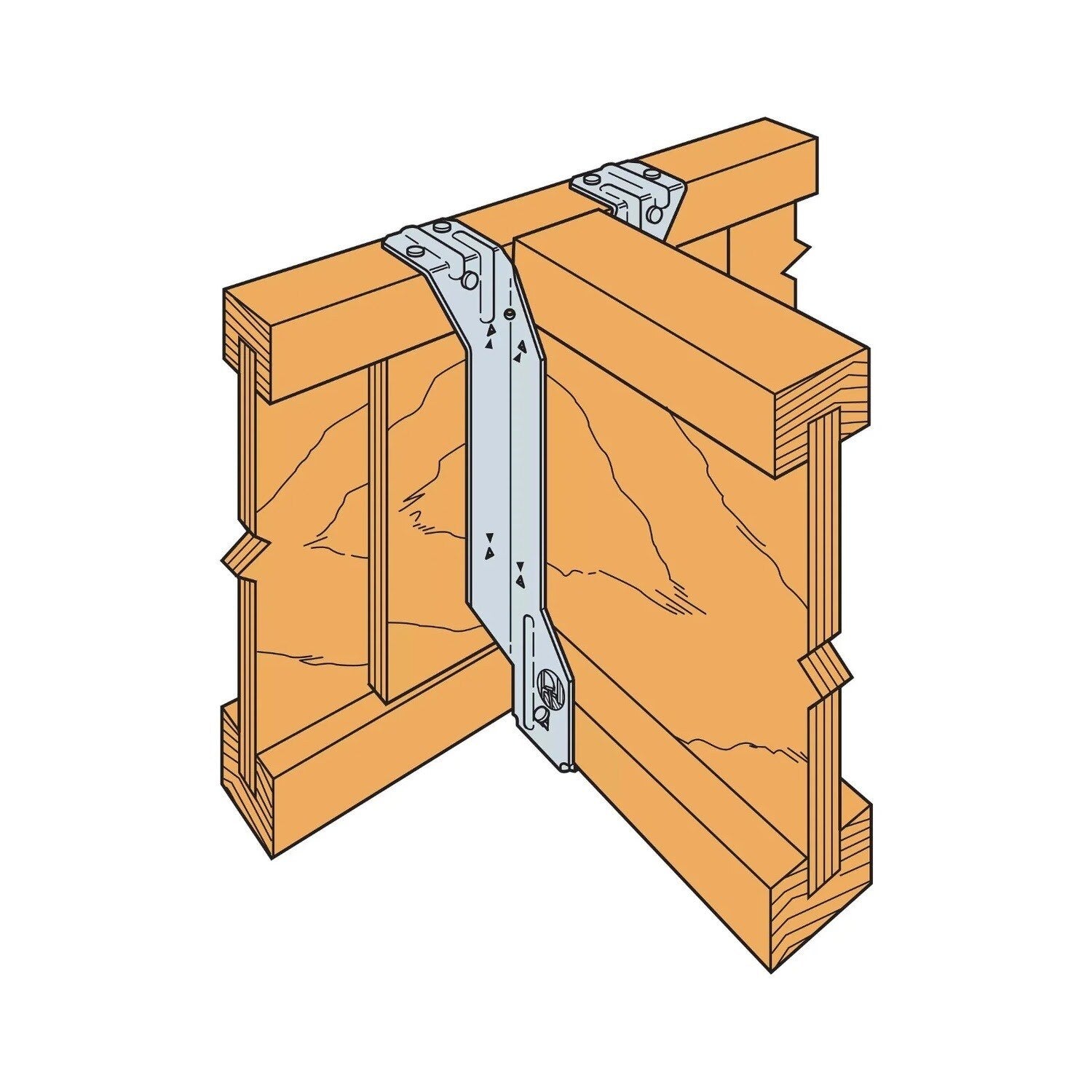

- Floor Joist Connections: Securely connects I-joists to supporting beams in wood floor systems.
- Multi-Family Framing: Ideal for repetitive framing layouts and tight spacing in apartment and condo construction.
- Commercial Wood Construction: Provides high-load capacity for larger wood framing projects.
- Flush Beam Systems: Top-flange profile allows for flush installation with minimal height buildup.

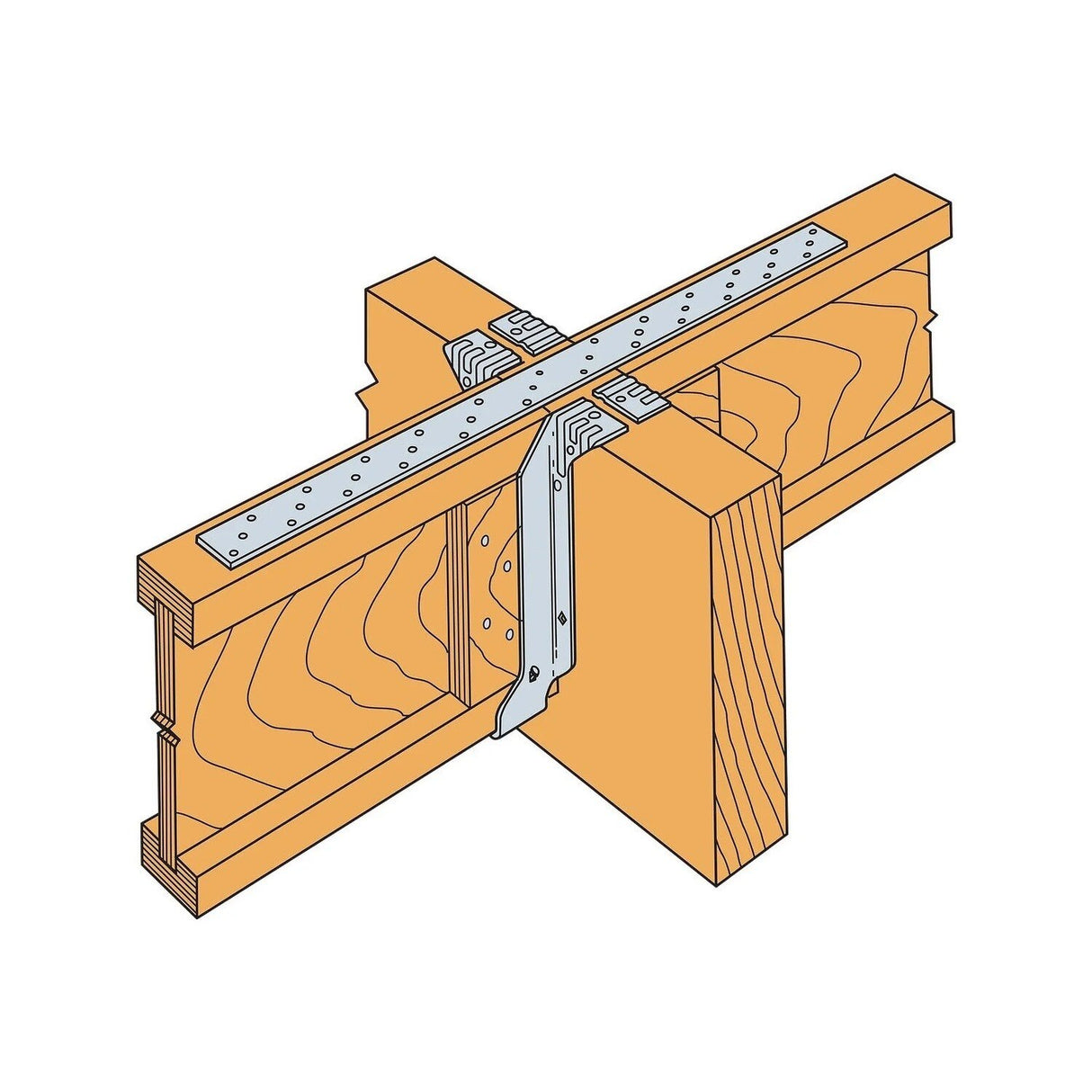

- Offset Joist Conditions: Compatible with applications requiring minor adjustments in joist alignment.
Simpson Strong-Tie MIT3514-2 Installation Overview
- Use all specified fasteners as per manufacturer guidelines.
- Install hangers flush with the header or beam surface.
- Do not bend or modify the hanger.
- Ensure proper alignment and secure fastening for full load capacity.

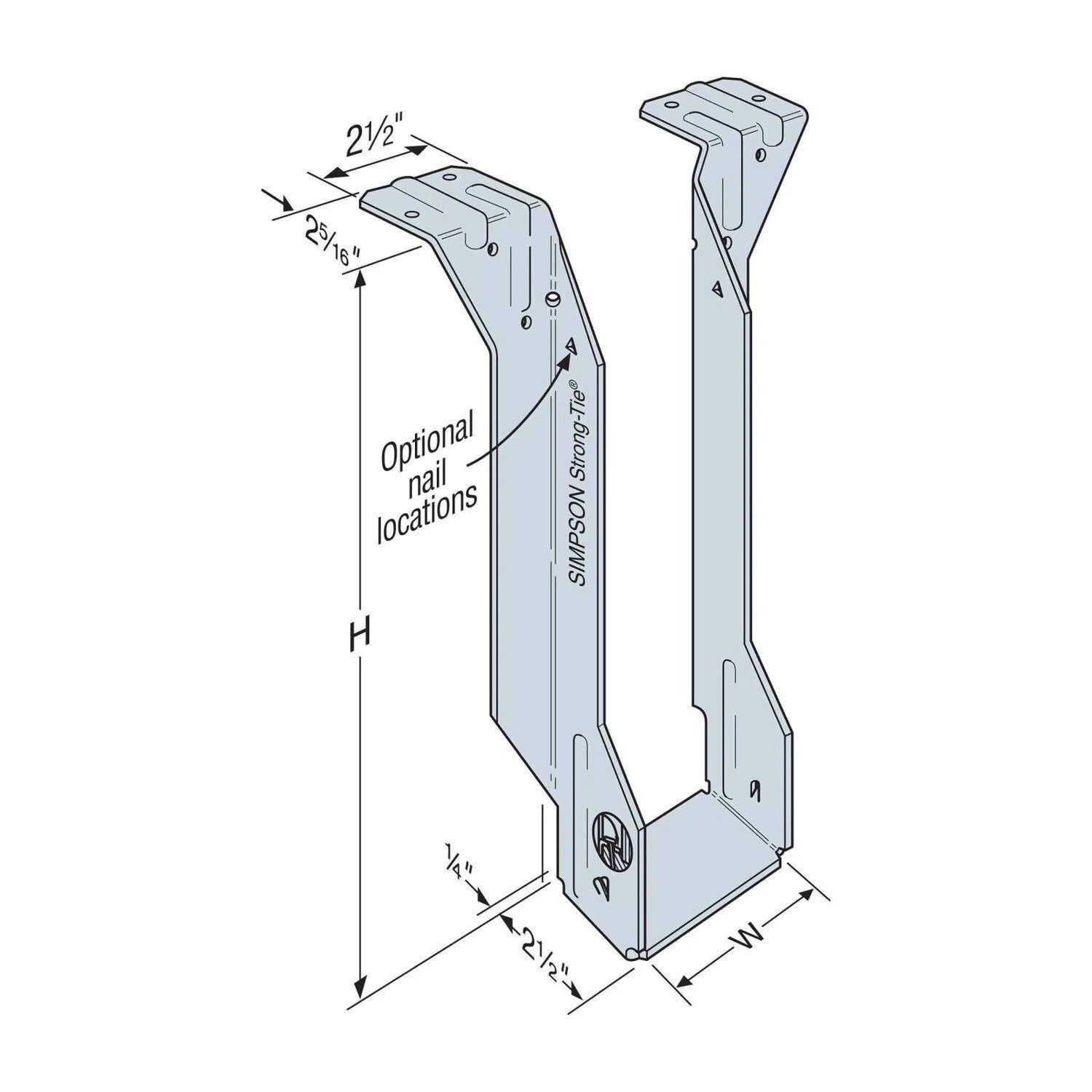

Simpson Strong-Tie MIT3514-2 Specifications
| Finish | G90 Galvanized |
| Material | 16 Gauge Steel |
| Joist Size | Double 2-5/16" x 14" |
| Width | 4-3/4" |
| Height | 14" |
| For Treated Lumber | No |
NOTE: Ensure all specified fasteners are used to achieve full load capacity.
