Simpson Hangers | SKU:
MIT39.5-2
Simpson Strong-Tie MIT39.5-2 (2-1/2" x 9-1/2") Top Flange I-Joist Hanger - G90 Galvanized
$13.01
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie MIT39.5-2 Description

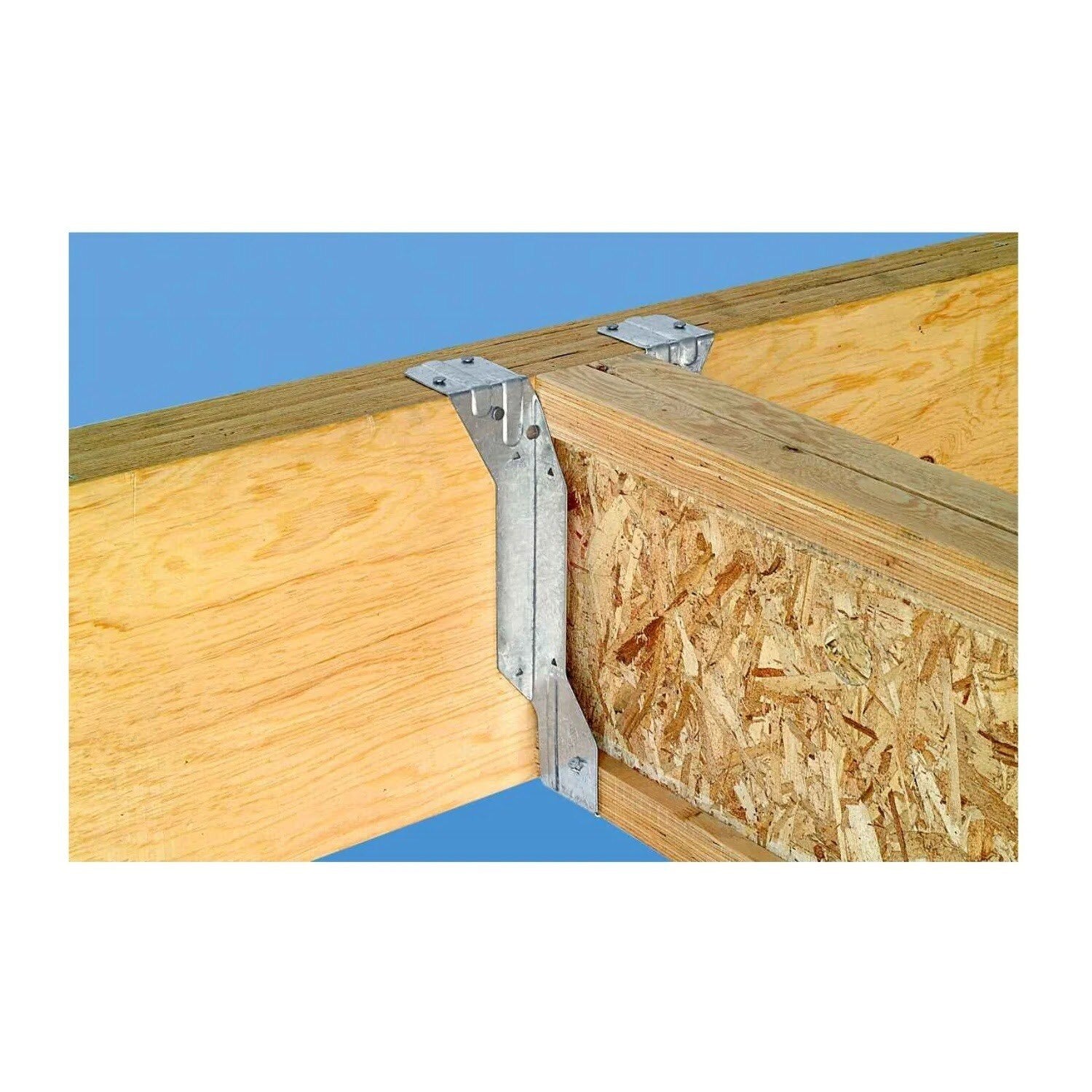

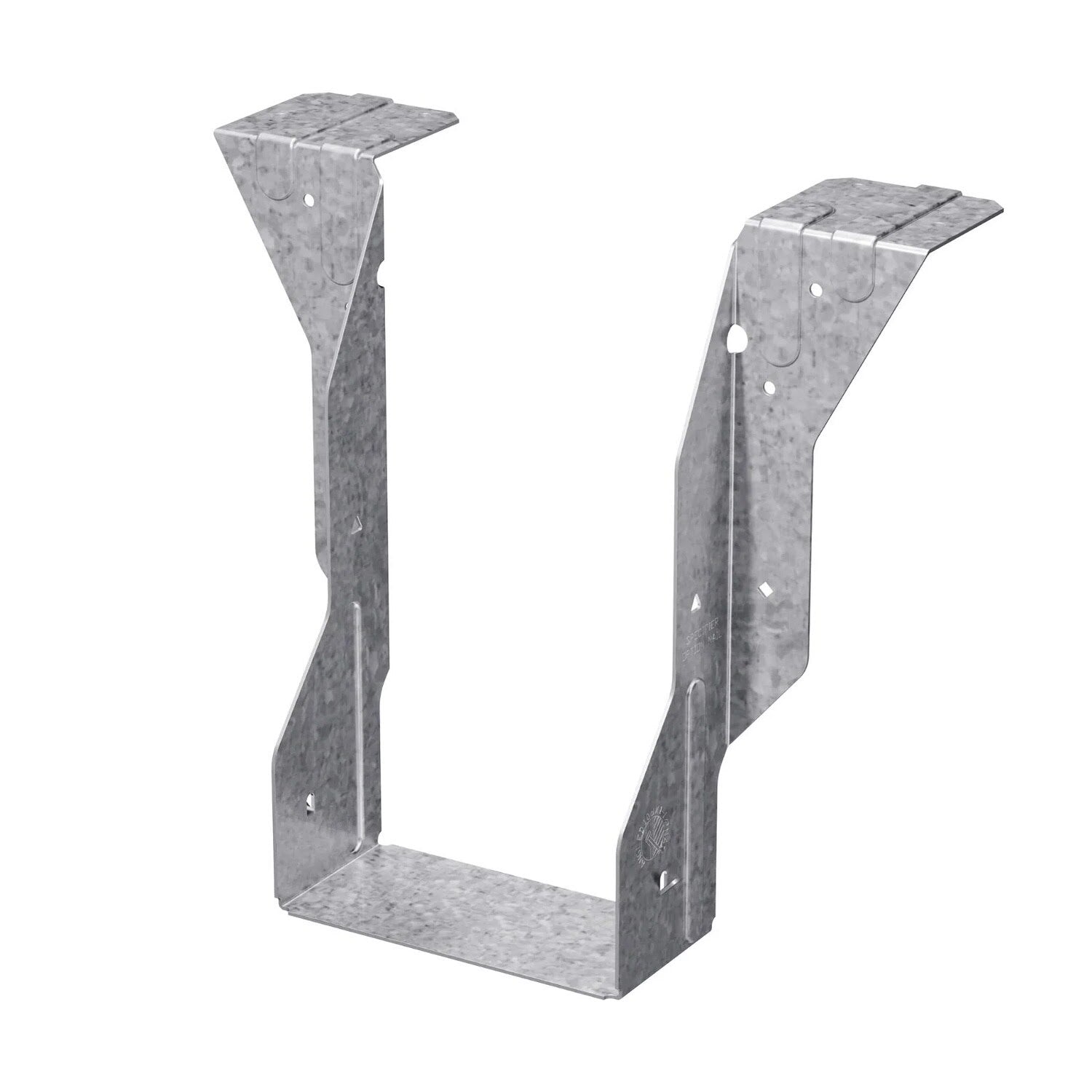

The Simpson Strong-Tie MIT Top-Flange Hanger offers a reliable, concealed connection for supporting engineered wood I-joists in a wide variety of framing applications.
Simpson Strong-Tie MIT39.5-2 Includes
- (1) Top Flange I-Joist Hanger
Simpson Strong-Tie MIT39.5-2 Features
- Reliable concealed connection for engineered wood I-joists
- Precision-formed steel construction
- Exceeds code requirements
- Top-flange design for flush installation
- Simplified installation process
Simpson Strong-Tie MIT39.5-2 Applications

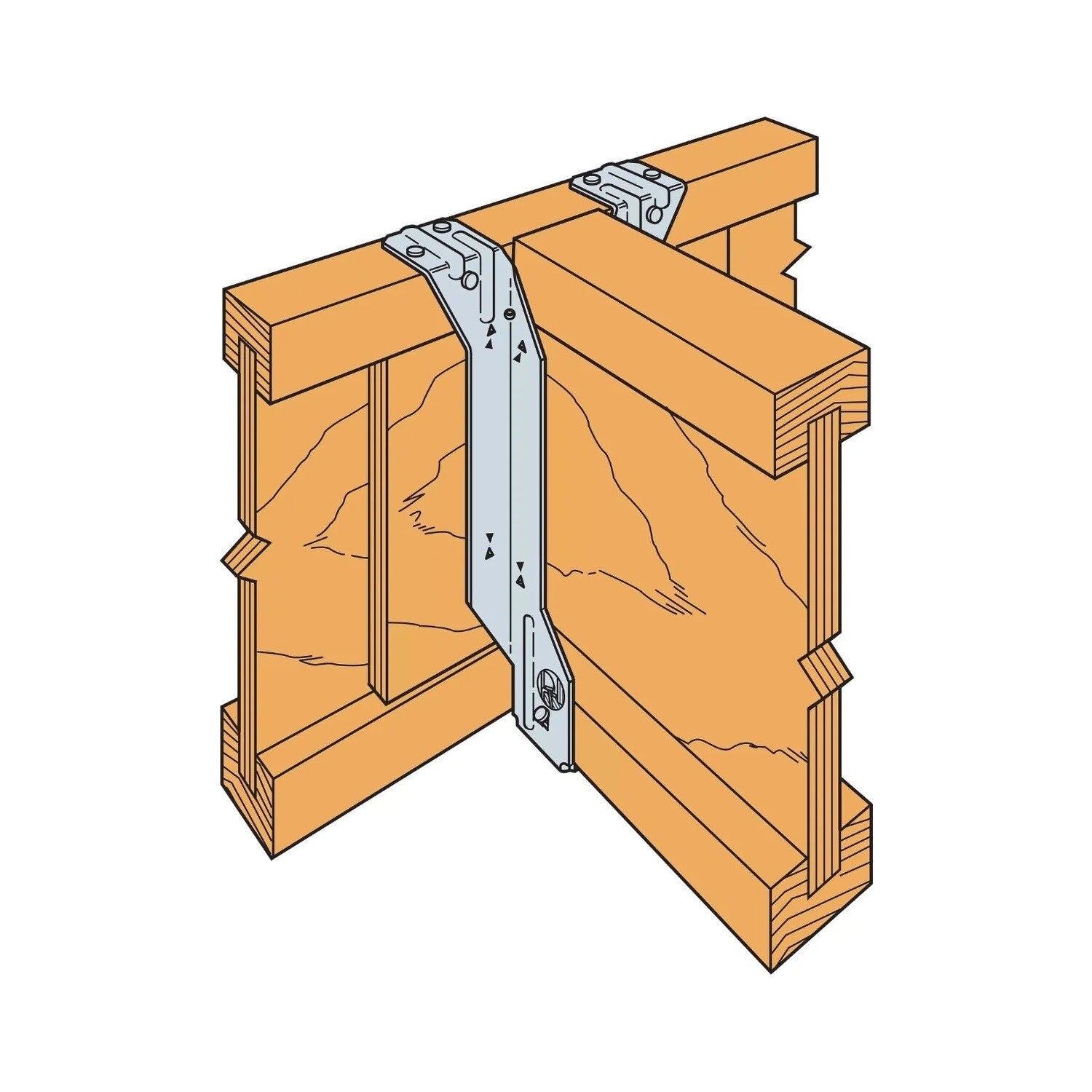

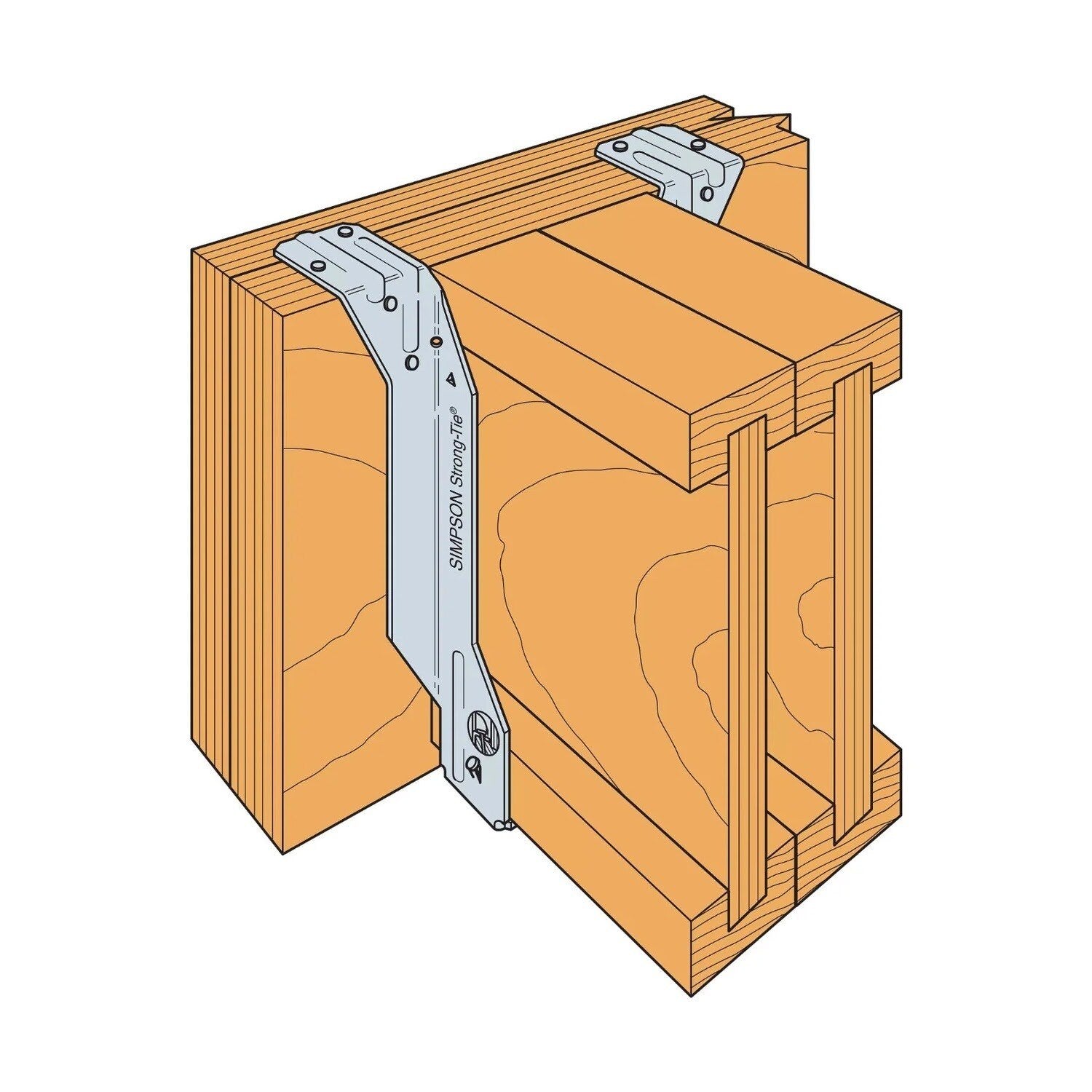

- Floor Joist Connections: Securely connects I-joists to supporting beams in wood floor systems.
- Multi-Family Framing: Ideal for repetitive framing layouts and tight spacing in apartment and condo construction.
- Commercial Wood Construction: Provides high-load capacity for larger wood framing projects.

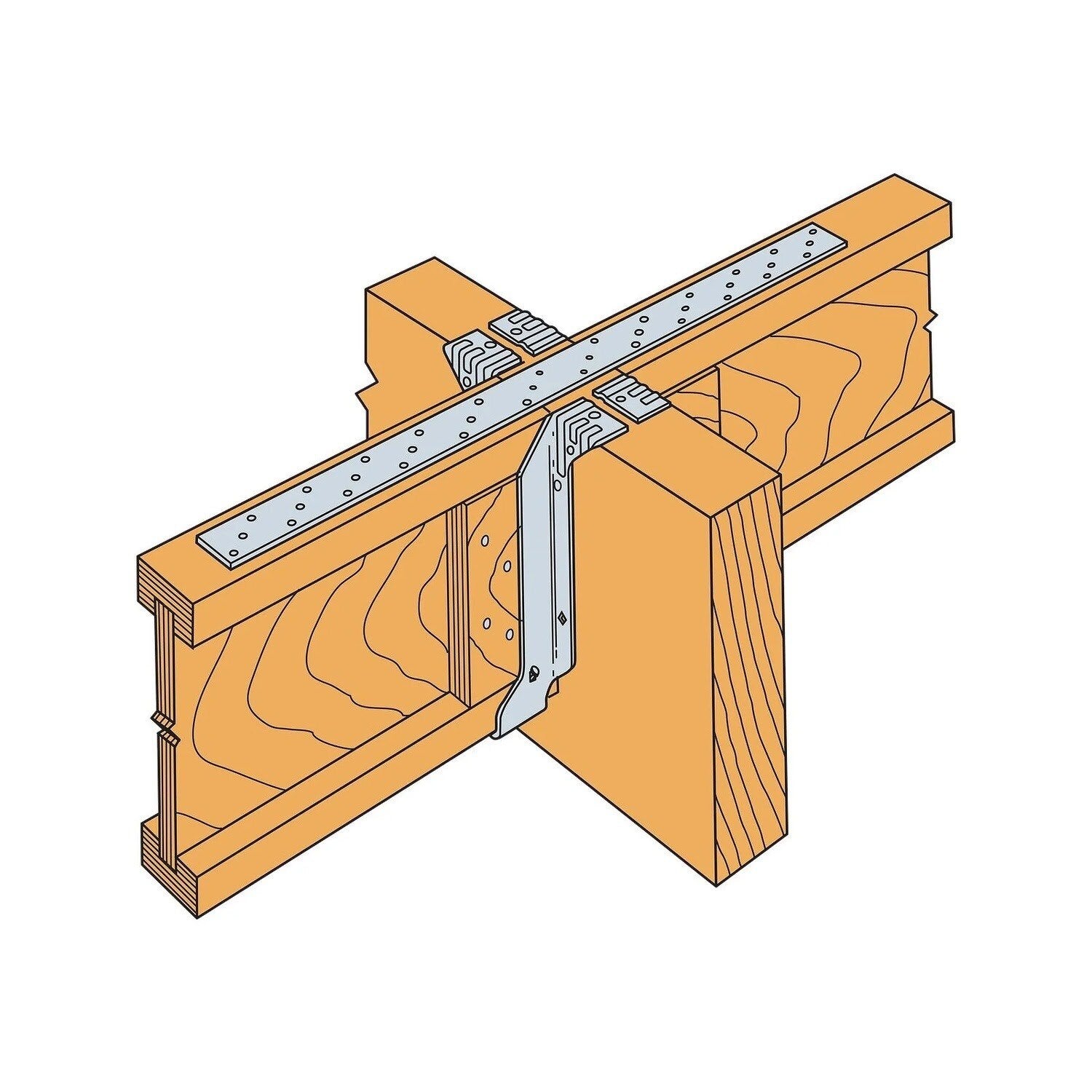

- Flush Beam Systems: Top-flange profile allows for flush installation with minimal height buildup.
- Offset Joist Conditions: Compatible with applications requiring minor adjustments in joist alignment.
Simpson Strong-Tie MIT39.5-2 Installation Overview
- For use with engineered wood I-joists only.
- Requires nails or Strong-Drive SD Connector screws for installation.
- Always install hangers flush with the header or beam surface.
- Use all specified fasteners to ensure full load capacity.
- Do not bend or modify the hanger.

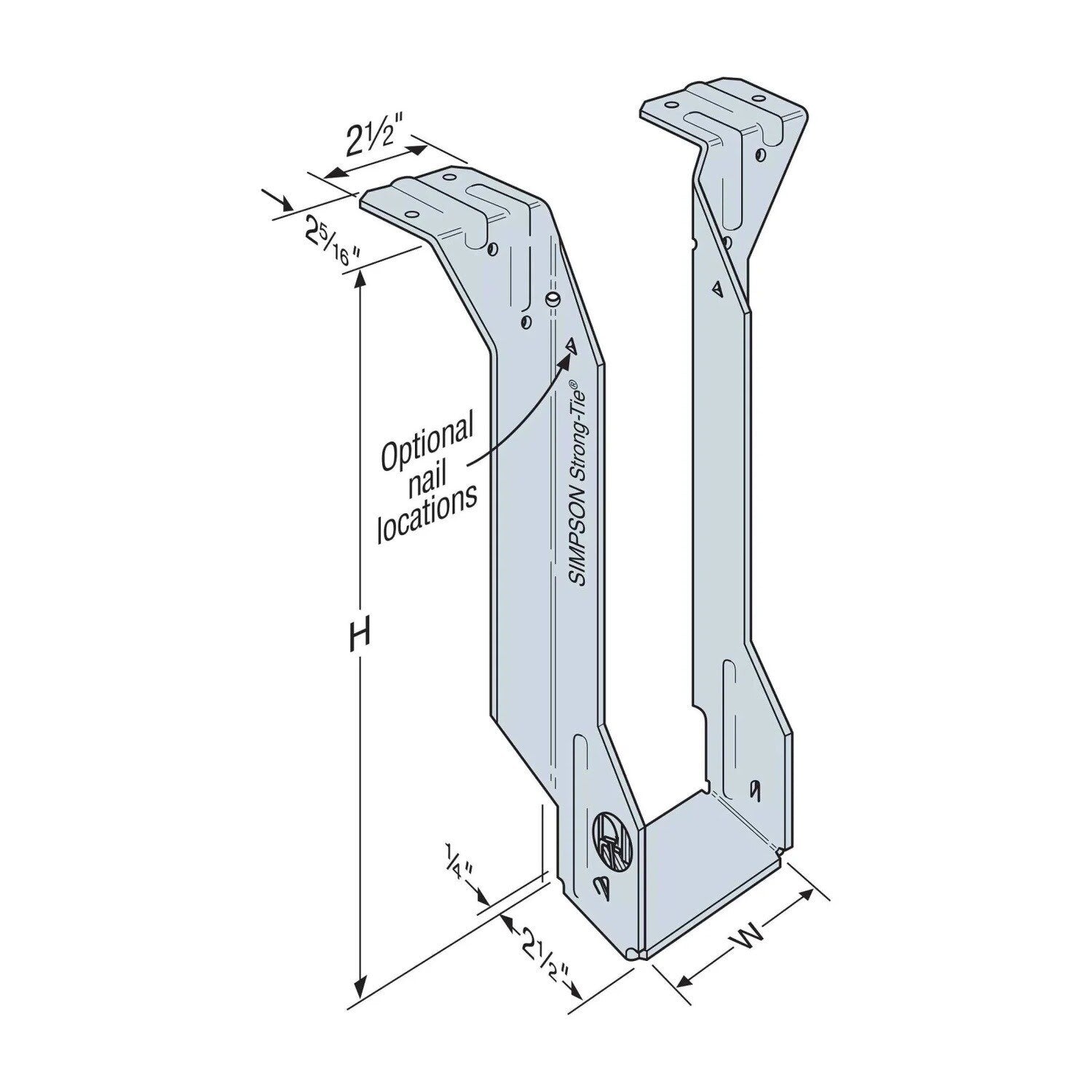

Simpson Strong-Tie MIT39.5-2 Specifications
| Finish | G90 Galvanized |
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| For Treated Lumber | No |
| Height | 9-1/2" |
| Joist size | Double 2-1/2" X 9-1/2" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Width | 5-1/8" |
NOTE: Always install hangers flush with the header or beam surface. Use all specified fasteners to ensure full load capacity. Do not bend or modify the hanger.
