Simpson Hangers | SKU:
MIT4.75/16

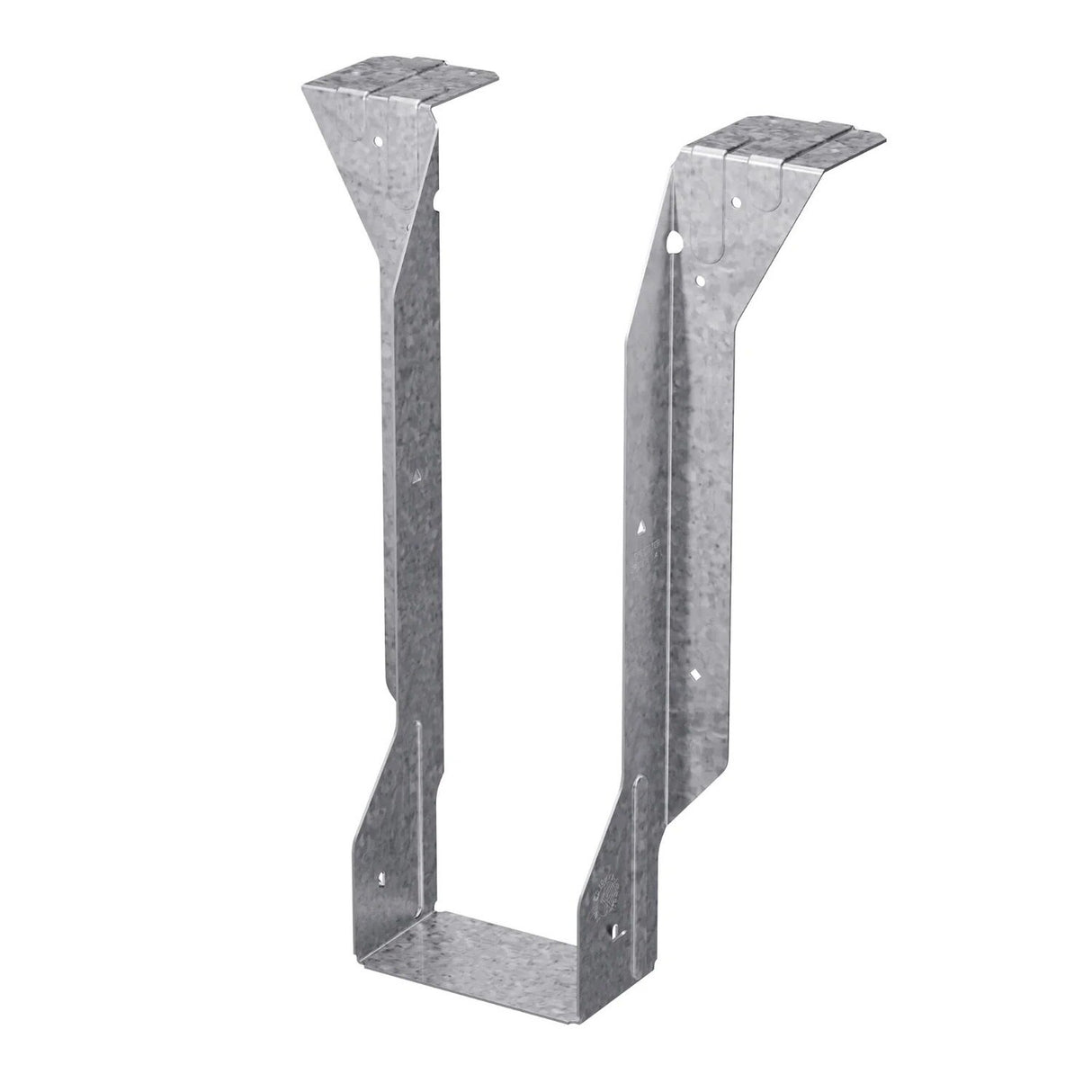

Simpson Strong-Tie MIT4.75/16 (4-5/8" x 16") Top Flange I-Joist Hanger for Engineered Wood
$14.33
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie MIT4.75/16 Description
The Simpson Strong-Tie MIT Top-Flange Hanger offers a reliable, concealed connection for supporting engineered wood I-joists in a wide variety of framing applications.
Simpson Strong-Tie MIT4.75/16 Includes
- (1) Top Flange I-Joist Hanger
Simpson Strong-Tie MIT4.75/16 Features
- Reliable concealed connection for engineered wood I-joists
- Precision-formed steel construction
- Exceeds code requirements
- Top-flange design for flush installation
- Versatile for various framing applications
Simpson Strong-Tie MIT4.75/16 Applications

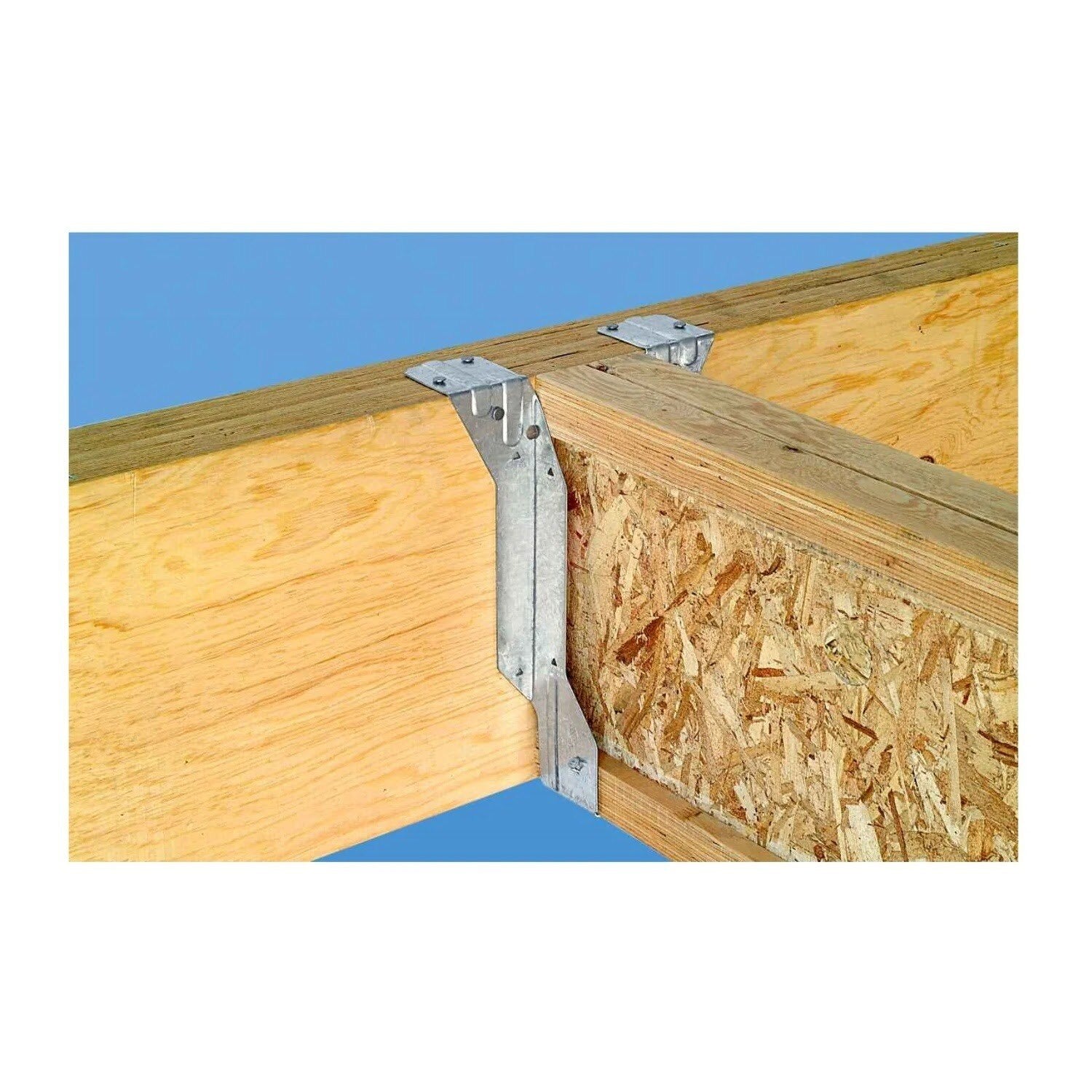

- Floor Joist Connections: Securely connects I-joists to supporting beams in wood floor systems.
- Multi-Family Framing: Ideal for repetitive framing layouts and tight spacing in apartment and condo construction.
- Commercial Wood Construction: Provides high-load capacity for larger wood framing projects.
- Flush Beam Systems: Top-flange profile allows for flush installation with minimal height buildup.
- Offset Joist Conditions: Compatible with applications requiring minor adjustments in joist alignment.
Simpson Strong-Tie MIT4.75/16 Installation Overview
- Use all specified fasteners.
- Verify that the header can take the required fasteners specified in the table.

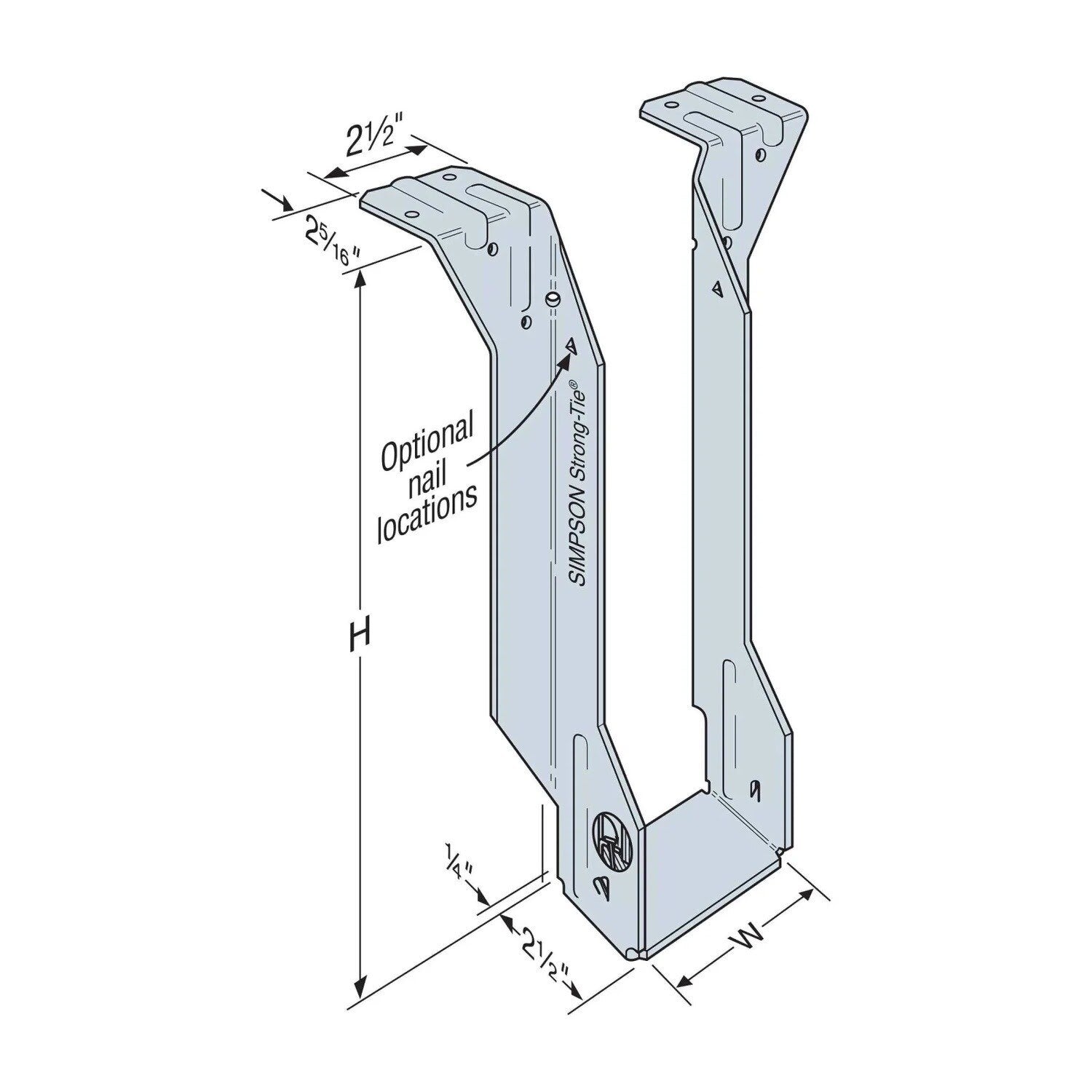

- Optional triangle nail holes may be used for increased uplift capacity.

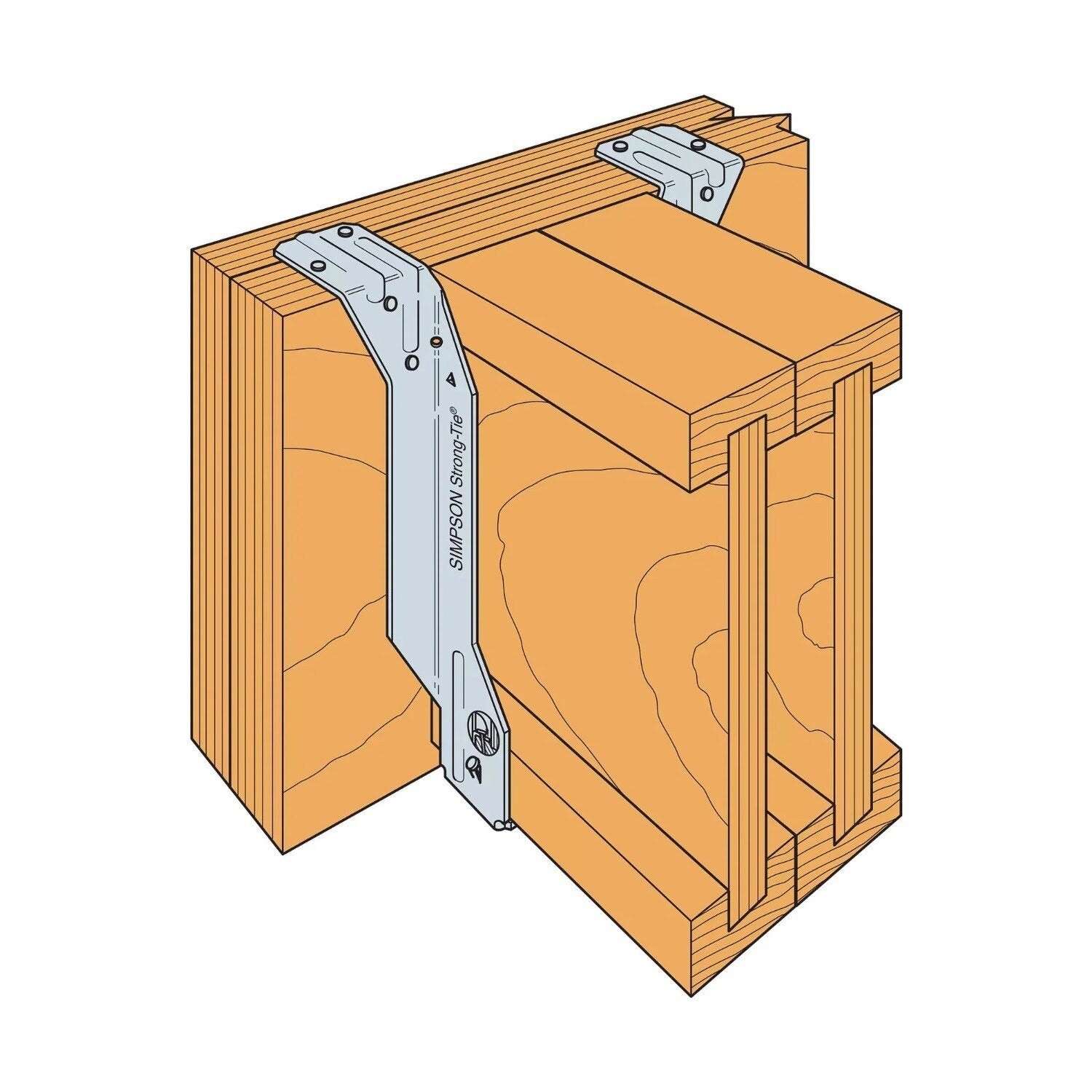

- Install hangers flush with the header or beam surface.
- Do not bend or modify the hanger.
Simpson Strong-Tie MIT4.75/16 Specifications
| Finish | G90 Galvanized |
| Material | 16 Gauge Steel |
| Joist Size | 4-5/8" x 16" |
| Width | 4-3/4" |
| Height | 16" |
| Thickness | 16 Gauge |
| Weight | 1.7 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
