Simpson Hangers | SKU:
MIT5.12/16

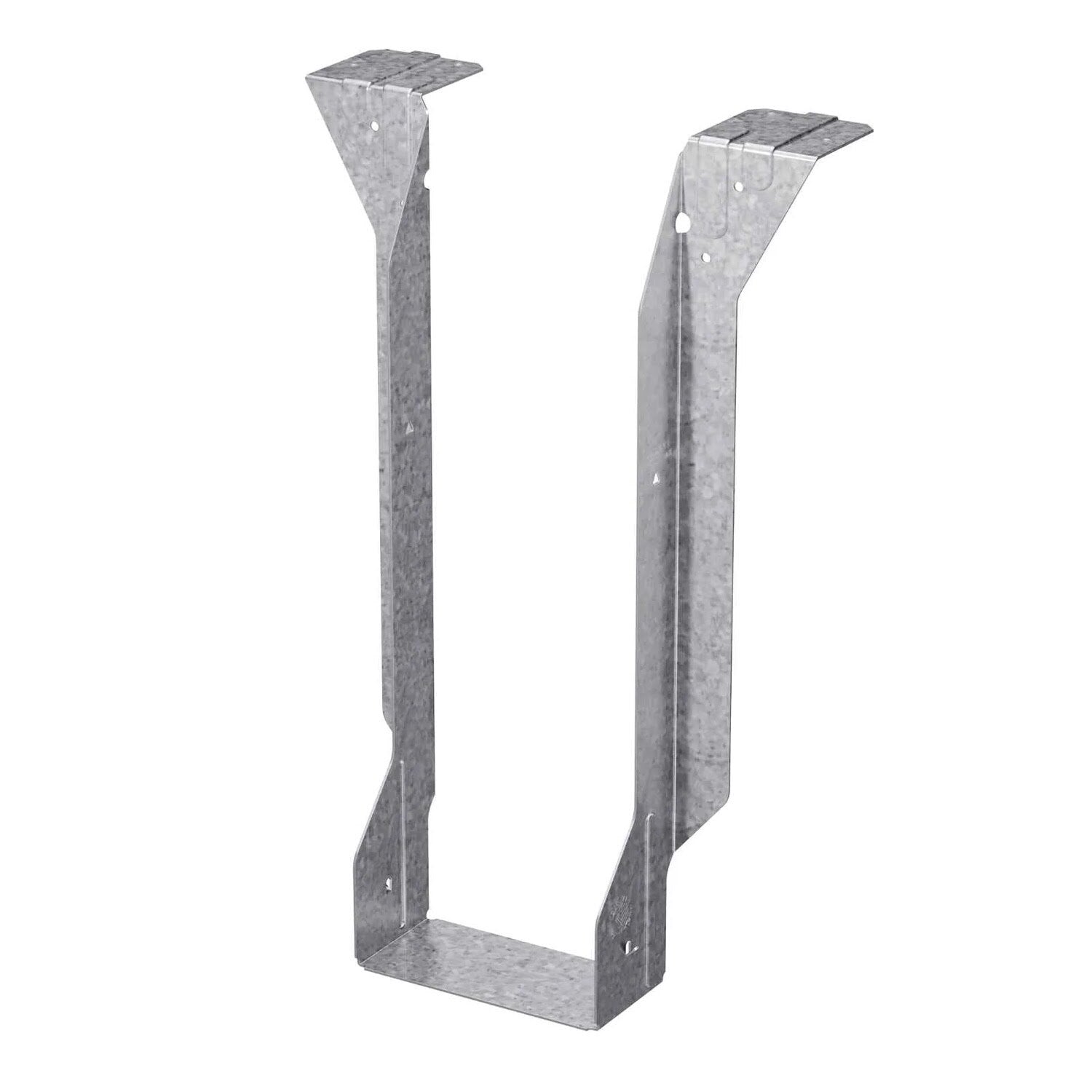

Simpson Strong-Tie MIT5.12/16 (5 in. x 16 in.) Top Flange I-Joist Hanger - G90 Galvanized
$17.35
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie MIT5.12/16 Description
The Simpson Strong-Tie MIT Top-Flange Hanger offers a reliable, concealed connection for supporting engineered wood I-joists in a wide variety of framing applications. Designed for versatility and strength, this hanger meets the demanding needs of residential, multifamily, and commercial construction.
Simpson Strong-Tie MIT5.12/16 Includes
- (1) Top Flange I-Joist Hanger
Simpson Strong-Tie MIT5.12/16 Features
- Reliable concealed connection for engineered wood I-joists
- Precision-formed steel construction
- Exceeds code requirements for strength and durability
- Top-flange design for flush installation
- Simplified installation process
Simpson Strong-Tie MIT5.12/16 Applications

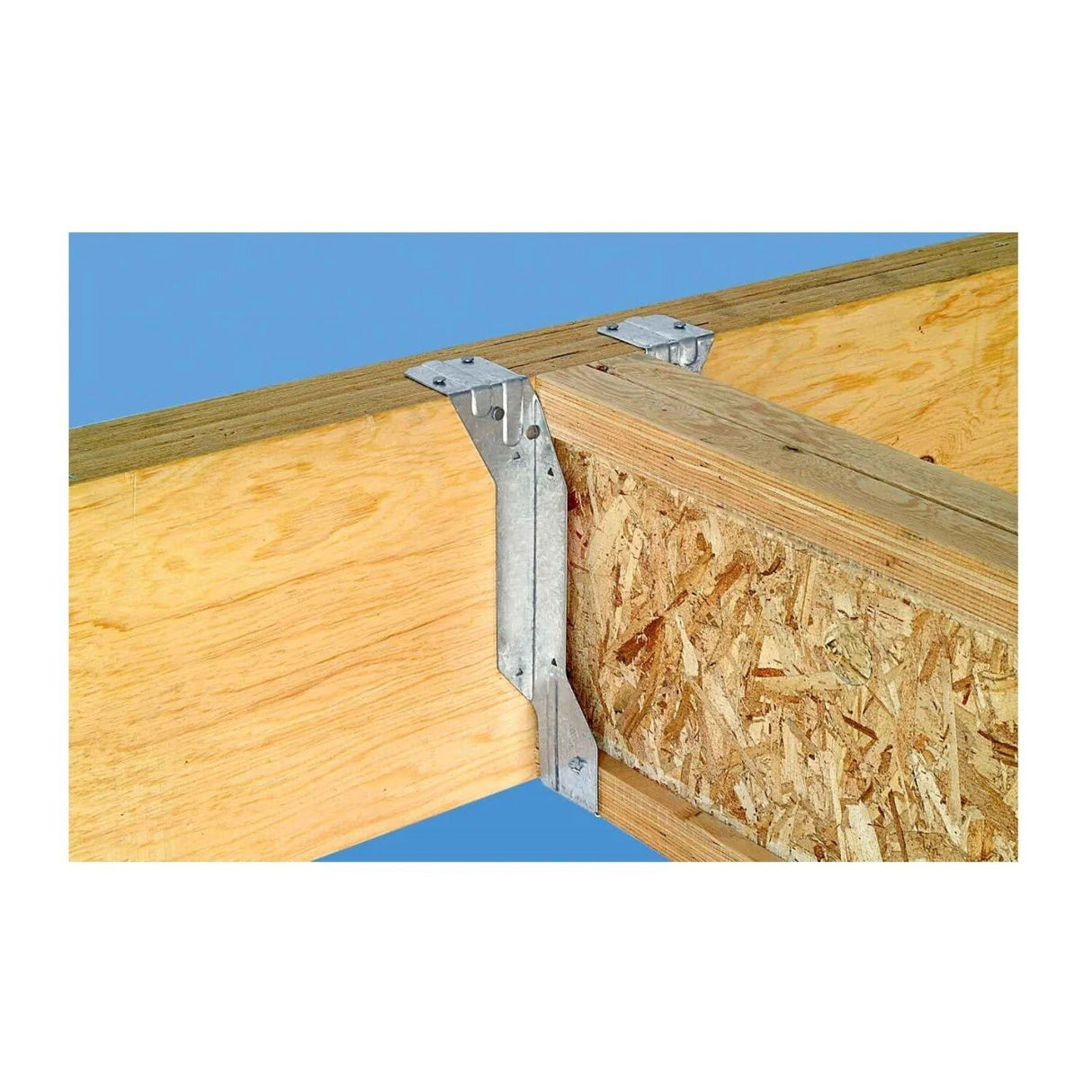

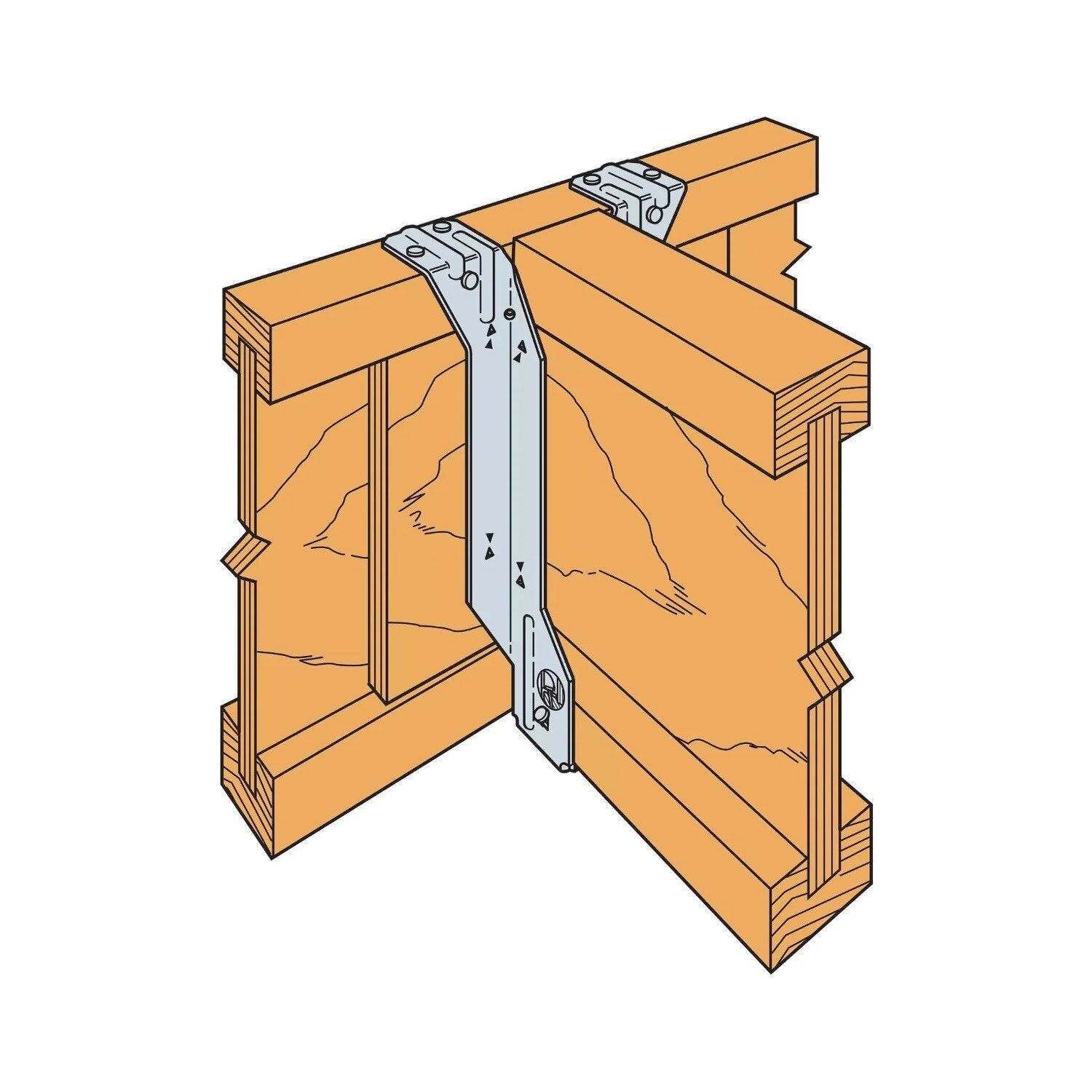

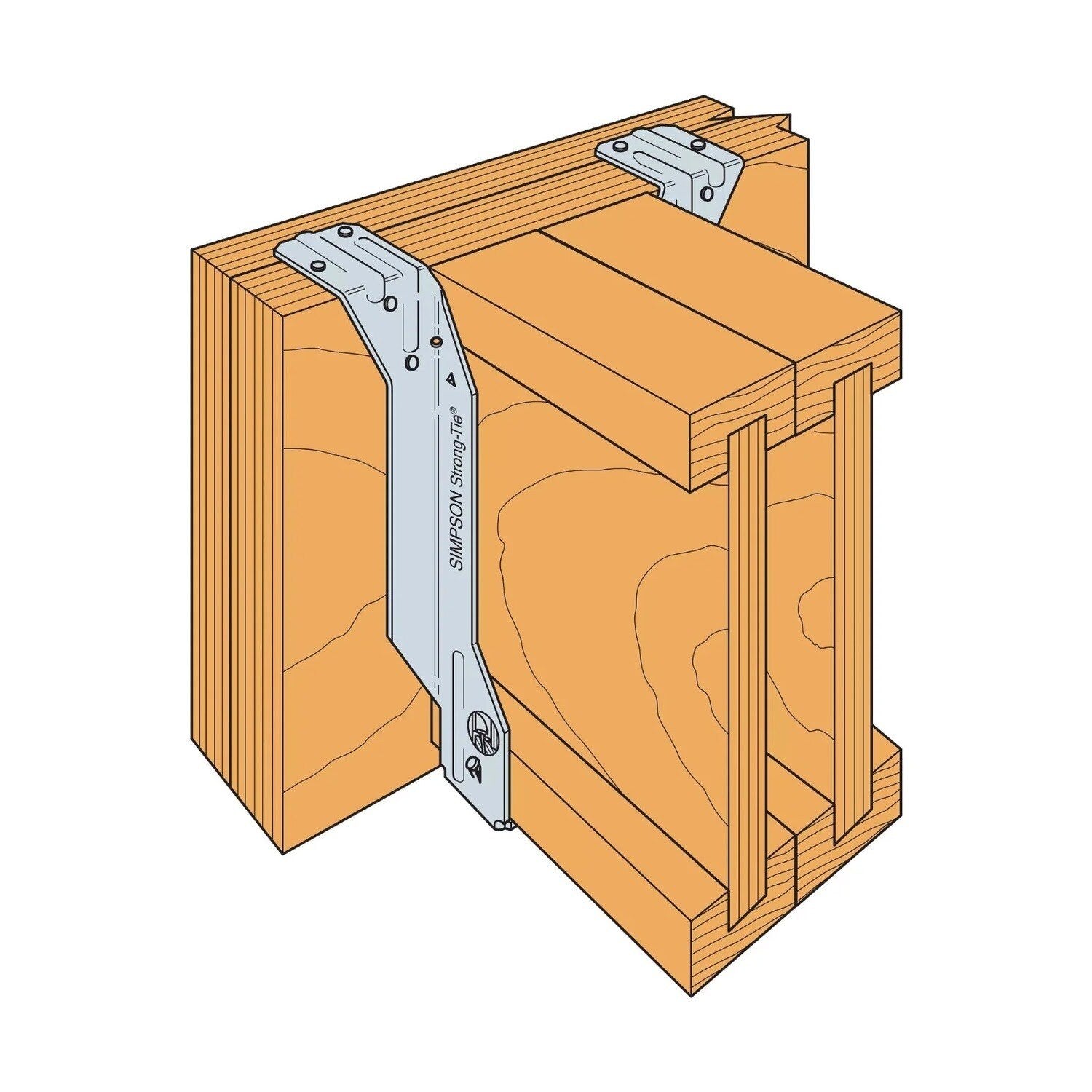

- Floor Joist Connections: Securely connects I-joists to supporting beams in wood floor systems.
- Multi-Family Framing: Ideal for repetitive framing layouts and tight spacing in apartment and condo construction.
- Commercial Wood Construction: Provides high-load capacity for larger wood framing projects.

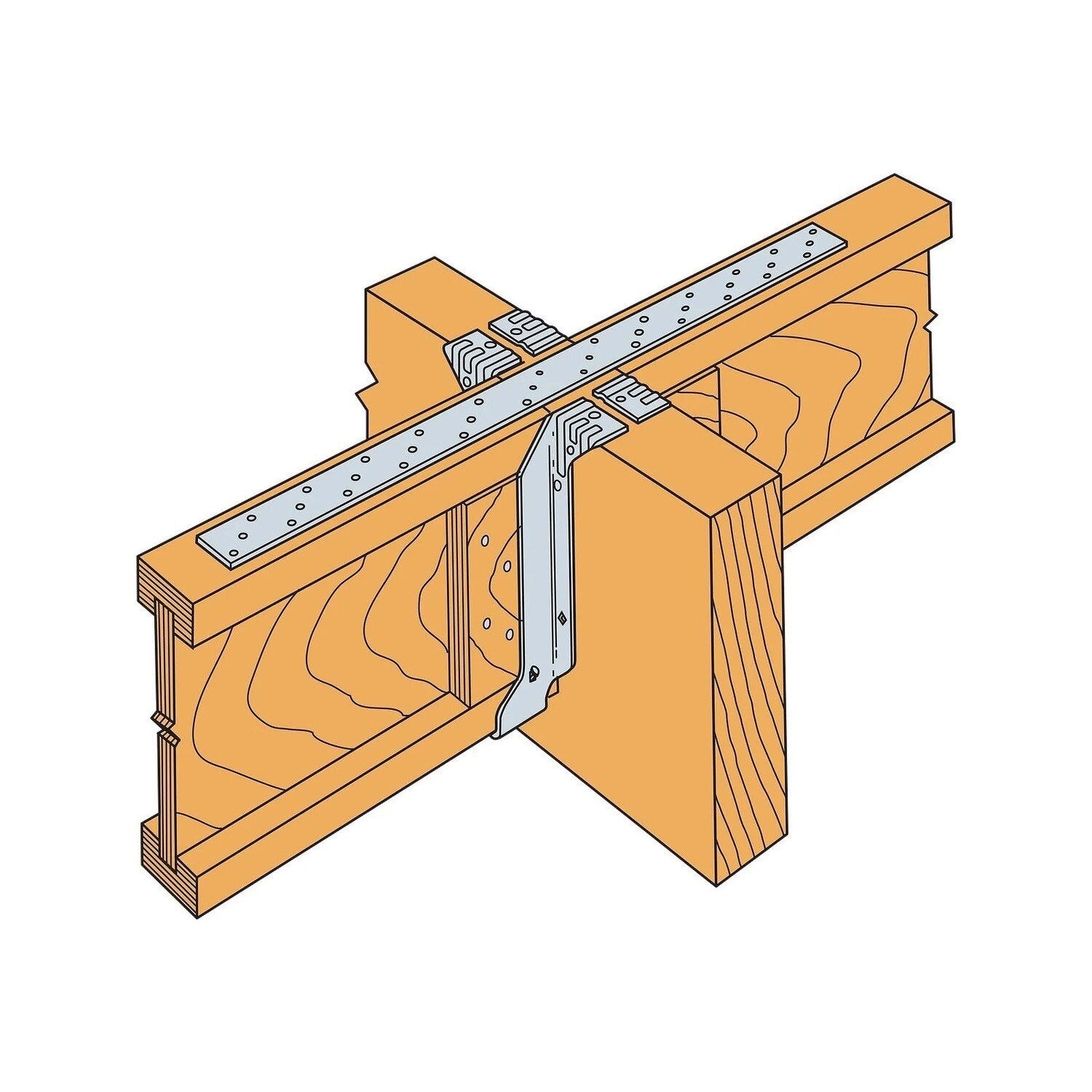

- Flush Beam Systems: Top-flange profile allows for flush installation with minimal height buildup.
- Offset Joist Conditions: Compatible with applications requiring minor adjustments in joist alignment.
Simpson Strong-Tie MIT5.12/16 Installation Overview
- Use with engineered wood I-joists only.
- Install using nails or Strong-Drive SD Connector screws as per manufacturer guidelines.
- Ensure hangers are flush with the header or beam surface.
- Use all specified fasteners to achieve full load capacity.
- Avoid bending or modifying the hanger.

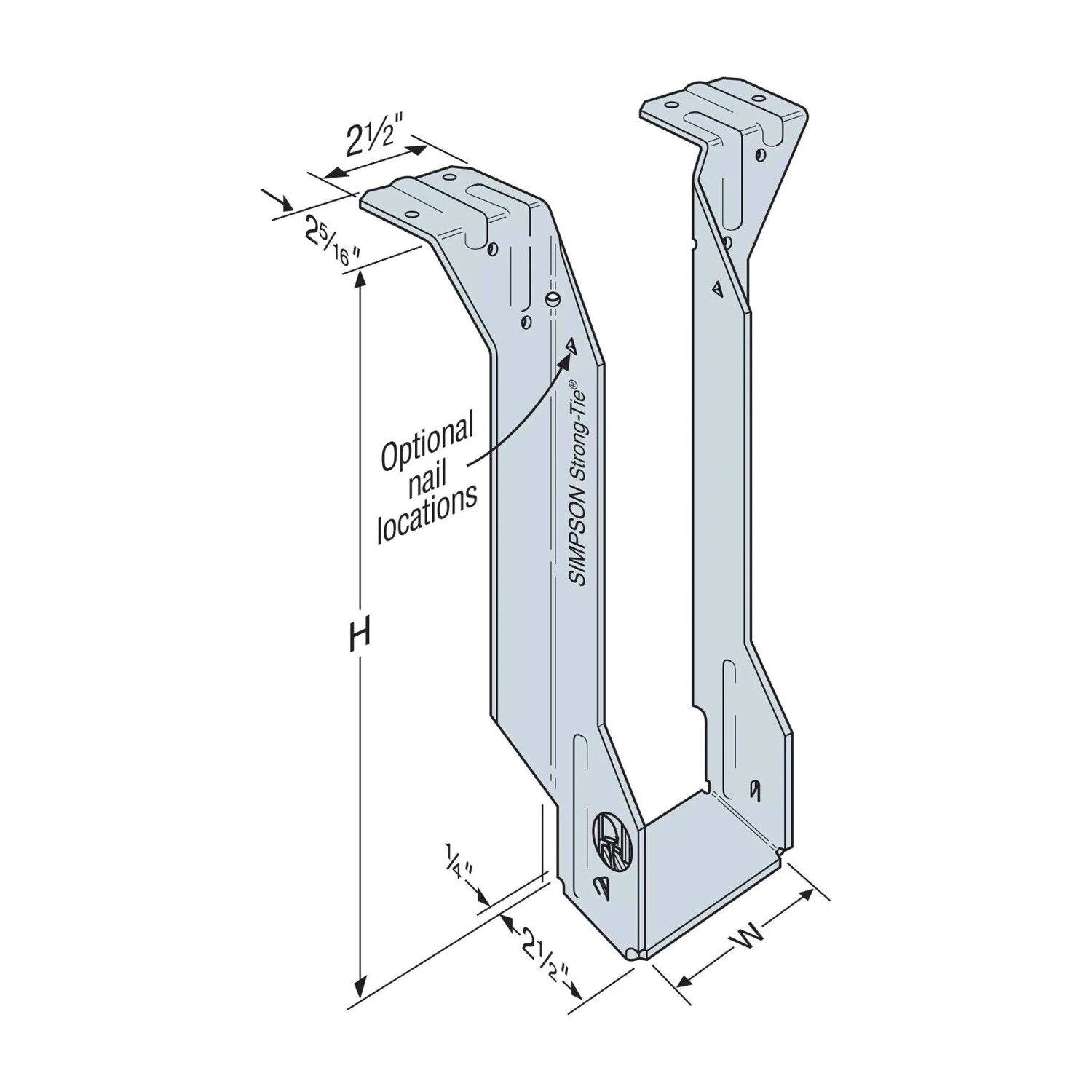

Simpson Strong-Tie MIT5.12/16 Specifications
| Finish | G90 Galvanized |
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| For Treated Lumber | No |
| Height | 16" |
| Joist size | 5" X 16" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Width | 5-1/8" |
