Simpson Hangers | SKU:
MIU1.81/11

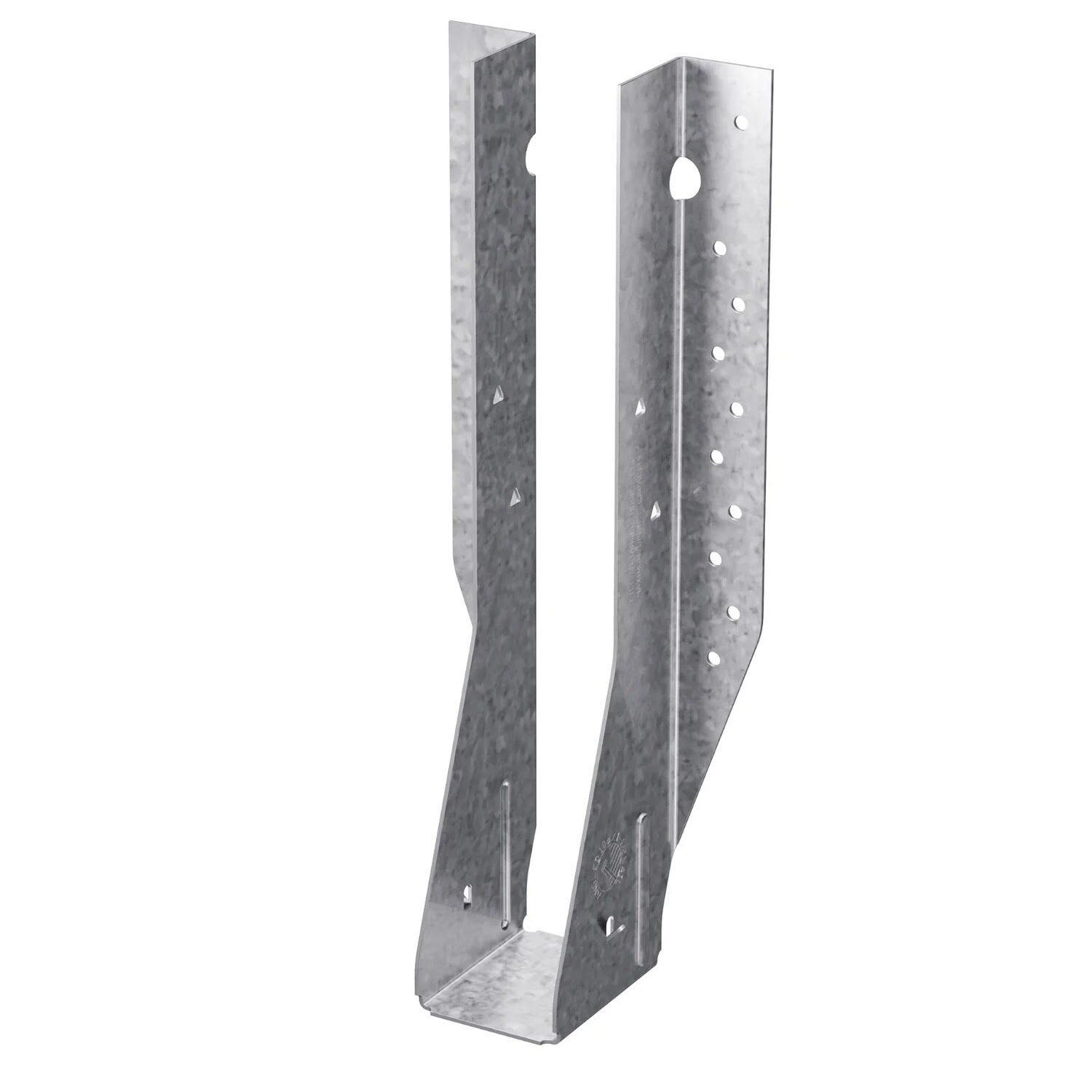

Simpson Strong-Tie MIU1.81/11 (1-3/4" x 11-7/8") Galvanized Face-Mount Joist Hanger for Engineered Wood
$17.54
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie MIU1.81/11 Description
The Simpson Strong-Tie MIU1.81/11 is a durable, high-capacity face-mount I-joist hanger designed for engineered wood applications. Made from 14-gauge steel with a G90 galvanized finish, it ensures reliable corrosion resistance and structural integrity.
Simpson Strong-Tie MIU1.81/11 Includes
- (1) MIU1.81/11 Face-Mount I-Joist Hanger
Simpson Strong-Tie MIU1.81/11 Features
- G90 Galvanized Finish for corrosion resistance
- Full-height design for enhanced lateral and uplift capacity
- Precision-engineered 14-gauge steel construction

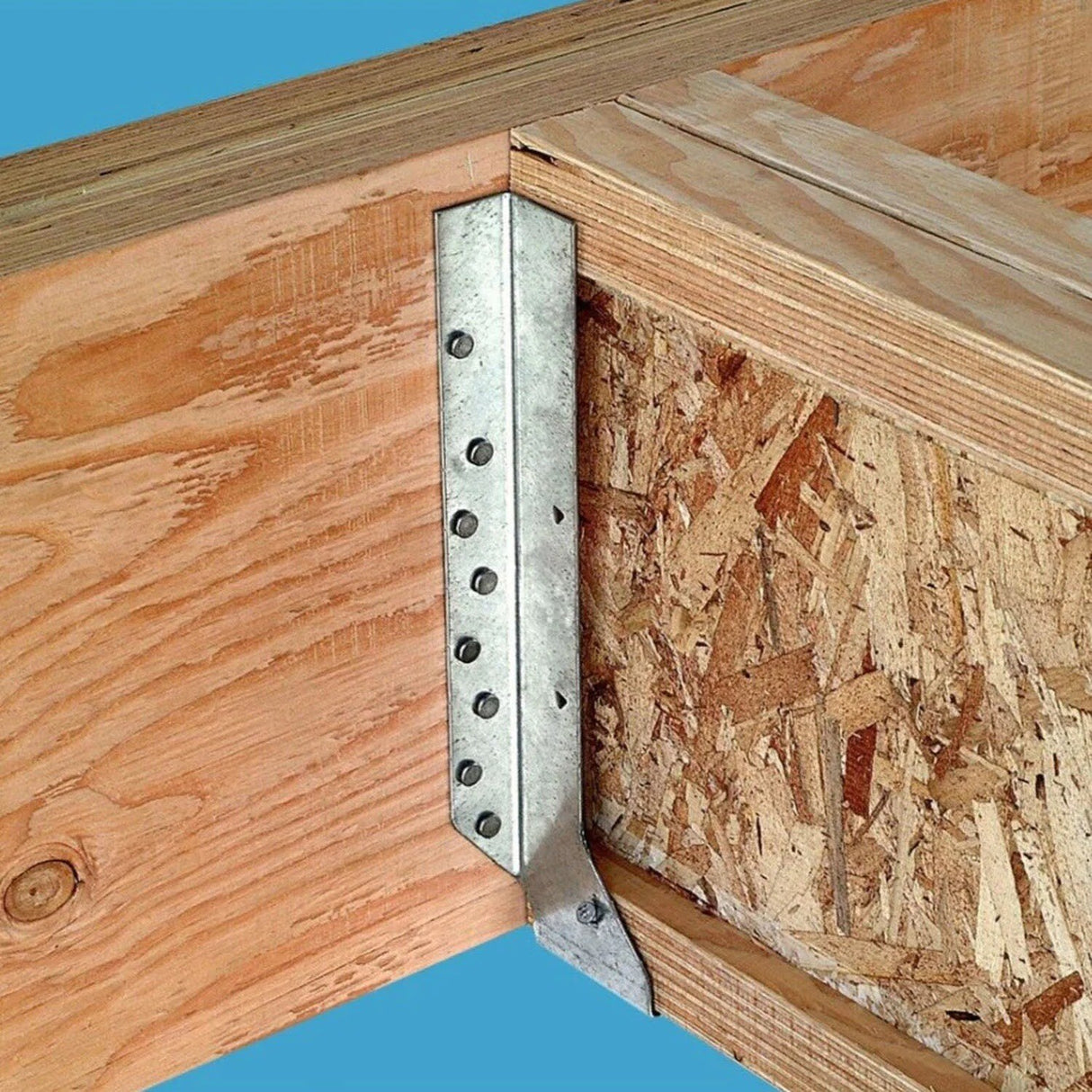

- Face-mount design for secure attachment to headers and beams
- Compatible with LVL, LSL, and PSL engineered wood products
Simpson Strong-Tie MIU1.81/11 Applications
- Interior floor framing for load-bearing connections
- Roof framing for superior uplift resistance
- Deck framing for covered outdoor structures
- General wood construction in residential and commercial projects
Simpson Strong-Tie MIU1.81/11 Installation Overview
- Use 10d common nails or Simpson Strong-Tie SD screws for full load capacity
- Secure hanger to the header by filling all nail holes
- Ensure proper alignment and secure attachment to engineered wood joists
Simpson Strong-Tie MIU1.81/11 Specifications
| Finish | G90 Galvanized |
| Fasteners required | Face - (20) 0.162" x 3-1/2" Nails, Joist - (2) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 11-1/16" |
| Joist size | 1-3/4" X 11-7/8" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Width | 1-13/16" |
