Simpson Hangers | SKU:
MIU2.56/18
Simpson Strong-Tie MIU2.56/18 (2-1/2" x 18") Face-Mount Joist Hanger for Engineered Wood
$41.45
Unit price
/
Unavailable
Description
Description

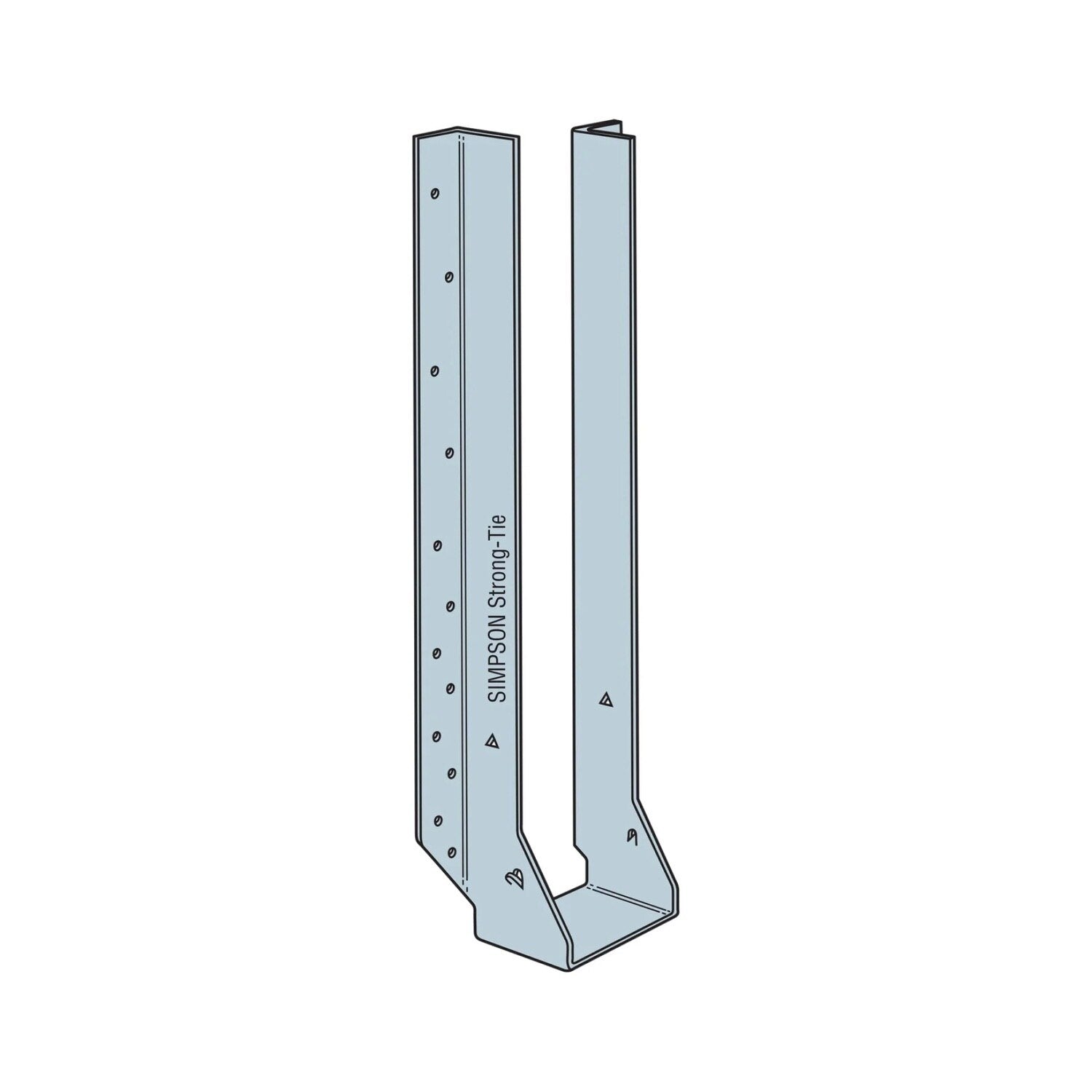

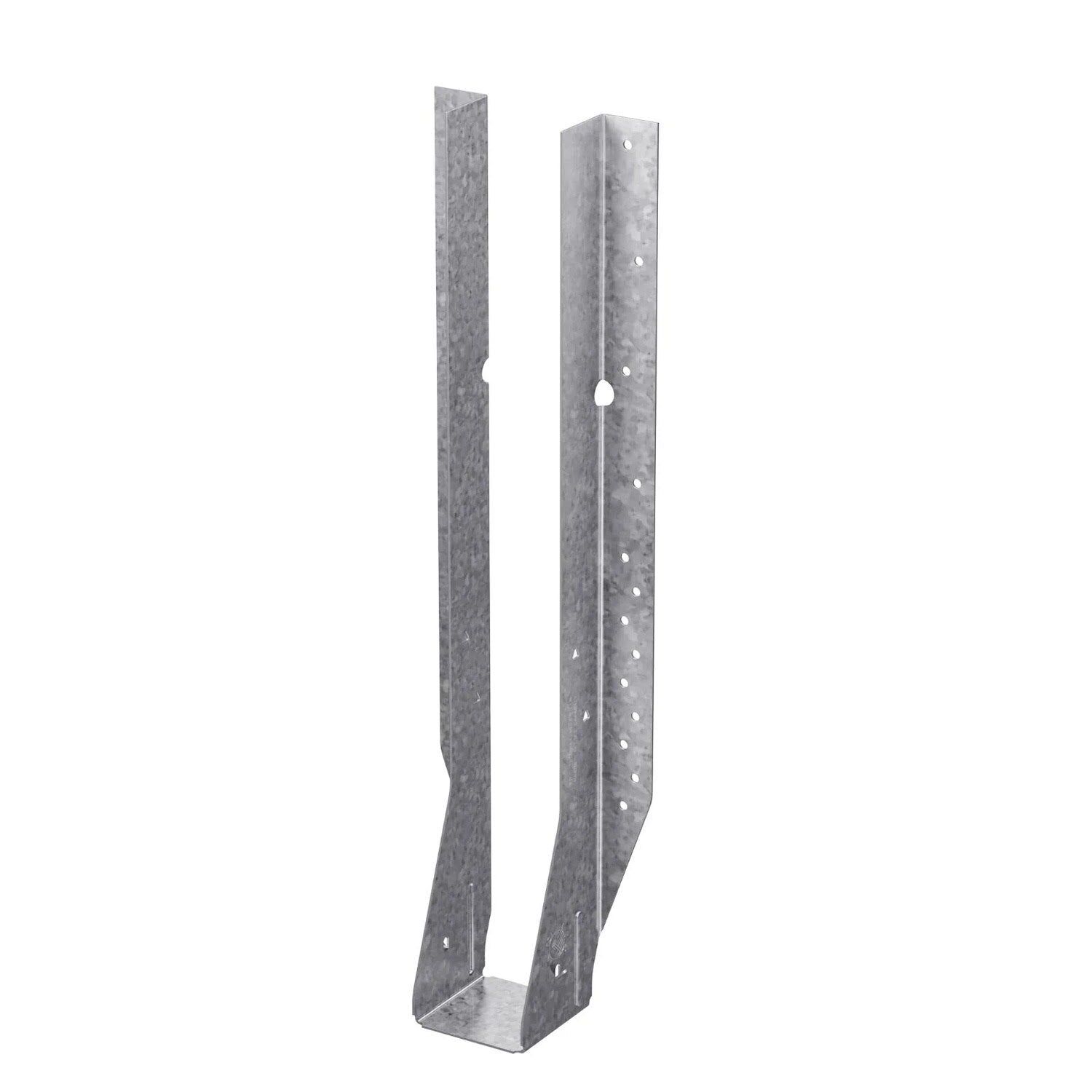

Simpson Strong-Tie MIU2.56/18 Description

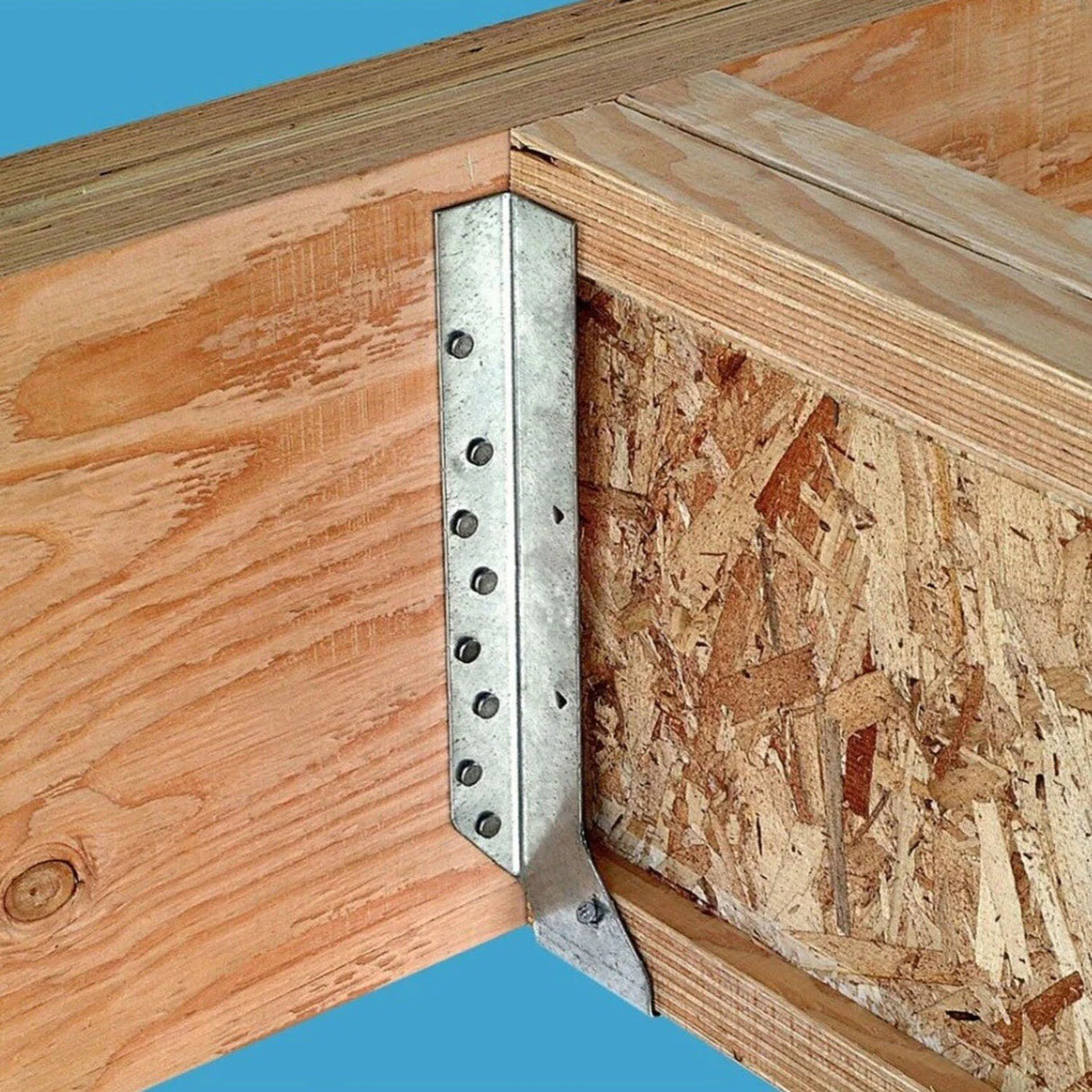

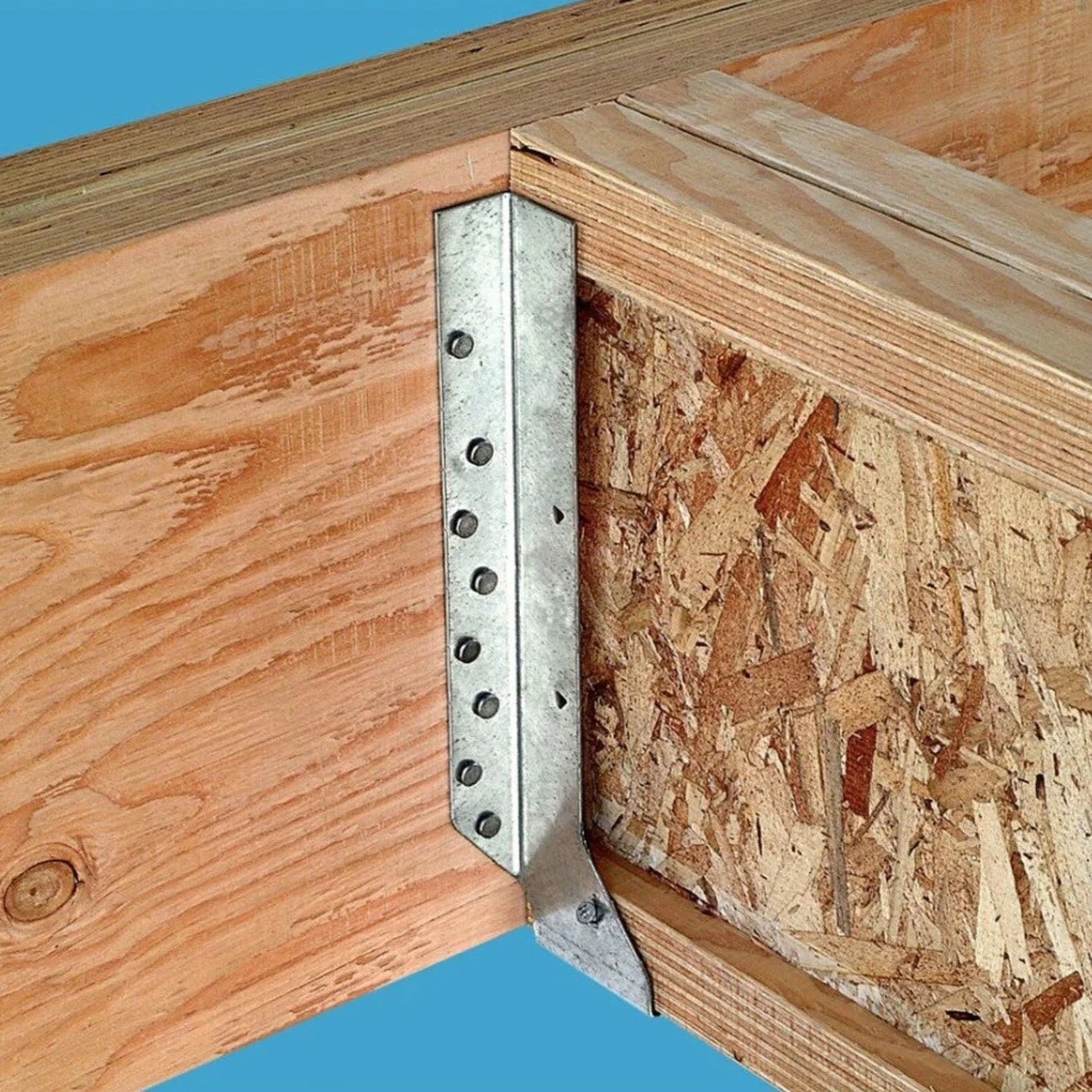

The Simpson Strong-Tie MIU2.56/18 is a durable face-mount I-joist hanger designed for engineered wood, offering high load capacity and corrosion resistance with its G90 galvanized finish.
Simpson Strong-Tie MIU2.56/18 Includes
- (1) MIU2.56/18 Face Mount I-Joist Hanger
Simpson Strong-Tie MIU2.56/18 Features
- G90 Galvanized Finish for corrosion resistance
- Full-height design for enhanced lateral and uplift capacity
- Precision-engineered 14-gauge steel construction
- Face-mount design for secure attachment to headers and beams
- Compatible with various engineered wood products
Simpson Strong-Tie MIU2.56/18 Applications
- Interior floor framing for load-bearing connections
- Roof framing for superior uplift resistance
- Deck framing for covered outdoor structures
- General wood construction in residential and commercial projects

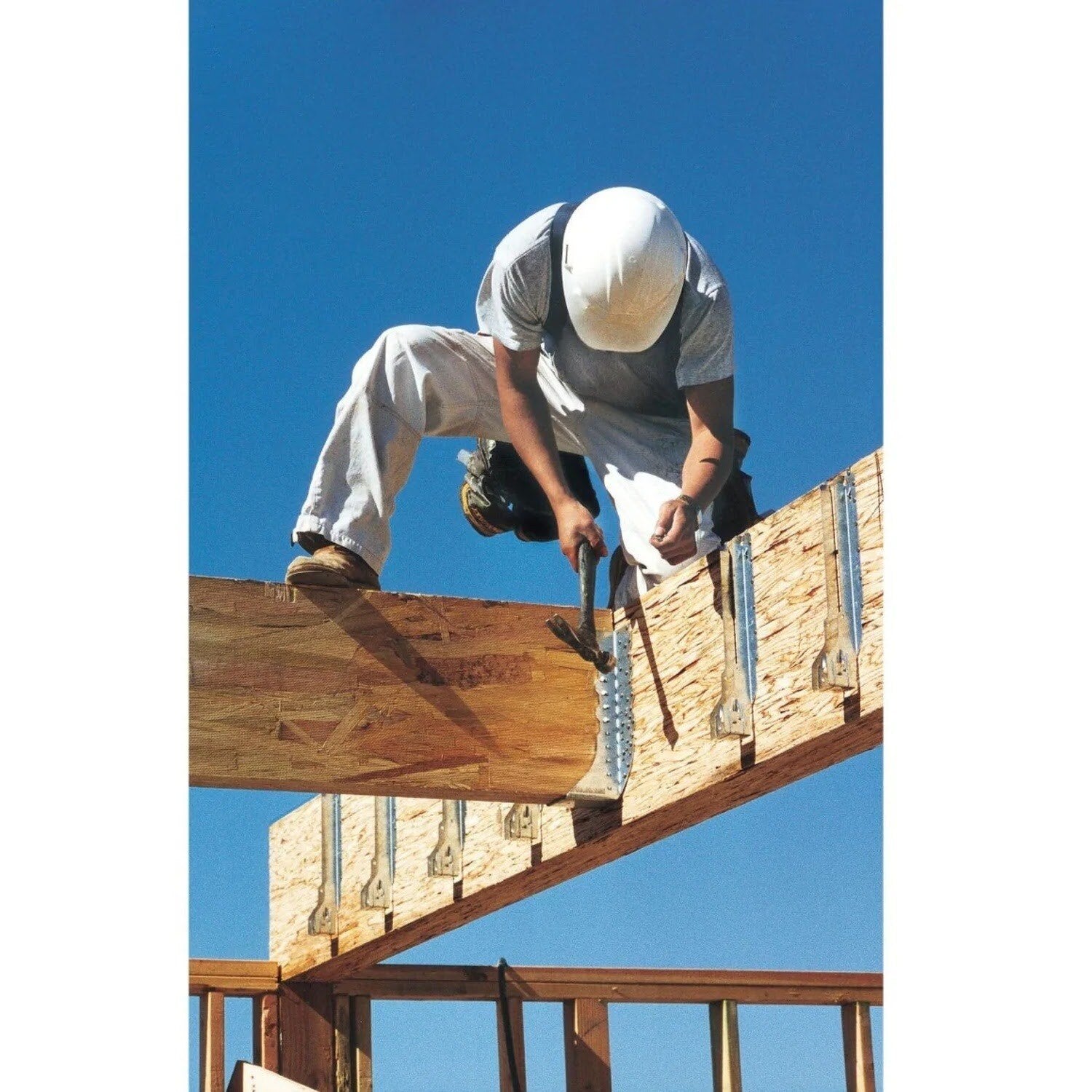

Simpson Strong-Tie MIU2.56/18 Installation Overview
- Use 10d common nails or Simpson Strong-Tie SD screws for full load capacity
- Secure the hanger to the header by filling all nail holes
- Ensure proper alignment and secure attachment to the joist
Simpson Strong-Tie MIU2.56/18 Specifications
| Finish | G90 Galvanized |
| Fasteners required | Face - (26) 0.162" x 3-1/2" Nails, Joist - (2) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 17-7/16" |
| Joist size | 2-1/2" X 18" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Width | 2-9/16" |
