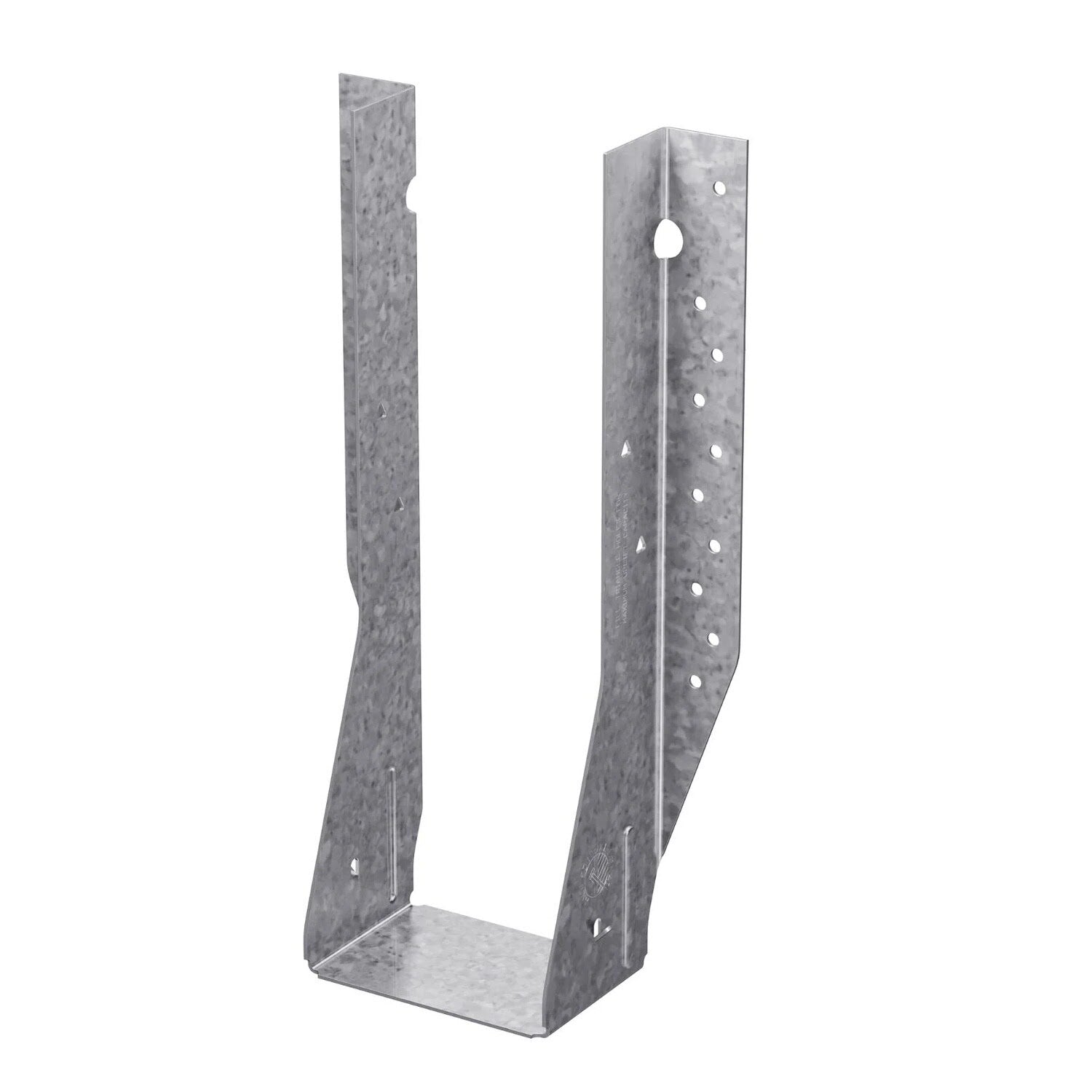

Simpson Strong-Tie MIU3.56/9 Description
The Simpson Strong-Tie MIU3.56/9 is a durable, high-capacity face-mount I-joist hanger designed for engineered wood applications. Made from 14-gauge steel with a G90 galvanized finish, it ensures reliable corrosion resistance and structural integrity.
Simpson Strong-Tie MIU3.56/9 Includes
- (1) MIU3.56/9 Face-Mount I-Joist Hanger
Simpson Strong-Tie MIU3.56/9 Features
- G90 Galvanized Finish for corrosion resistance
- Full-height design for enhanced lateral and uplift capacity
- Precision-engineered 14-gauge steel construction
- Face-mount design for secure attachment to headers and beams
- Compatible with various engineered wood products
Simpson Strong-Tie MIU3.56/9 Applications
- Interior floor framing for load-bearing connections
- Roof framing for superior uplift resistance
- Deck framing for covered outdoor structures
- General wood construction in residential and commercial projects

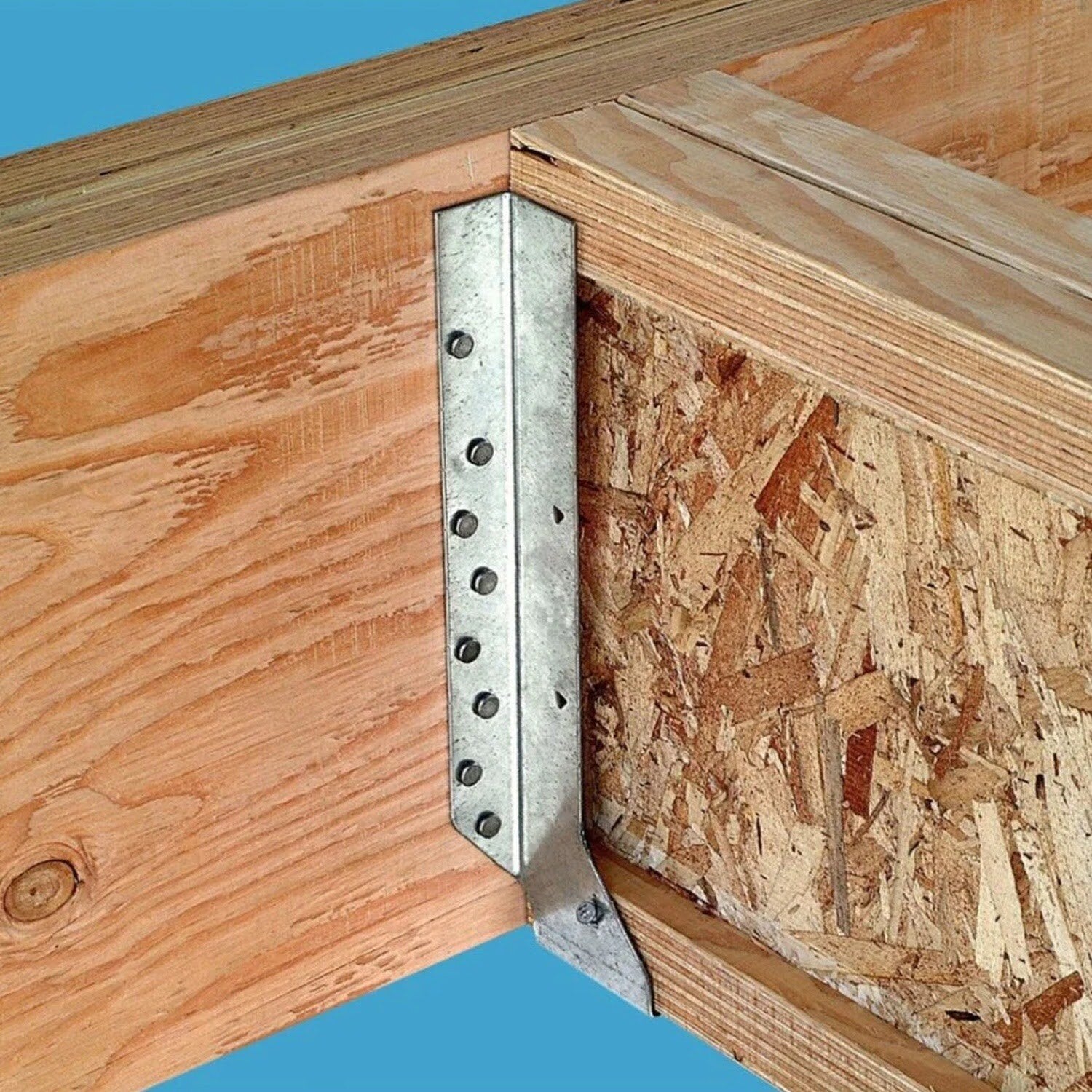

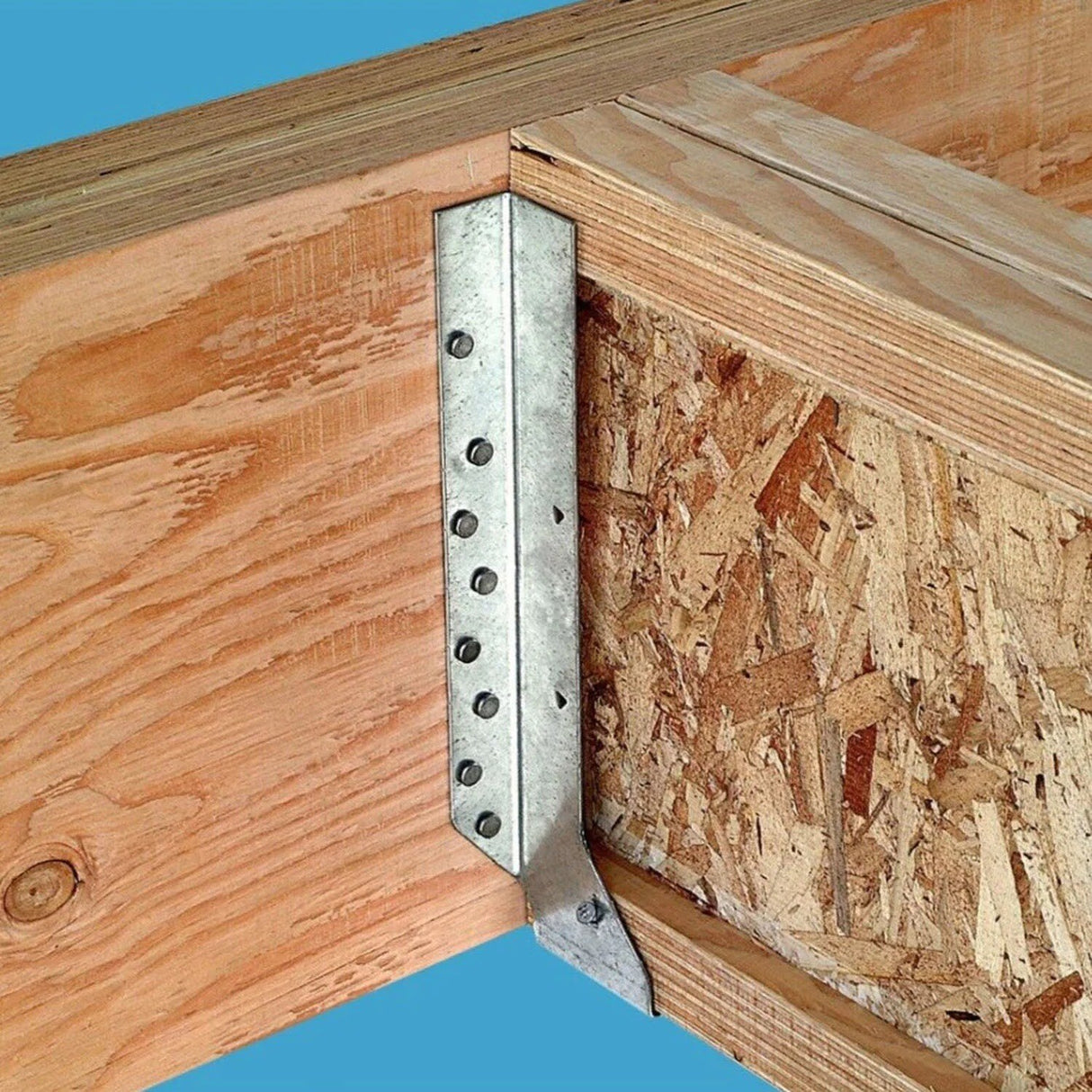

Simpson Strong-Tie MIU3.56/9 Installation Overview
- Use 10d common nails or Simpson Strong-Tie SD screws for full load capacity
- Secure hanger to the header by filling all nail holes
- Ensure proper alignment and secure attachment to engineered wood joists

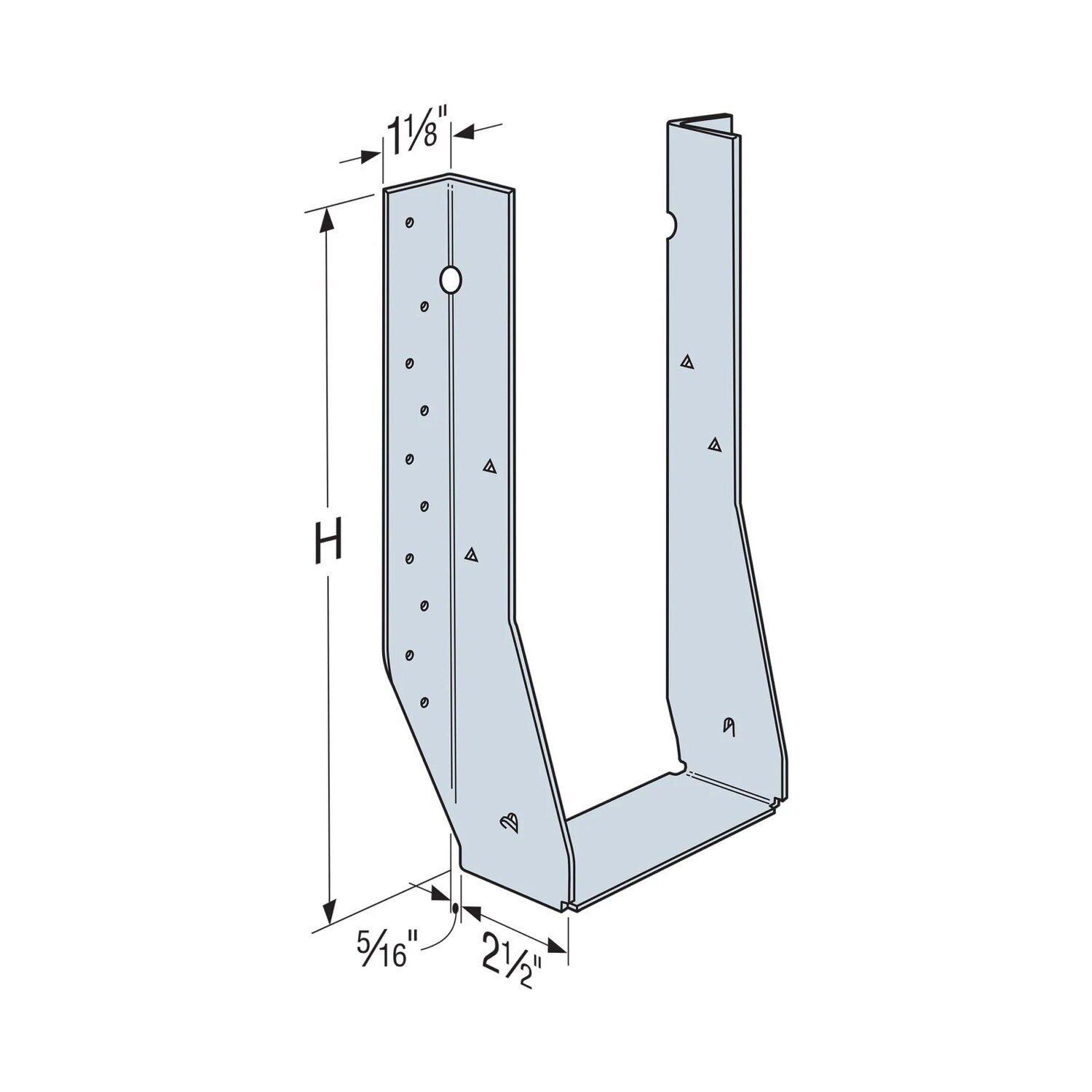

Simpson Strong-Tie MIU3.56/9 Specifications
| Finish | G90 Galvanized |
| Fasteners required | Face - (16) 0.162" x 3-1/2" Nails, Joist - (2) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 8-13/16" |
| Joist size | 3-1/2" X 9-1/2" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Width | 3-9/16" |
Toolup Part # :
825375
