Simpson Hangers | SKU:
MIU4.12/11
Simpson Strong-Tie MIU4.12/11 (4 x 11-7/8") Face Mount I-Joist Hanger, G90 Galvanized
$19.24
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie MIU4.12/11 Description

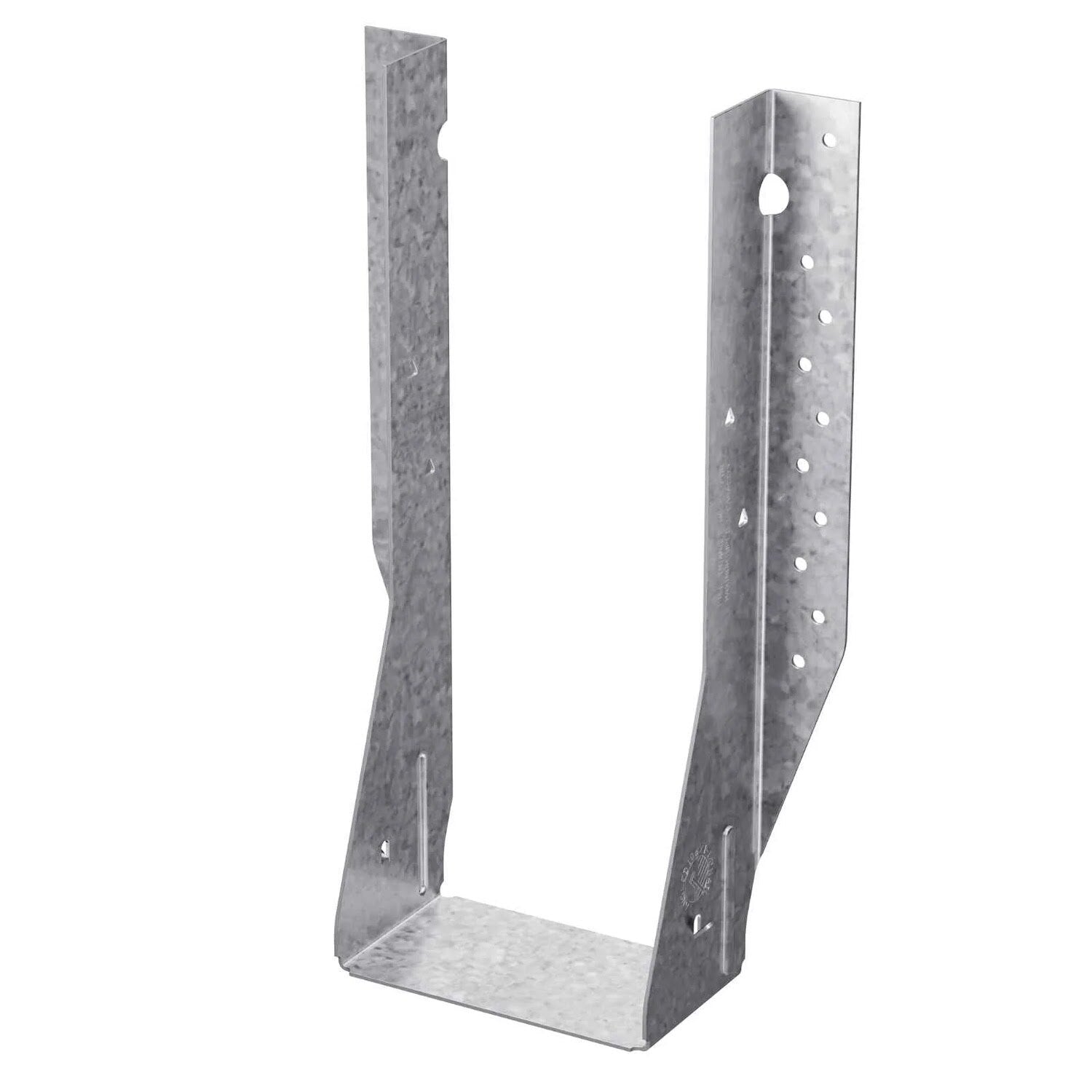

The Simpson Strong-Tie MIU4.12/11 Face Mount I-Joist Hanger is a durable connector designed for engineered wood joists, featuring a G90 galvanized finish for corrosion resistance.
Simpson Strong-Tie MIU4.12/11 Includes
- (1) MIU4.12/11 Face Mount I-Joist Hanger
Simpson Strong-Tie MIU4.12/11 Features
- G90 Galvanized Finish for corrosion protection
- Full-height design for enhanced lateral and uplift capacity
- Precision-engineered 16-gauge steel construction
- Face-mount design for direct attachment to headers and beams
- Compatible with various engineered wood products
Simpson Strong-Tie MIU4.12/11 Applications

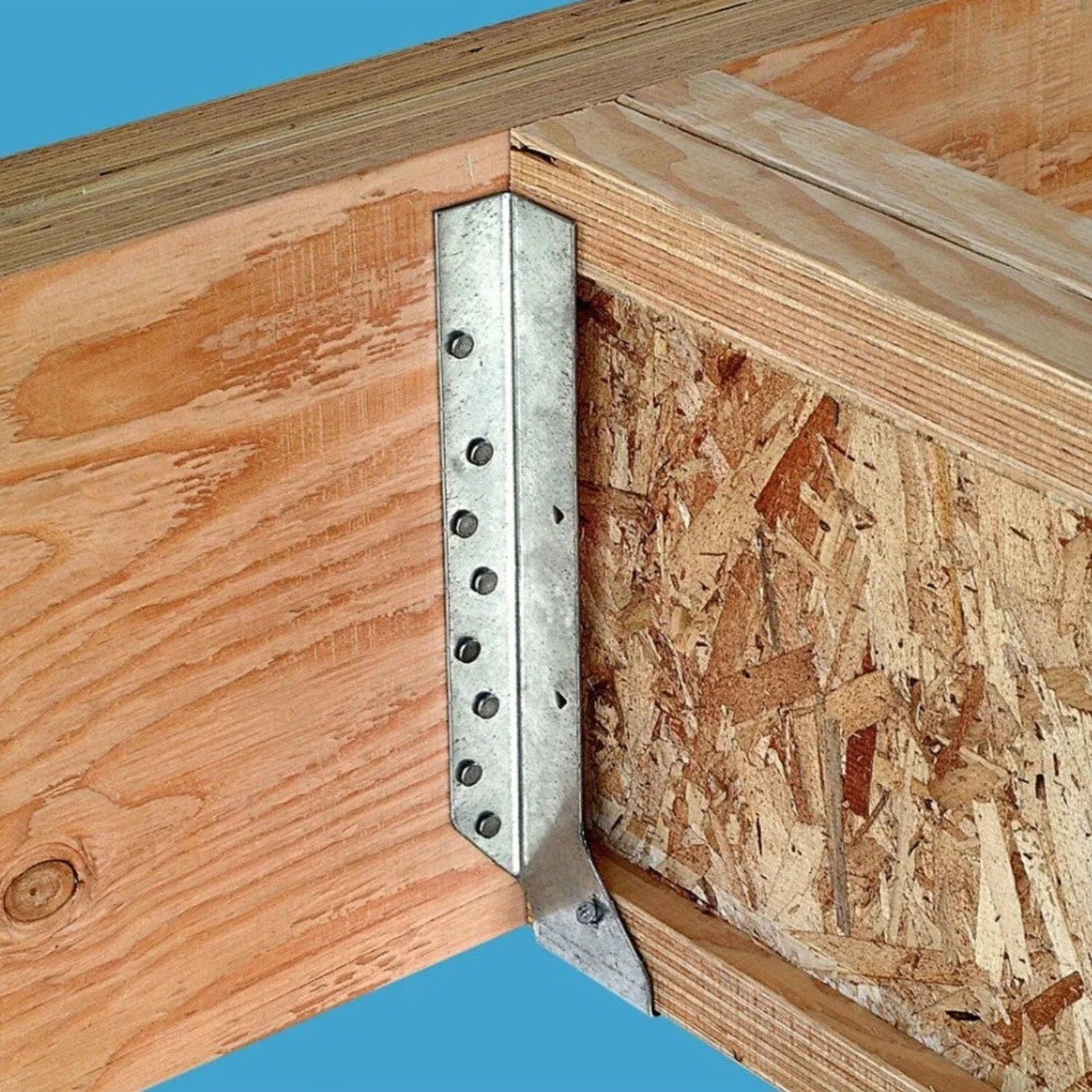

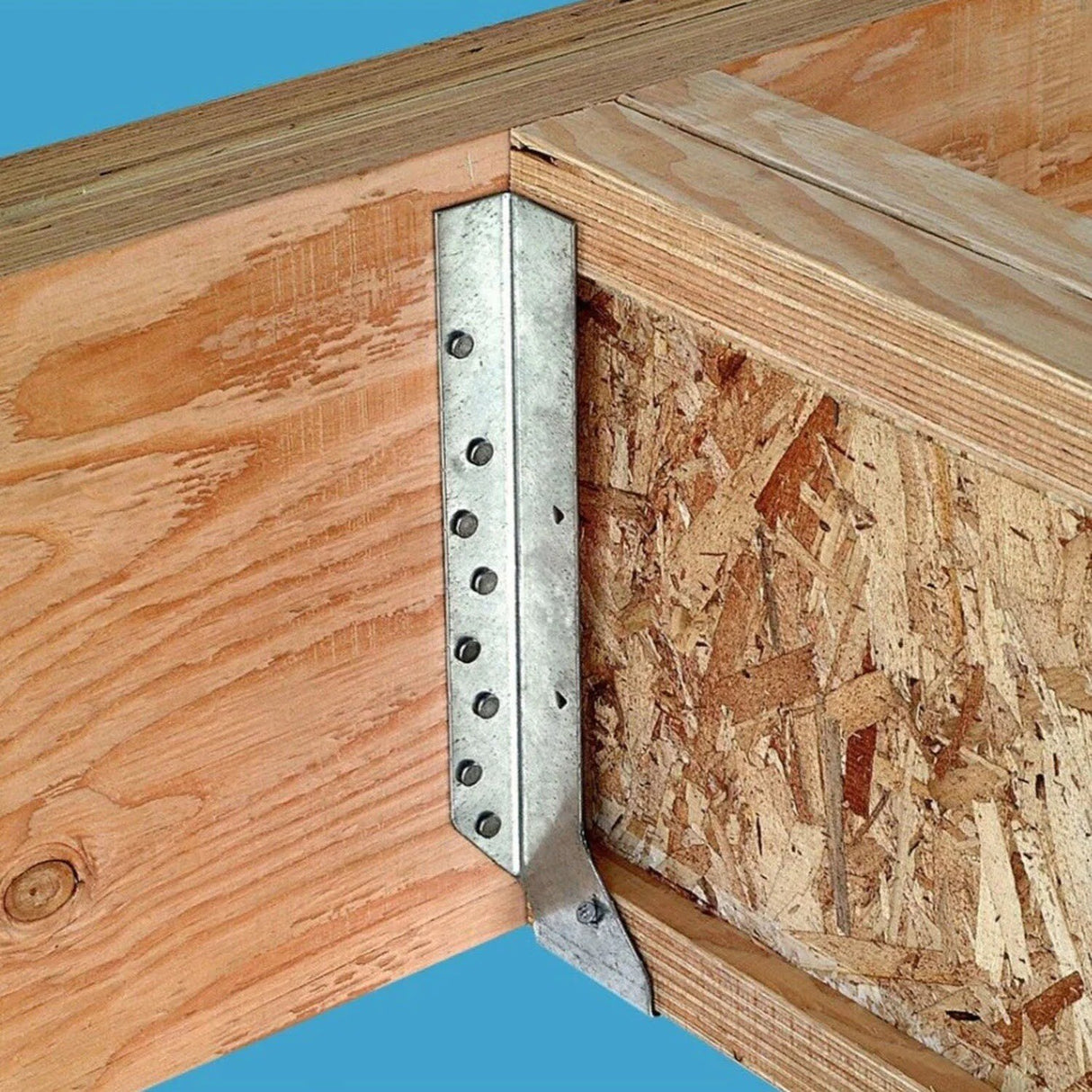

- Interior Floor Framing: Creates strong connections between joists and headers.
- Roof Framing: Provides uplift resistance for engineered wood roof systems.
- Deck Framing (Covered Applications): Suitable for outdoor structures with G90 protection.
- General Wood Construction: Ideal for residential and commercial projects.

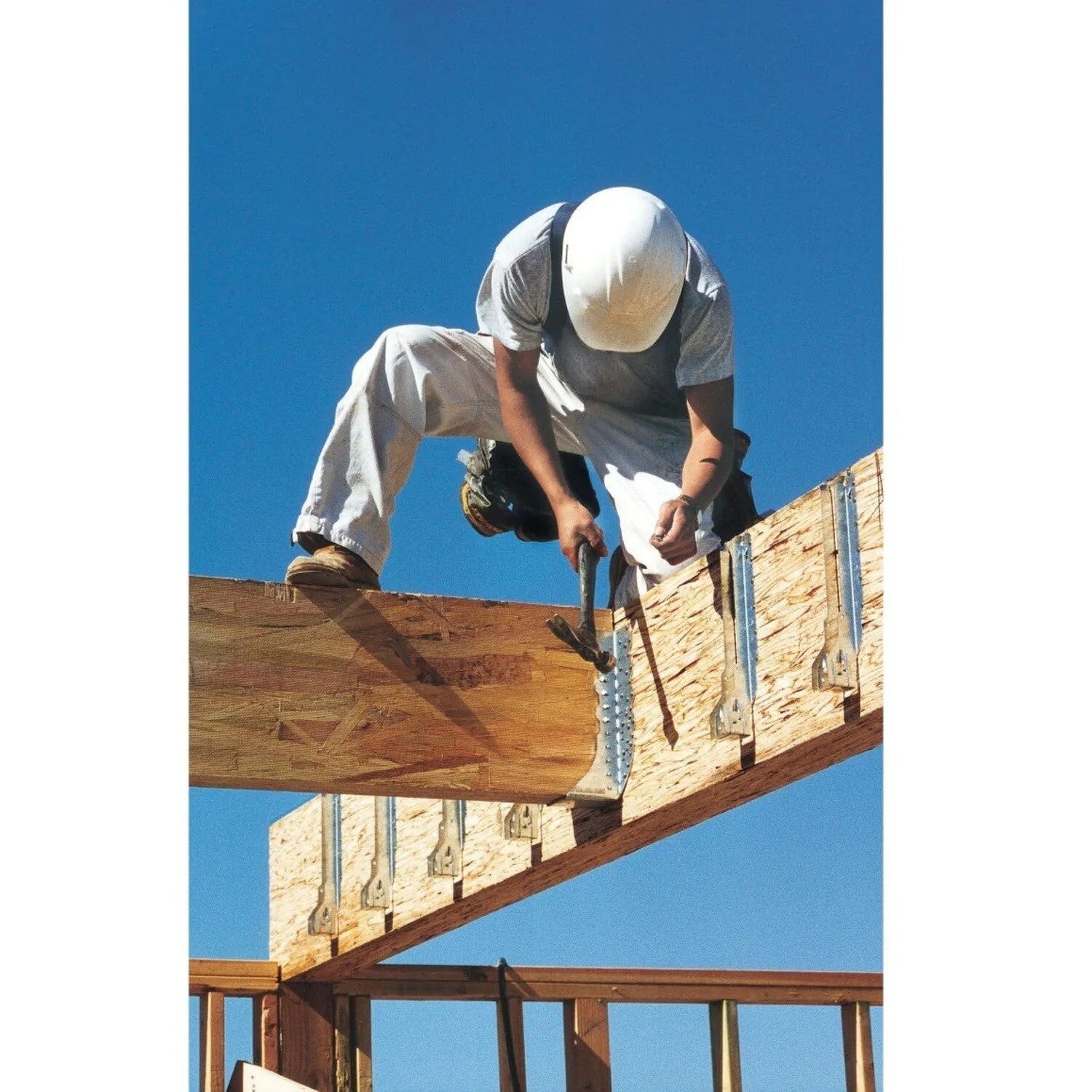

Simpson Strong-Tie MIU4.12/11 Installation Overview
- Install using 10d common nails or Simpson Strong-Tie SD screws.
- Secure hanger to header with all nail holes filled.
- Ensure proper alignment and attachment for maximum load capacity.

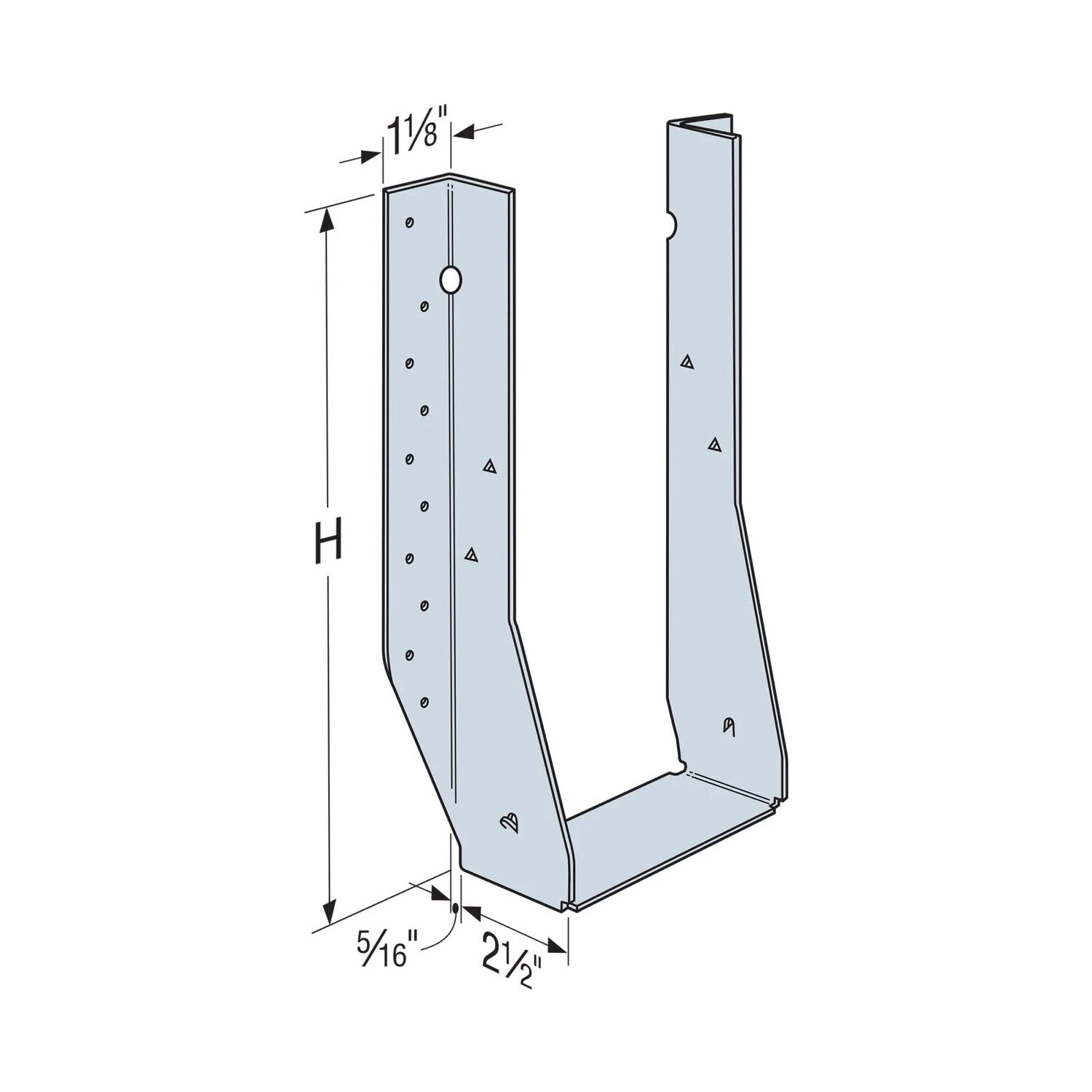

Simpson Strong-Tie MIU4.12/11 Specifications
| Finish | G90 Galvanized |
| Fasteners required | Face - (20) 0.162" x 3-1/2" Nails, Joist - (2) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 11-1/8" |
| Joist size | 4" X 11-7/8" |
| Thickness | 16 Gauge |
| Width | 4-1/8" |
NOTE: Ensure all specified fasteners are used and verify header compatibility for required fasteners.
