Simpson Hangers | SKU:
MIU4.75/16

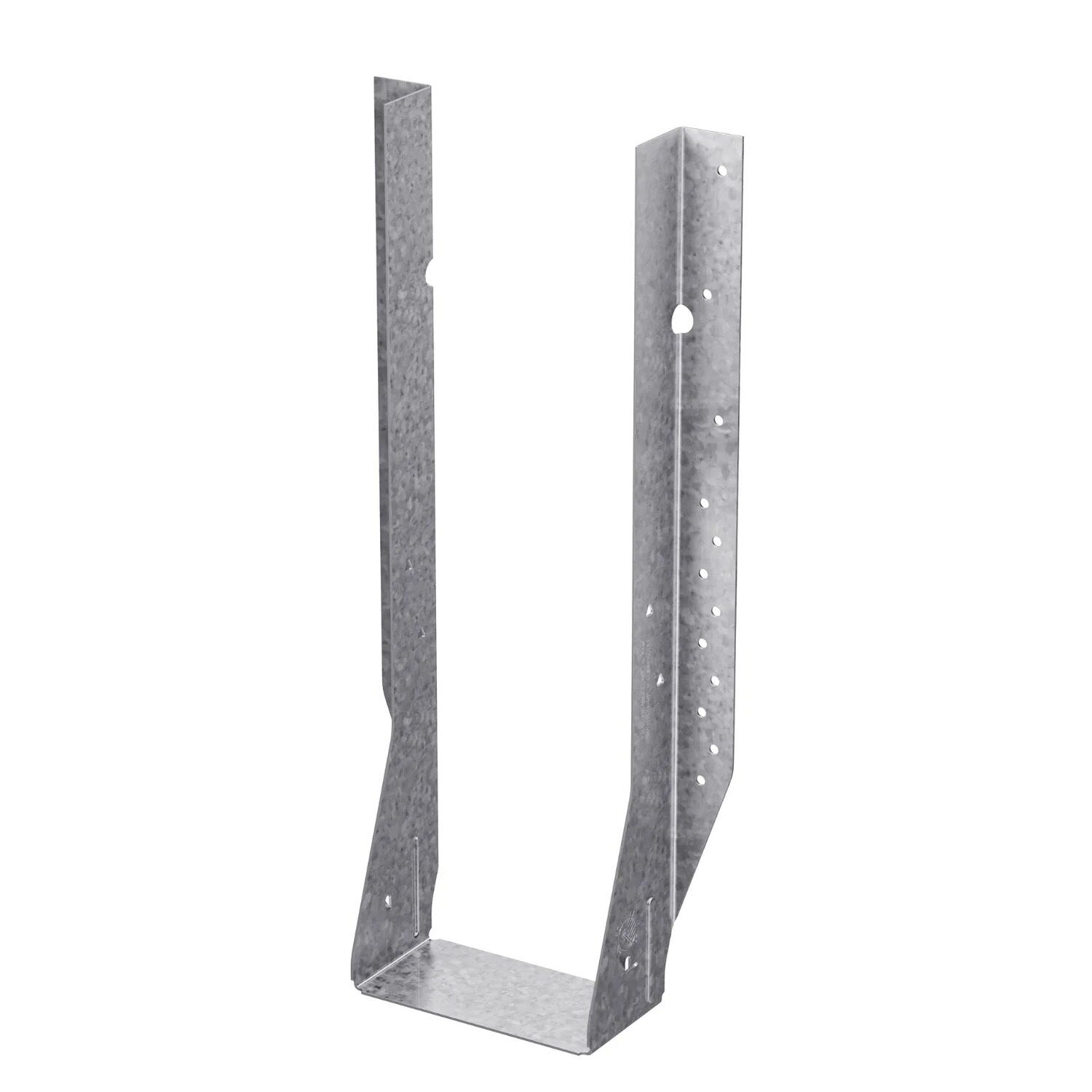

Simpson Strong-Tie MIU4.75/16 (4-5/8" x 16") Face-Mount Joist Hanger for Engineered Wood
$41.67
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie MIU4.75/16 Description
The Simpson Strong-Tie MIU4.75/16 is a durable face-mount I-joist hanger designed for engineered wood applications, offering high load capacity and corrosion resistance.
Simpson Strong-Tie MIU4.75/16 Includes
- (1) MIU4.75/16 Face-Mount I-Joist Hanger
Simpson Strong-Tie MIU4.75/16 Features
- G90 Galvanized Finish for corrosion resistance
- Full-height design for enhanced load capacity
- Precision-engineered 14-gauge steel construction
- Face-mount design for secure attachment
- Compatible with LVL, LSL, and PSL engineered wood
Simpson Strong-Tie MIU4.75/16 Applications
- Interior floor framing for load-bearing connections
- Roof framing for superior uplift resistance
- Covered deck framing for outdoor structures
- General wood construction in residential and commercial projects
Simpson Strong-Tie MIU4.75/16 Installation Overview
- Use 10d common nails or Simpson SD screws for full load capacity
- Secure hanger to header with all nail holes filled
- Ensure proper alignment during installation
Simpson Strong-Tie MIU4.75/16 Specifications
| Finish | G90 Galvanized |
| Fasteners required | Face - (24) 0.162" x 3-1/2" Nails, Joist - (2) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 15-1/2" |
| Joist size | 4-5/8" X 16" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Width | 4-3/4" |
