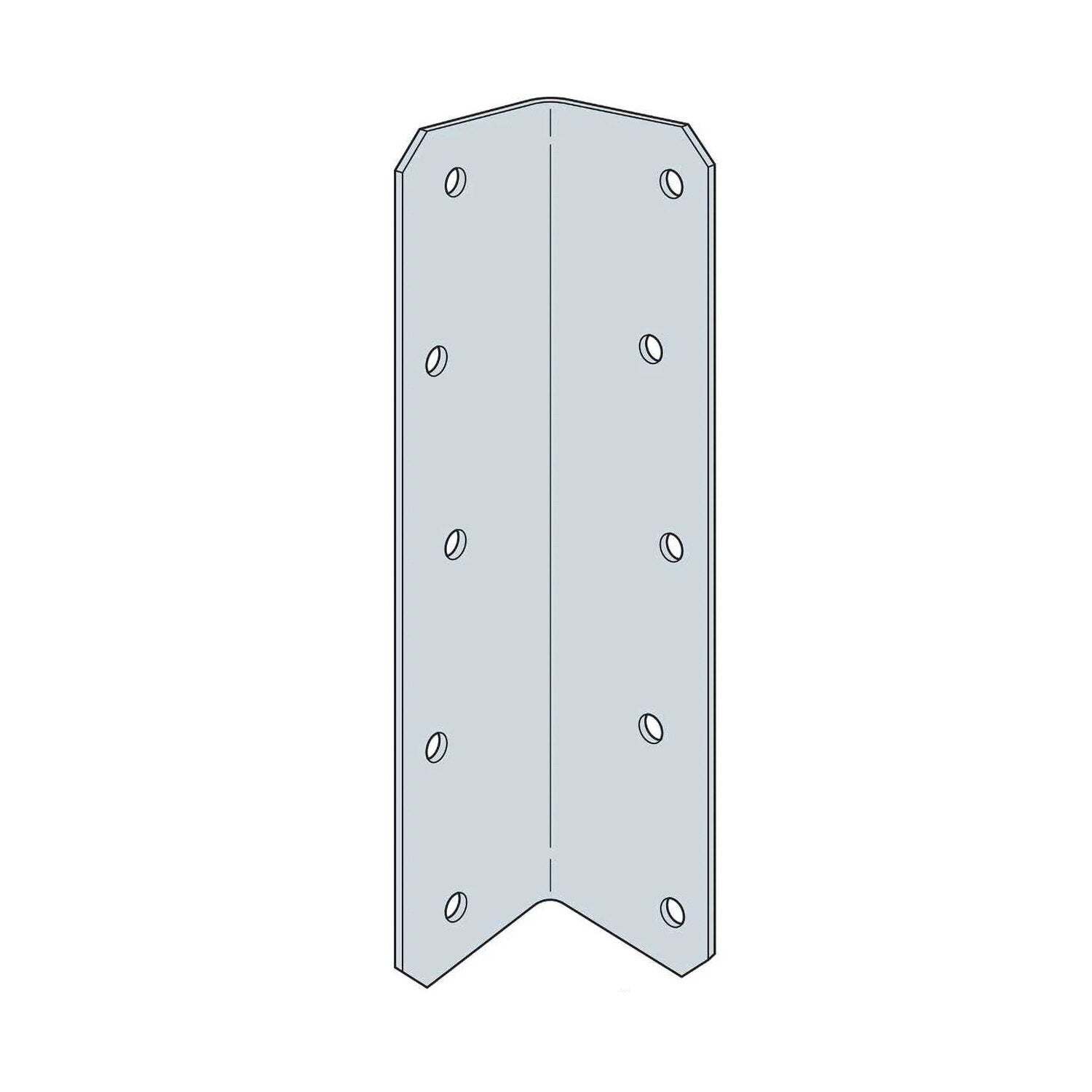

Simpson ML28Z Description
The Simpson ML28Z Medium L Angle is designed for strong and versatile 90-degree connections, featuring a ZMAX galvanized finish for enhanced corrosion resistance.
Simpson ML28Z Includes
- (1) 2" x 8" Medium L Angle
Simpson ML28Z Features
- Strong and versatile 90-degree connections
- Staggered fastener holes to minimize wood splitting
- Opposing hole patterns for back-to-back installation
- G185 ZMAX galvanized finish for corrosion resistance
- Compatible with hot-dip galvanized fasteners meeting ASTM A153 specifications
Simpson ML28Z Applications
- 90-degree connections in wood framing
- Back-to-back installations without fastener interference
- Structural connections requiring enhanced corrosion resistance

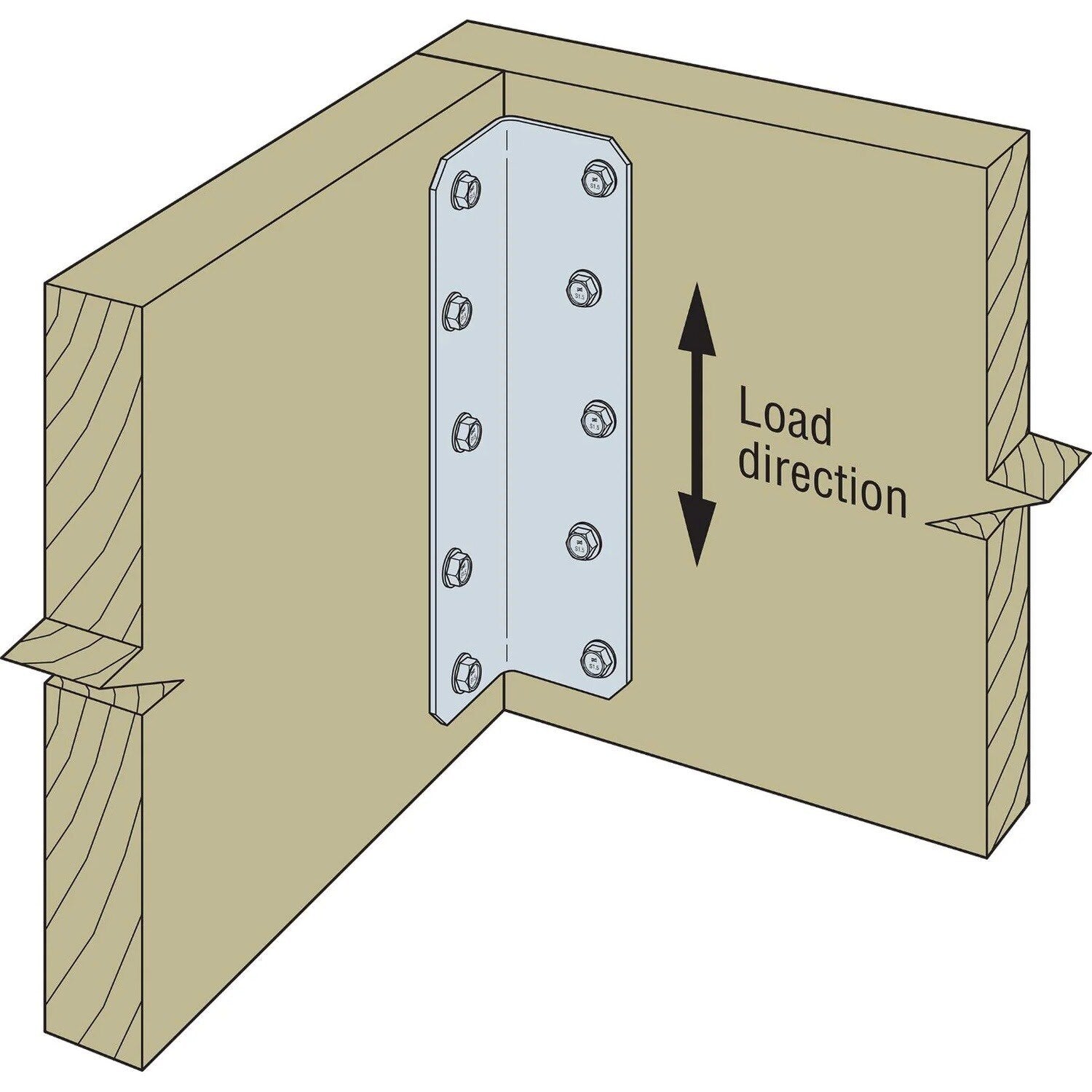

Simpson ML28Z Installation Overview
- Use all specified fasteners
- Install using Simpson Strong-Tie 1/4" x 1-1/2" Strong-Drive SDS Heavy-Duty Connector screws
- Ensure fasteners meet ASTM A153 specifications
Simpson ML28Z Specifications
| Length | 8" |
| Material | Carbon Steel |
| Fasteners required | (10) 1/4" x 1-1/2" SDS Screws |
| For Treated Lumber | Yes |
| Manufacturer name | Simpson Strong-Tie |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Toolup Part # :
824901
