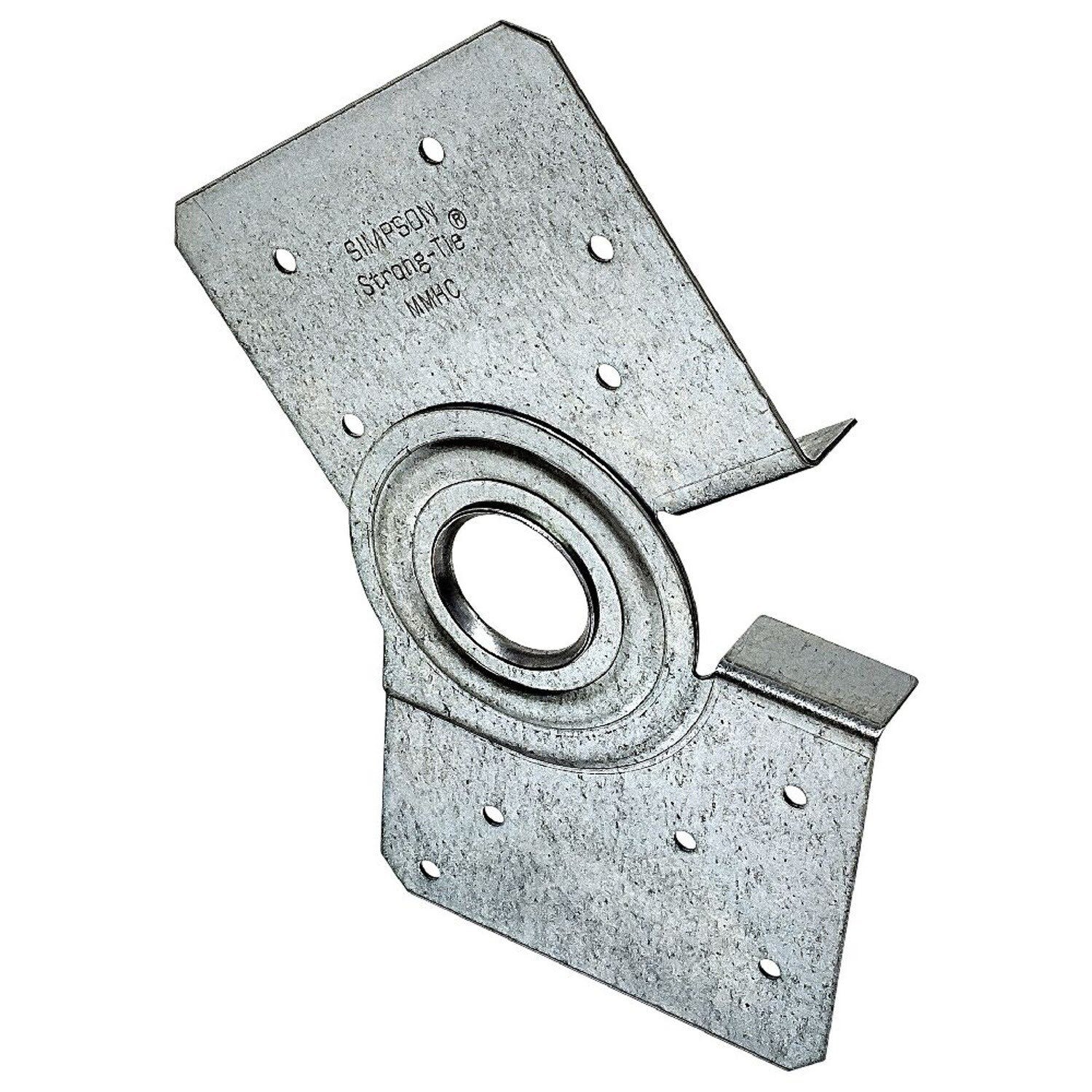

Simpson Strong-Tie MMHC Description
The MMHC Hinged Roof Connector is designed for efficient and reliable connection of 2x3 knee walls in attic truss systems, featuring a hinged design for adjustable framing.
Simpson Strong-Tie MMHC Includes
- (60) Hinged Roof Connector
Simpson Strong-Tie MMHC Features
- Hinged design for adjustable or collapsible framing
- Offset nail pattern for installation on either side
- 18-gauge steel construction for durability
- G90 galvanized finish for corrosion resistance
- Compatible with 2x3 knee walls
Simpson Strong-Tie MMHC Applications
- Attic truss systems
- Adjustable or collapsible framing projects
- 2x3 knee wall connections
Simpson Strong-Tie MMHC Installation Overview
- Arrange members in installed position
- Open connector to same position
- Place on wood members using tabs as a guide
- Install with specified nails
- Adjust members for shipping purposes, then reopen at jobsite
Simpson Strong-Tie MMHC Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 18 Gauge |
| Fasteners required | 0.148 in. x 1-1/2 in. nails |
| Quantity | 60 |
NOTE: MMHC does not replace the need for solid blocking.
