Simpson Anchors | SKU:
MMHC23-R60
Simpson Strong-Tie MMHC23-R60 (2x4 and 2x6) Hinged Roof Connector (60 Pack)
$190.23
Unit price
/
Unavailable
Description
Description

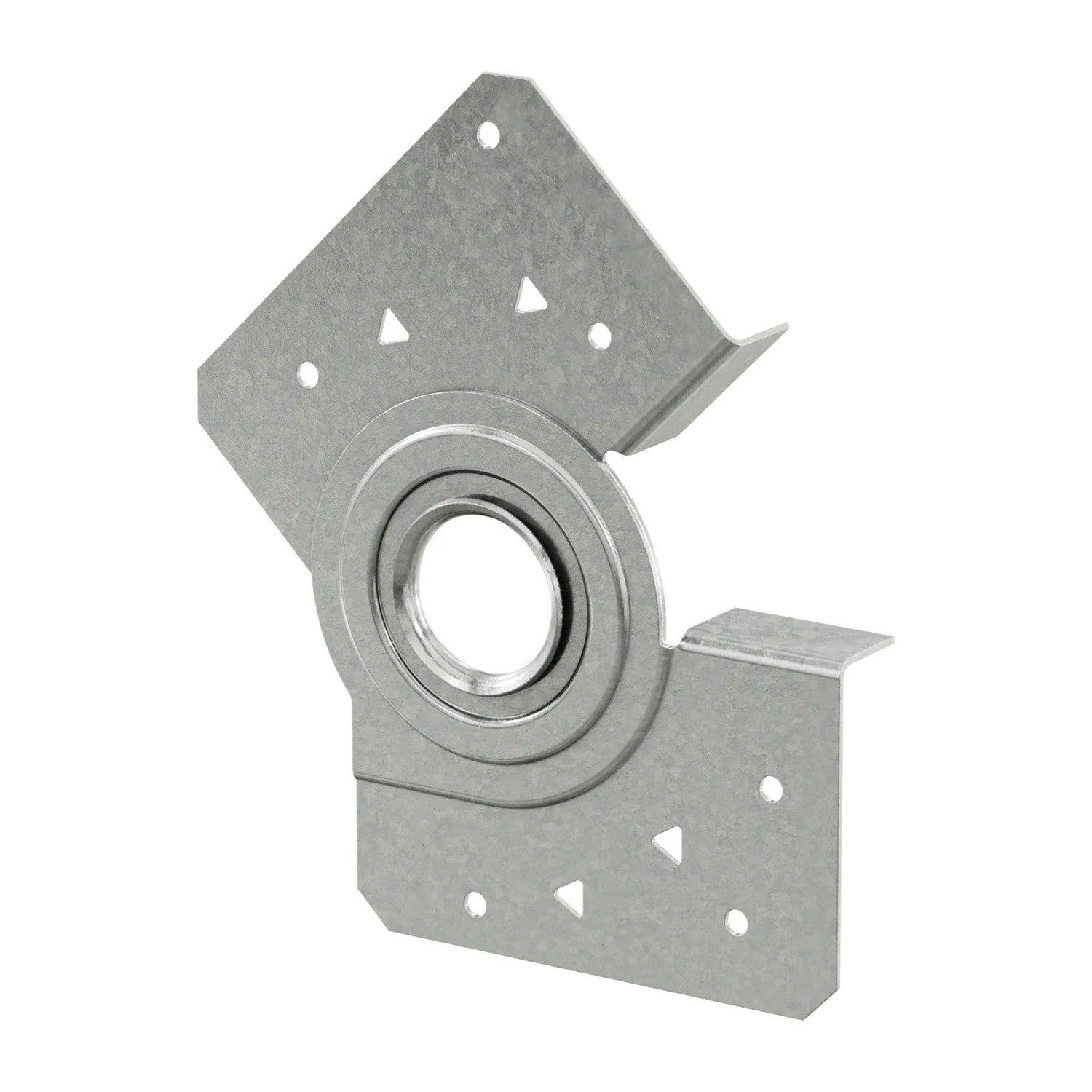

Simpson Strong-Tie MMHC23-R60 Description
The Simpson MMHC23-R60 Hinged Roof Connector is designed for fast and reliable connection of 2x3 knee walls in attic truss systems, offering strength and flexibility for professional use.
Simpson Strong-Tie MMHC23-R60 Includes
- (60) Hinged Roof Connector
Simpson Strong-Tie MMHC23-R60 Features
- Innovative hinge rotates easily from open position to folded
- Offset nail pattern allows for installation on both sides
- Connector tabs make it intuitive to position before nailing
- Nails in place for easy installation; no bolts required
- No measuring or predrilling saves installers time
Simpson Strong-Tie MMHC23-R60 Applications
- Attic truss systems requiring 2x3 knee wall connections
- Adjustable or collapsible framing applications
- Interior and protected exterior environments

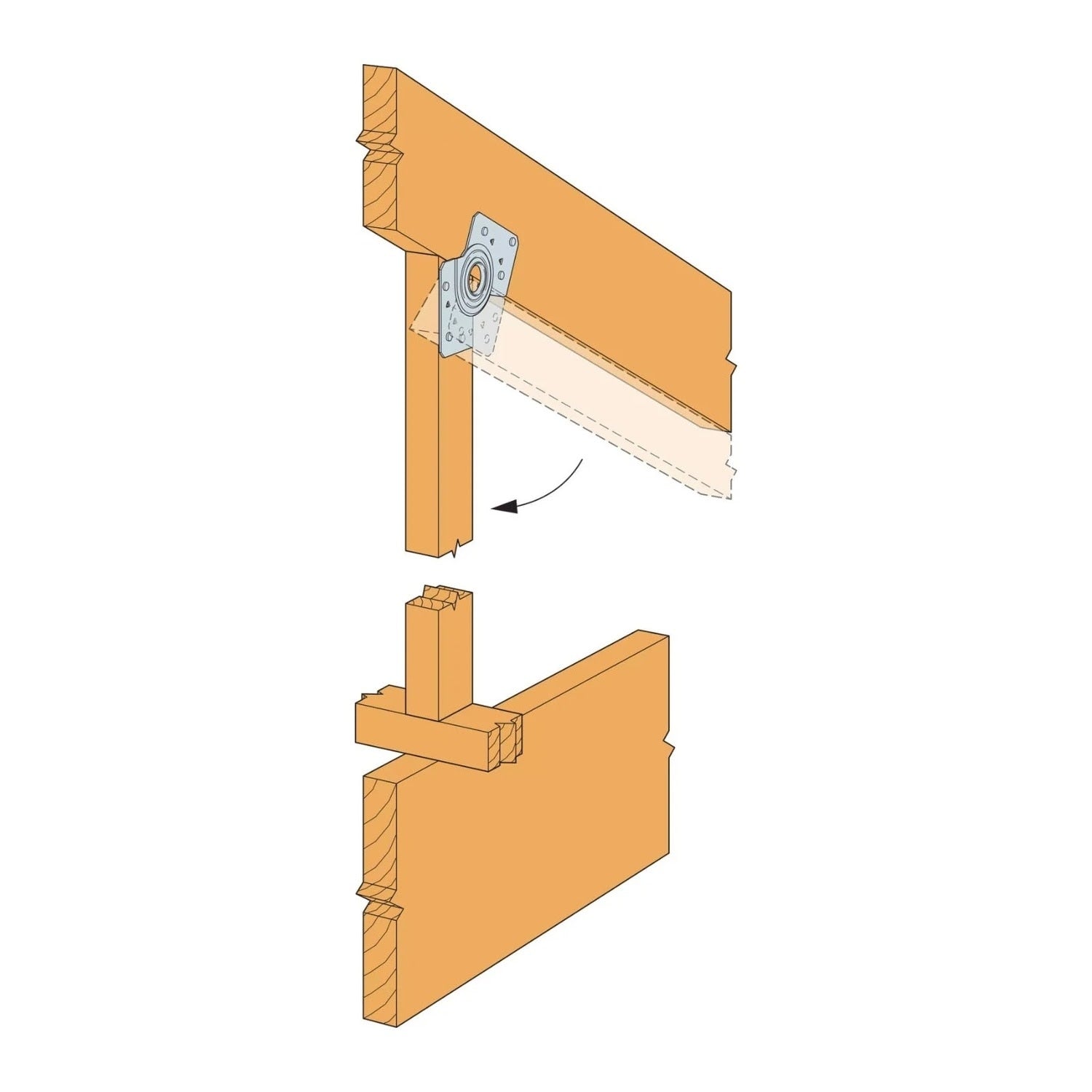

Simpson Strong-Tie MMHC23-R60 Installation Overview
- Arrange members in installed position
- Open connector to same position
- Place on wood members using tabs as a guide
- Install with specified nails
- Adjust members for shipping purposes, then reopen at jobsite

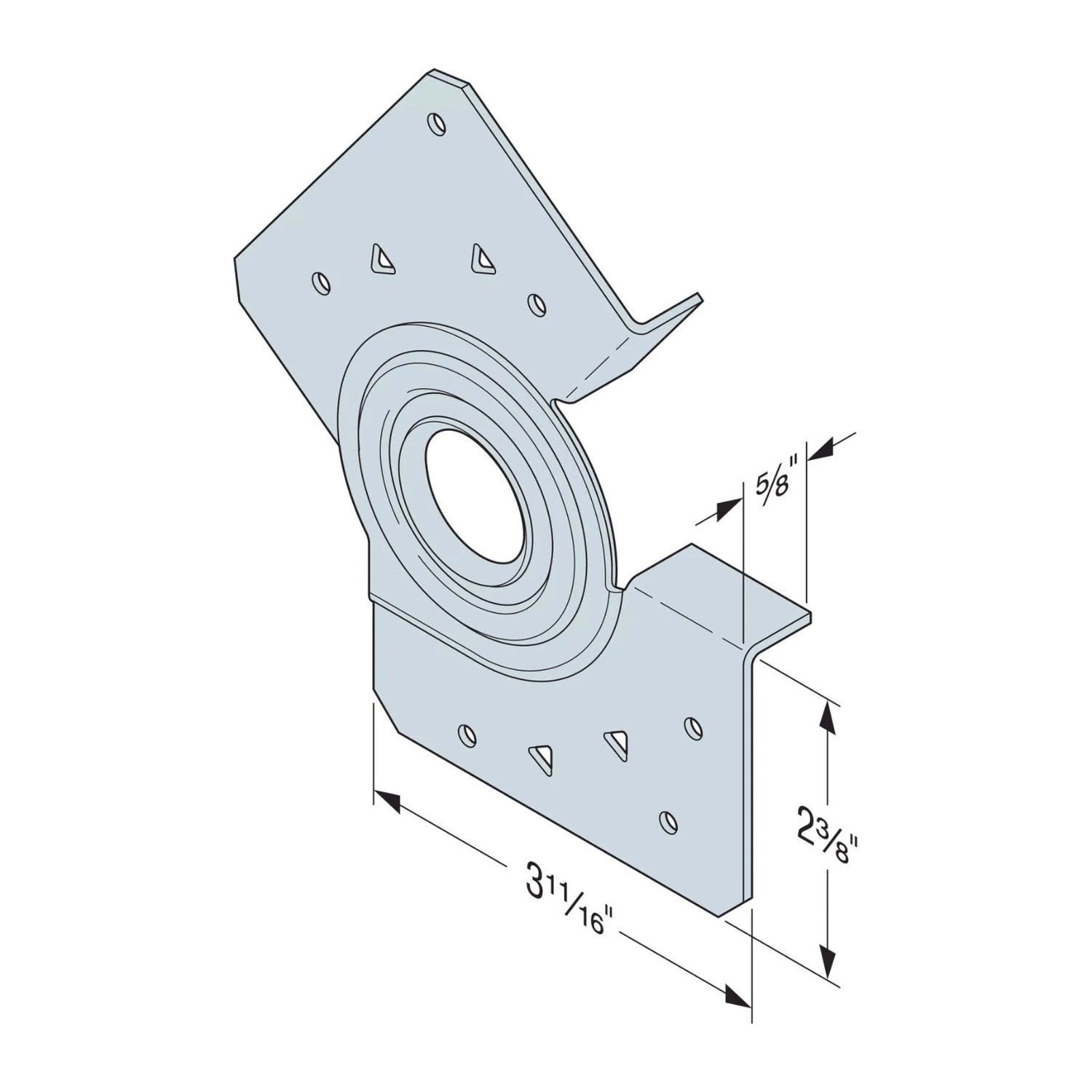

Simpson Strong-Tie MMHC23-R60 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 18 Gauge |
| Fasteners required | 0.148 in. x 1-1/2 in. nails |
| Quantity | 60 |
NOTE: The MMHC does not replace the need for solid blocking.
