Simpson Strong-Tie MMLU26-2 Description

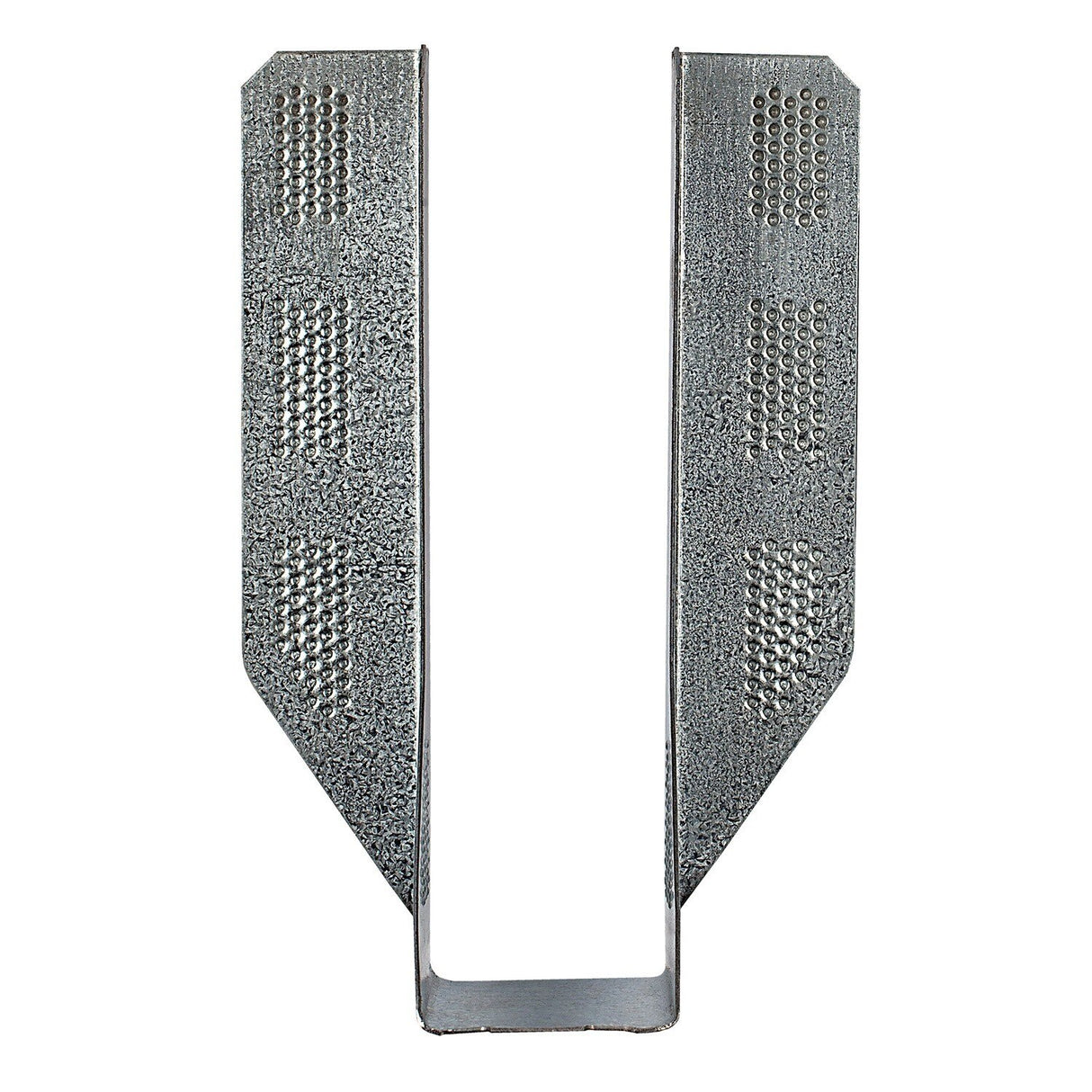

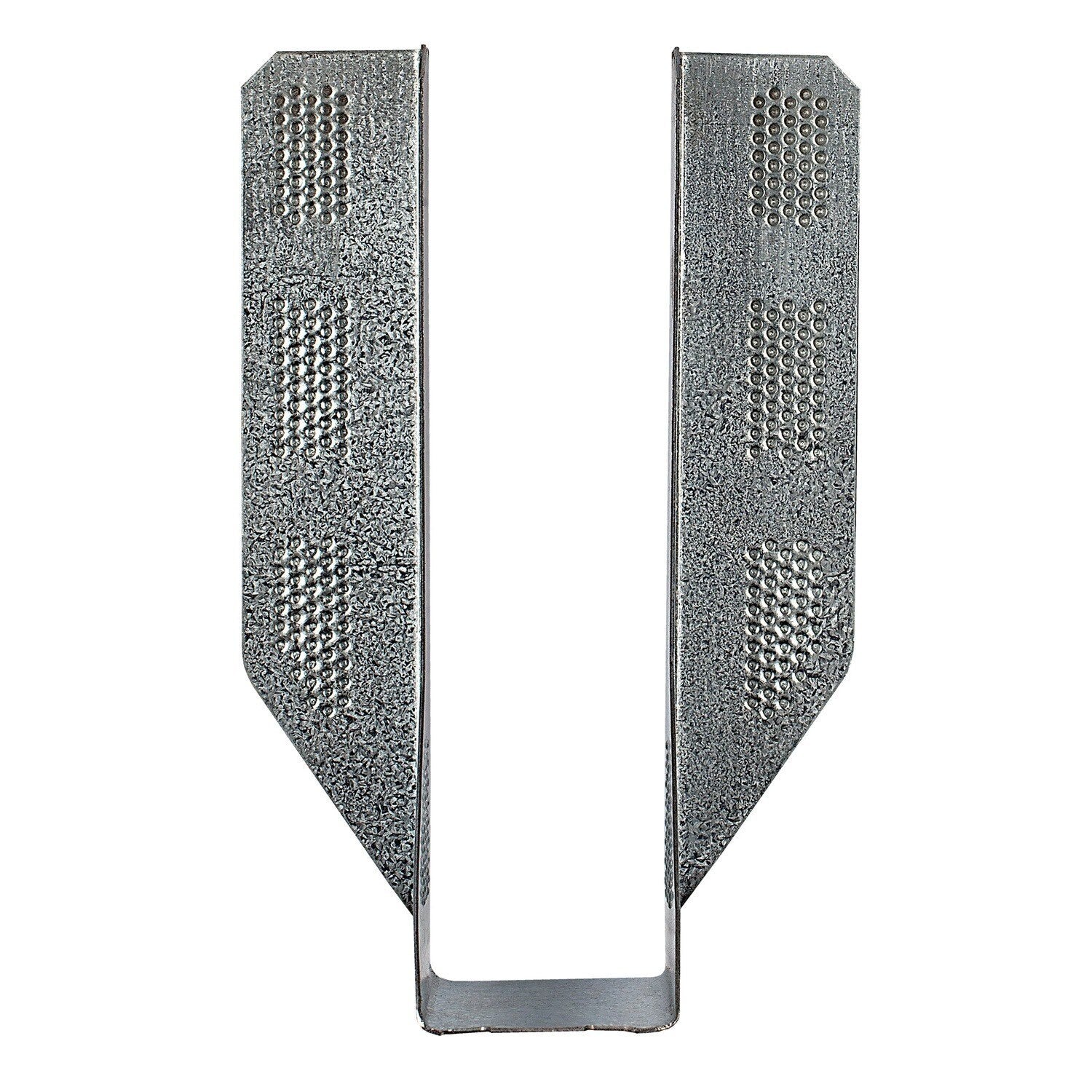

The MMLU26-2 is a face-mount hanger designed for modular construction, offering versatile fastener placement and compatibility with factory-used tools.
Simpson Strong-Tie MMLU26-2 Includes
- (1) MMLU26-2 Hanger
Simpson Strong-Tie MMLU26-2 Features
- Versatile fastener placement enables faster installation
- Designed with factory-used tools in mind
- Built specifically for optimal fastening using a power nailer
Simpson Strong-Tie MMLU26-2 Applications
- Factory-built modular construction requiring secure joist connections
- Ideal for modular building settings
Simpson Strong-Tie MMLU26-2 Installation Overview
- Install nails with a powered nail tool, ensuring face protection
- Adjust nail tool pressure to avoid overdriving nails
- Place at least one nail into each nailing grid
- Follow the MMLU Installation and Load Table for additional nails
- Ensure minimum vertical spacing of nails to prevent wood splitting
- Provide lateral restraint if hanger height is less than 60% of joist height
- Install web stiffeners or vertical webs for I-joist or floor truss members
Simpson Strong-Tie MMLU26-2 Specifications
| Material | 18 gauge |
| Finish | Galvanized |
| Joist Size | Double 2x6 |
| Width | 3 1/8 in. |
| Height | 5 3/8 in. |
| Coating/Material | Zinc Galvanized, G90 |
| Packaging Quantity | 1 |
NOTE: Ensure nails are installed straight through the nailing grid to avoid ricochet and follow all safety instructions for the nail tool.
