Simpson Strong-Tie MMLU28-2 Description

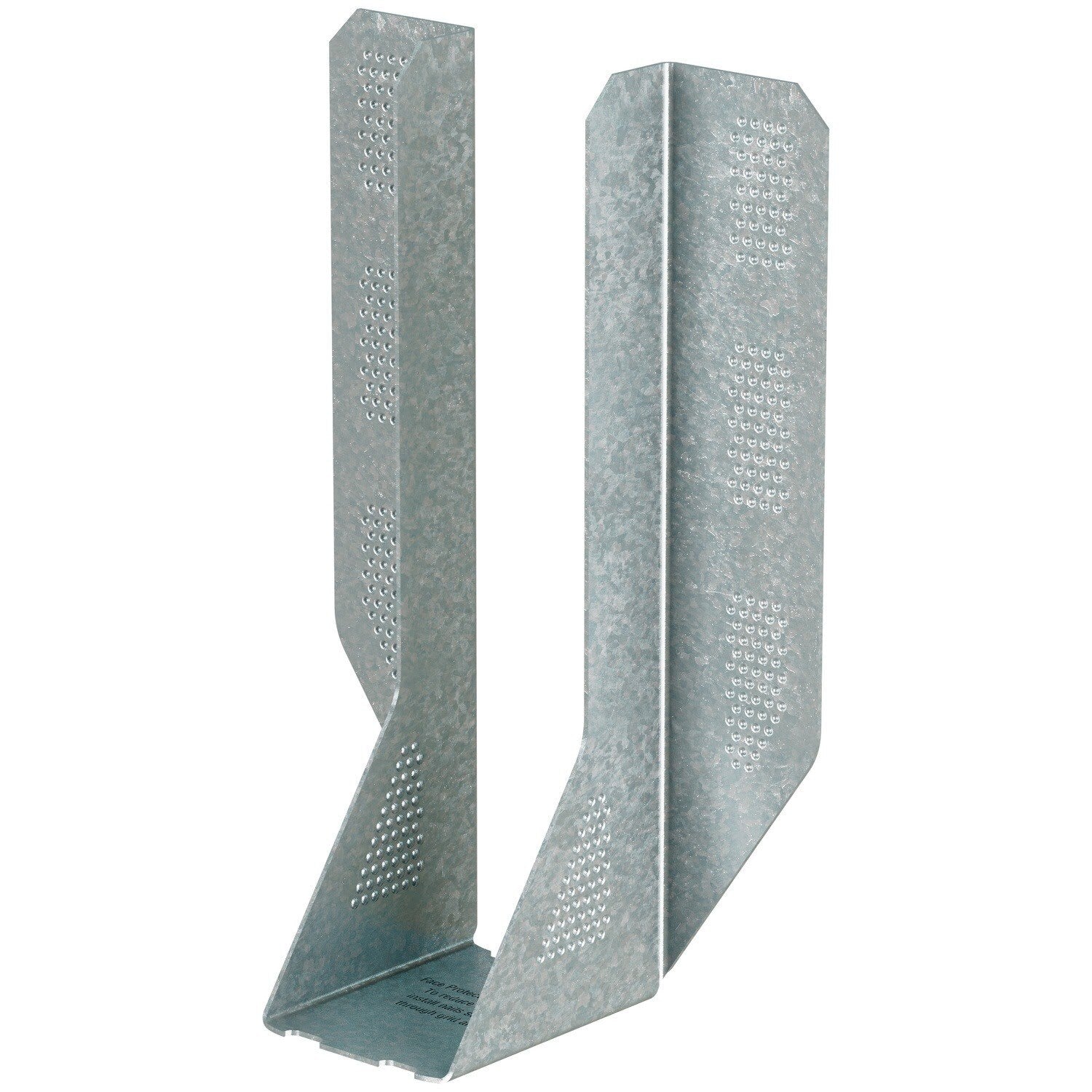

The MMLU28-2 is a face-mount hanger designed for modular and factory-built construction, providing secure and efficient fastening for double 2x8 joists.
Simpson Strong-Tie MMLU28-2 Includes
- (1) MMLU28-2 Hanger
Simpson Strong-Tie MMLU28-2 Features
- Versatile fastener placement for faster installation
- Designed for use with factory tools
- Optimized for power nailer fastening
Simpson Strong-Tie MMLU28-2 Applications
- Factory-built and modular construction
- Securing double 2x8 joists
Simpson Strong-Tie MMLU28-2 Installation Overview
- Install nails with a powered nail tool, ensuring face protection.
- Adjust nail tool pressure to avoid overdriving nails.
- Insert at least one 8d x 1 1/2" or 10d x 1 1/2" nail into each nailing grid.
- Follow the MMLU Installation and Load Table for additional nails.
- Ensure minimum vertical spacing of nails is 1/2" to prevent splitting.
- Verify MMLU height is at least 60% of joist height for rotation resistance.
- Install I-joist web stiffeners or floor truss end vertical webs if required.
Simpson Strong-Tie MMLU28-2 Specifications
| Material | 18 gauge steel |
| Finish | Galvanized |
| Joist Size | Double 2x8 |
| Width | 3 1/8 in. |
| Height | 7 1/16 in. |
| Coating/Material | Zinc Galvanized, G90 |
Toolup Part # :
823828
