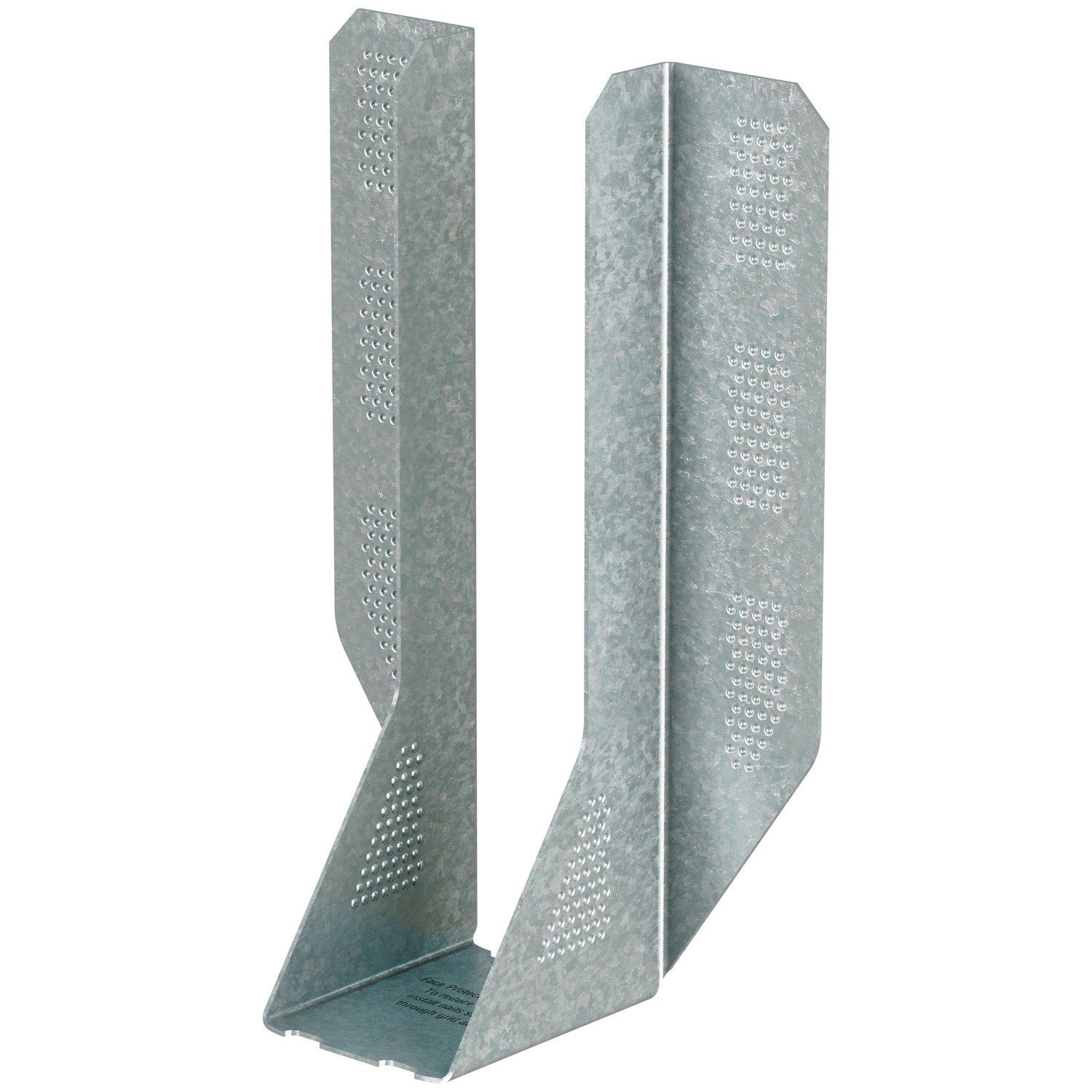

Simpson Strong-Tie MMLU28 Description
The MMLU28 is a face-mount hanger designed for modular and factory-built construction, offering versatile fastener placement and compatibility with power nailers.
Simpson Strong-Tie MMLU28 Includes
- (1) MMLU28 Hanger
Simpson Strong-Tie MMLU28 Features
- Versatile fastener placement for faster installation
- Designed for use with factory tools
- Optimized for power nailer fastening
Simpson Strong-Tie MMLU28 Applications
- Factory-built and modular construction projects
- Securing joists in modular building settings
Simpson Strong-Tie MMLU28 Installation Overview
- Install nails with a powered nail tool, ensuring face protection.
- Adjust nail tool pressure to avoid overdriving nails.
- Use at least one 8d x 1 1/2" or 10d x 1 1/2" nail per nailing grid.
- Follow the MMLU Installation and Load Table for additional nails.
- Ensure vertical spacing of nails is at least 1/2" to prevent splitting.
- Ensure MMLU height is at least 60% of joist height for rotation resistance.
- Install I-joist web stiffeners or floor truss end vertical webs if needed.
Simpson Strong-Tie MMLU28 Specifications
| Material | 20 gauge steel |
| Finish | Galvanized |
| Joist Size | 2x8 |
| Width | 1 9/16 in. |
| Height | 6 3/16 in. |
| Coating/Material | Zinc Galvanized, G90 |
| Packaging Quantity | 1 |
Toolup Part # :
822705
