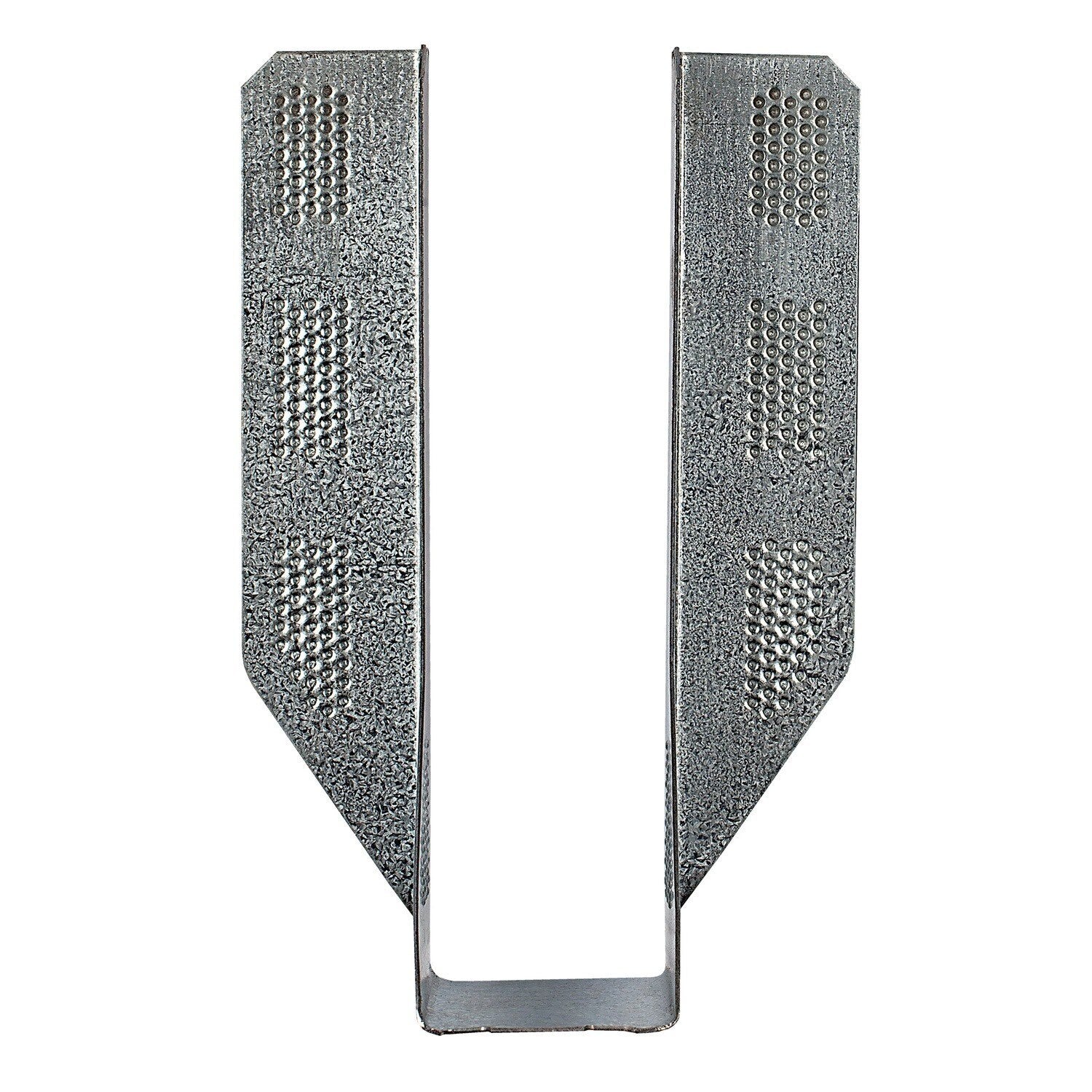

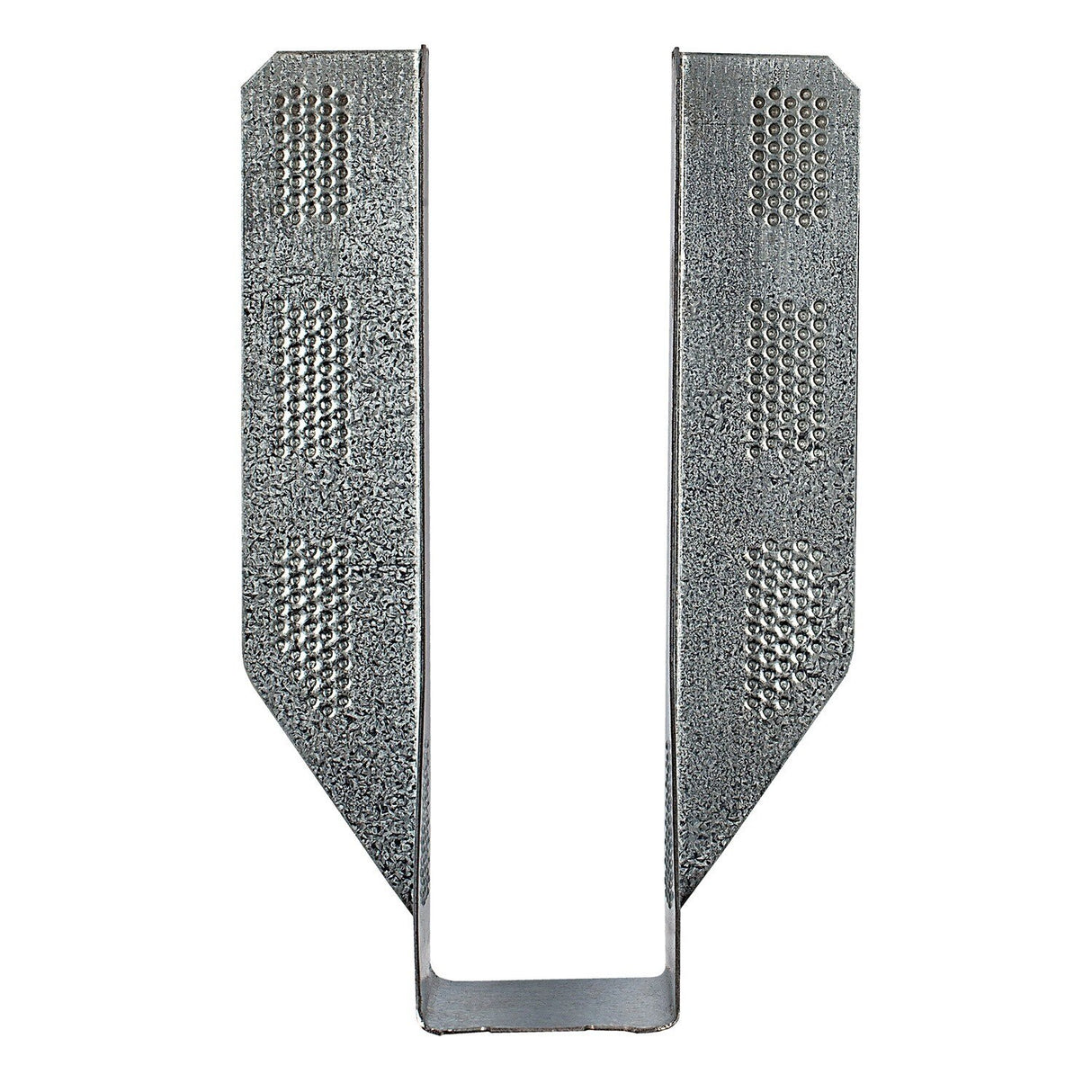

Simpson Strong-Tie MMLUI211 Description
The MMLUI211 is a face-mount hanger designed for modular and factory-built construction, offering versatile fastener placement and compatibility with power nailers.
Simpson Strong-Tie MMLUI211 Includes
- (1) MMLUI211 Hanger
Simpson Strong-Tie MMLUI211 Features
- Versatile fastener placement enables faster installation
- Designed with factory-used tools in mind
- Built specifically for optimal fastening using a power nailer
Simpson Strong-Tie MMLUI211 Applications
- Factory-Built/Modular Construction
Simpson Strong-Tie MMLUI211 Installation Overview
- Install nails with a powered nail tool, ensuring face protection.
- Adjust nail tool pressure to avoid overdriving nails.
- Install at least one 8d x 1 1/2" or 10d x 1 1/2" nail into each nailing grid.
- Follow the MMLU Installation and Load Table for additional nails.
- Ensure the MMLU height equals or exceeds 60% of the joist height for rotation resistance.
- Install I-joist web stiffeners or floor truss end vertical webs when necessary.
Simpson Strong-Tie MMLUI211 Specifications
| Material | 20 gauge |
| Finish | Galvanized |
| Joist Size | 1-1/2 in. x 11-7/8 in. |
| Width | 1 9/16 in. |
| Height | 11 5/8 in. |
| Coating/Material | Zinc Galvanized, G90 |
Toolup Part # :
824748
