Simpson Anchors | SKU:
MSCB45.5-KT
Simpson Strong-Tie MSCB45.5-KT (4" x 5.5") Medium Duty Slide Clip with Screws (25 Pack)
$116.71
Unit price
/
Unavailable
Description
Description
Simpson MSCB45.5-KT Description

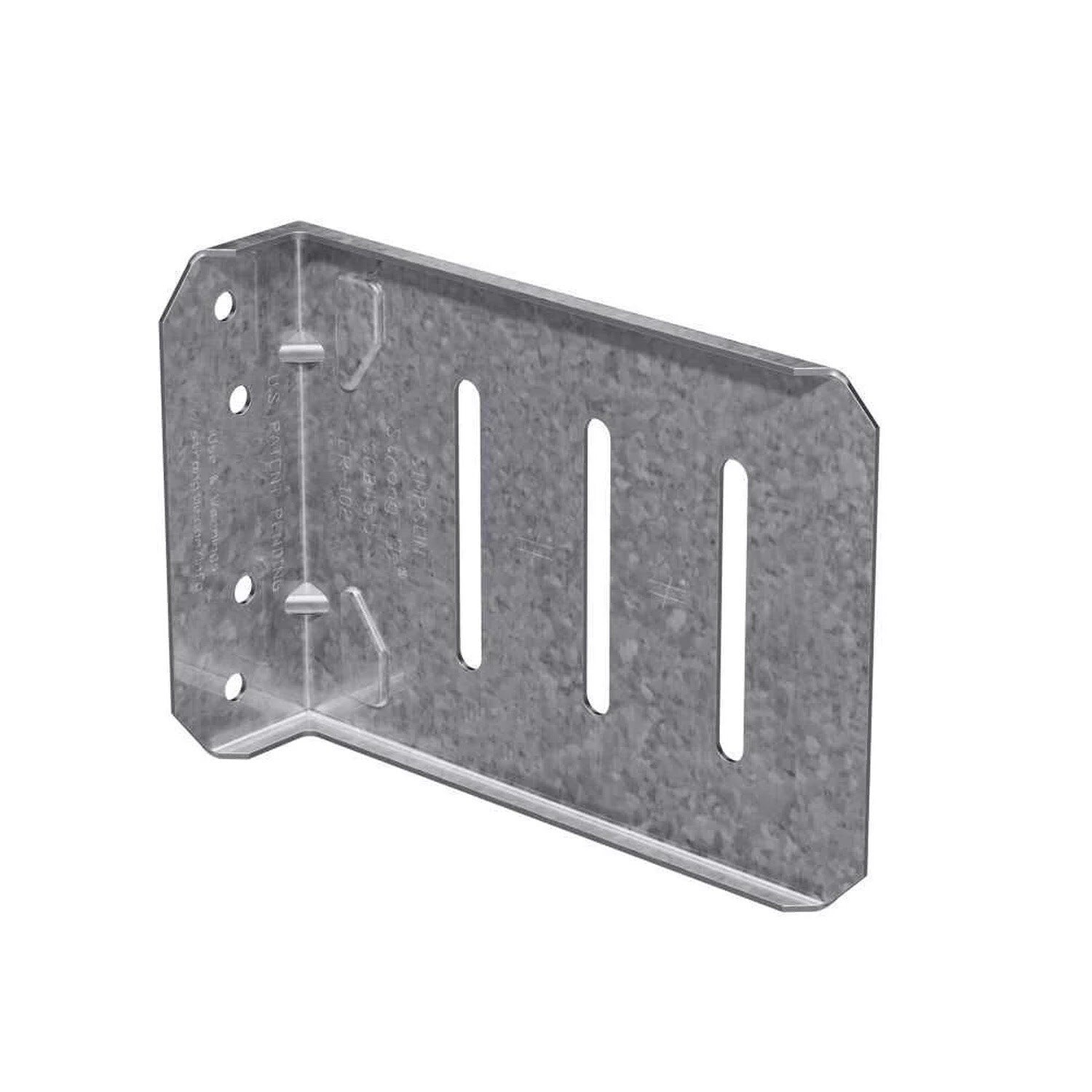

The MSCB45.5-KT slide-clip connectors are high-performance connectors for bypass framing applications, designed to reduce design time and overall installed cost.
Simpson MSCB45.5-KT Includes
- (25) Medium Duty Slide Clip 4x5.5
- (83) XLSH34B1414 #14 shouldered screws
Simpson MSCB45.5-KT Features
- Provides a full 1" of both upward and downward movement
- Precision-manufactured shouldered screws prevent overdriving and ensure proper clip function
- Strategically placed stiffeners, embossments, and anchor holes maximize connector performance
- Simpson Strong-Tie No-Equal stamps mark the center of the slots for correct screw placement
Simpson MSCB45.5-KT Applications

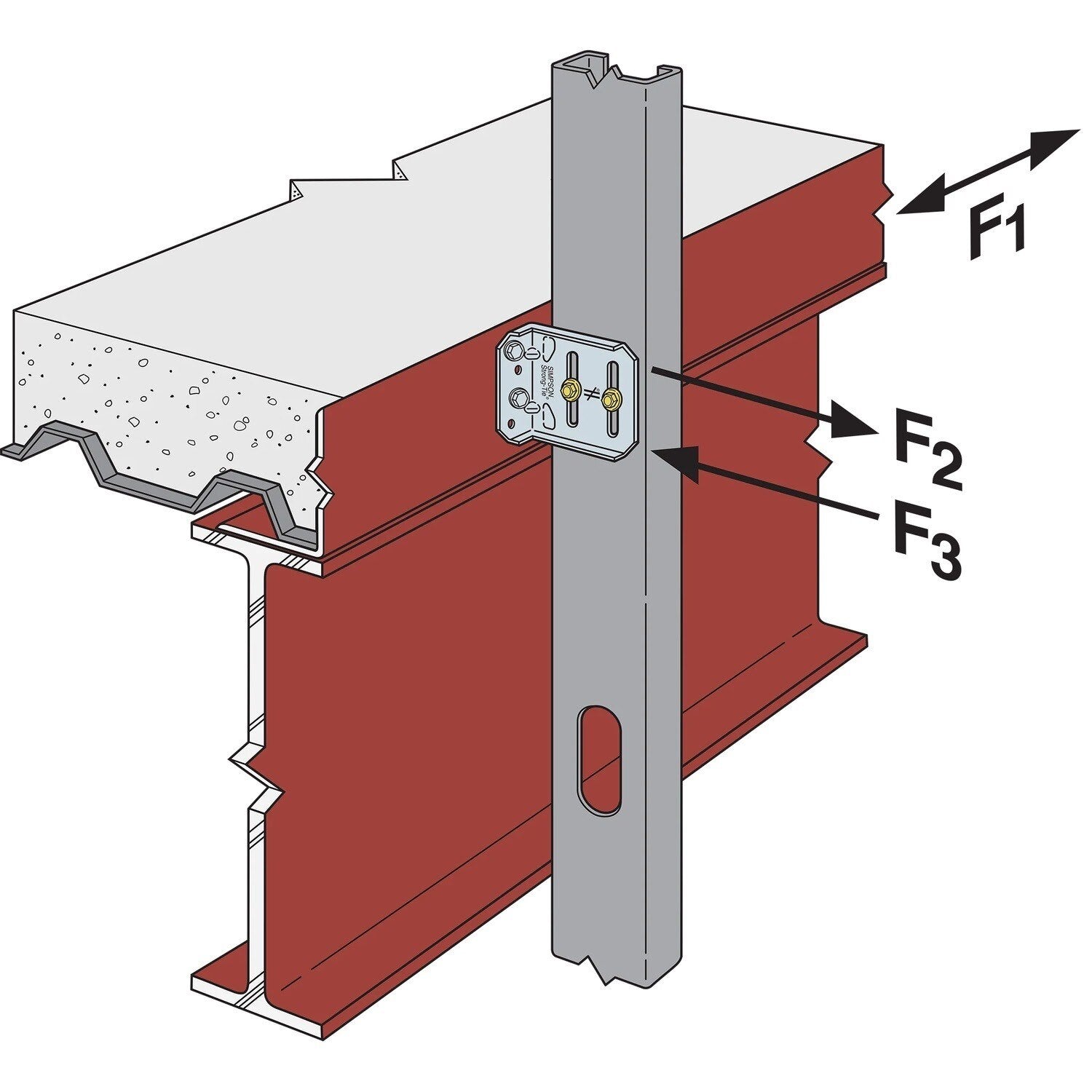

- Bypass framing applications
- Reducing design time and installed cost
- Accommodating various stand-off conditions and steel-stud sizes

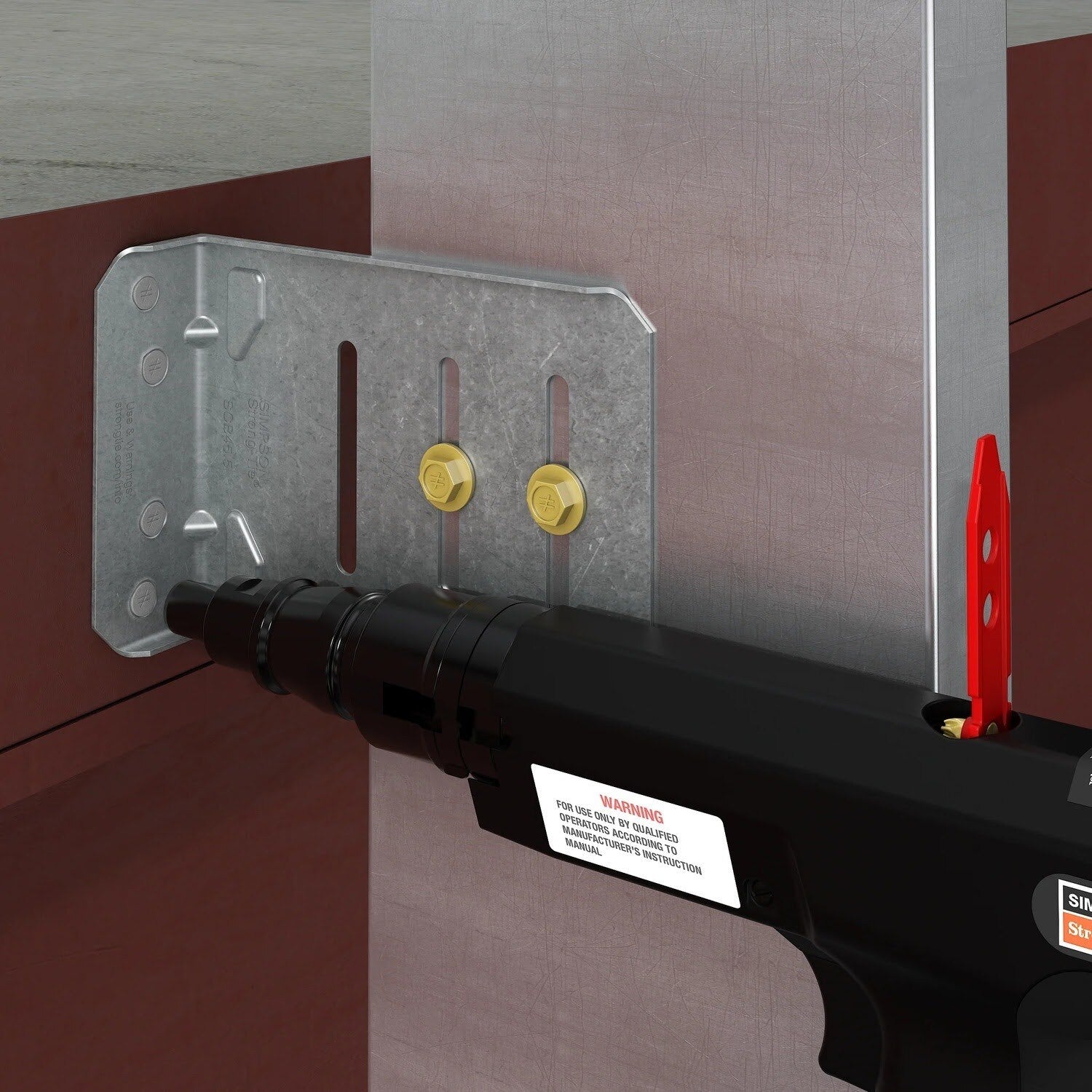

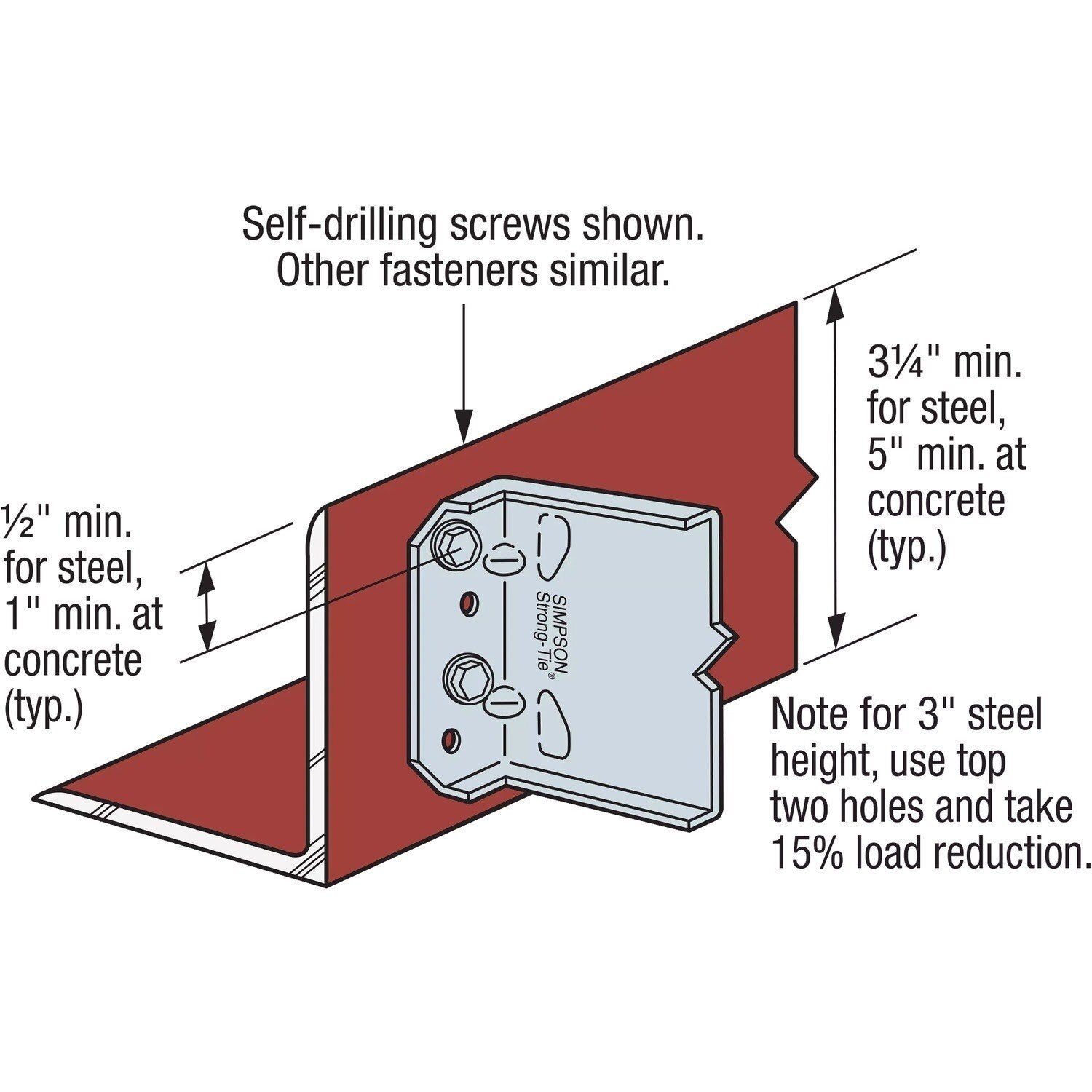

Simpson MSCB45.5-KT Installation Overview
- Use the specified type and number of anchors

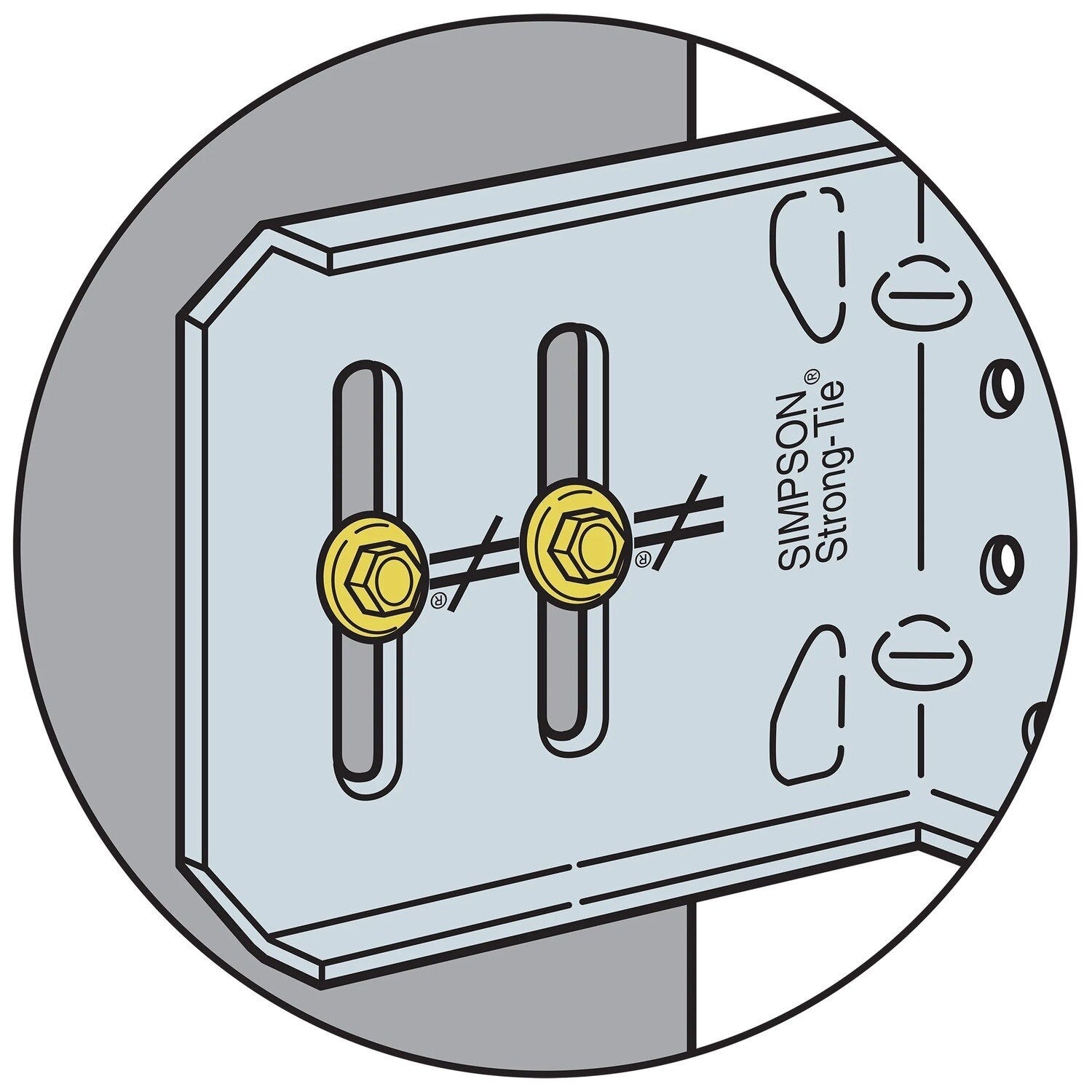

- Install shouldered screws in the slots adjacent to the No-Equal stamp
- Use a maximum of 1 screw per slot
- For installations to wood framing, refer to Simpson Strong-Tie engineering letter
Simpson MSCB45.5-KT Specifications
| Material | 68 mil (14 ga.) |
| Finish | G90 Galvanized |
| Length | 5-1/2" |
| Height | 4" |
| Fasteners Required | (83) XLSH34B1414 #14 shouldered screws (included) |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
