Simpson Strong-Tie MSJC8.25-R15 Description

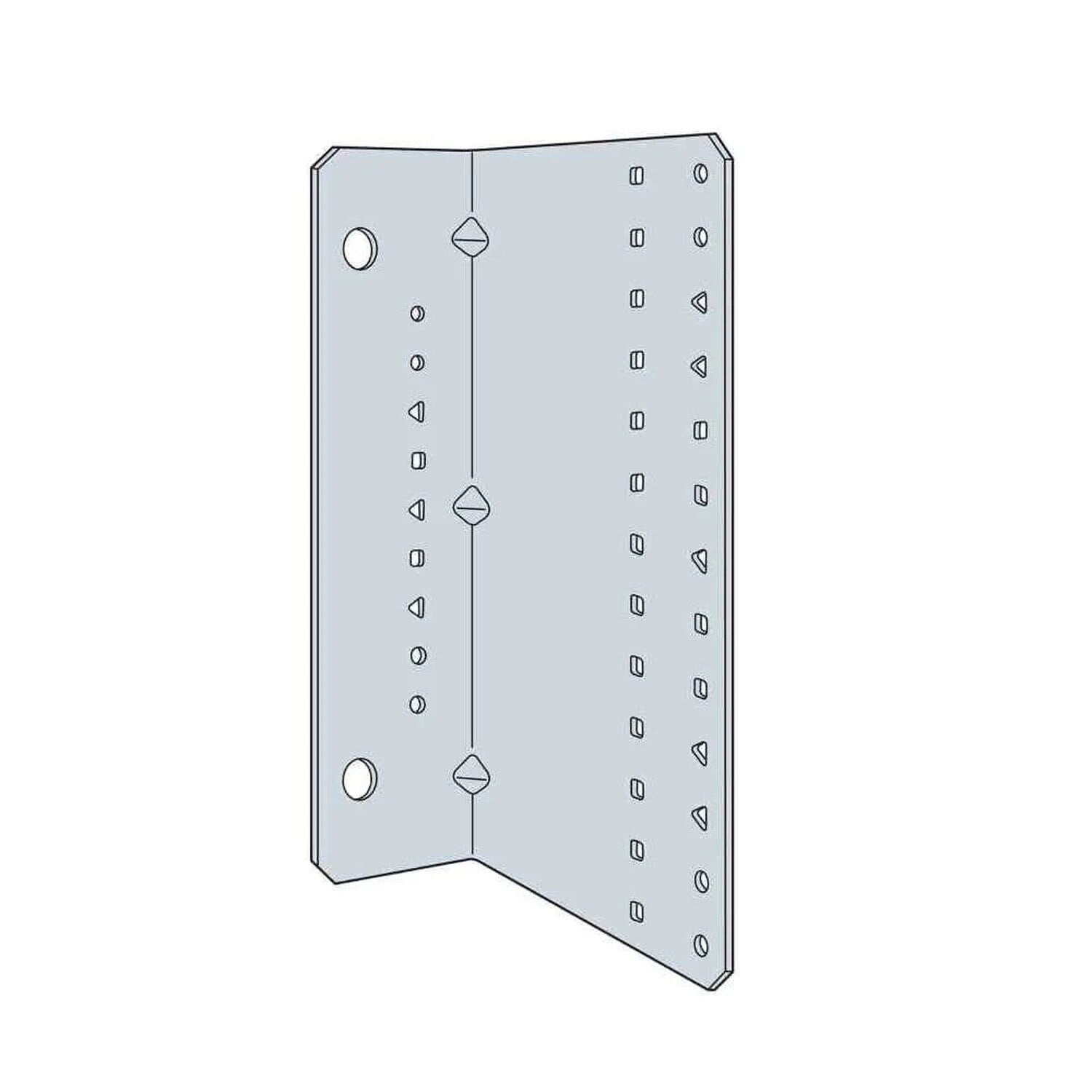

The MSJC8.25-R15 Steel Joist Connector is designed for cold-formed steel construction, featuring a G90 galvanized finish for corrosion resistance and prepunched holes for easy installation.
Simpson Strong-Tie MSJC8.25-R15 Includes
- (15) Steel Joist Connector
Simpson Strong-Tie MSJC8.25-R15 Features
- Prepunched holes reduce installation cost by eliminating predrilling
- Intuitive fastener hole positions ensure accurate clip installation
- Angle lengths accommodate either hard-side or soft-side attachment
- 4 1/2" leg length enables soft-side connections for joists with flanges up to 3 1/2"
- Accommodates kicker-to-metal-deck applications
Simpson Strong-Tie MSJC8.25-R15 Applications
- Cold-formed steel construction
- Joist and rafter connections
- Metal-deck applications
Simpson Strong-Tie MSJC8.25-R15 Installation Overview
- Use all specified fasteners/anchors
- For 6" and 8" joists, SSC connectors are recommended
Simpson Strong-Tie MSJC8.25-R15 Specifications
| Material | 97 mil (50 ksi) |
| Finish | Galvanized (G90) |
| Length | 8-1/4" |
| Thickness | 12 Ga. |
| Dimensions | 2 3/16 x 4 1/2 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
