Simpson Strong-Tie MSSC2.25-R90 Description

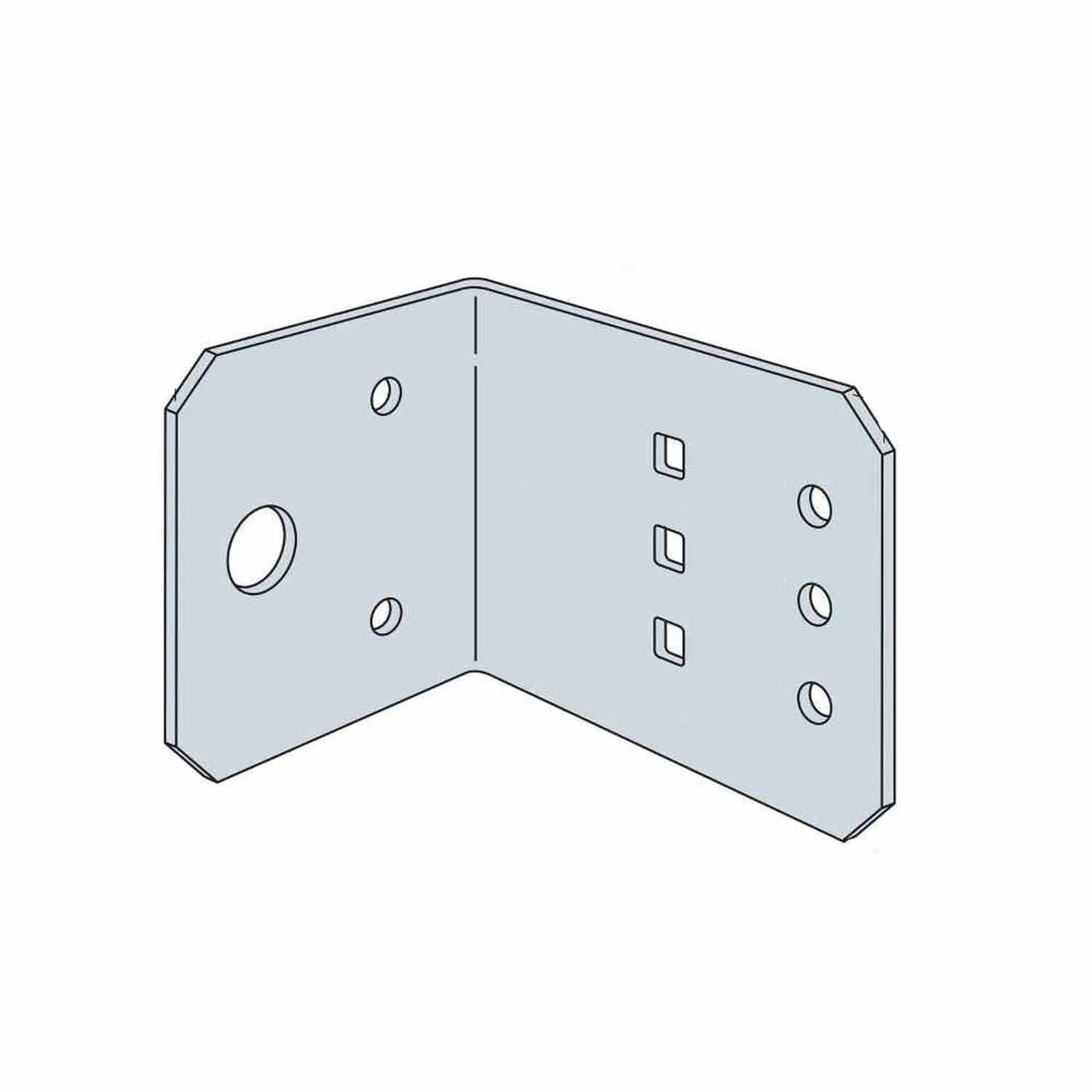

The MSSC 2-1/4 in. 12-Gauge Galvanized Steel-Stud Clip is designed for secure and efficient installation in curtain-wall construction, offering prepunched holes and intuitive fastener positions.
Simpson Strong-Tie MSSC2.25-R90 Includes
- (90) 2-1/4 in. 12-Gauge Galvanized Steel-Stud Clip
Simpson Strong-Tie MSSC2.25-R90 Features
- Prepunched holes reduce installation cost by eliminating predrilling
- Intuitive fastener hole positions ensure accurate clip installation
- Angle lengths accommodate either hard-side or soft-side attachment
- 4" leg length enables soft-side connections for studs and joists
- Suitable for u-channel bridging
Simpson Strong-Tie MSSC2.25-R90 Applications
- Curtain-wall construction
- Stud and joist connections with return lips up to 3/4"
- Soft-side connections for studs and joists with flanges up to 3"
Simpson Strong-Tie MSSC2.25-R90 Installation Overview
- Use all specified fasteners/anchors
Simpson Strong-Tie MSSC2.25-R90 Specifications
| Material | 97 mil (50 ksi) |
| Finish | Galvanized (G90) |
| Gauge | 12 |
| Dimensions | 2 1/4 x 3 |
| Packaging Quantity | 90 |
