Simpson Strong-Tie MSSC4.25KW-KT20 Description

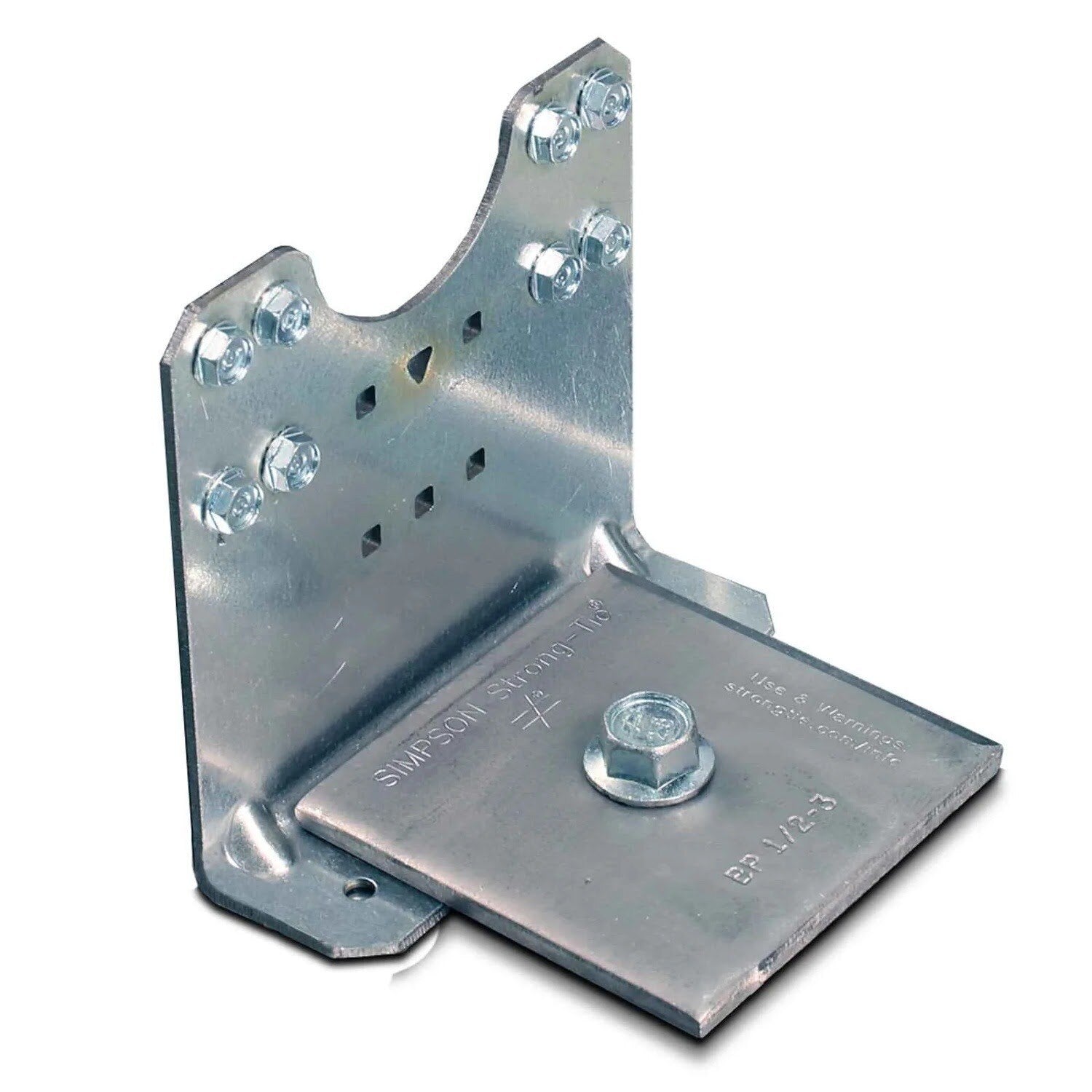

The MSSC-KW connectors are designed to work in tandem with Simpson Strong-Tie BP1/2-3 bearing plates, providing effective solutions for moment-resisting kneewall applications.
Simpson Strong-Tie MSSC4.25KW-KT20 Includes
- (20) connectors
- (20) BP bearing plates
Simpson Strong-Tie MSSC4.25KW-KT20 Features
- One simple custom hole pattern for each stud size simplifies specification and installation
- 3/8"-diameter anchor bolt location enables easy tool access
Simpson Strong-Tie MSSC4.25KW-KT20 Applications
- Drywall: Provides structural support for kneewall applications
Simpson Strong-Tie MSSC4.25KW-KT20 Installation Overview
- Use all specified fasteners/anchors

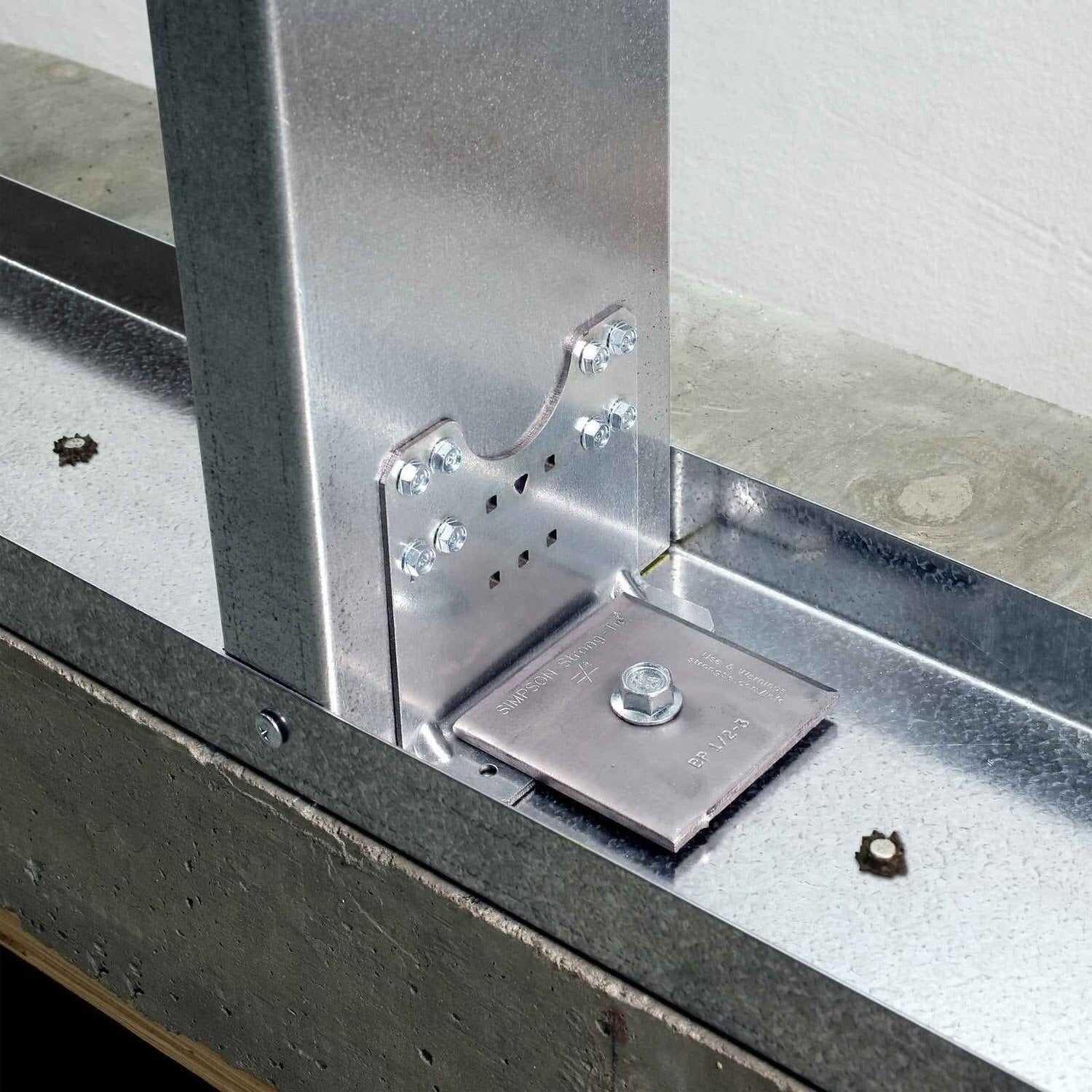

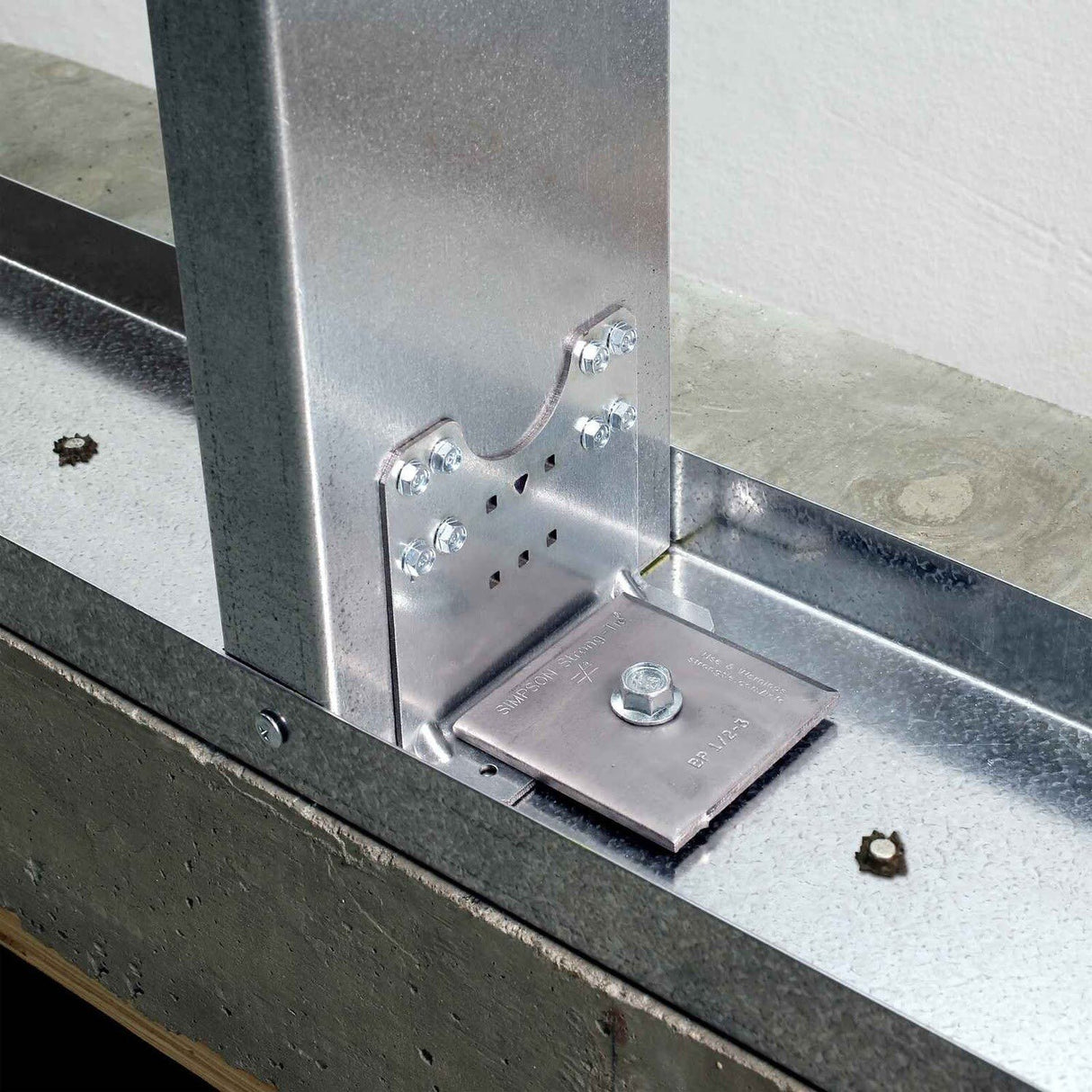

- Install BP1/2-3 bearing plate over anchor leg of MSSC connectors as shown in the illustrations
Simpson Strong-Tie MSSC4.25KW-KT20 Specifications
| Material | MSSC — 97 mil (50 ksi); BP — 229 mil (33 ksi) |
| Finish | MSSC – galvanized (G90); BP – none |
| Length | 4-1/4" |
| Height | 4" |
| Quantity | 20 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
