Simpson MSTA24Z Description

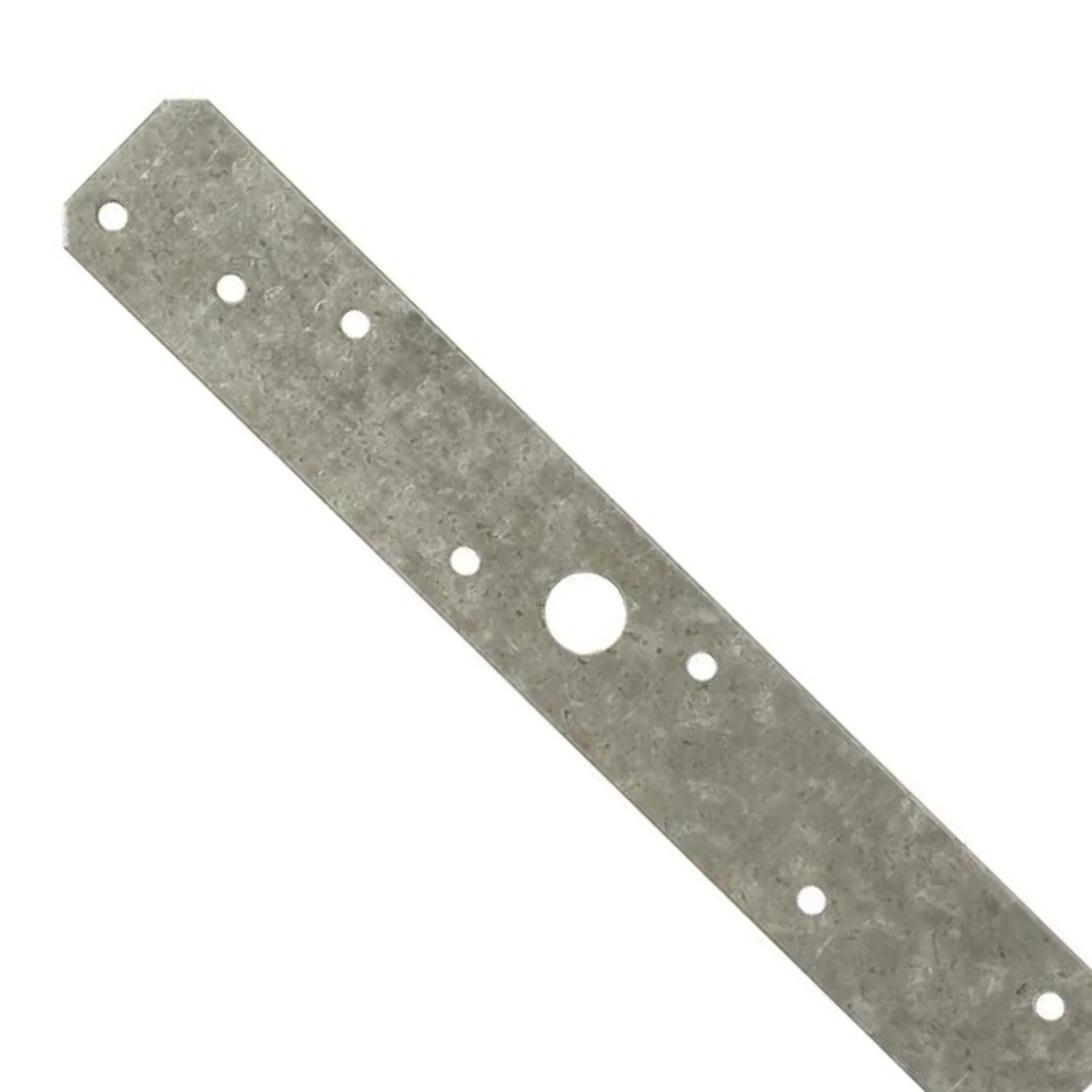

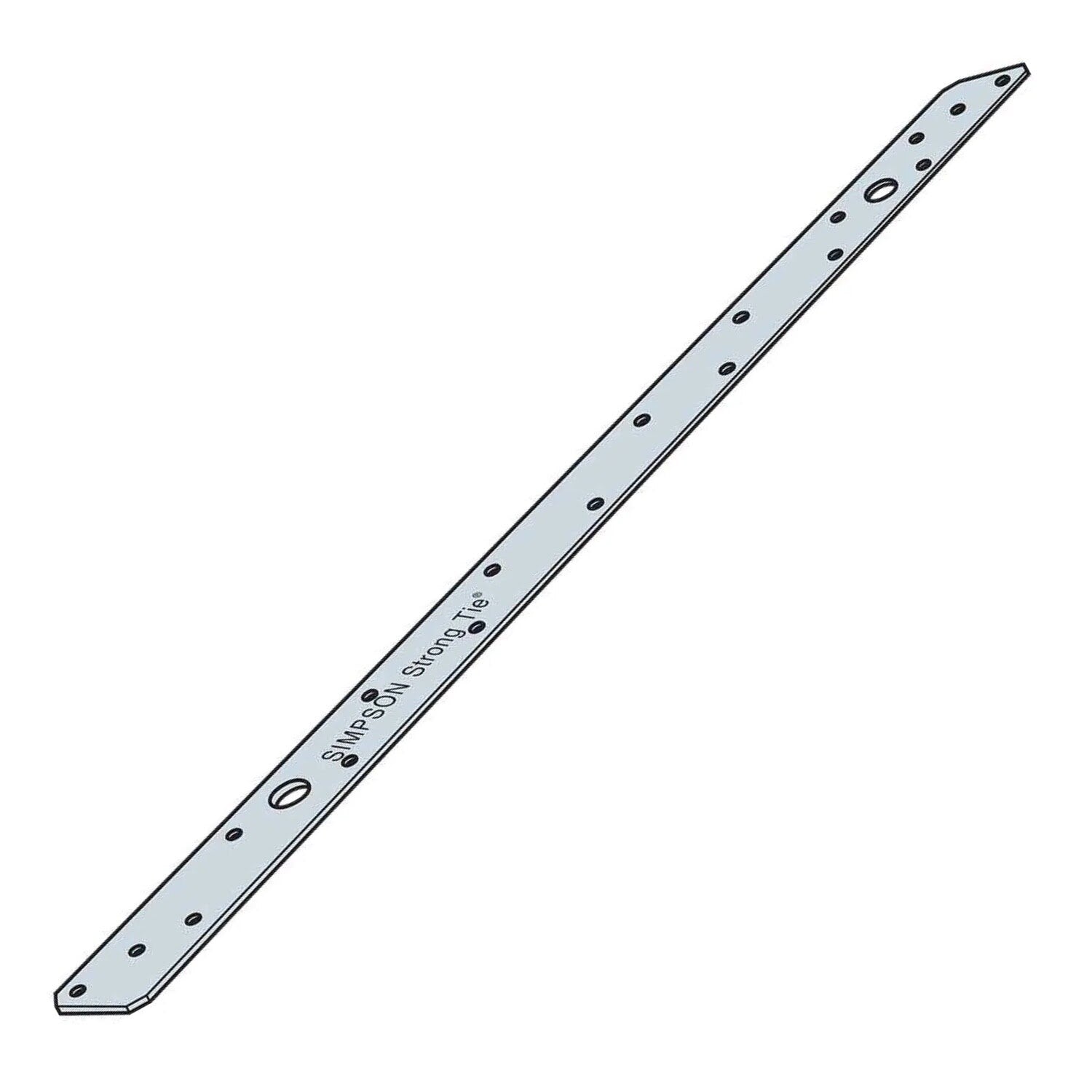

The Simpson MSTA24Z Medium Strap Tie is designed for wood-to-wood uplift applications, featuring a 24-inch length and 18-gauge thickness for reliable performance.
Simpson MSTA24Z Includes
- (1) Medium Strap Tie for Wood-to-Wood Uplift Applications - 24" Length, 18 Gauge
Simpson MSTA24Z Features
- Load-rated, precut strap designed for quick installation and optimal performance
- Designed to resist wind and seismic forces

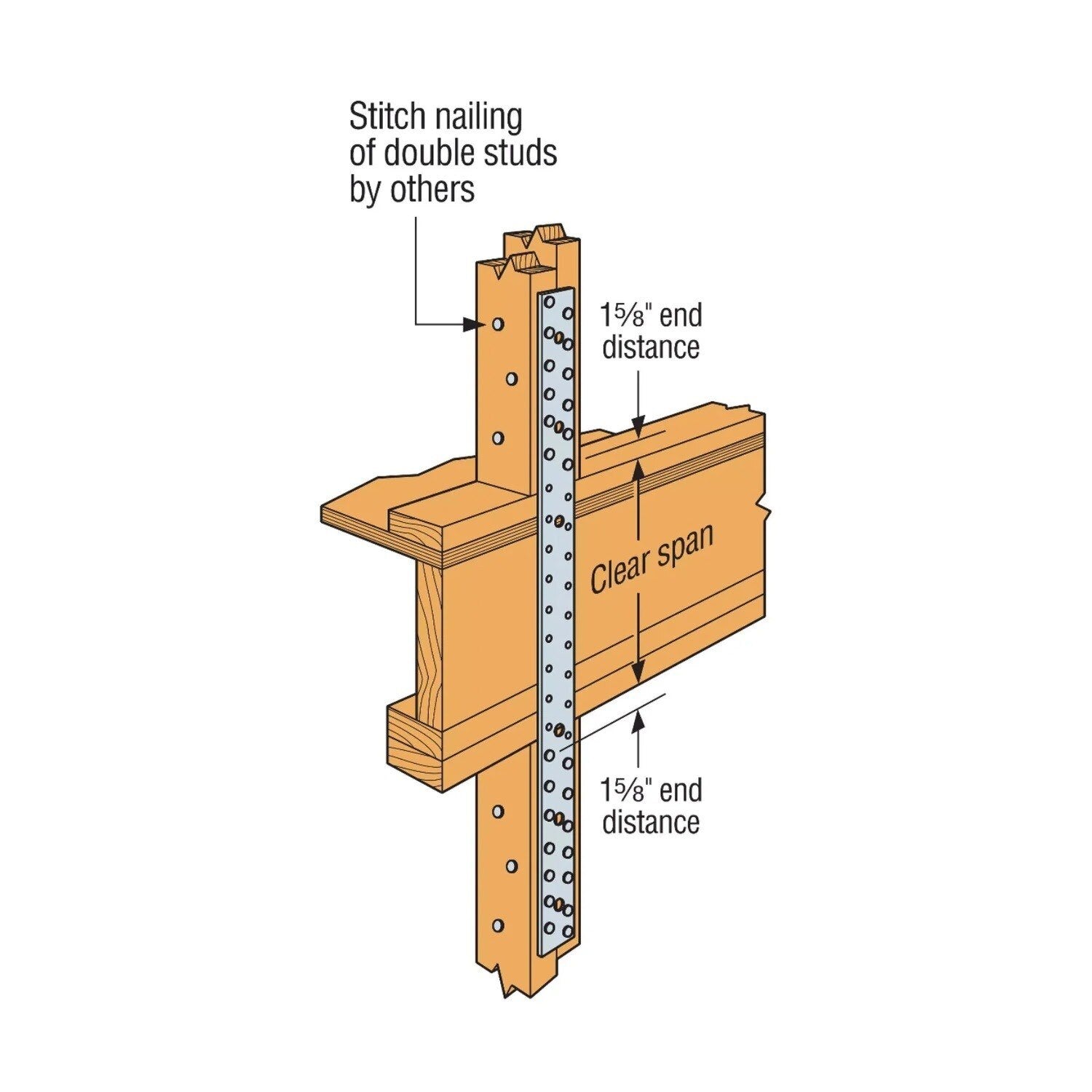

- Floor-to-floor clear span application
- G185 ZMAX galvanized finish for added corrosion resistance
Simpson MSTA24Z Applications
- Fastening wood-to-wood connections
- Securing top or bottom plates
- Wall intersections
- Ridge ties

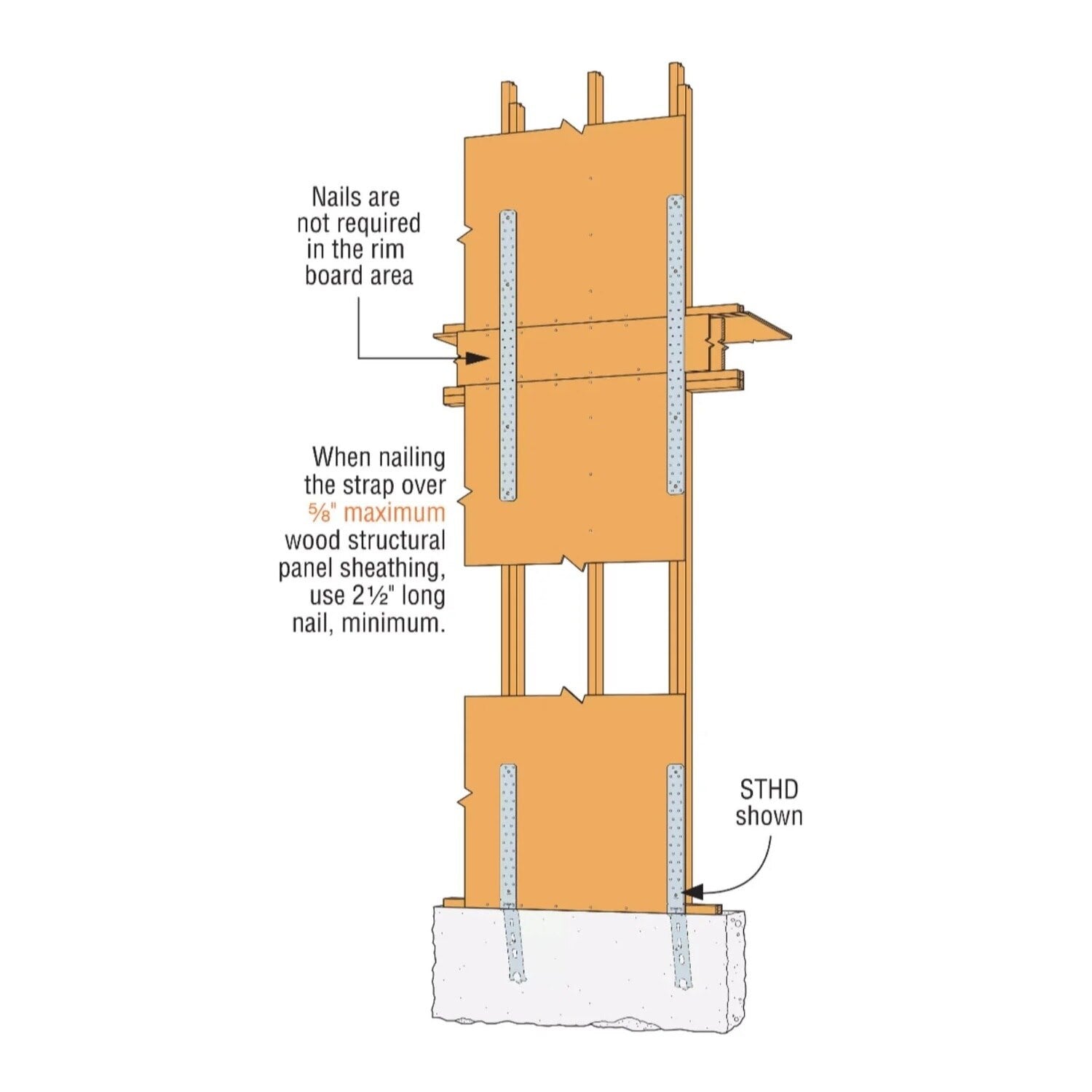

Simpson MSTA24Z Installation Overview
- Use all specified fasteners
- Install strap ties where top or bottom plates are cut, at wall intersections, and as ridge ties
- Reduce the allowable load based on the size and quantity of fasteners used
Simpson MSTA24Z Specifications
| Length | 24" |
| Width | 1-1/4" |
| Gauge | 18 |
| Finish | G185 ZMAX Galvanized |
| Fasteners Required | (18) 0.148" x 2-1/2" Nails |
| For Treated Lumber | Yes |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Toolup Part # :
823155
