Simpson MSTAM36 Description

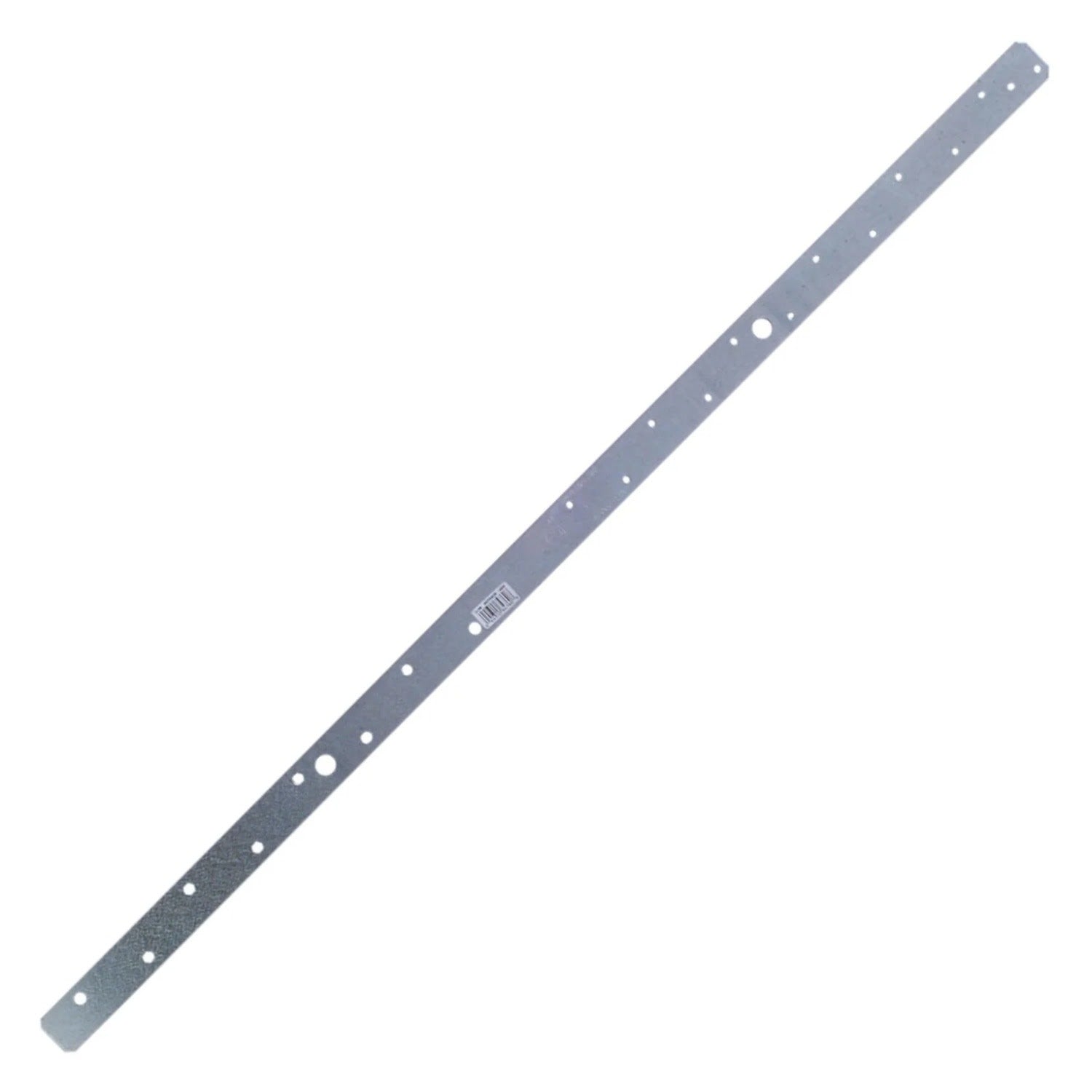

The MSTAM36 Medium Masonry Strap Tie is designed for wood-to-masonry applications, featuring a G90 galvanized coating for durability.
Simpson MSTAM36 Includes
- (1) Medium Masonry Strap Tie
Simpson MSTAM36 Features
- Load-rated, precut strap designed for quick installation and optimal performance
- Designed to resist wind and seismic forces
- Attaches wood framing to concrete or grout-filled concrete masonry units including floor-to-floor clear span application
Simpson MSTAM36 Applications
- Wood-to-masonry fastening
- Floor-to-floor clear span applications
- Resisting wind and seismic forces
Simpson MSTAM36 Installation Overview
- Use all specified fasteners
- Attach to concrete or GFCMU and wood framing
- Ensure minimum end and edge distance for Titen Turbo screws is 1 1/2"
Simpson MSTAM36 Specifications
| Material | 16 Gauge |
| Finish | G90 Galvanized |
| Length | 36 in. |
| Weight | 0.7 lb |
| Fasteners Required | Nails - (13) 0.148" x 3" Nails, CMU - (8) 1/4" x 2-1/4" Titen Screw, Concrete - (8) 1/4" x 1-3/4" Titen Screw |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
