Simpson Anchors | SKU:
MSTC48B3

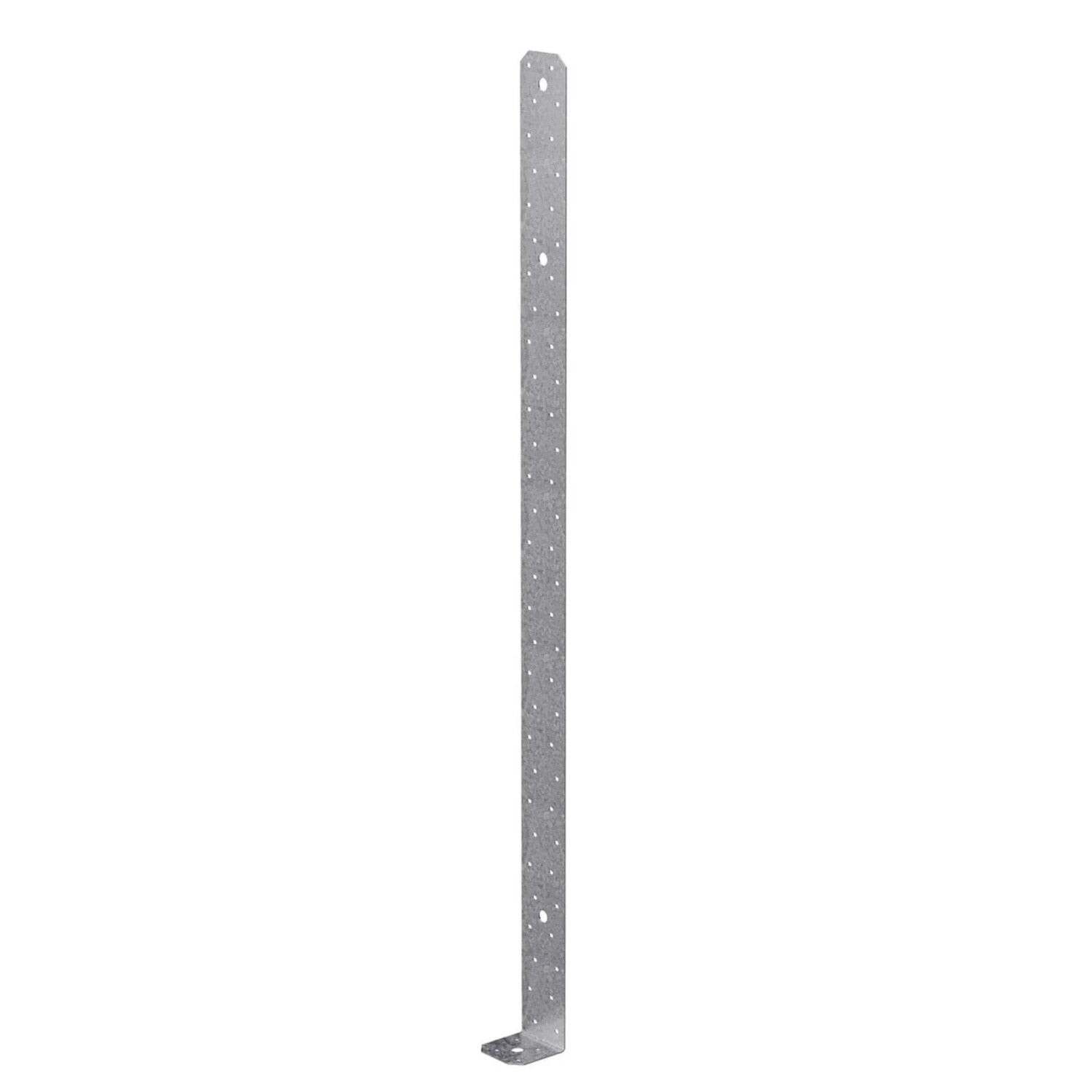

Simpson Strong-Tie MSTC48B3 (44-7/8 in.) Pre-Bent Strap, 14 gauge - Galvanized
$27.72
Unit price
/
Unavailable
Description
Description
Simpson MSTC48B3 Description
The Simpson MSTC48B3 Pre-Bent Strap is designed to transfer tension load from an upper-story shearwall to a beam on the story below, ensuring structural integrity.
Simpson MSTC48B3 Includes
- (1) Pre-Bent Strap, 14 Gauge - Galvanized
Simpson MSTC48B3 Features
- Pre-bent design for efficient load transfer
- Galvanized finish for corrosion resistance
- Compatible with PSL beams without load reductions
- Allows for increased load capacity with dual strap installation
Simpson MSTC48B3 Applications
- Tension load transfer in multi-story buildings
- Structural reinforcement for shearwalls
- Beam support in construction projects

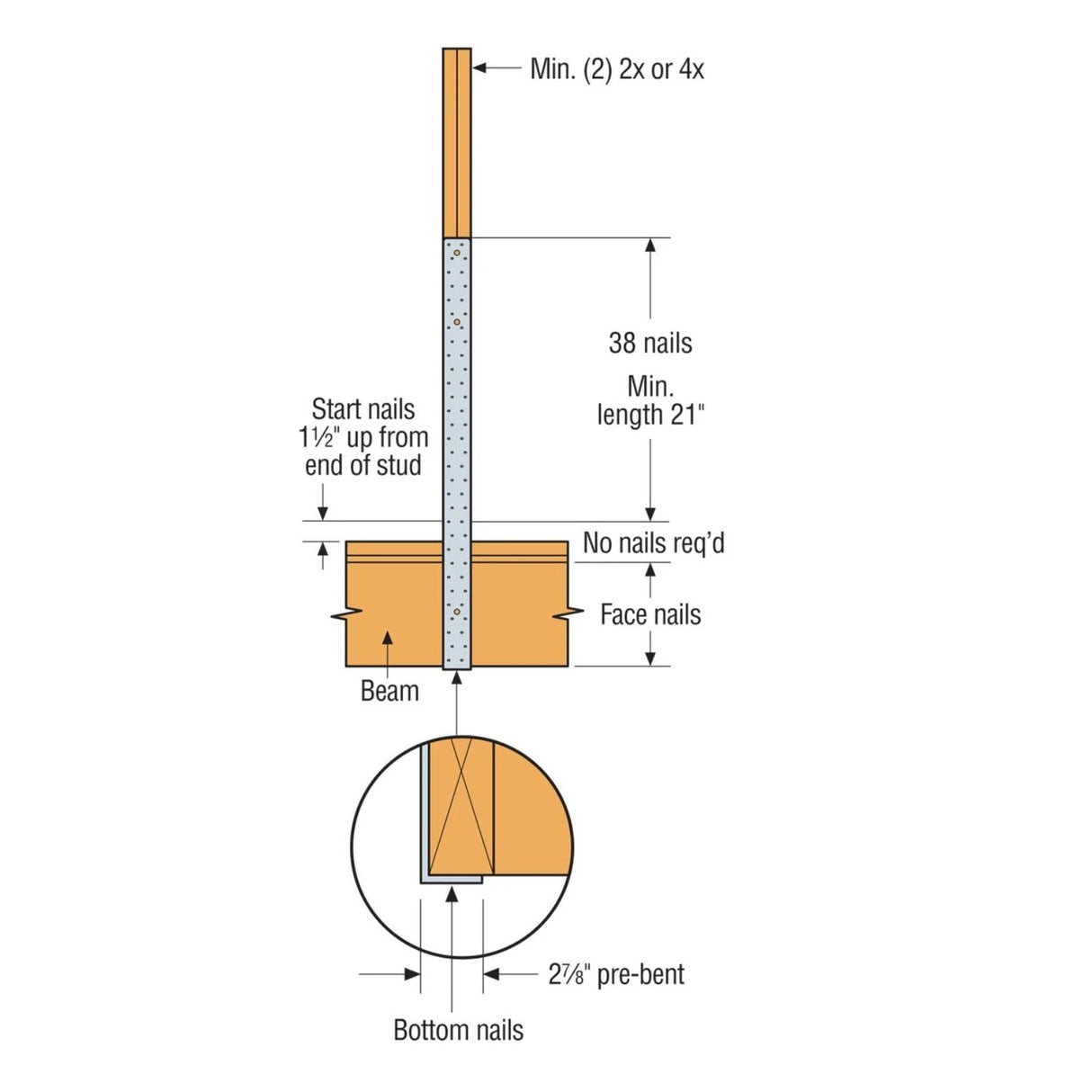

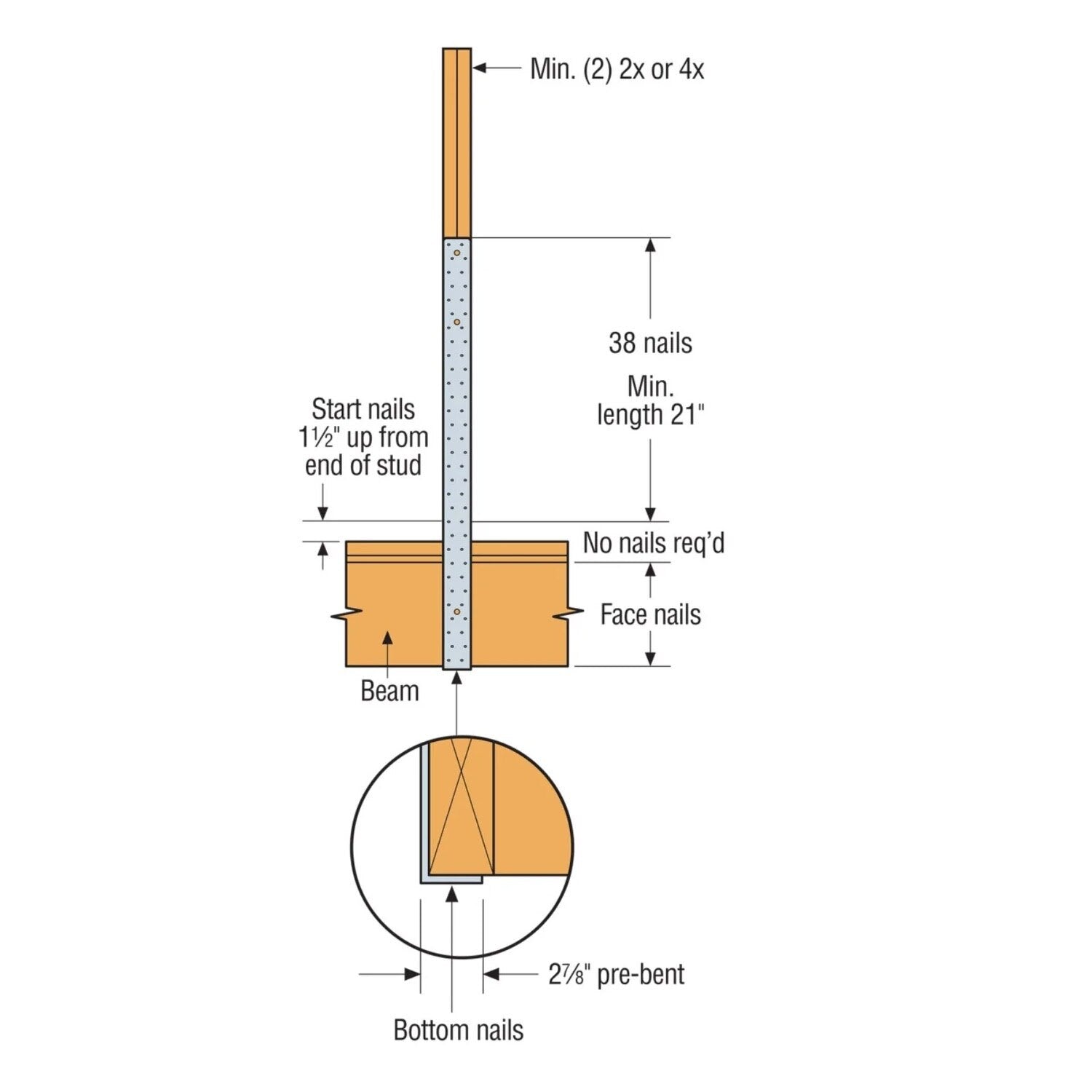

Simpson MSTC48B3 Installation Overview
- Use all specified fasteners for installation
- PSL beam may be used in place of standard-dimension lumber beam
- Install two straps with a 1 1/2" clear space between straps for increased load capacity

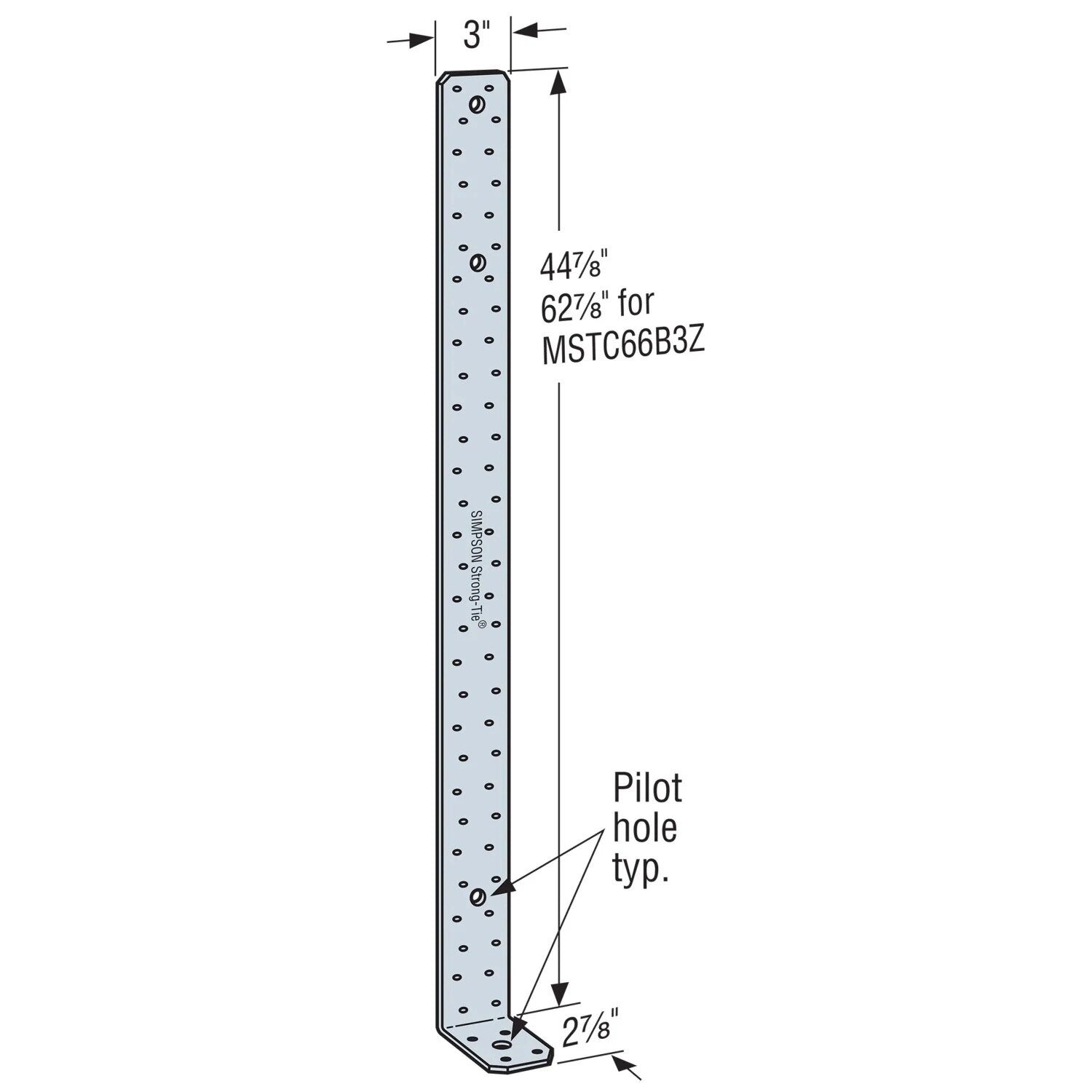

Simpson MSTC48B3 Specifications
| Length | 44-7/8" Bottom: 2-7/8" |
| Fasteners required | Face: (12) 0.148 x 3" Stud/Post: (38) 0.148 x 3" Bottom: (4) 0.148 x 3" |
| Thickness | 14 Gauge |
| Width | 3" |
| Weight | 3.1 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
