Simpson Anchors | SKU:
MSTC66B3Z

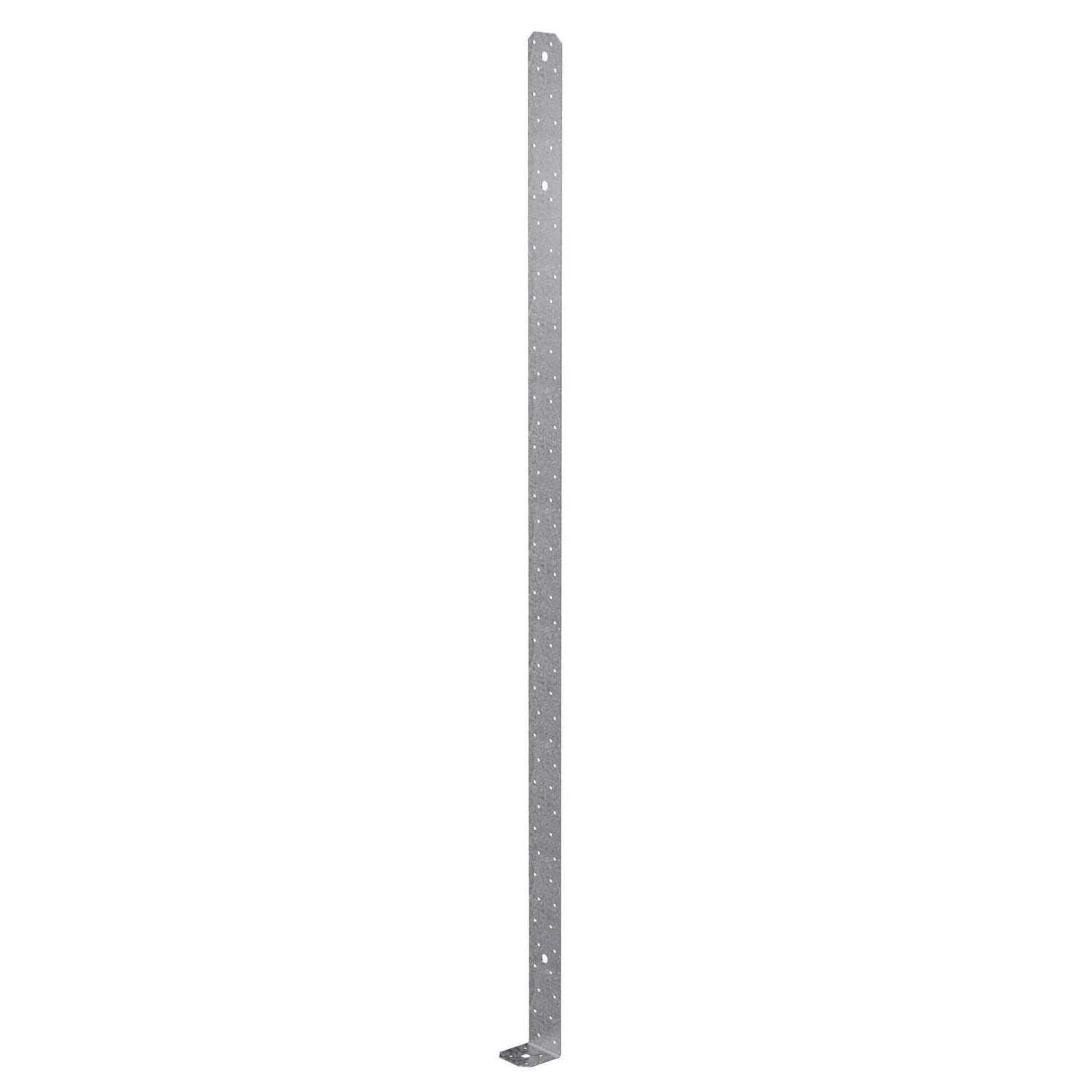

Simpson Strong-Tie MSTC66B3Z (62-7/8 in.) 14 Gauge Pre-Bent Strap, ZMAX Finish
$50.01
Unit price
/
Unavailable
Description
Description
Simpson MSTC66B3Z Description
The Simpson MSTCB Pre-Bent Strap is designed to transfer tension load from an upper-story shearwall to a beam on the story below, ensuring structural integrity.
Simpson MSTC66B3Z Includes
- (1) Pre-Bent Strap 14 Gauge ZMAX
Simpson MSTC66B3Z Features
- Pre-bent design for efficient load transfer
- Compatible with PSL beams without load reductions
- Allows for increased load capacity with dual strap installations
Simpson MSTC66B3Z Applications
- Upper-story shearwall tension load transfer
- Beam reinforcement in multi-story structures
- Structural support in residential and commercial buildings
Simpson MSTC66B3Z Installation Overview
- Ensure proper alignment of the strap with the shearwall and beam
- Use all specified fasteners for secure installation
- Maintain a 1 1/2" clear space between dual straps for increased load capacity
Simpson MSTC66B3Z Specifications

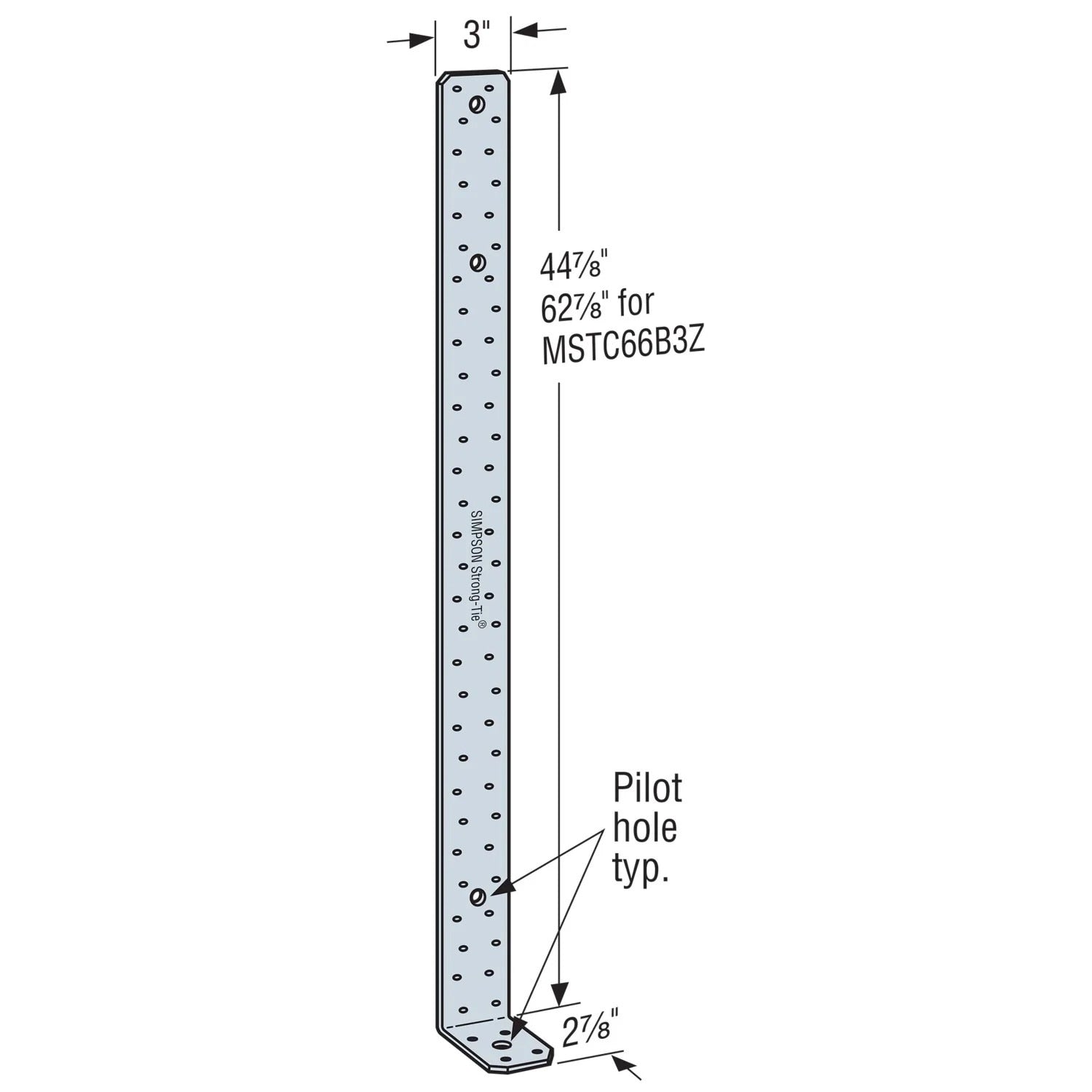

| Length | 62-7/8" Bottom: 2-7/8" |
| Fasteners required | Face: (14) 0.148 x 3" Stud/Post: (38) 0.148 x 3" Bottom: (4) 0.148 x 3" |
| Thickness | 14 Gauge |
| Width | 3-1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
