Simpson Anchors | SKU:
MSTD5
Simpson Strong-Tie MSTD5 (26-3/4") 16 Gauge Galvanized Marriage Strap for Panelized Roof Splicing, G90
$18.32
Unit price
/
Unavailable
Description
Description

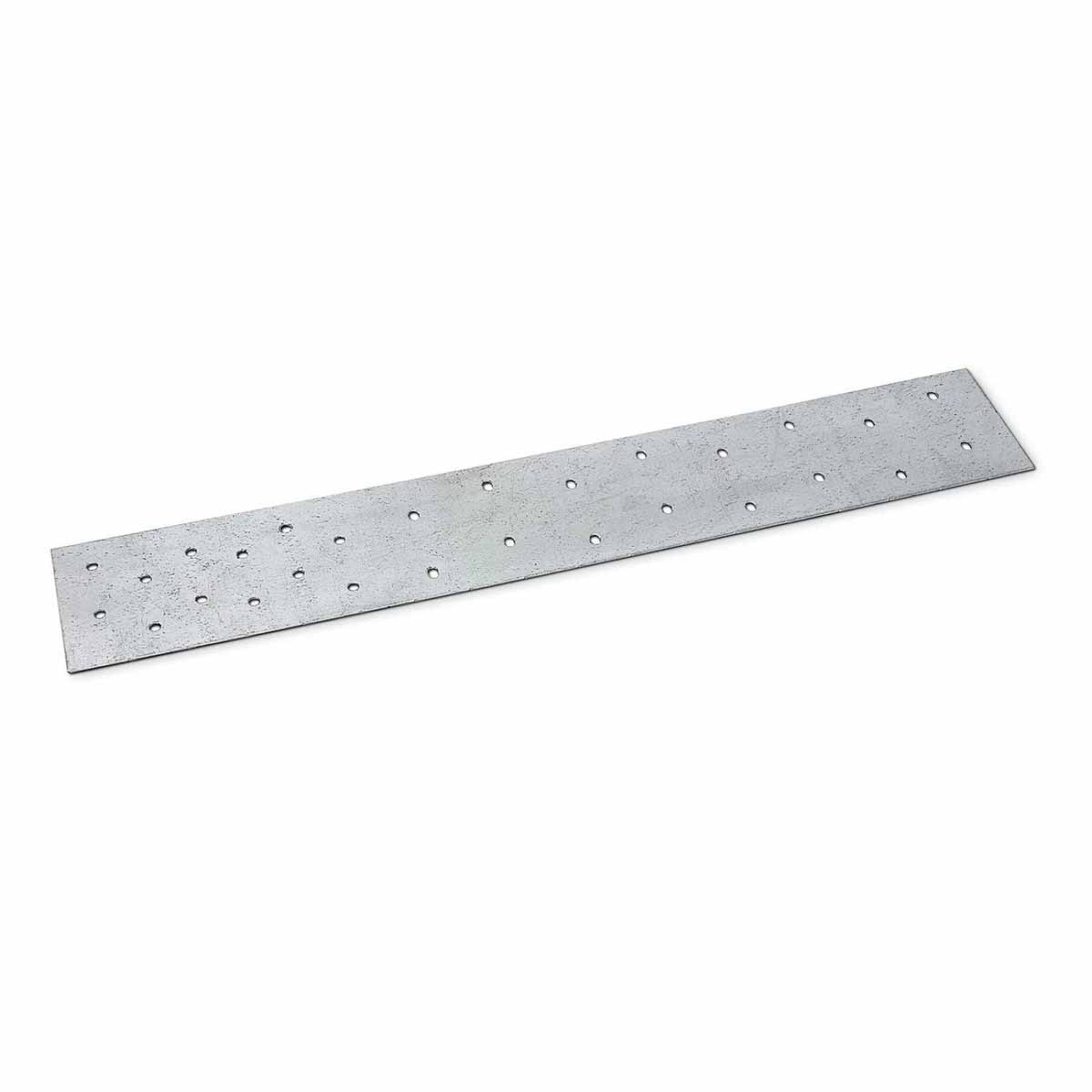

Simpson Strong-Tie MSTD5 Description
The Simpson MSTD5 Marriage Strap provides a reliable solution for panelized roof splicing, ensuring load continuity without additional blocking.
Simpson Strong-Tie MSTD5 Includes
- (1) MSTD5 Marriage Strap
Simpson Strong-Tie MSTD5 Features
- Overlapping, in-line splice for HTT tension tie and CMSTC16 coiled strap
- Suitable for panelized roof applications
- Compatible with 10d and 16d sinker nailing options
- Ensures load continuity without additional blocking
Simpson Strong-Tie MSTD5 Applications
- Panelized roof splicing
- Roof diaphragm load development
- Structural reinforcement in roof construction

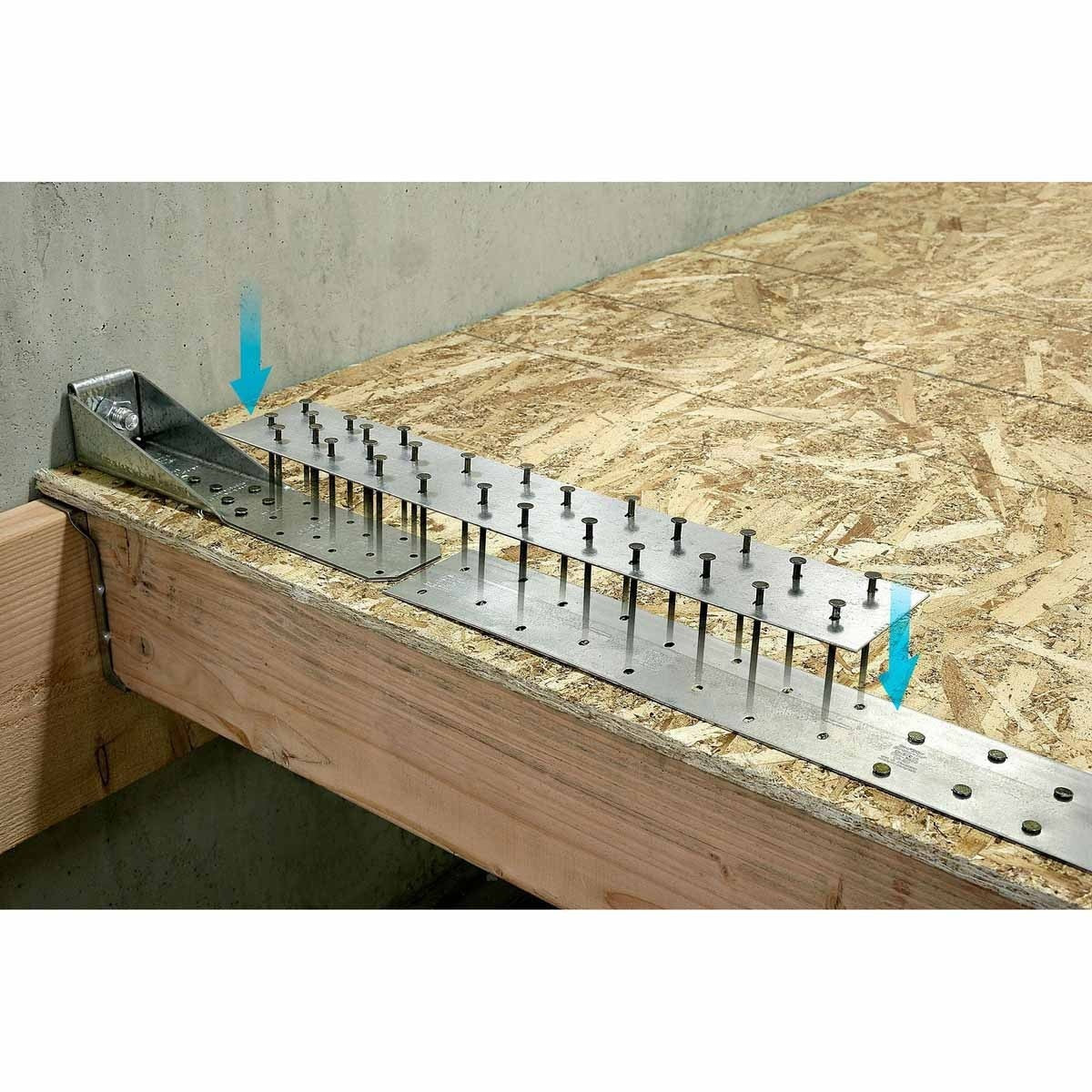

Simpson Strong-Tie MSTD5 Installation Overview
- Align the MSTD5 strap with the HTT tension tie and CMSTC16 coiled strap.
- Ensure the CMSTC and HTT are spliced end-to-end without any gap.
- Fasten using specified nails as per the designer's guidelines.
Simpson Strong-Tie MSTD5 Specifications
| Length | 27" |
| Width | 3" |
| Thickness | 16 Gauge |
| Fasteners required | CMSTC16: (24) 16d sinker HTT: (18) 16d sinker |
NOTE: Ensure the CMSTC and HTT are spliced end-to-end without any gap to maintain load continuity.
