Simpson Anchors | SKU:
MTWS48-8
Simpson Strong-Tie MTWS48-8 (8-1/16 in. x 47-5/8 in.) High-Capacity 7-Gauge Mass Timber Washer Strap for CLT and Engineered Wood Connections
$89.02
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie MTWS48-8 Description
The MTWS48-8 is a high-capacity 7-gauge strap designed for CLT and engineered wood connections, offering high strength and stiffness for various applications.
Simpson Strong-Tie MTWS48-8 Includes
- (1) MTWS48-8 Strap
Simpson Strong-Tie MTWS48-8 Features
- High capacity reduces the need for expensive shop-fabricated steel plates

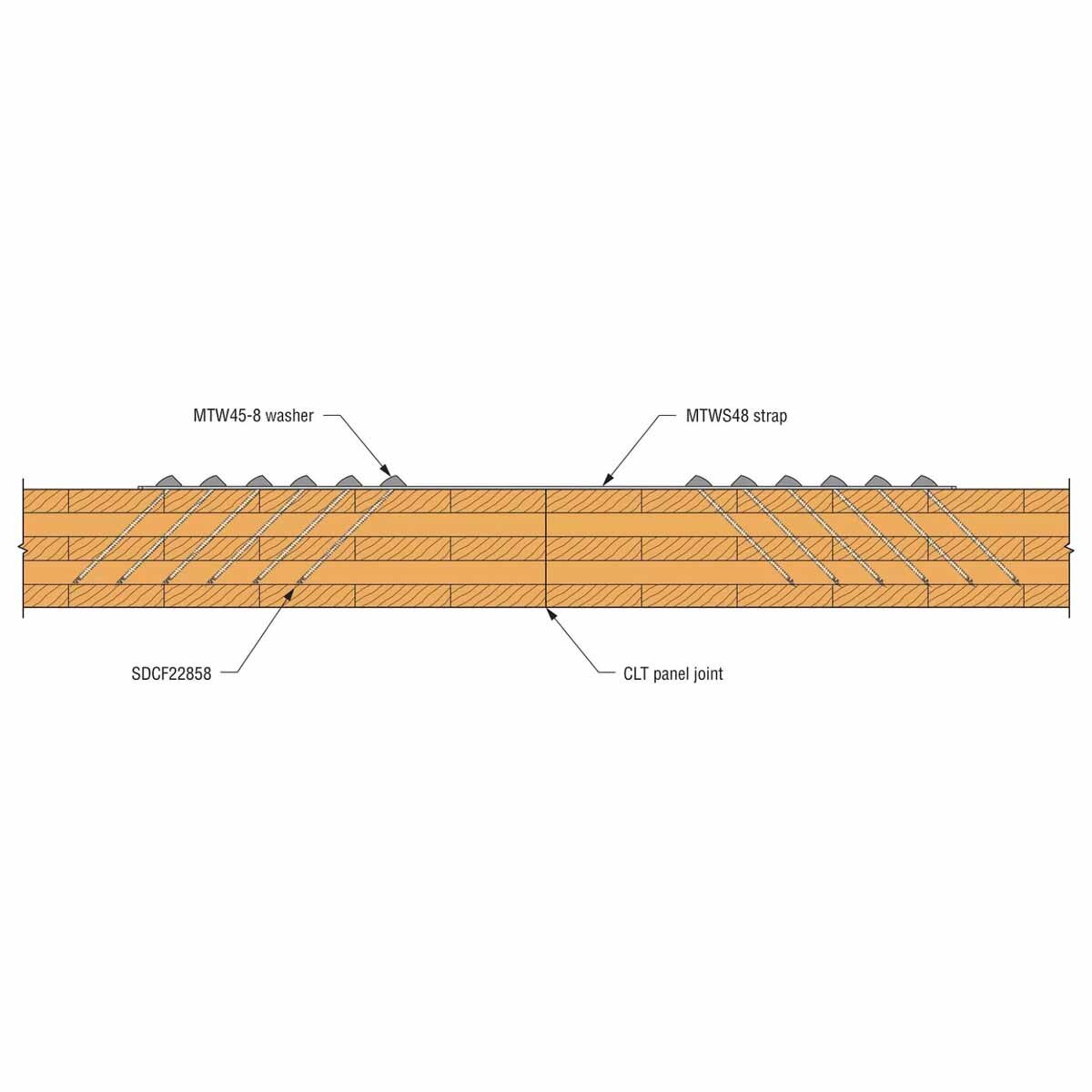

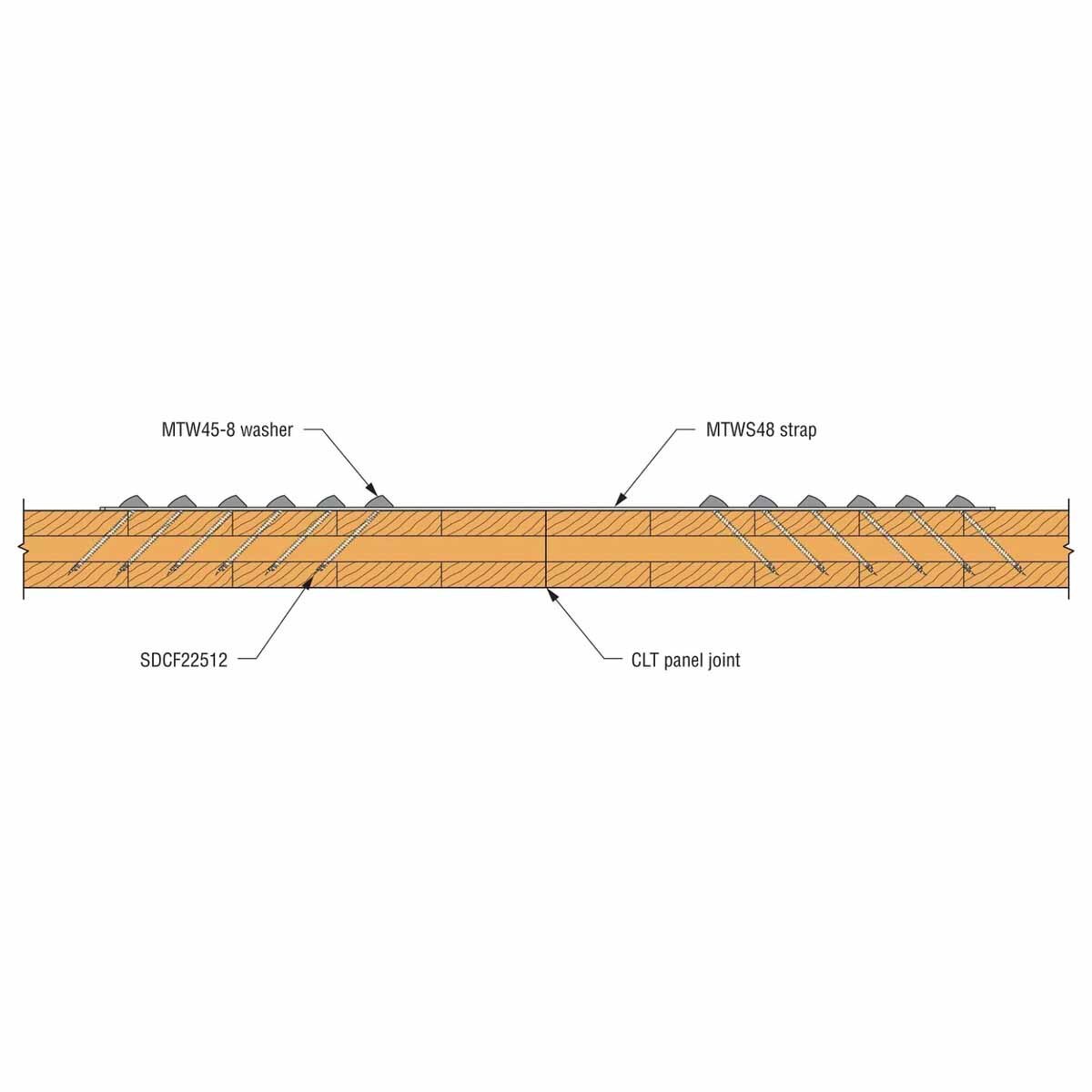

- Use of inclined SDCF screws and MTW45-8 washers reduces the number of fasteners needed to achieve the load
- Strap can be used for either CLT panel-to-panel connection or CLT panel-to-steel connection
Simpson Strong-Tie MTWS48-8 Applications
- CLT panel-to-panel connections
- CLT panel-to-steel connections
- Engineered wood construction
Simpson Strong-Tie MTWS48-8 Installation Overview
- Install optional fasteners in diamond holes to hold strap in desired location
- Orient washers so the screws point away from the centerline of the strap and toward the end of the strap
- Install inner fasteners first and work towards the ends of the strap
- Use all specified fasteners and washers

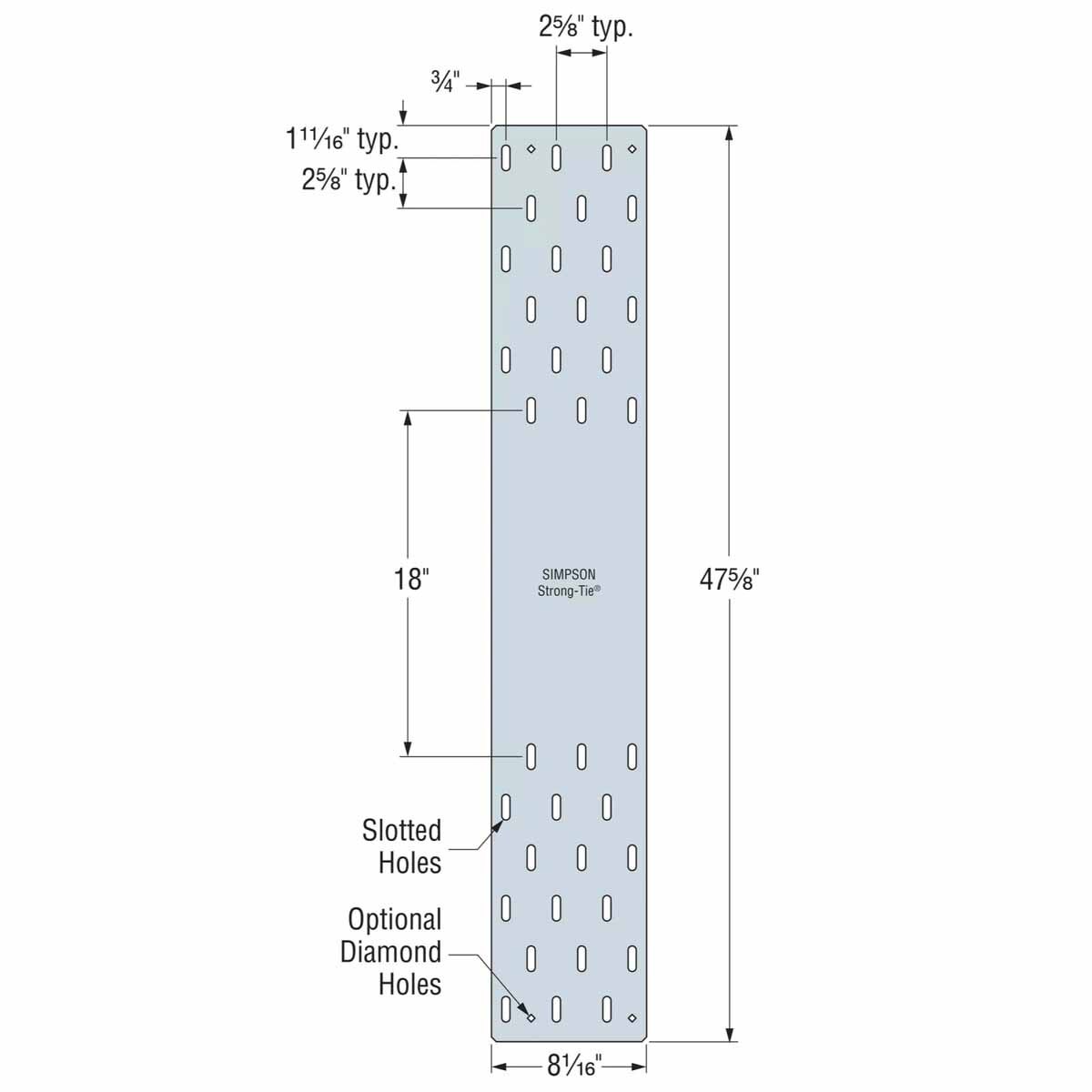

Simpson Strong-Tie MTWS48-8 Specifications
| Material | 7 gauge (ASTM A653 Grade 33) |
| Finish | Galvanized |
| Width | 8 1/16" |
| Length | 47 5/8" |
| Weight | 18.2 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
