Simpson Hangers | SKU:
MUS28
Simpson Strong-Tie MUS28 (2" x 8") Face Mount Joist Hanger, Galvanized
$4.54
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie MUS28 Description

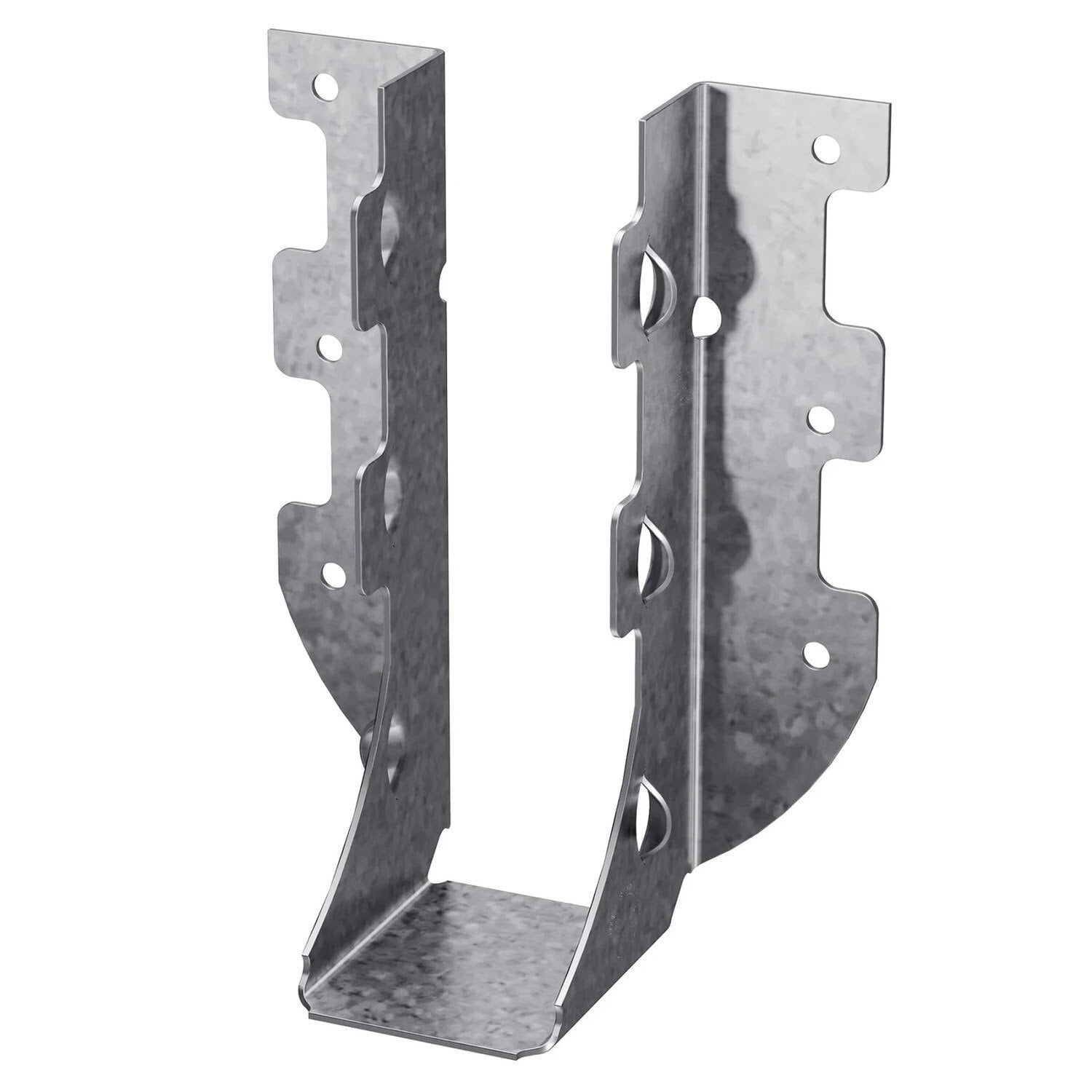

The Simpson Strong-Tie MUS28 is a 2x8 face-mount joist hanger designed for secure wood-to-wood connections, featuring a G90 galvanized coating for corrosion resistance.
Simpson Strong-Tie MUS28 Includes
- (1) 2x8 Face Mount Joist Hanger
Simpson Strong-Tie MUS28 Features
- Face-Mount Design: Ensures a strong connection between trusses, beams, and joists.
- G90 Galvanized Coating: Provides standard corrosion protection for general construction applications.
- Versatile Use: Compatible with plated trusses, I-joists, and solid sawn lumber.
- Engineered Strength: Designed to provide superior structural integrity and load-bearing performance.
- Efficient Installation: Pre-punched holes allow for fast and secure fastening.
Simpson Strong-Tie MUS28 Applications

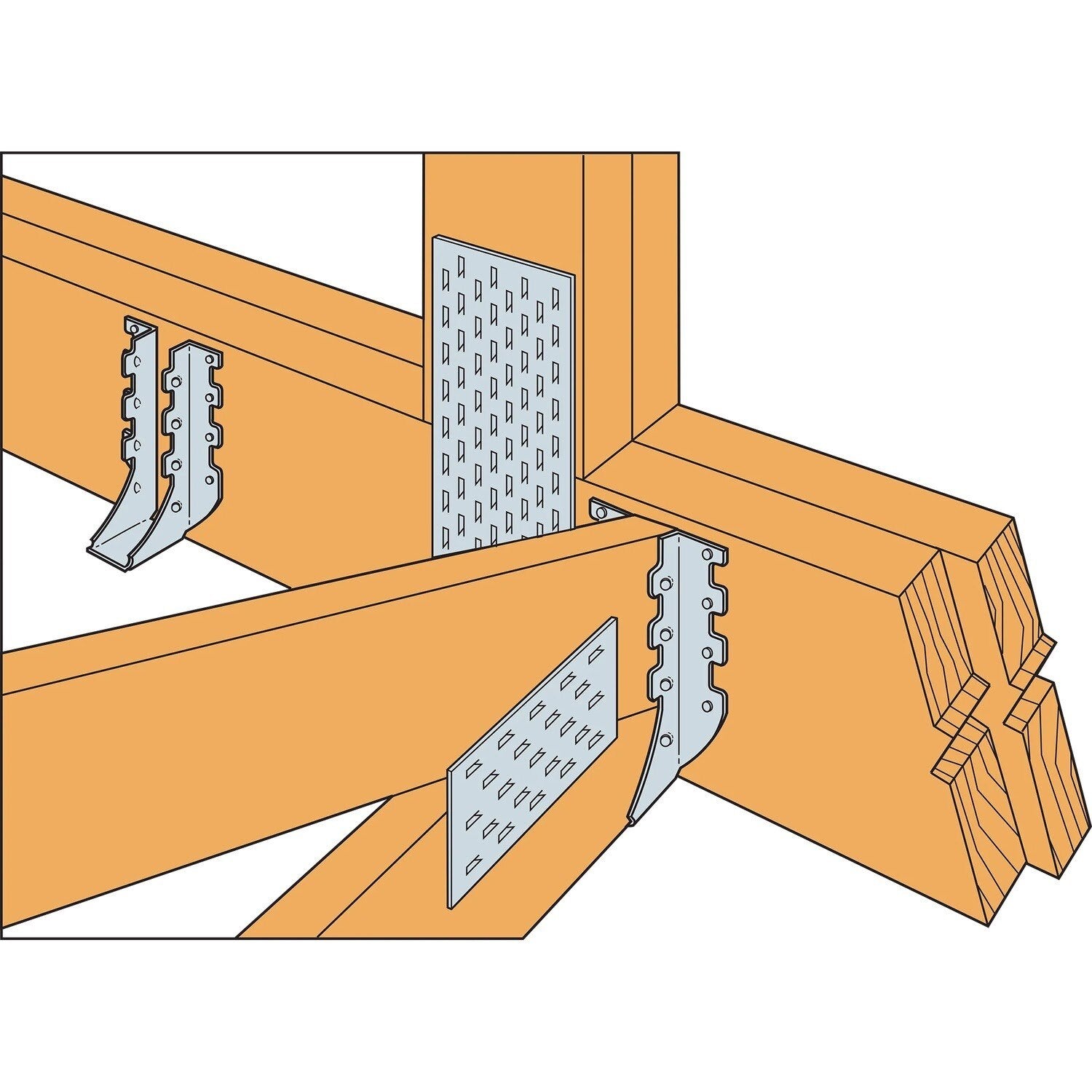

- Interior Framing: Reinforces joist and truss connections in residential and commercial buildings.
- Light Commercial Construction: Provides stability for structural framing in small-scale commercial projects.
- Home Additions & Remodeling: Ensures secure connections in renovation and expansion projects.
- Attics & Loft Spaces: Strengthens wood-to-wood connections in overhead framing structures.
- Basement Supports: Enhances load distribution for structural reinforcement.
Simpson Strong-Tie MUS28 Installation Overview
- Use Simpson Strong-Tie Strong-Drive SD Connector screws or 10d common nails in all pre-punched holes.
- Align the hanger properly with the supported member before securing.
- Fasten the hanger completely using all designated holes to maintain its load rating.
- Use corrosion-resistant fasteners when installing with pressure-treated lumber.
Simpson Strong-Tie MUS28 Specifications
| Finish | G90 Galvanized |
| Fasteners required | Carrying and Carried Member - (8) 0.148 x 3 |
| For Treated Lumber | No |

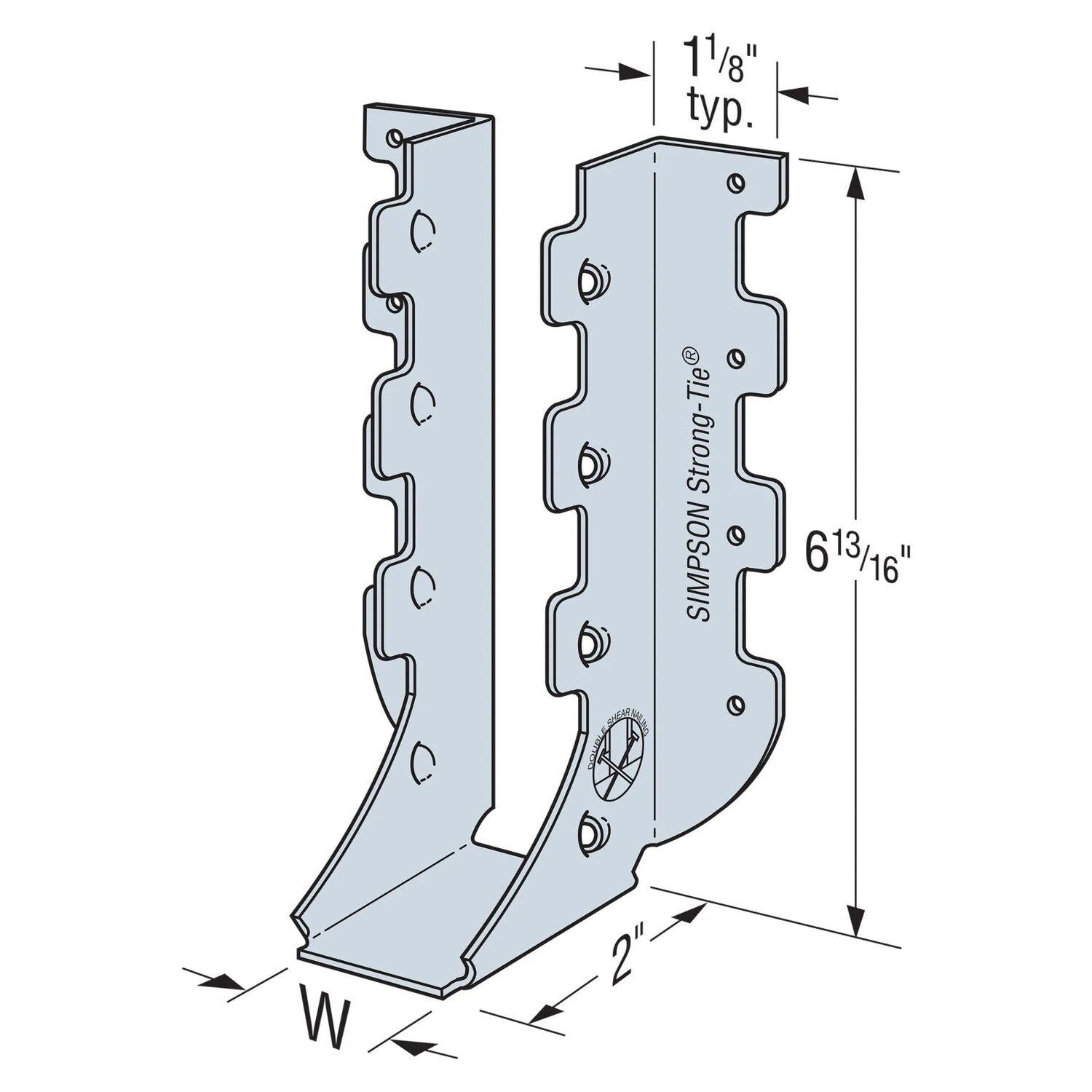

| Height | 6-13/16" |
| Joist size | 2" X 8" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 18 Gauge |
| Width | 1-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
