Simpson Anchors | SKU:
NRU46Z
Simpson Strong-Tie NRU46Z (4x6) 16-Gauge Retrofit Hanger - ZMAX Finish
$51.00
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie NRU46Z Description

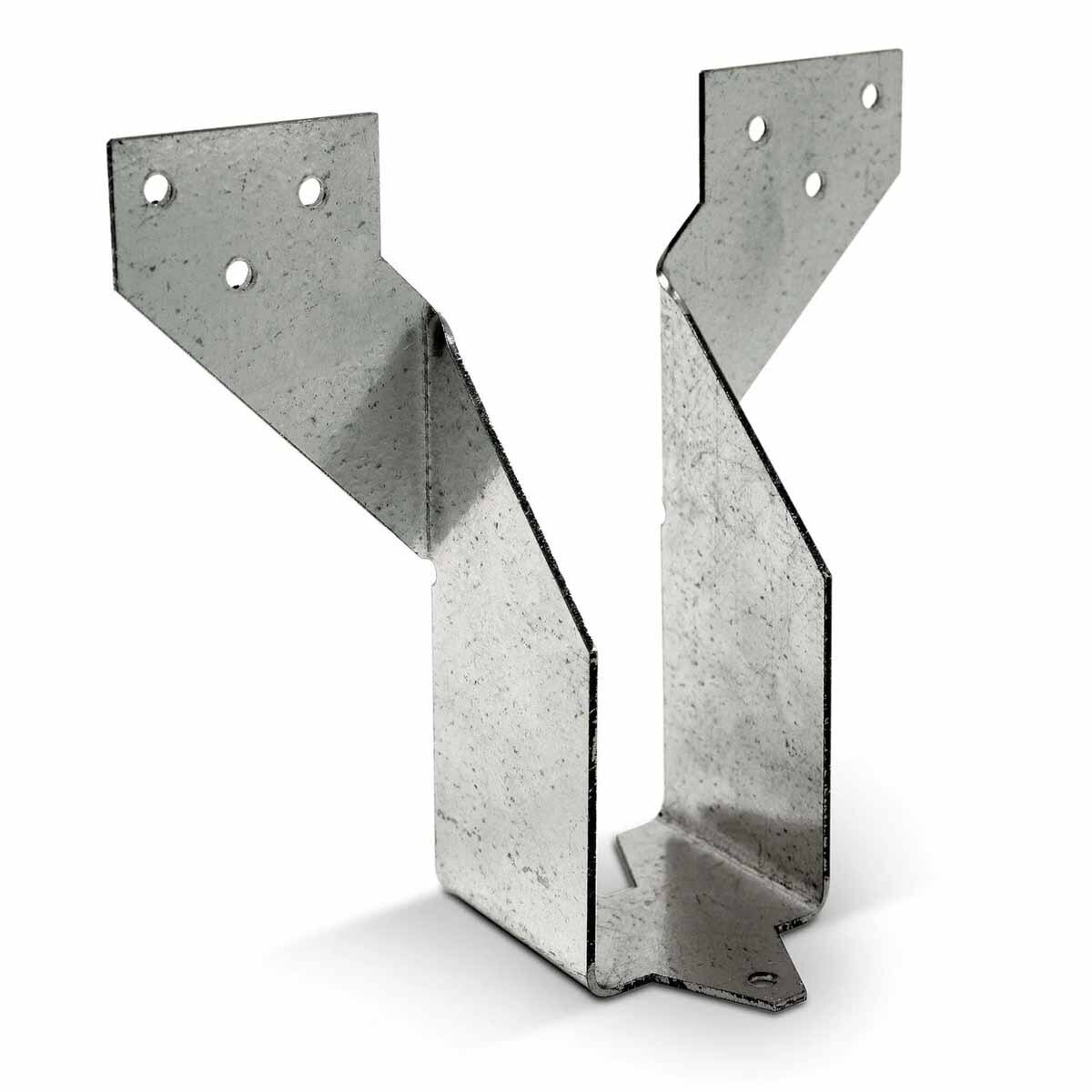

The Simpson Strong-Tie NRU46Z Retrofit Hanger is designed for panelized roof systems, providing secure connections for sub-purlins and beams with enhanced corrosion resistance.
Simpson Strong-Tie NRU46Z Includes
- (1) NRU46Z Retrofit Hanger
Simpson Strong-Tie NRU46Z Features
- ZMAX Galvanized Coating for superior corrosion resistance
- Engineered for strength and stability in panelized construction
- Versatile installation for solid sawn lumber
- Code-compliant design for structural integrity
Simpson Strong-Tie NRU46Z Applications

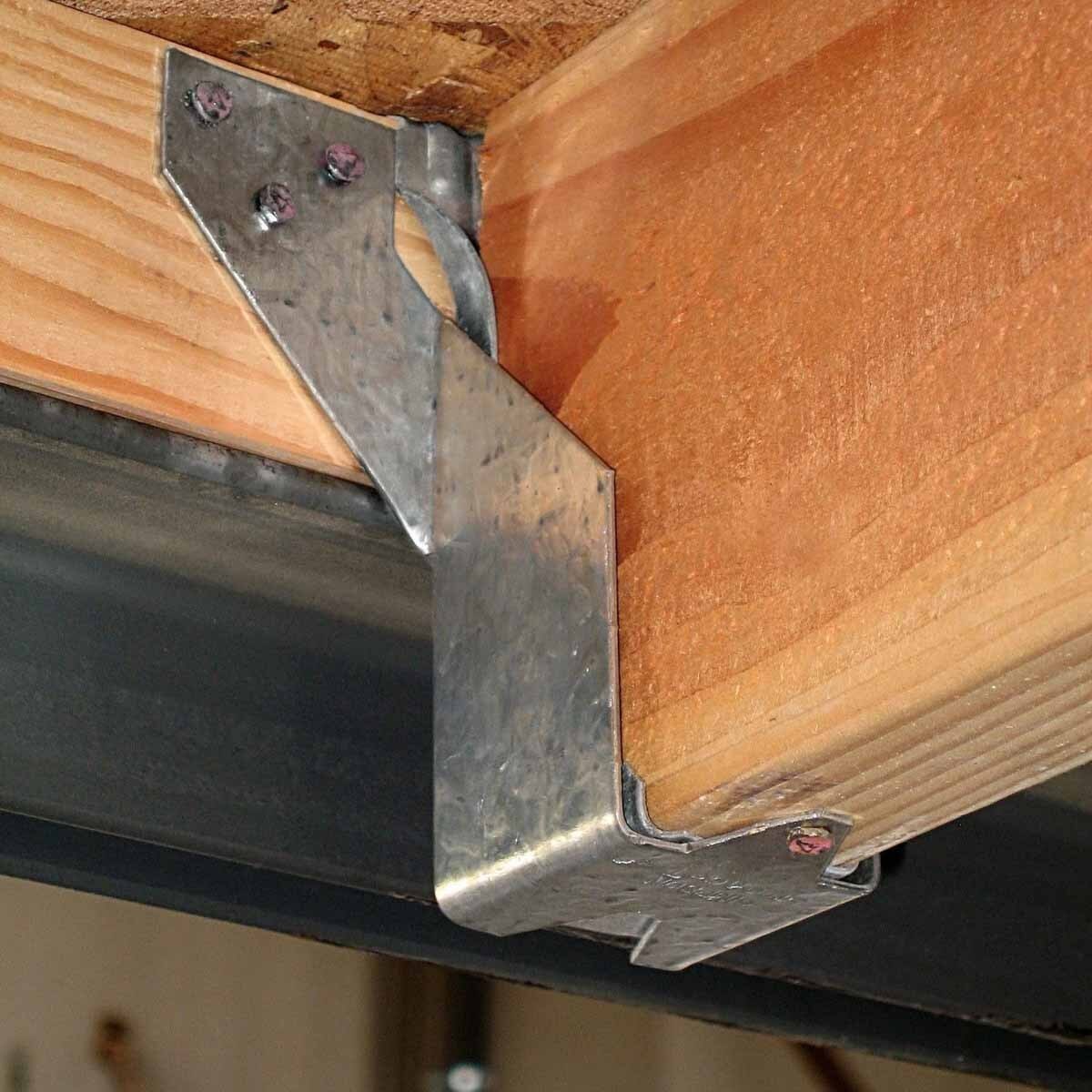

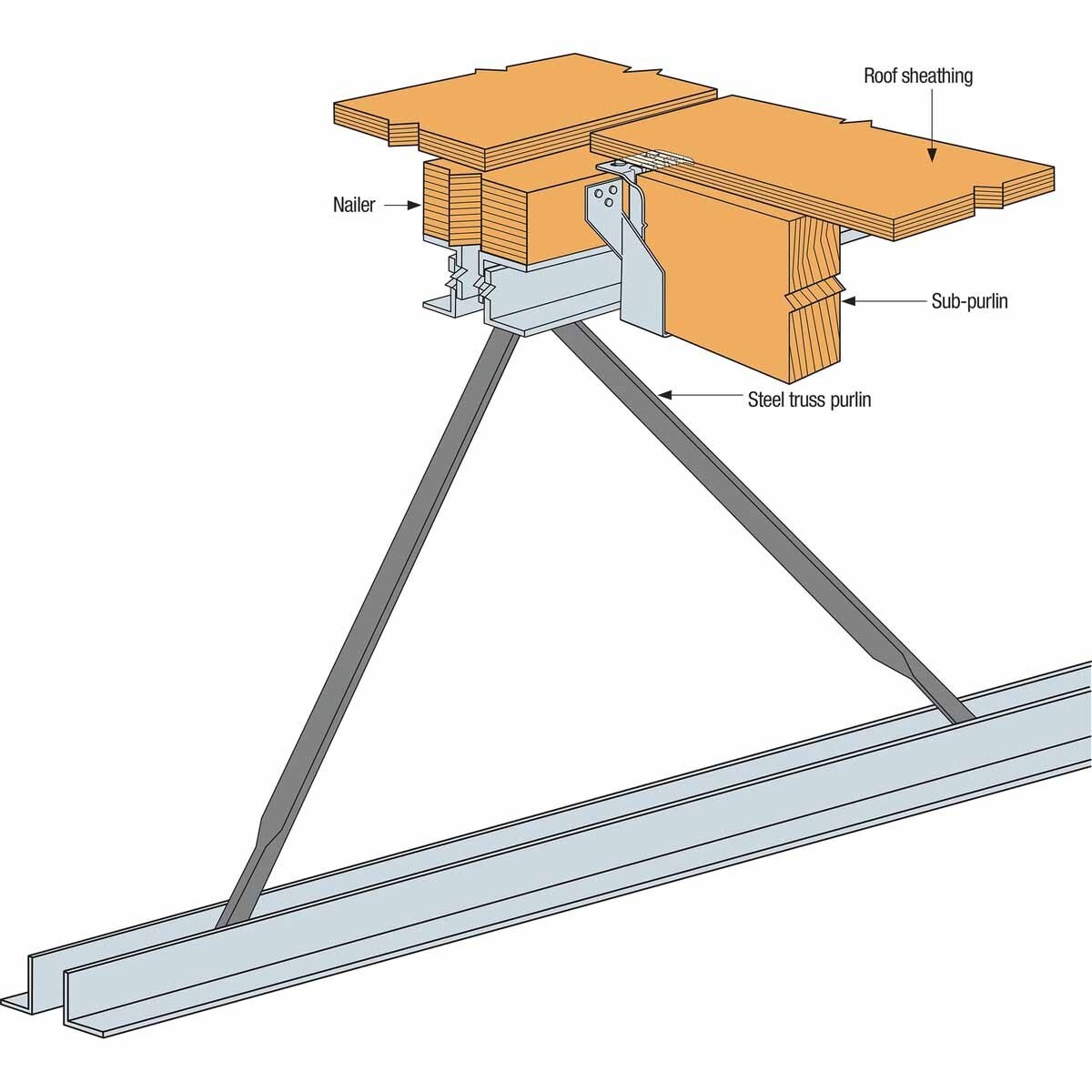

- Panelized Roof Systems: Securely connects sub-purlins and primary roof beams
- Commercial & Industrial Construction: Suitable for large-scale framing applications
- Moisture-Prone Environments: Corrosion protection for humid or exposed conditions
- Heavy-Duty Beam Connections: Supports load transfer between beams

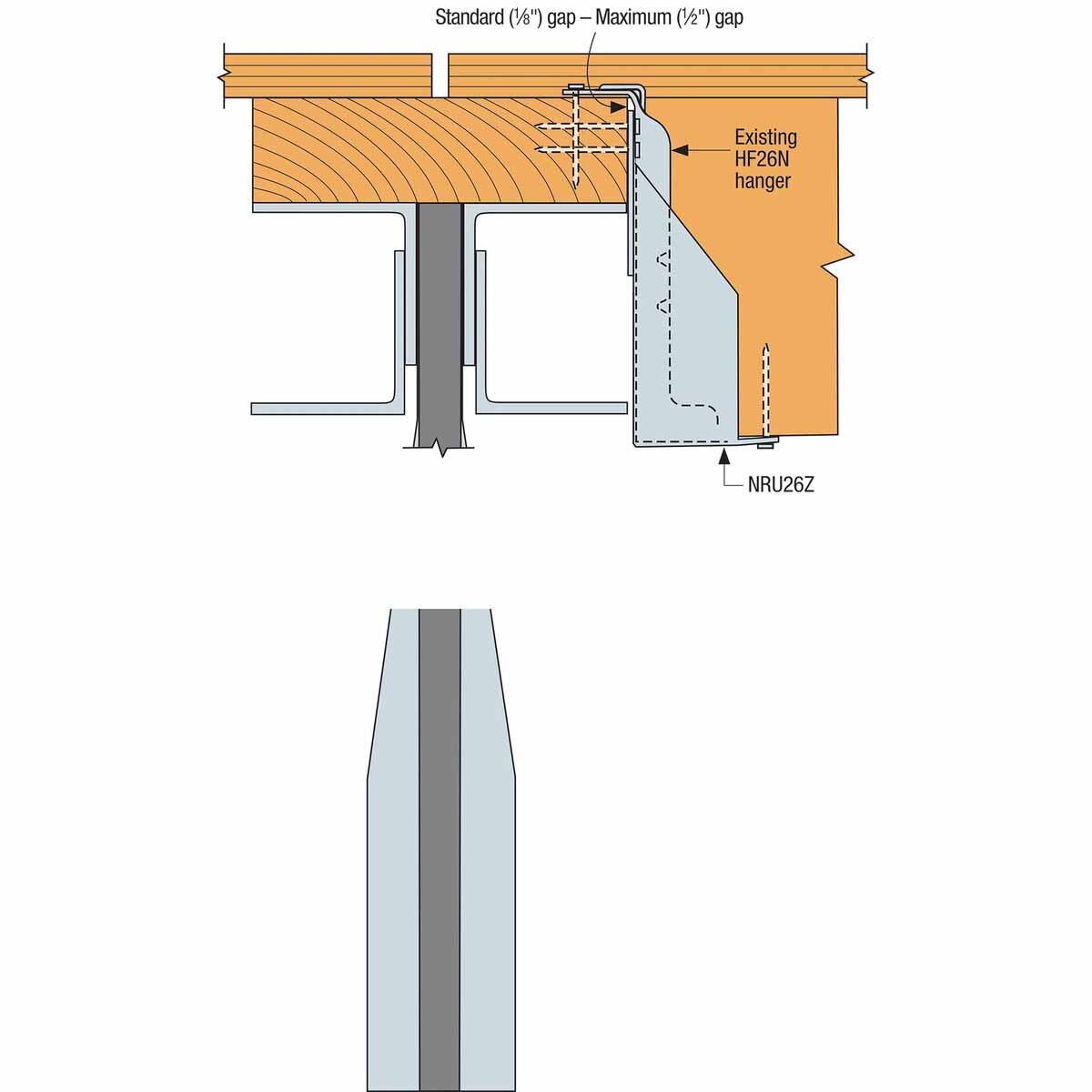

Simpson Strong-Tie NRU46Z Installation Overview
- Use specified nails or screws as recommended by Simpson Strong-Tie
- Ensure proper alignment with sub-purlin or beam before fastening
- Verify all nail holes are filled to achieve maximum load strength
- Refer to project specifications and local building codes for compliance
Simpson Strong-Tie NRU46Z Specifications
| Finish | ZMAX |
| Fasteners required | Face: 6-10dx2-1/8" Seat: 1-10dx2-1/8" |
| For Treated Lumber | Yes |
| Height | 5-9/32" |
| Joist size | 4" X 6" |
| Thickness | 16 Gauge |
| Width | 3-3/4" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
