Simpson Strong-Tie OU412 Description

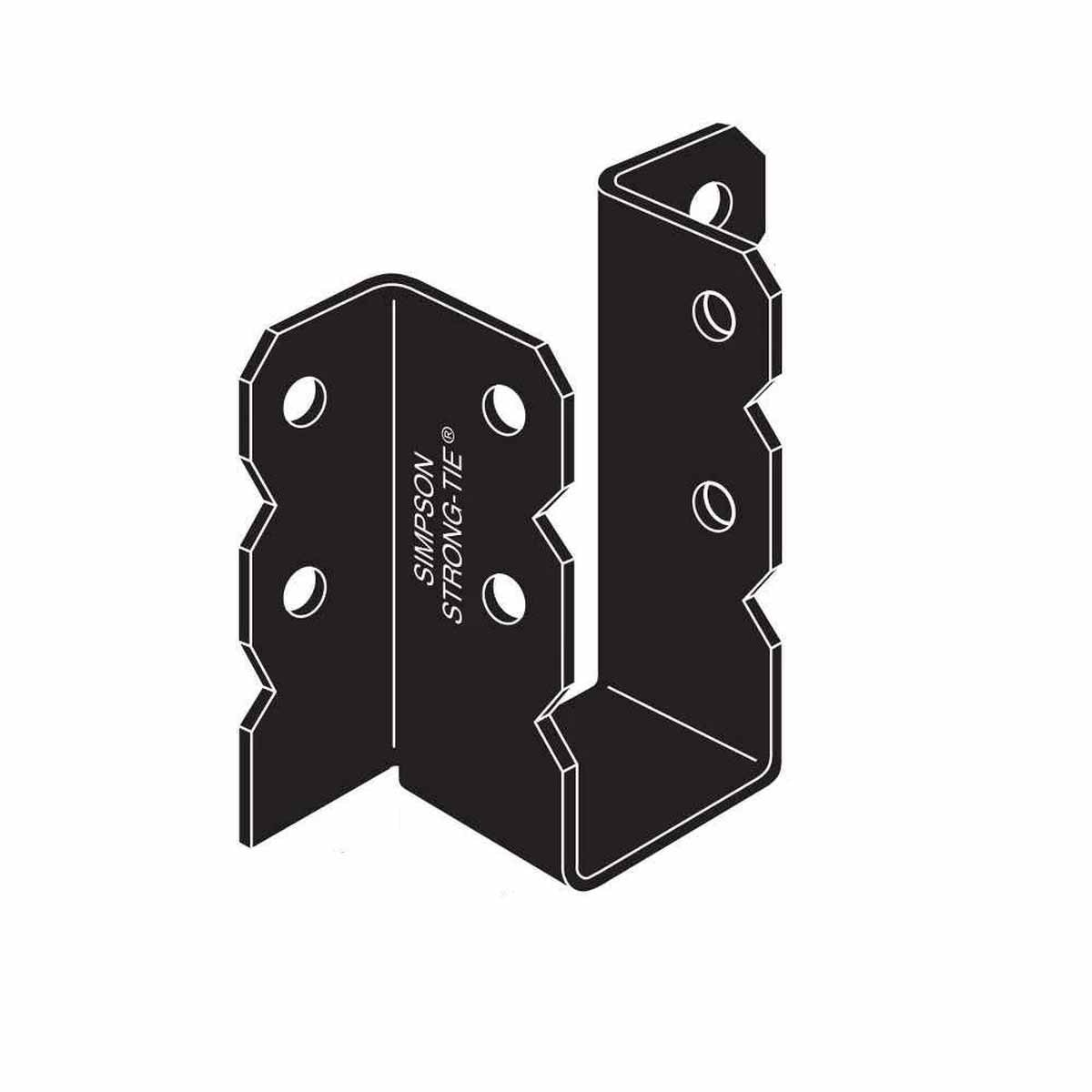

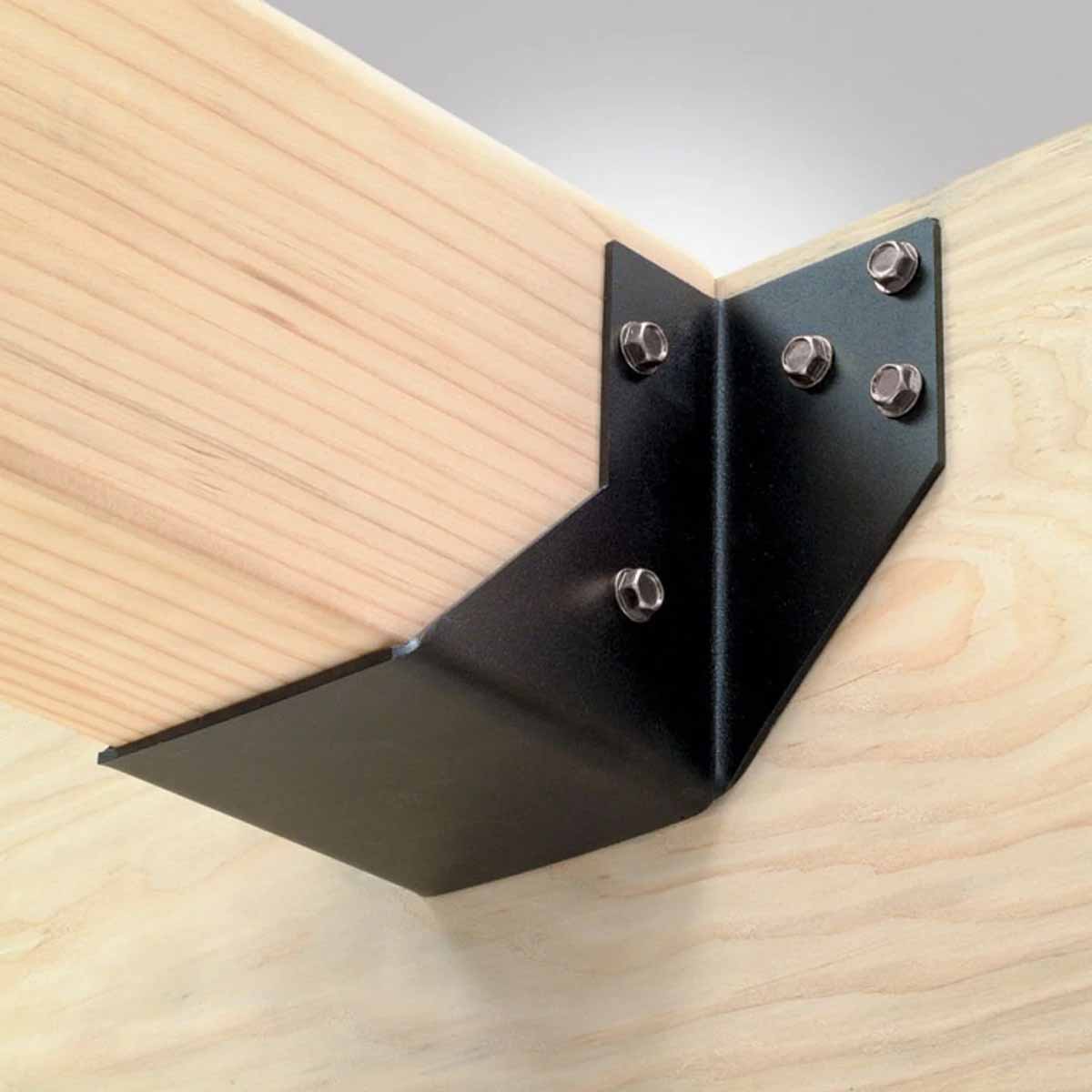

The Simpson Strong-Tie OU412 is a 7-gauge, face-mount ornamental joist hanger designed for connecting a joist to a header. It features a durable black powder-coated finish for decorative wood connections.
Simpson Strong-Tie OU412 Includes
- (1) 4x12 Ornamental Joist Hanger
Simpson Strong-Tie OU412 Features
- 7-gauge steel construction for strength and durability
- Black powder-coated finish for a decorative appearance
- Face-mount design for secure joist-to-header connections
- Designed for use with solid sawn lumber
- Compatible with 4x12 joists
Simpson Strong-Tie OU412 Applications
- Decorative wood connections in residential and commercial projects
- Joist-to-header connections for structural support
- Indoor architectural applications
Simpson Strong-Tie OU412 Installation Overview
- Use all specified fasteners as per guidelines
- Ensure the carrying member is at least 3 1/2 inches thick
- Follow load value adjustments as per code requirements
- Avoid using for non-top-supported installations like fences or unbraced carports
- Skew and slope options are not available
Simpson Strong-Tie OU412 Specifications
| Material | 7 gauge steel |
| Finish | Black powder-coated |
| Joist Size | 4x12 |
| Height | 11 inches |
| Width | 3 9/16 inches |
| Fasteners Required | Header - (6) 3/4" Machine Bolts, Joist - (3) 3/4" Machine Bolts |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
