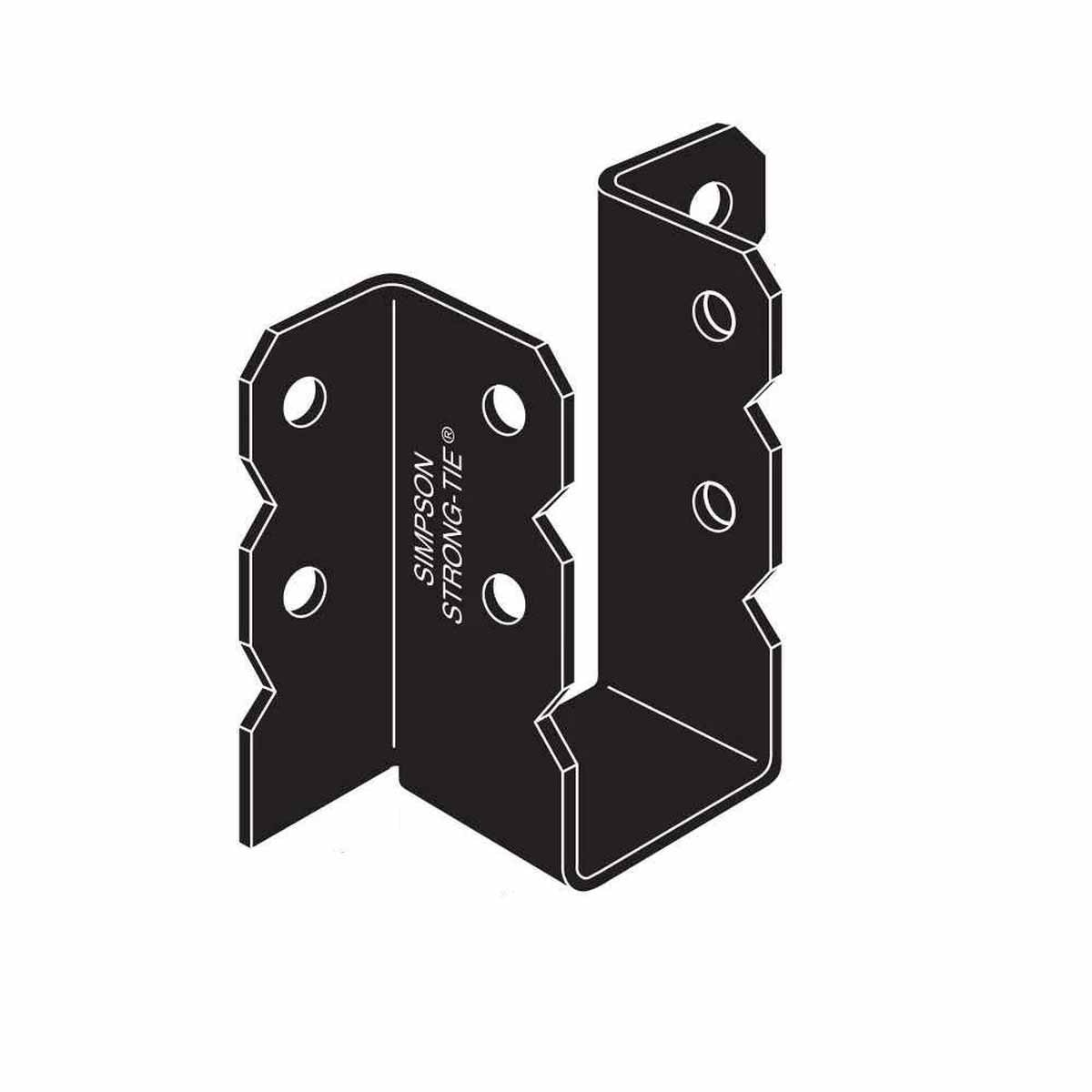

Simpson Strong-Tie OU46 Description
The Simpson Strong-Tie OU46 is a 7-gauge, face-mount hanger designed for connecting a joist to a header in ornamental applications. It features a durable black powder-coated finish for enhanced aesthetics and longevity.
Simpson Strong-Tie OU46 Includes
- (1) 4x6 Ornamental Joist Hanger
Simpson Strong-Tie OU46 Features
- 7-gauge steel construction for strength and durability
- Black powder-coated finish for a decorative and durable appearance
- Face-mount design for secure joist-to-header connections
- Designed for ornamental applications
Simpson Strong-Tie OU46 Applications
- Ornamental wood connections

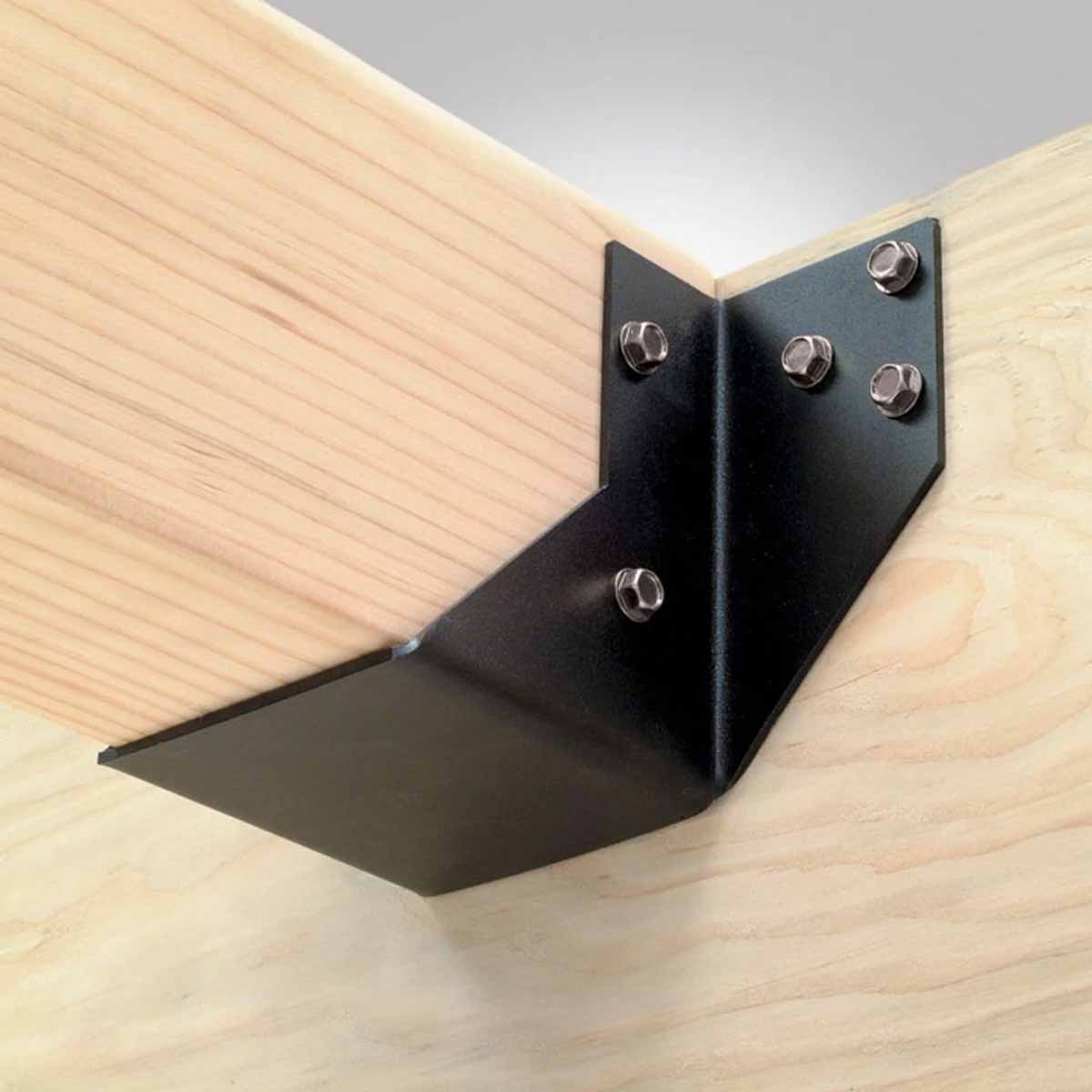

- Joist-to-header connections in decorative structures
Simpson Strong-Tie OU46 Installation Overview
- Use all specified fasteners as per guidelines.
- Ensure the carrying member is not less than 3 1/2".
- Adjust floor loads for load durations according to the code.
- Skew and slope options are not available.
Simpson Strong-Tie OU46 Specifications
| Material | 7 gauge steel |
| Finish | Black powder coat |
| Joist Size | 4x6 |
| Height | 5" |
| Width | 3 9/16" |
| Fasteners Required | Header - (2) 3/4" Machine Bolts, Joist - (1) 3/4" Machine Bolt |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
819770
