Simpson Strong-Tie OU48 Description

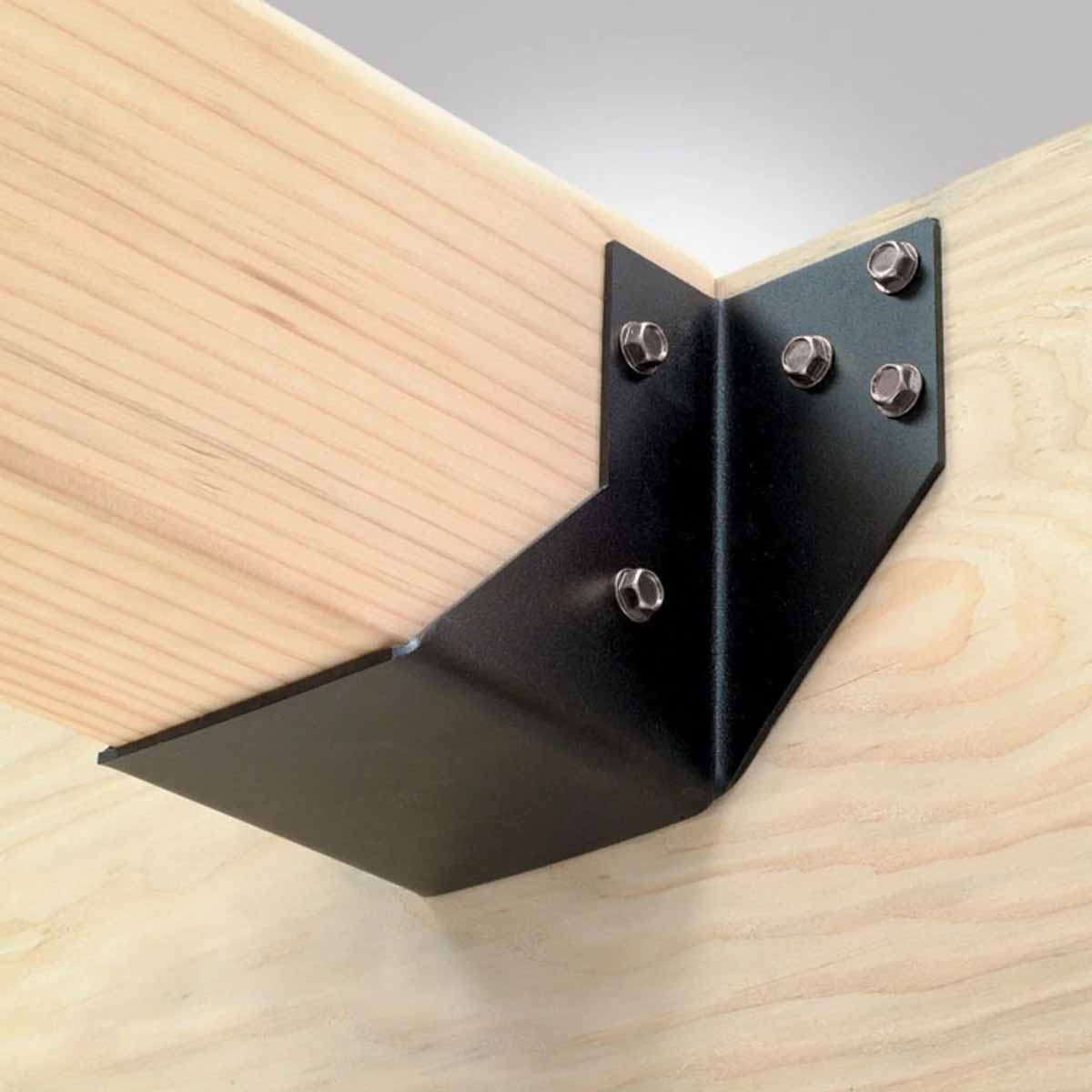

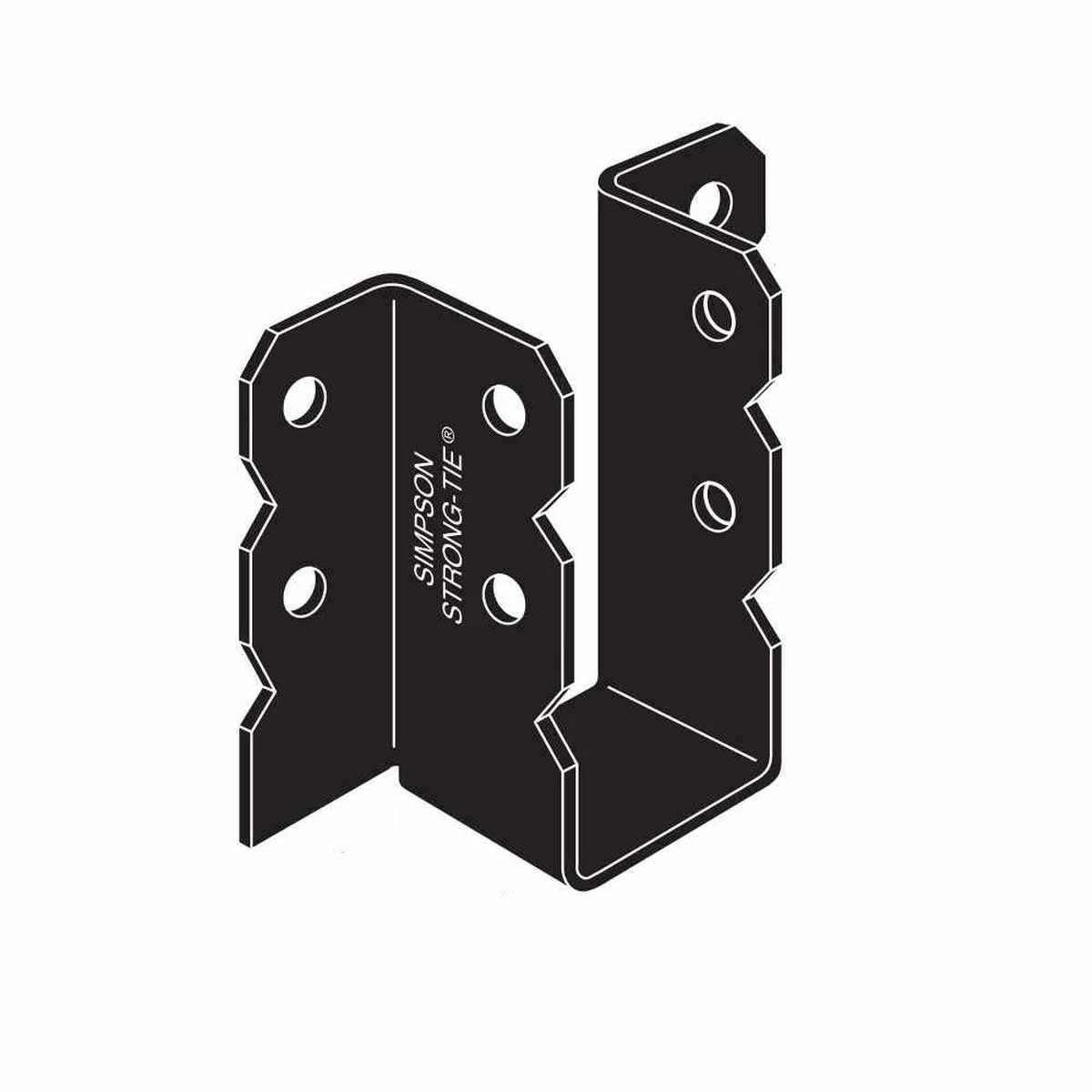

The Simpson Strong-Tie OU48 is a 7 gauge, face-mount hanger connecting a joist to a header for ornamental applications. It features a durable black powder-coated finish.
Simpson Strong-Tie OU48 Includes
- (1) Ornamental Joist Hanger
Simpson Strong-Tie OU48 Features
- Durable black powder-coated finish
- 7 gauge steel construction
- Face-mount design for secure connections
- Designed for ornamental applications
Simpson Strong-Tie OU48 Applications
- Connecting joists to headers in decorative wood constructions
- Suitable for solid sawn lumber
Simpson Strong-Tie OU48 Installation Overview
- Use all specified fasteners
- Ensure carrying member is not less than 3 1/2"
- Adjust floor loads according to code without exceeding roof column values
- Specify width for additional glulam beam widths
- Avoid using post bases for non top-supported installations
- Skew and slope options are not available
Simpson Strong-Tie OU48 Specifications
| Material | 7 gauge steel |
| Finish | Black powder-coated |
| Joist Size | 4x8 |
| Height | 7" |
| Width | 3 9/16" |
| Fasteners Required | Header - (4) 3/4" Machine Bolts, Joist - (2) 3/4" Machine Bolts |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
