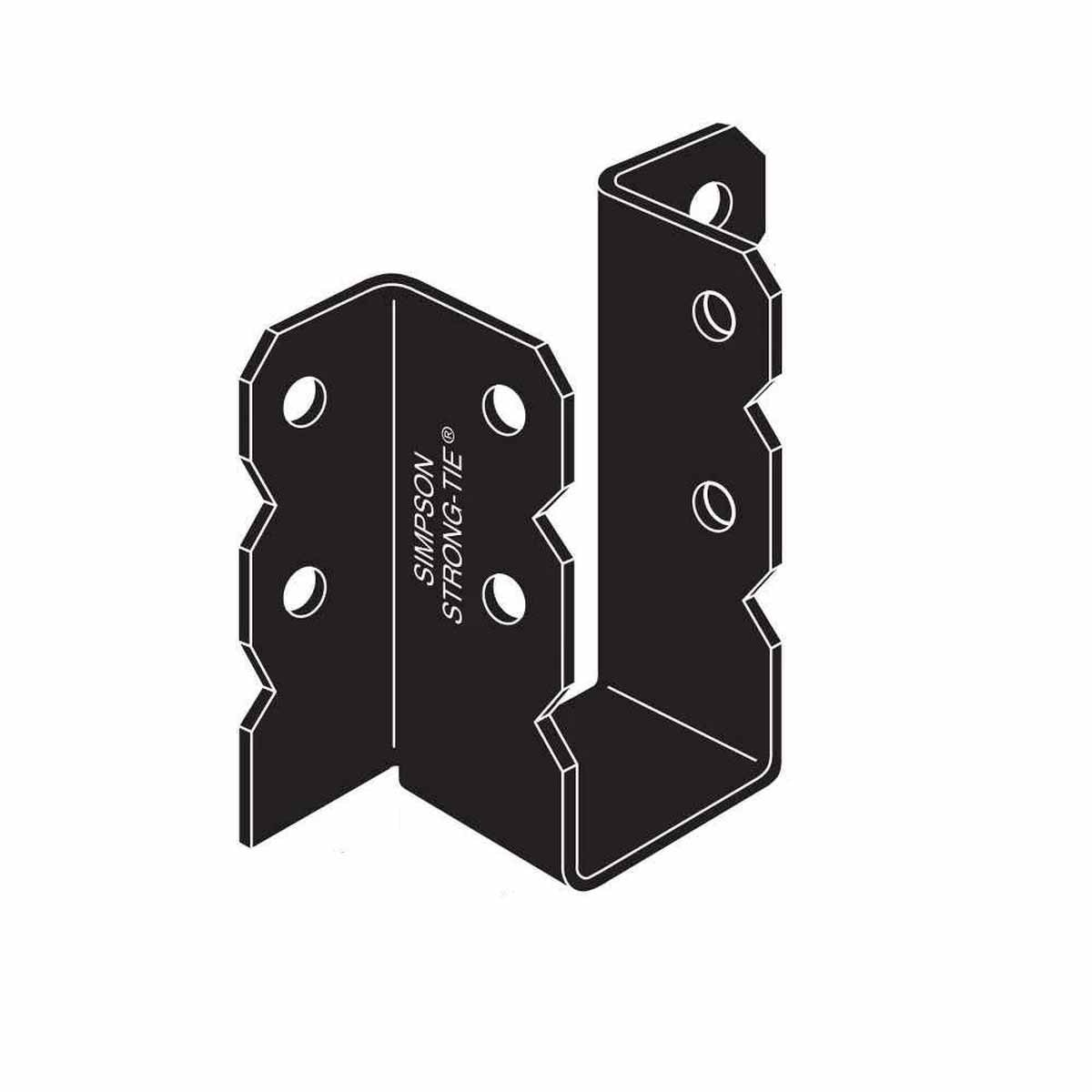

Simpson Strong-Tie OU612 Description
The Simpson Strong-Tie OU612 is a 7-gauge, face-mount hanger designed for connecting a joist to a header in ornamental applications. It features a durable black powder-coated finish for enhanced aesthetics and longevity.
Simpson Strong-Tie OU612 Includes
- (1) 6x12 Ornamental Joist Hanger
Simpson Strong-Tie OU612 Features
- 7-gauge steel construction for strength and durability
- Black powder-coated finish for a decorative and durable appearance
- Face-mount design for secure joist-to-header connections
- Designed for ornamental applications
Simpson Strong-Tie OU612 Applications
- Ornamental wood connections
- Joist-to-header connections in decorative structures
Simpson Strong-Tie OU612 Installation Overview
- Use all specified fasteners as per guidelines.
- Ensure the carrying member is not less than 3 1/2".
- Follow load value adjustments as per code requirements.
- Avoid using post bases for non-top-supported installations.
- Skew and slope options are not available.
Simpson Strong-Tie OU612 Specifications
| Material | 7 gauge steel |
| Finish | Black powder-coated |
| Joist Size | 6x12 |
| Height | 11" |
| Width | 5 1/2" |
| Fasteners Required | Header - (6) 3/4" Machine Bolts, Joist - (3) 3/4" Machine Bolts |
| Weight | 8.6 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
