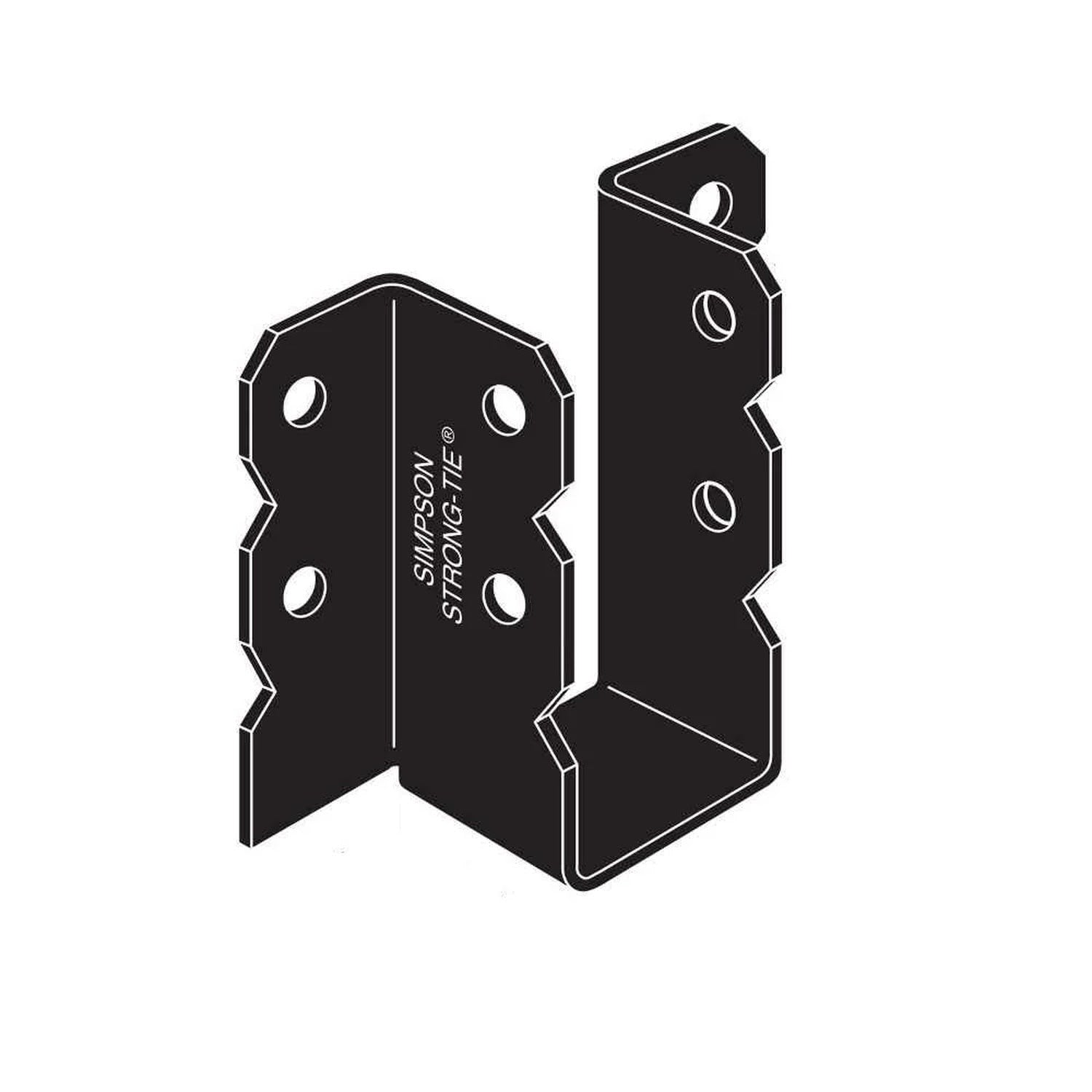

Simpson Strong-Tie OU68 Description
The Simpson Strong-Tie OU68 is a 7 gauge, face-mount hanger connecting a joist to a header for an ornamental application. It features a flat black powder-coated finish for enhanced durability and aesthetics.
Simpson Strong-Tie OU68 Includes
- (1) Ornamental Joist Hanger
Simpson Strong-Tie OU68 Features
- 7 gauge steel construction
- Flat black powder-coated finish
- Designed for ornamental applications
- Face-mount hanger for secure connections
- Compatible with 6x8 joists
Simpson Strong-Tie OU68 Applications

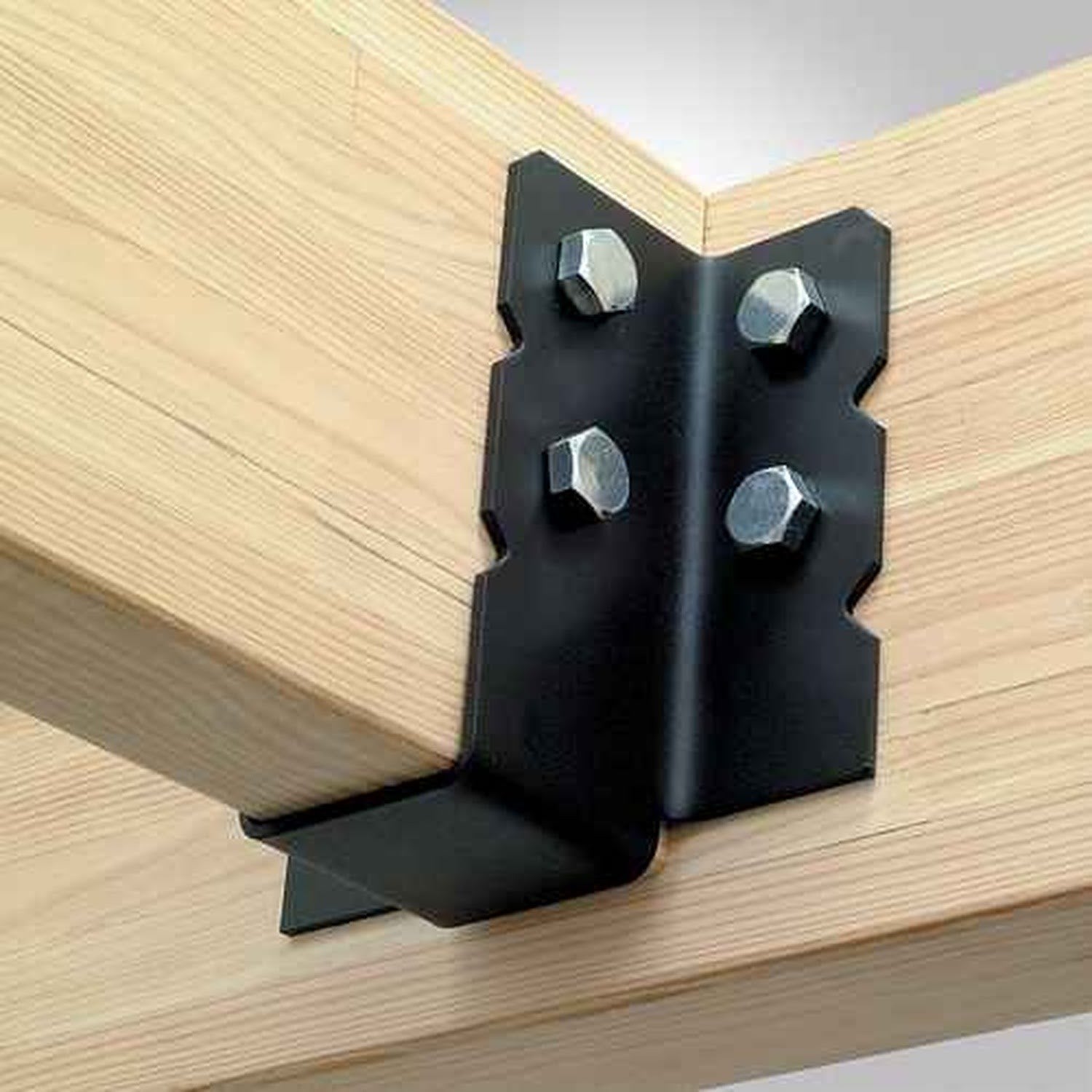

- Connecting joists to headers in decorative wood constructions
- Ornamental wood framing projects
Simpson Strong-Tie OU68 Installation Overview
- Use all specified fasteners
- Ensure carrying member is not less than 3 1/2"
- Adjust floor loads for load durations according to code
- Specify width for additional glulam beam widths
- Avoid skew and slope options
Simpson Strong-Tie OU68 Specifications
| Material | 7 gauge steel |
| Finish | Black powder coat |
| Joist Size | 6x8 |
| Height | 7" |
| Width | 5 1/2" |
| Fasteners Required | Header - (4) 3/4" Machine Bolts, Joist - (2) 3/4" Machine Bolts |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
819786
