Simpson Anchors | SKU:
PA35Z

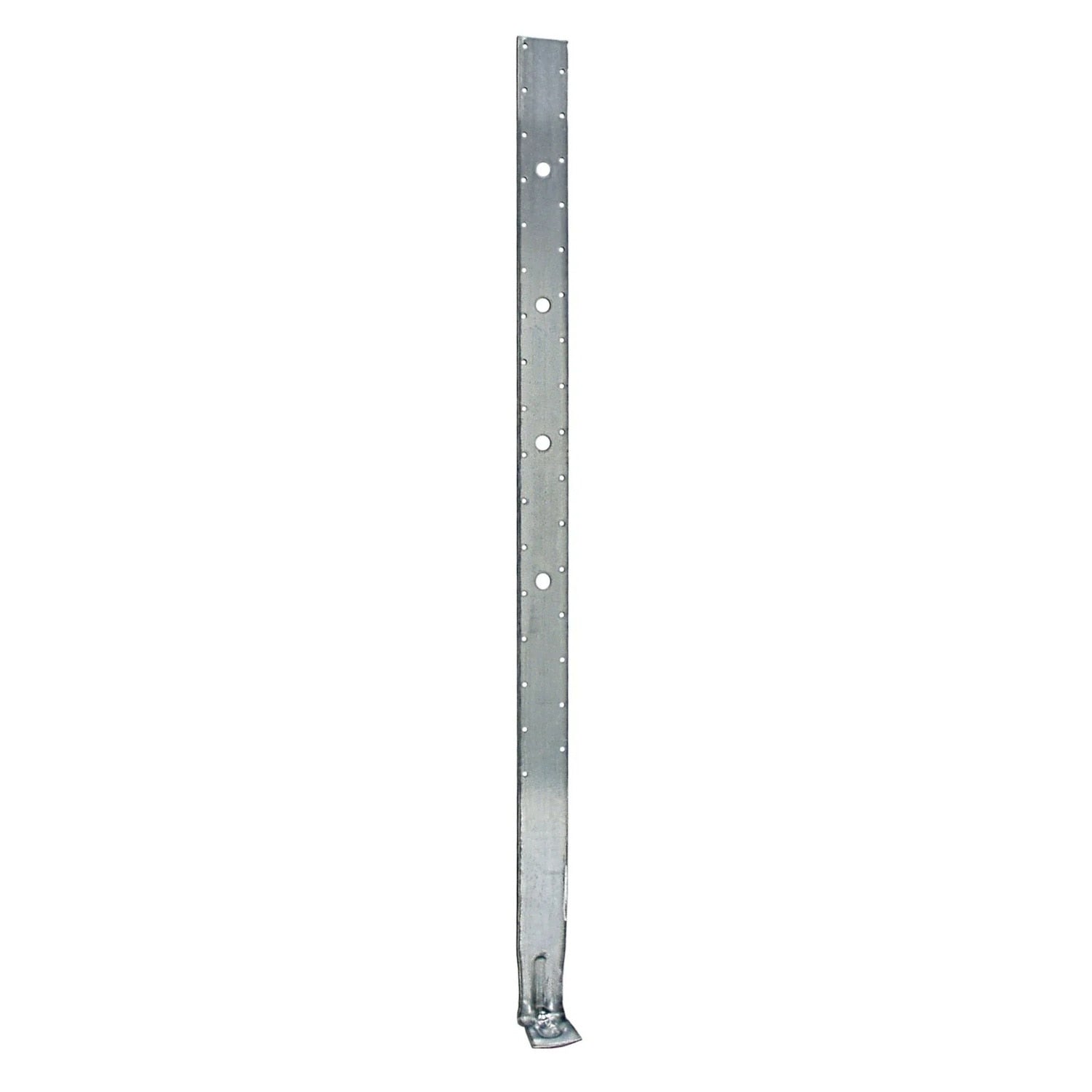

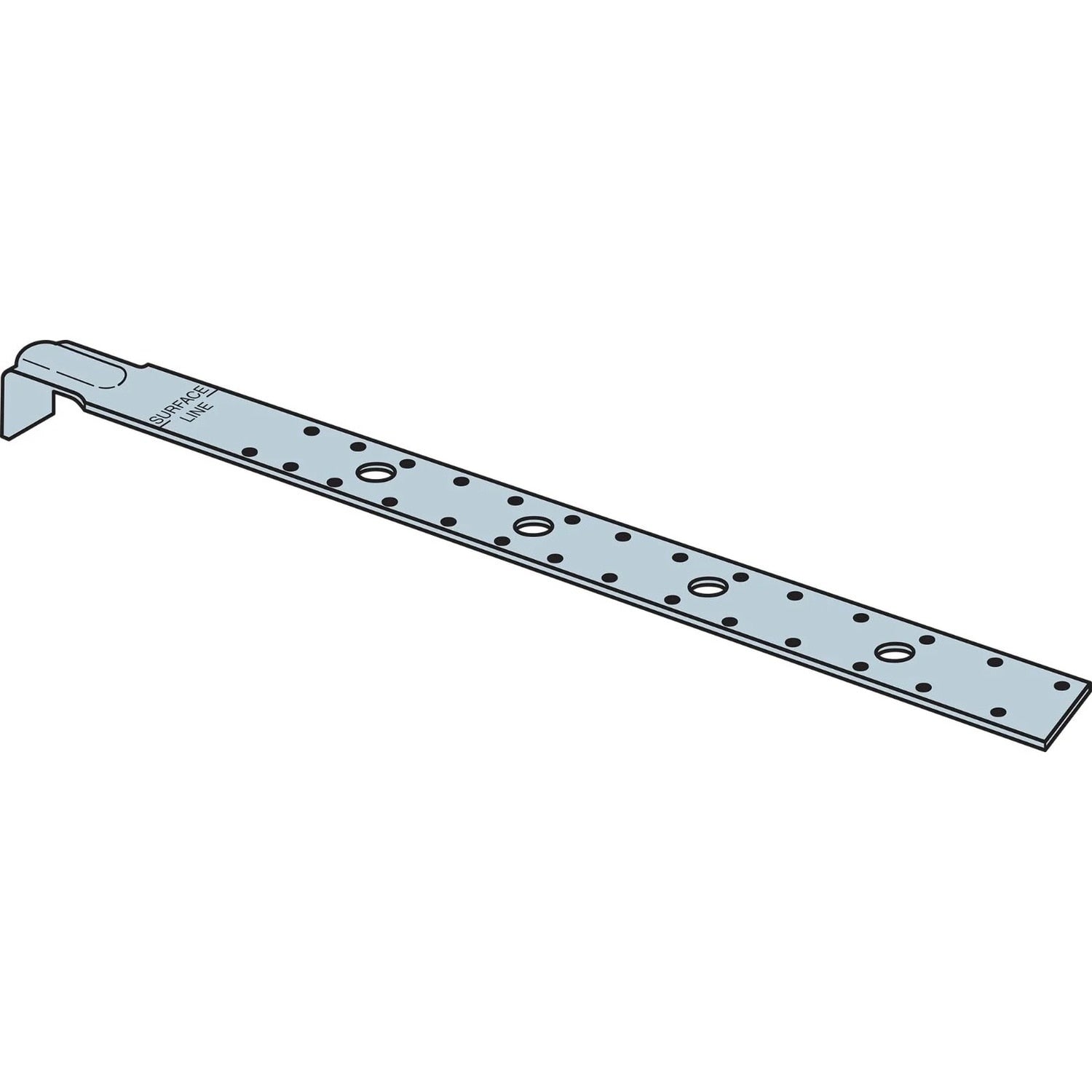

Simpson Strong-Tie PA35Z (35") 12 Gauge Purlin Anchor and Strap-Tie Holdown, ZMAX Finish
$25.73
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie PA35Z Description
The Simpson Strong-Tie PA35Z Purlin Anchor with ZMAX finish provides reliable wood-to-concrete and concrete-block connections, meeting code requirements.
Simpson Strong-Tie PA35Z Includes
- (1) Purlin Anchor ZMAX Finish
Simpson Strong-Tie PA35Z Features
- Dual-embedment design for installation in concrete or concrete block
- ZMAX finish for enhanced corrosion resistance
- Compatible with treated lumber
- Made from durable carbon steel
Simpson Strong-Tie PA35Z Applications
- Wood-to-concrete connections
- Concrete-block connections
- Structural framing requiring uplift resistance
Simpson Strong-Tie PA35Z Installation Overview
- Use all specified fasteners; some models have extra fastener holes
- Ensure the purlin anchor hooks around rebar
- Allowable loads are for horizontal installation into the side of a concrete or masonry wall
- Strap may be bent one full cycle (vertical 90° then horizontal)
- For additional length, an MST strap can be attached using 1/2" bolts through existing holes
Simpson Strong-Tie PA35Z Specifications
| Length | 35" |
| Material | Carbon Steel |
| For Treated Lumber | Yes |
| Width | 2-1/16" |
NOTE: Ensure the purlin anchor hooks around rebar and use all specified fasteners for proper installation.
