Simpson Anchors | SKU:
PA51

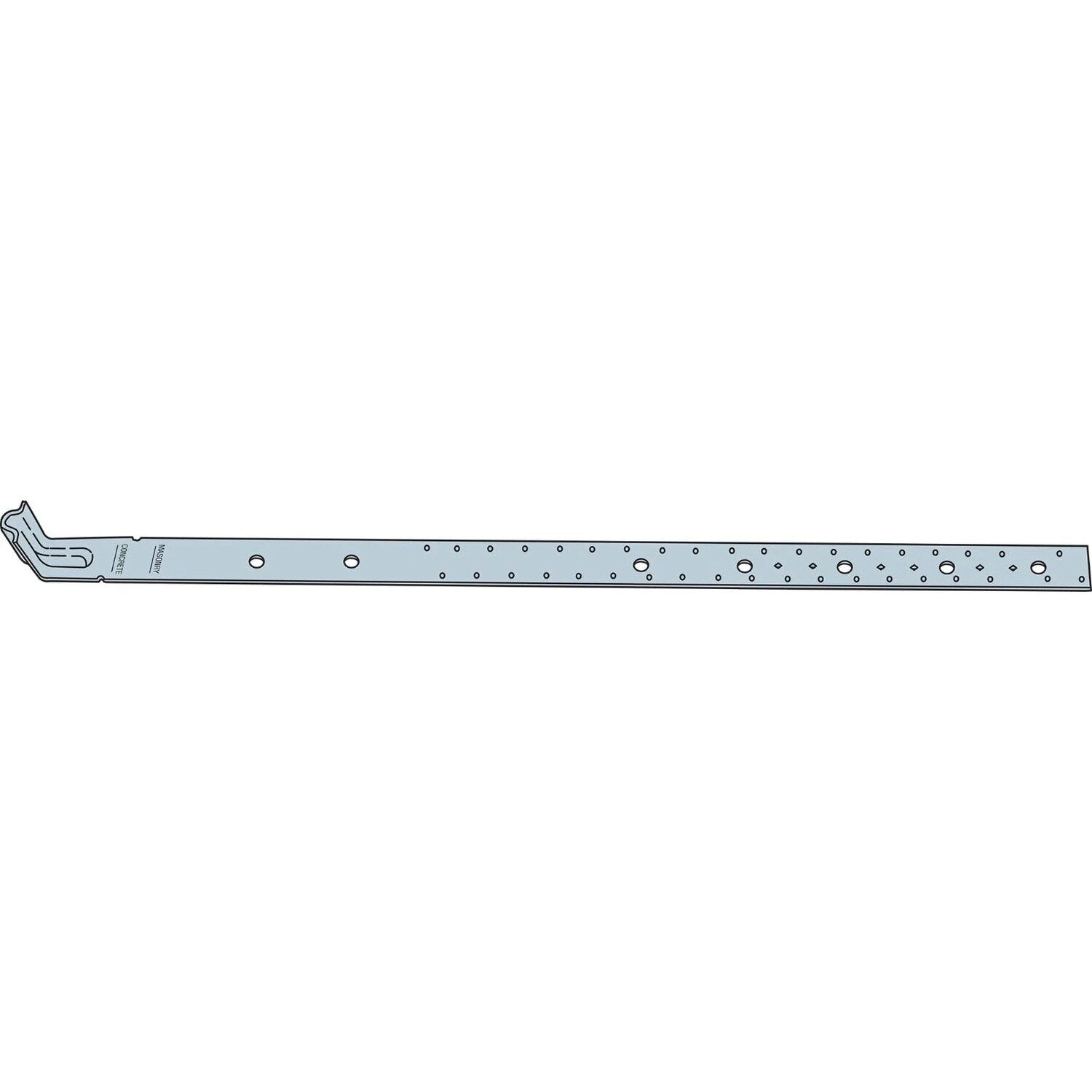

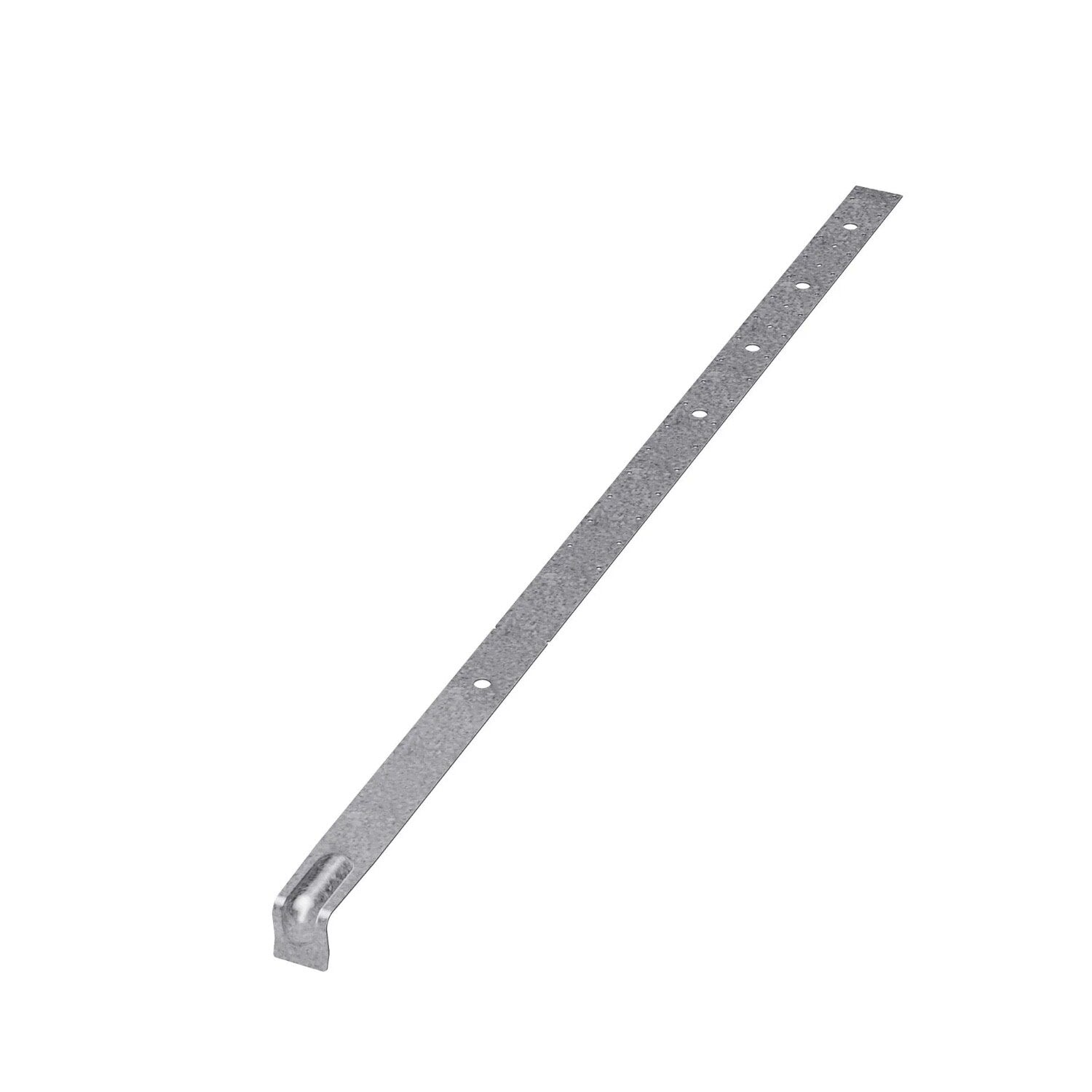

Simpson Strong-Tie PA51 (51") 12 Gauge Purlin Anchor and Strap-Tie Holdown, G90 Galvanized
$20.45
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie PA51 Description
The Simpson Strong-Tie PA51 Purlin Anchor is designed for wood-to-concrete and concrete-block connections, meeting code requirements with dual-embedment capabilities.
Simpson Strong-Tie PA51 Includes
- (1) PA51 Purlin Anchor
Simpson Strong-Tie PA51 Features
- Dual-embedment design for installation in concrete or concrete block
- Made from galvanized carbon steel for durability
- Compatible with treated lumber
- Allows installation into the side of concrete or masonry walls
- Strap can be bent one full cycle for flexibility
Simpson Strong-Tie PA51 Applications
- Wood-to-concrete connections in construction
- Concrete-block connections for structural support
- Horizontal installations into concrete or masonry walls
Simpson Strong-Tie PA51 Installation Overview
- Use all specified fasteners; some models have extra fastener holes
- Ensure the purlin anchor hooks around rebar
- Install horizontally into the side of a concrete or masonry wall
- Strap may be bent one full cycle for installation flexibility
- For additional length, attach an MST strap using 1/2" bolts through existing holes
Simpson Strong-Tie PA51 Specifications
| Length | 51" |
| Material | Carbon Steel |
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| For Treated Lumber | Yes |
| Width | 2-1/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
