Simpson Anchors | SKU:
PAB10-30

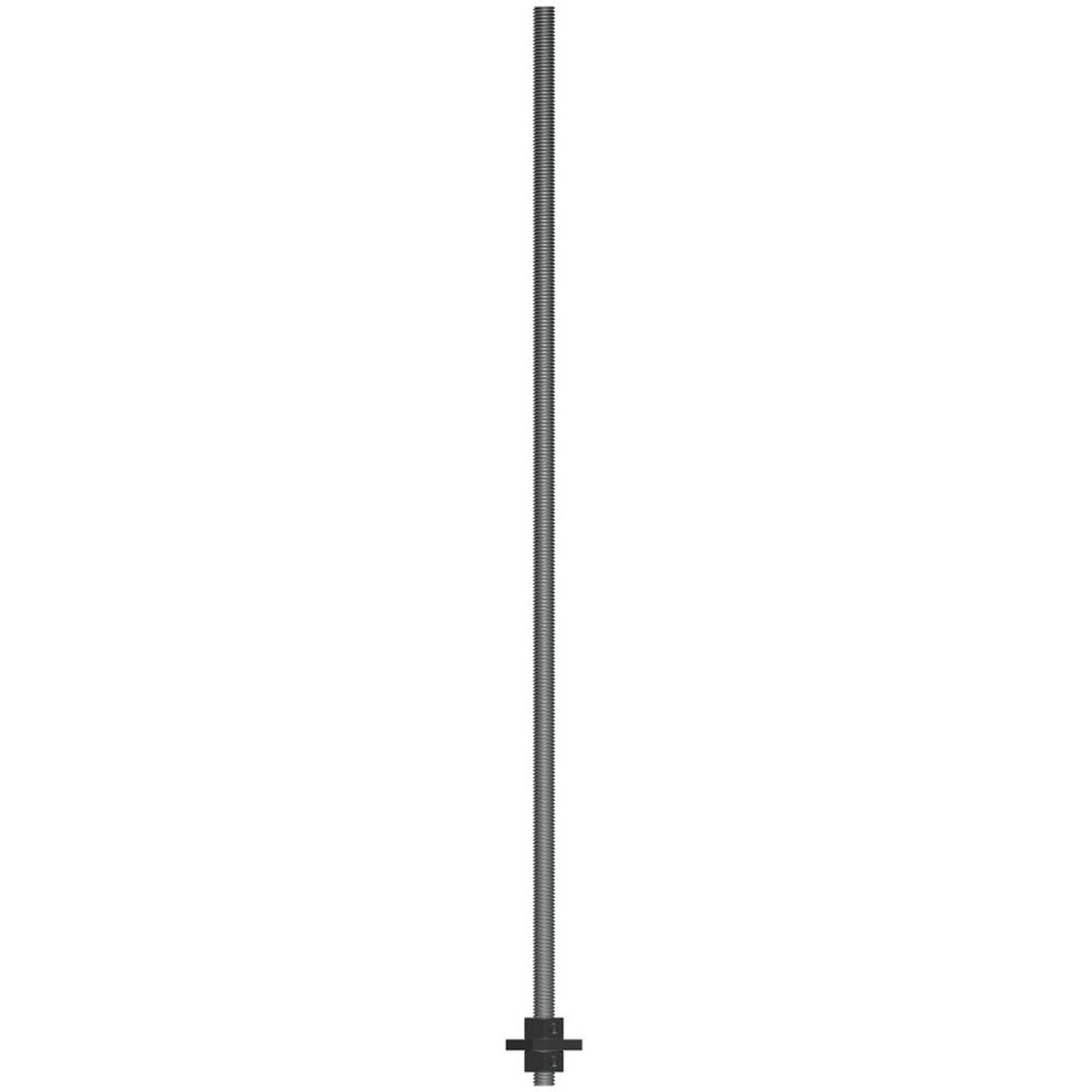

Simpson Strong-Tie PAB10-30 Pre-Assembled Anchor Bolt for Concrete and Structural Applications
$89.37
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie PAB10-30 Description
The Simpson Strong-Tie PAB10-30 is a pre-assembled anchor bolt designed for high-tension-load applications such as shearwalls and rod systems. Made from ASTM F1554 Grade 36 steel, it ensures reliable performance in concrete and structural applications.
Simpson Strong-Tie PAB10-30 Includes
- (1) Pre-Assembled Anchor Bolt
Simpson Strong-Tie PAB10-30 Features
- Available in diameters from 1/2" to 1 1/4" and lengths from 12" to 36"
- Made from standard and high-strength steel
- Head stamp includes No Equal sign, diameter designation, and an "H" for high-strength rods
Simpson Strong-Tie PAB10-30 Applications
- Concrete anchoring for structural support
- High-tension-load applications such as shearwalls and rod systems
- Multi-story high-wind construction
Simpson Strong-Tie PAB10-30 Installation Overview
- Chase the threads on HDG PABs to use standard nuts or couplers
- Use overtapped products in accordance with ASTM A563
- Contact Simpson Strong-Tie for special orders of couplers with oversized ends
Simpson Strong-Tie PAB10-30 Specifications
| Diameter | 1-1/4" |
| Length | 30" |
| Material | ASTM F1554 Grade 36 steel |
| Finish | Plain |
| Weight | 11.7 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
