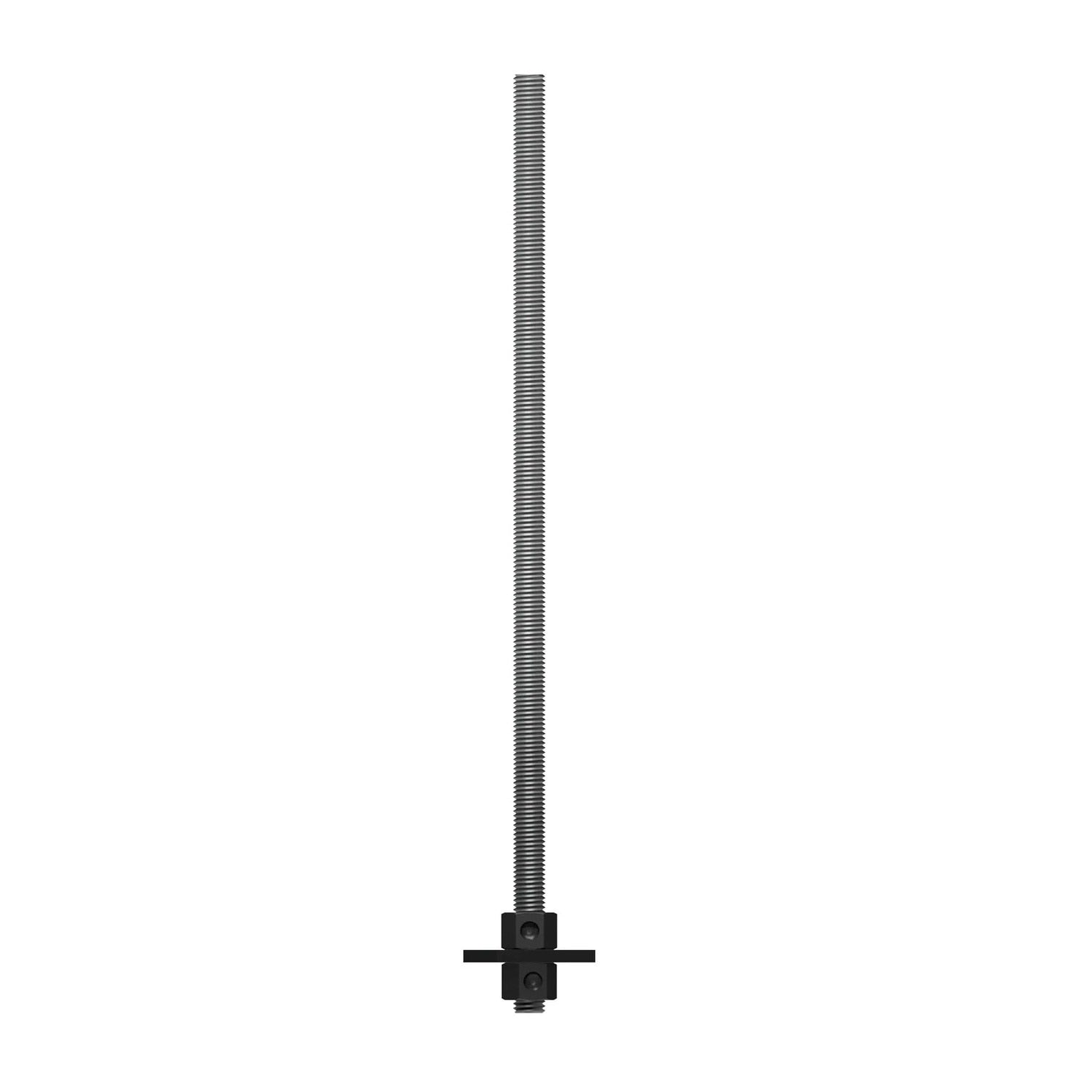

Simpson Strong-Tie PAB4-18-HDG (1/2" x 18") Hot-Dip Galvanized Pre-Assembled Anchor Bolt for Concrete Applications

Simpson Strong-Tie PAB4-18-HDG Features

• Hot-Dip Galvanized Finish: Provides enhanced corrosion resistance, ideal for outdoor or marine-adjacent installs.
• Pre-Assembled Efficiency: Ready-to-install unit saves time with pre-attached plate, washer, and nut.
• Reliable Form Setup: Steel template keeps anchor bolt aligned during concrete pours for consistent embedment.
• Versatile Compatibility: Works with a variety of Simpson holdowns, straps, and post bases.
• Size Variety: Multiple lengths and diameters available to match your build requirements.

Simpson Strong-Tie PAB4-18-HDG Applications

• Concrete anchoring in outdoor, wet, or coastal environments.
• Holdowns in seismic or high-wind zone construction.
• Post base anchoring for decks, porches, sheds, and pole buildings.
• Any application where rust protection is critical over time.

Simpson Strong-Tie PAB4-18-HDG Installation Overview

1. Attach the anchor bolt to the form board using the included steel template.
2. Ensure correct offset and projection according to your hardware.
3. Pour and cure the concrete.
4. Remove the template and fasten vertical elements.
5. Follow Simpson Strong-Tie’s official embedment and spacing guidelines for best performance.
