Simpson Anchors | SKU:
PAB4-24

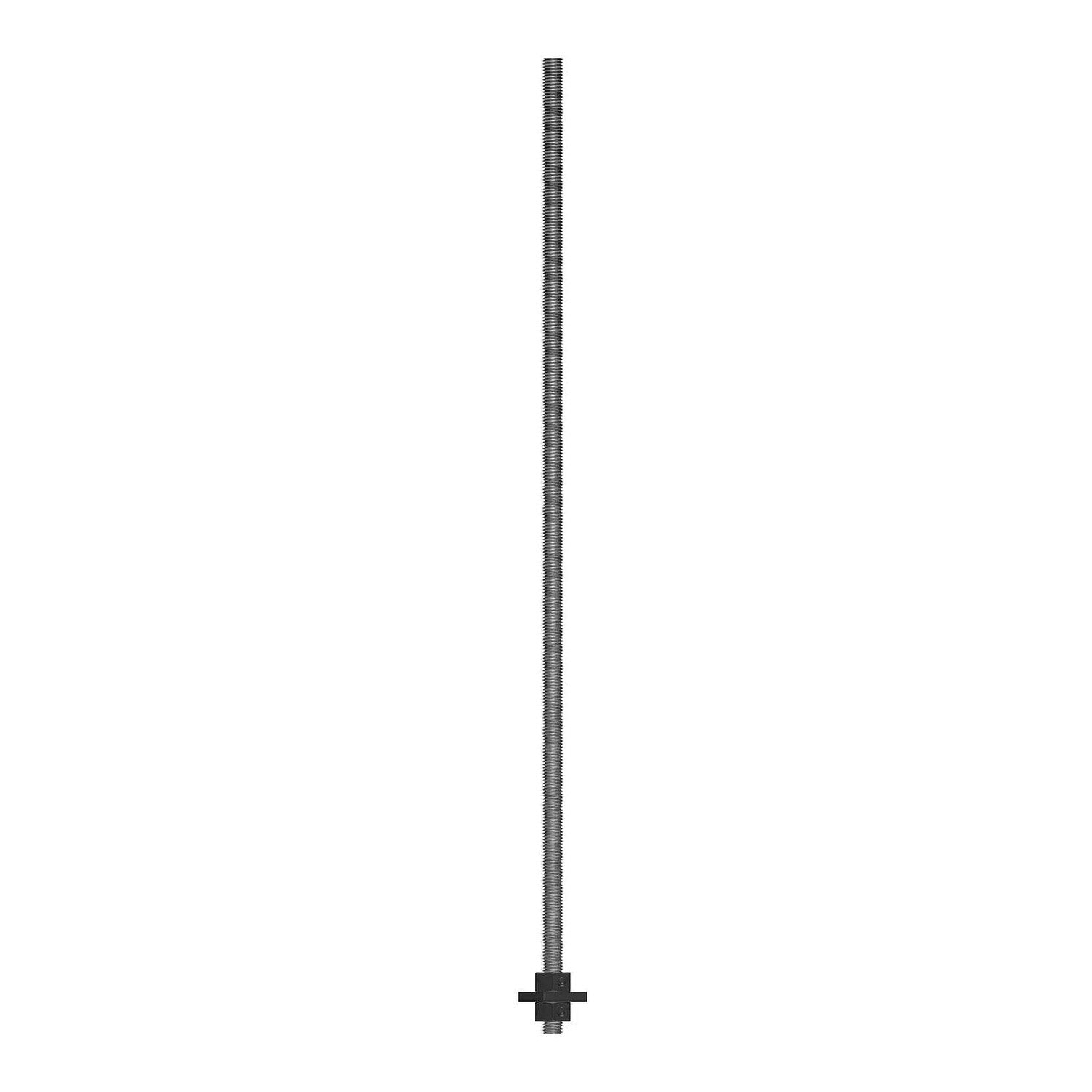

Simpson Strong-Tie PAB4-24 (1/2" x 24") Preassembled Anchor Bolt with Washer for Concrete Foundations
$22.51
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie PAB4-24 Description
The Simpson PAB anchor bolt is a cast-in-place anchor bolt designed for high-tension-load applications such as shearwalls and rod systems.
Simpson Strong-Tie PAB4-24 Includes
- (1) Preassembled Anchor Bolt with Washer
Simpson Strong-Tie PAB4-24 Features
- Available in diameters from 1/2" to 1 1/4" and lengths from 12" to 36" (in 6" increments)
- Available in standard and high-strength steel
- Head stamp contains the No Equal sign, diameter designation and an "H" on high-strength rods
Simpson Strong-Tie PAB4-24 Applications
- High-tension-load applications such as shearwalls and rod systems
- Concrete foundations requiring enhanced corrosion resistance
Simpson Strong-Tie PAB4-24 Installation Overview
- Chase the threads to use standard nuts or couplers or use overtapped products in accordance with ASTM A563
- Contact Simpson Strong-Tie for special orders or oversized couplers
Simpson Strong-Tie PAB4-24 Specifications
| Diameter | 1/2" |
| Length | 24" |
| Material | Galvanized Steel |
| Finish | Hot Dip Galvanized |
| Weight | 1.3 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
