Simpson Anchors | SKU:
PAB4-30

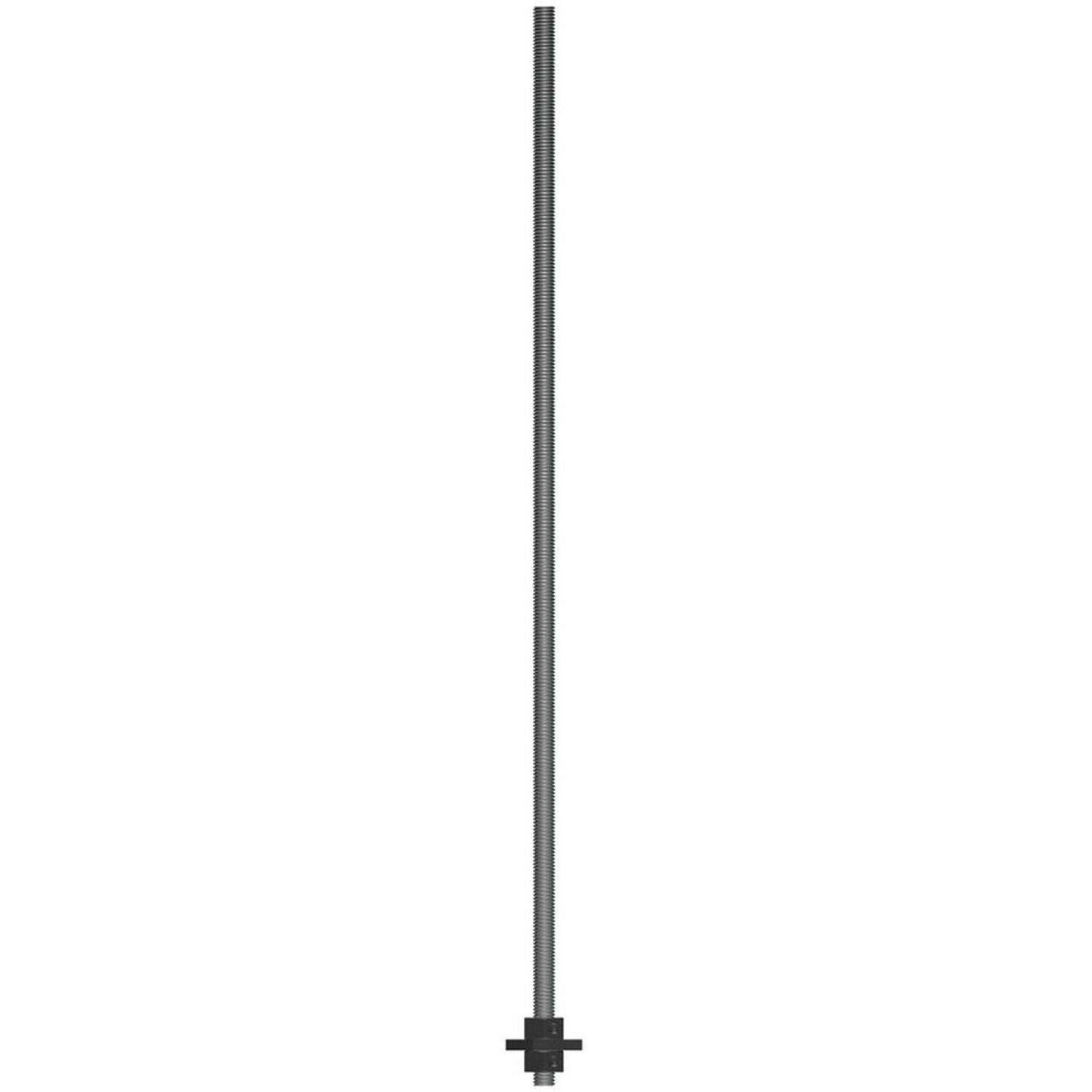

Simpson Strong-Tie PAB4-30 (1/2" x 30") Preassembled Anchor Bolt with Washer for Concrete Foundations
$24.12
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie PAB4-30 Description
The Simpson Strong-Tie PAB4-30 is a preassembled anchor bolt designed for concrete foundations, featuring a washer for secure installation.
Simpson Strong-Tie PAB4-30 Includes
- (1) 1/2" x 30" Anchor Bolt
- (1) Washer
Simpson Strong-Tie PAB4-30 Features
- Available in diameters from 1/2" to 1 1/4" and lengths from 12" to 36"
- Available in standard and high-strength steel
- Head stamp contains the No Equal sign, diameter designation, and an "H" on high-strength rods
Simpson Strong-Tie PAB4-30 Applications
- Multi-story high-wind construction
- Concrete foundation anchoring
Simpson Strong-Tie PAB4-30 Installation Overview
- Chase threads on HDG PABs to use standard nuts or couplers
- Use overtapped products in accordance with ASTM A563
Simpson Strong-Tie PAB4-30 Specifications
| Material | Standard Steel — ASTM F1554 Grade 36, A36 or A307; Fu = 58 ksi |
| Material | High-Strength Steel (up to 1" dia.) — ASTM A449; Fu = 120 ksi |
| Material | High-Strength Steel (1 1/8" and 1 1/4" dia.) – ASTM A193 B7 or F1554 Grade 105; Fu = 125 ksi |
| Finish | None or HDG |
NOTE: Ensure threads are chased on HDG PABs to use standard nuts or couplers, or use overtapped products as per ASTM A563.
